200W 300W 500W 800W custom cob led boards led cob light chips high CRI90RA for stage light and photography cob led light

Product Overview

Description

 Hi,Guys



Welcome to visit our zhouzhong Ever light,all of the cob led is design and produce from ourselves,if anything,just feel free let us know,OEM/ODM service also could be supplied.



Products main info.

Item NO.:ZF55-55-800w

Power:400W

Voltage:DC48-51V

Chips q'ty:1500LEDS

CCT:3000K/4000K/6000K

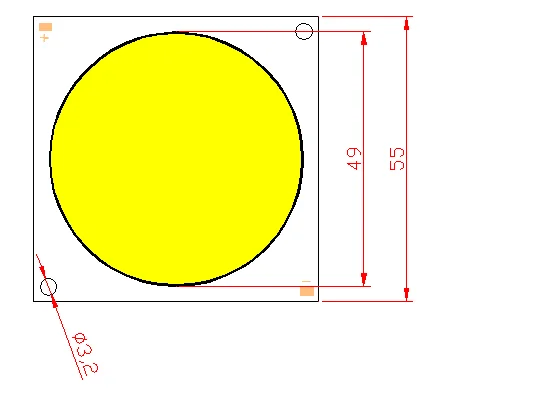

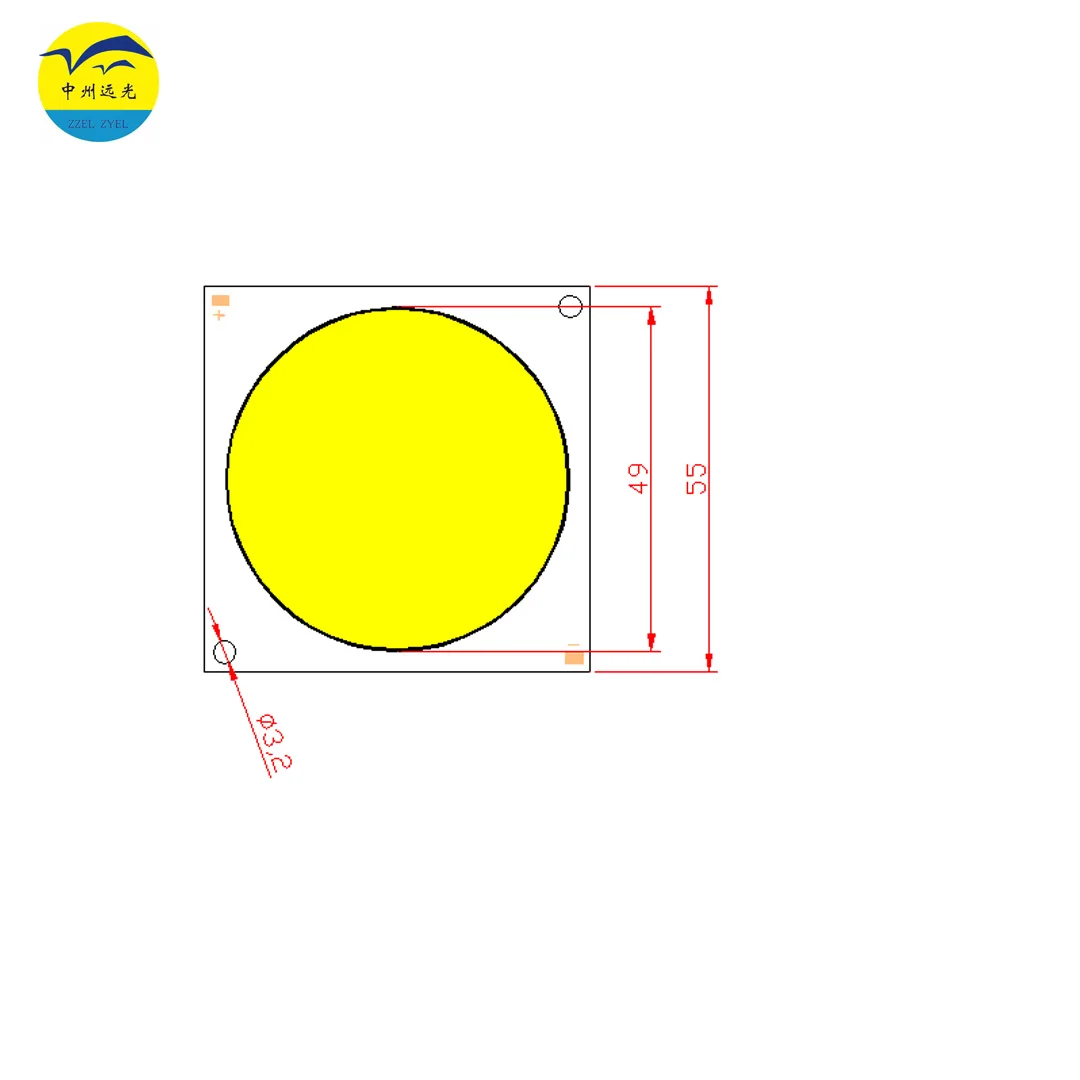

PCB dimension:55*55mm

Emitting area:dia.49mm

CRI: 80/95RA

Lumens:110-120lm/w

Waterproof:IP20

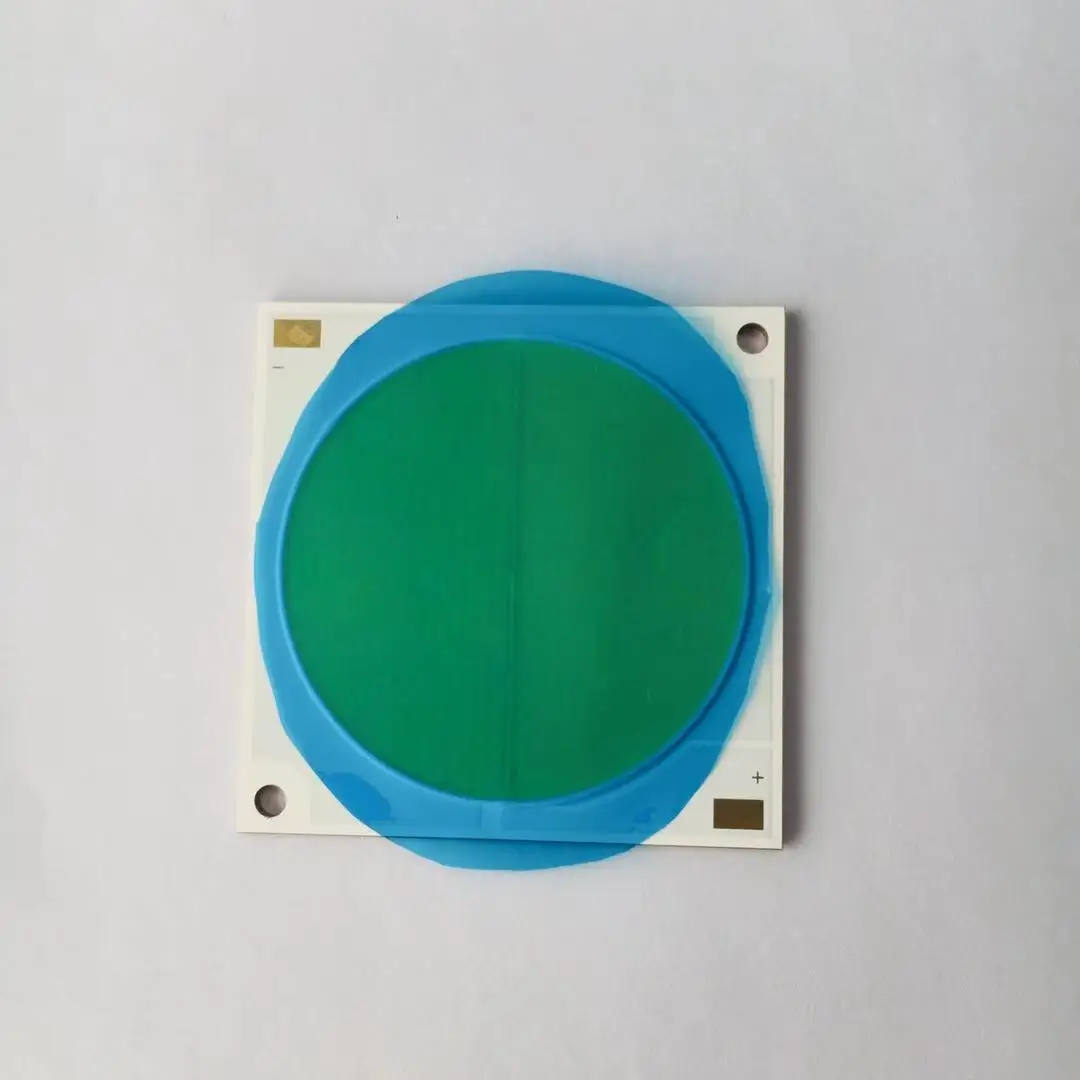

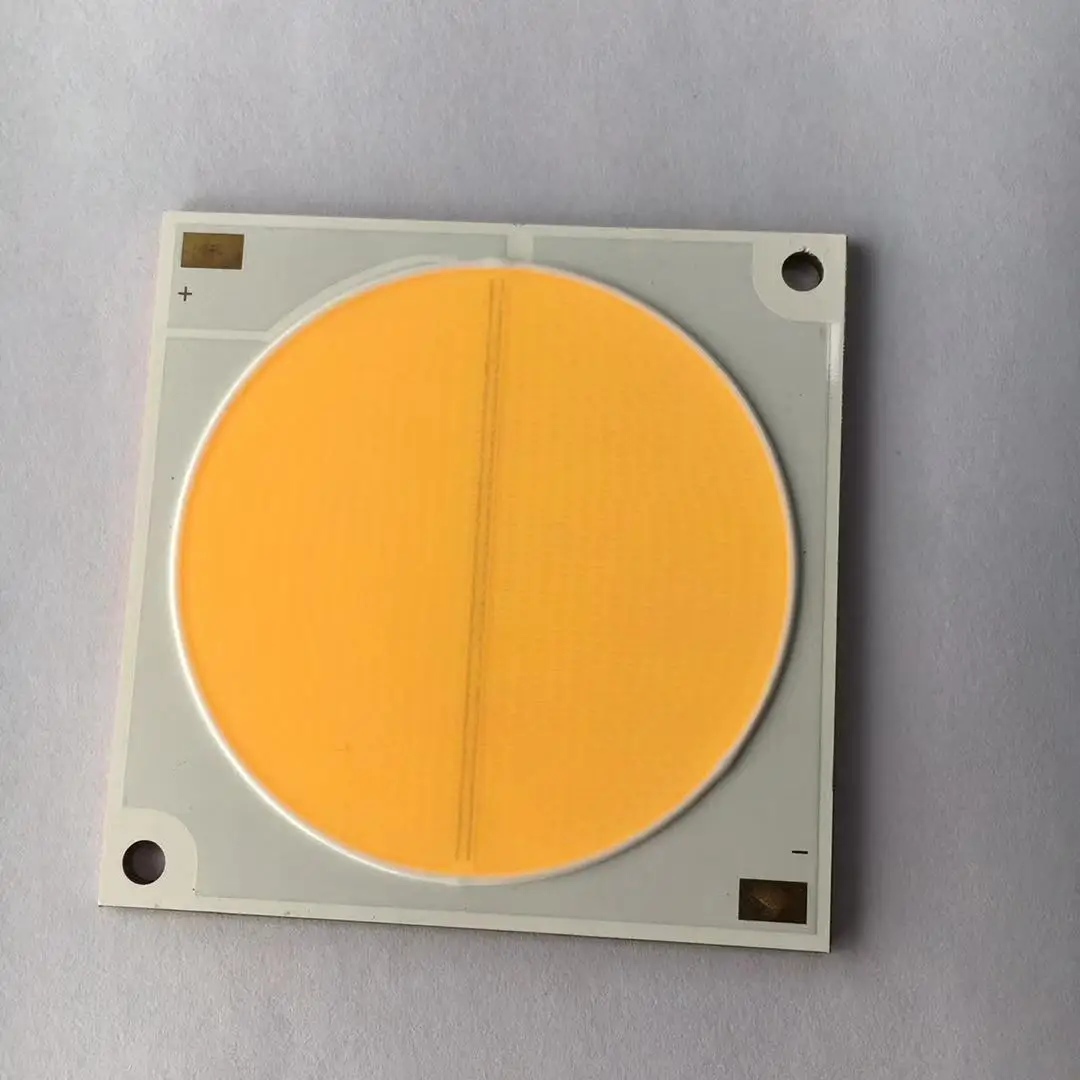

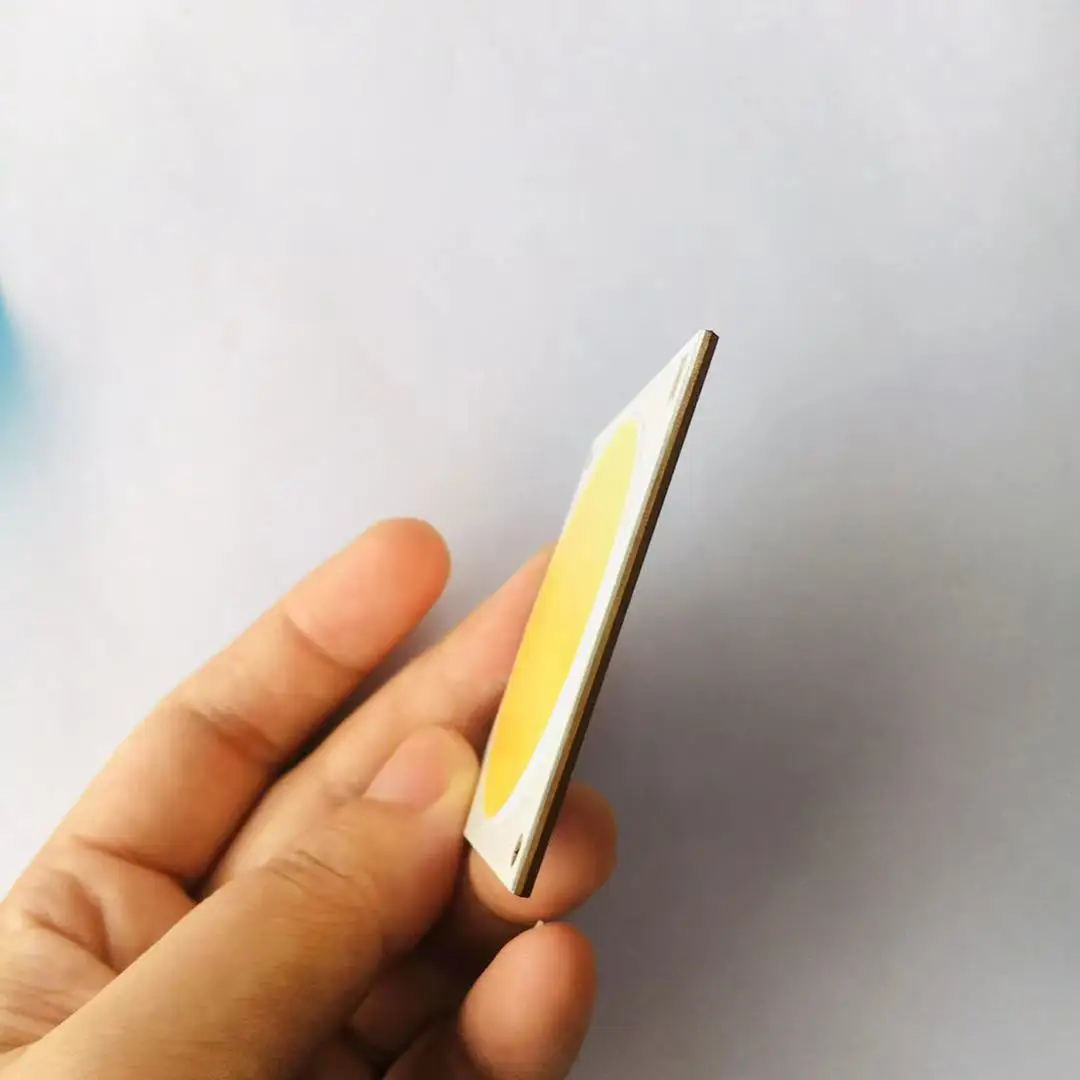

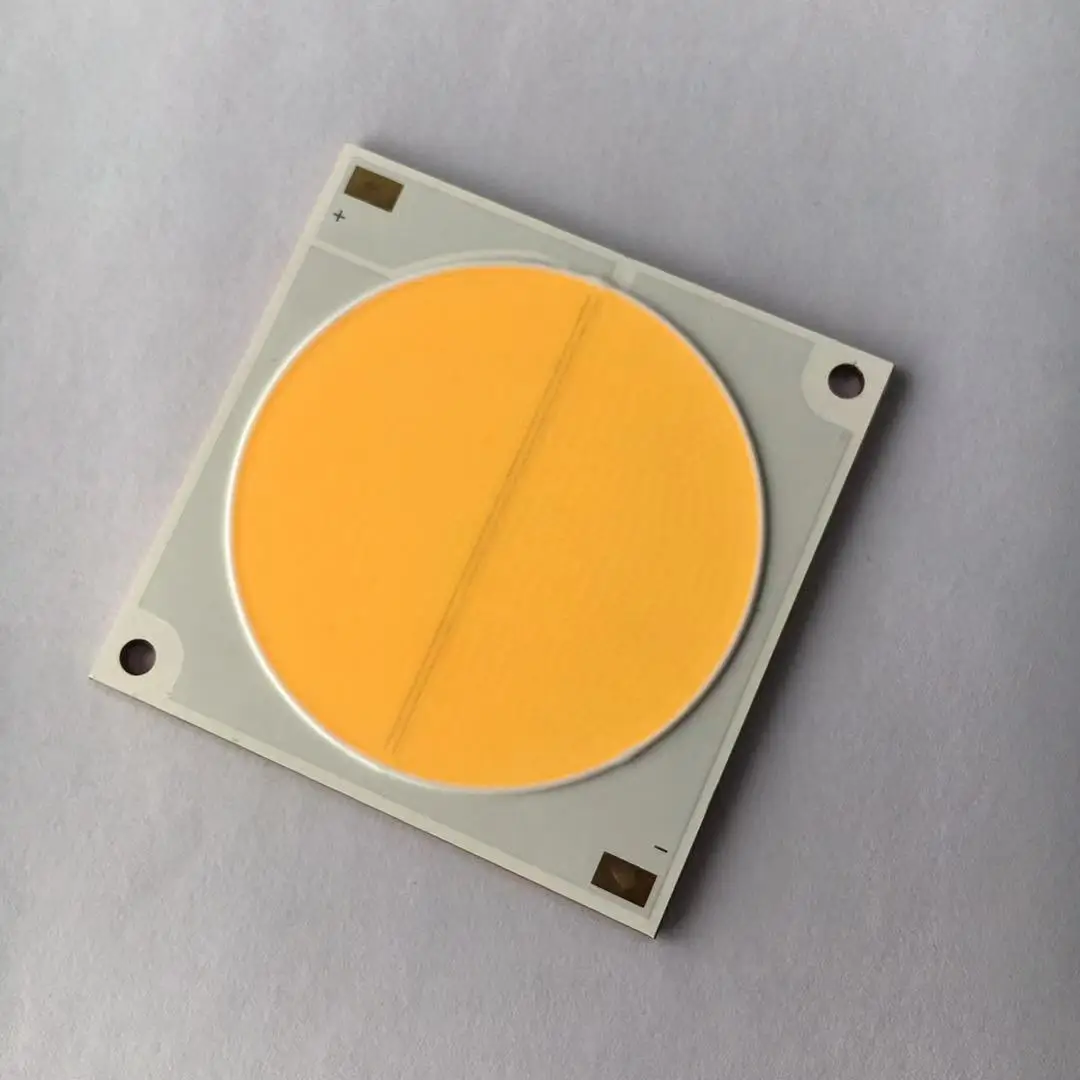

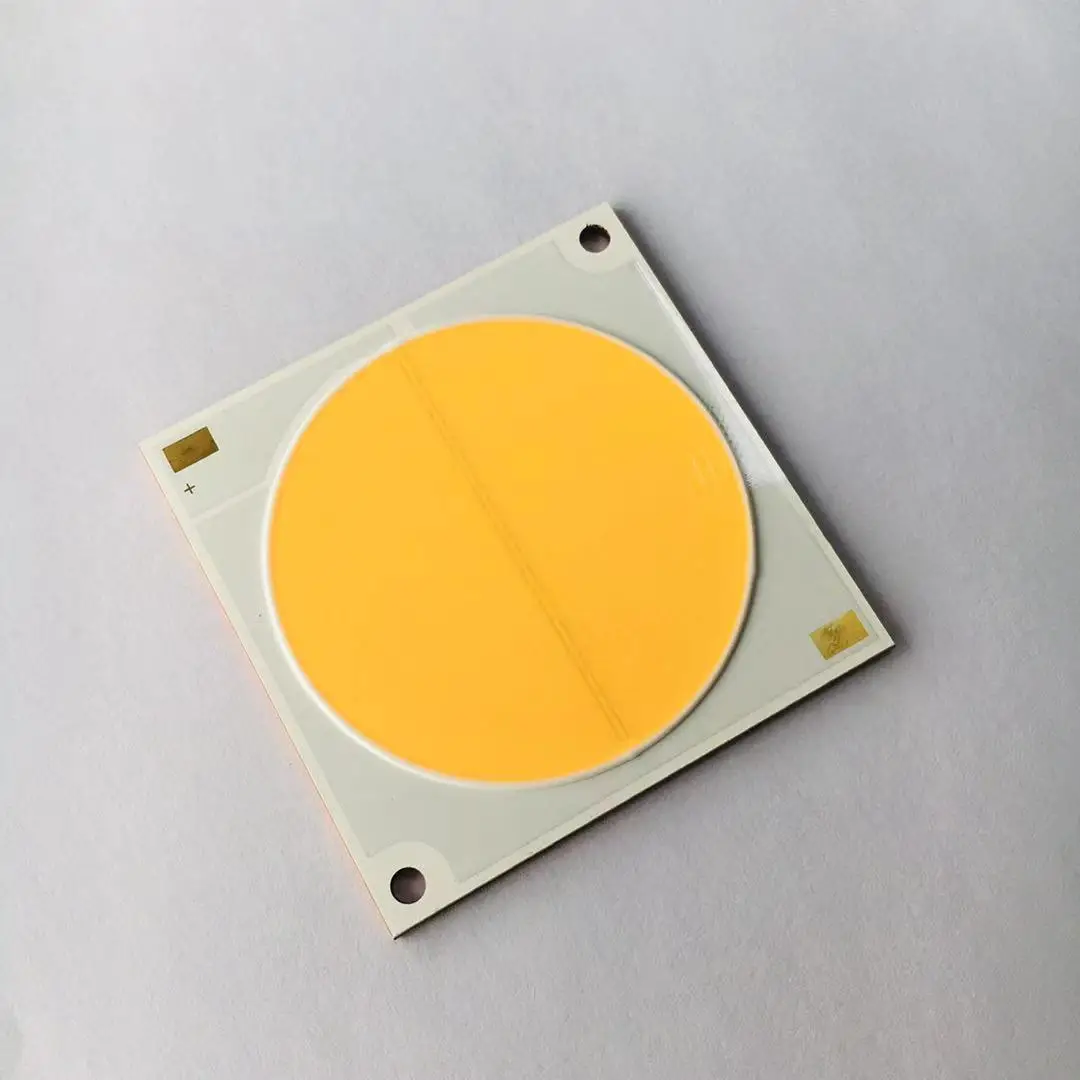

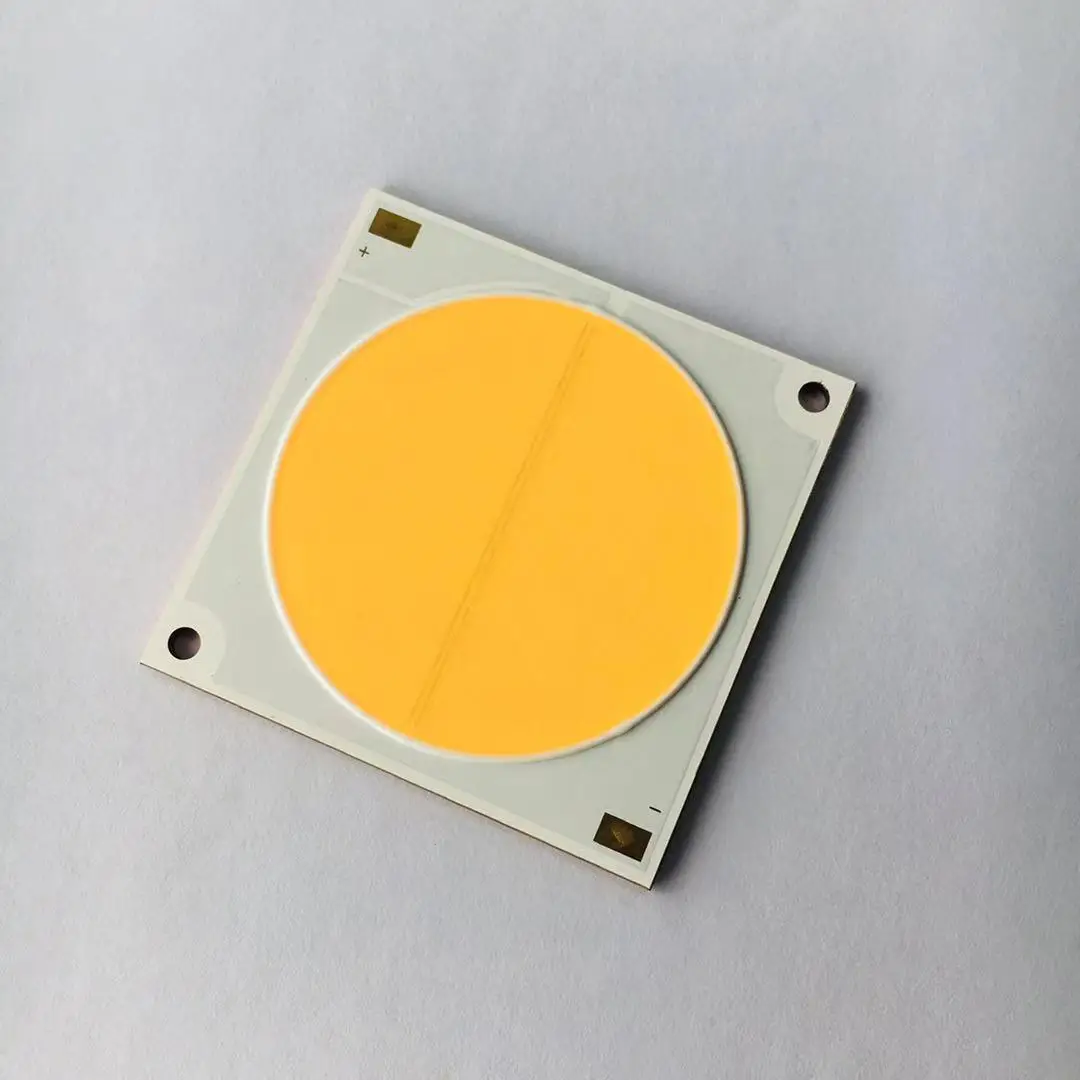

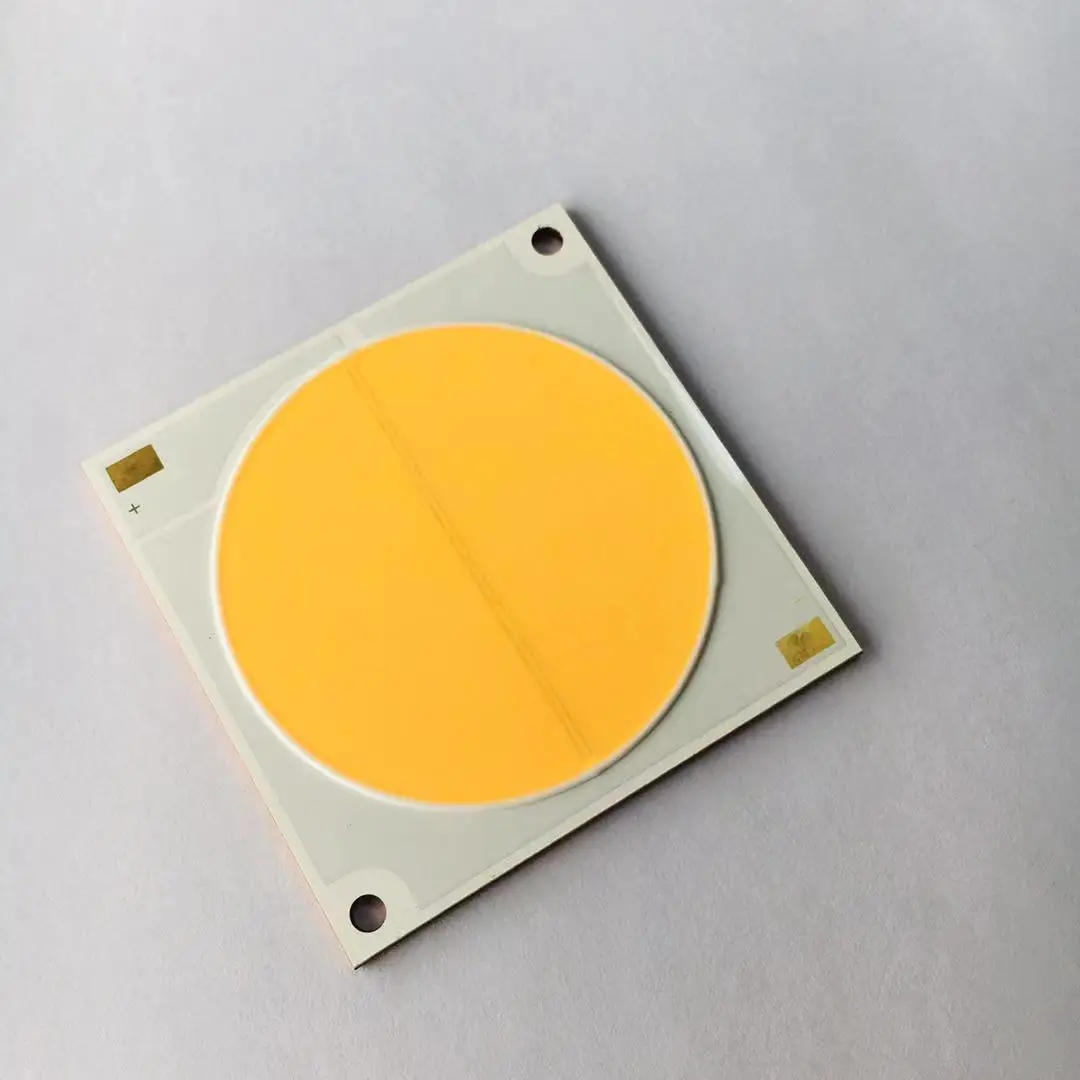

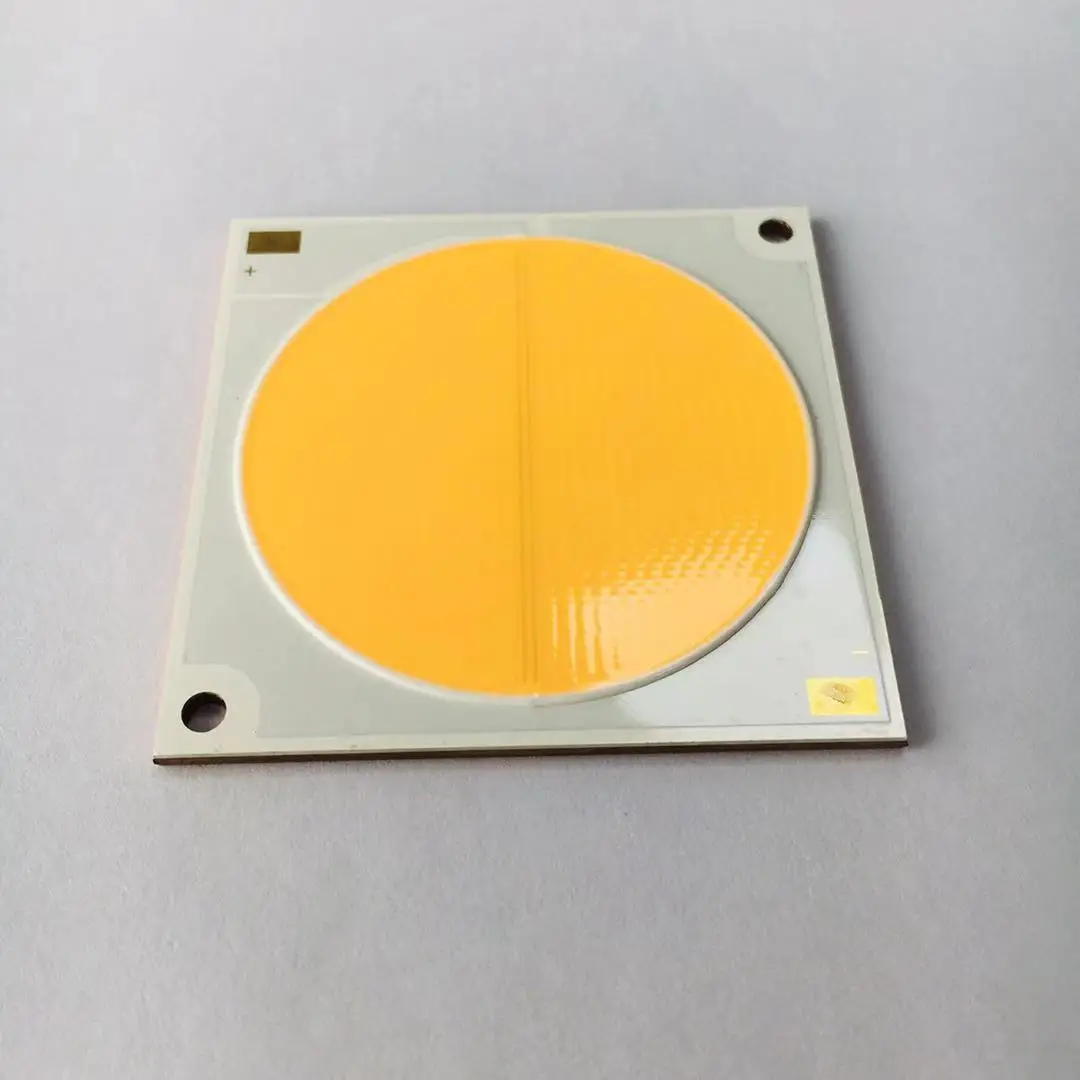

Products pic.





Power	Voltage	PCB dimension	Emitting area	Curent	CRI	CCT	Lumens
100w	30v36v48v	55*55mm	dia.49mm	3A	80/90ra		110-120lm/w
200w	30v36v48v	55*55mm	dia.49mm	6A	80/90ra		110-120lm/w
300w	30v36v48v	55*55mm	dia.49mm	10A	80/90ra		110-120lm/w
400w	30v36v48v	55*55mm	dia.49mm	11A	80/90ra		110-120lm/w
500w	30v36v48v	55*55mm	dia.49mm	15A	80/90ra		110-120lm/w
600w	30v36v48v	55*55mm	dia.49mm	20A	80/90ra		110-120lm/w
700w	30v36v48v	55*55mm	dia.49mm	23A	80/90ra		110-120lm/w
800w	30v36v48v	55*55mm	dia.49mm	26A	80/90ra		110-120lm/w
