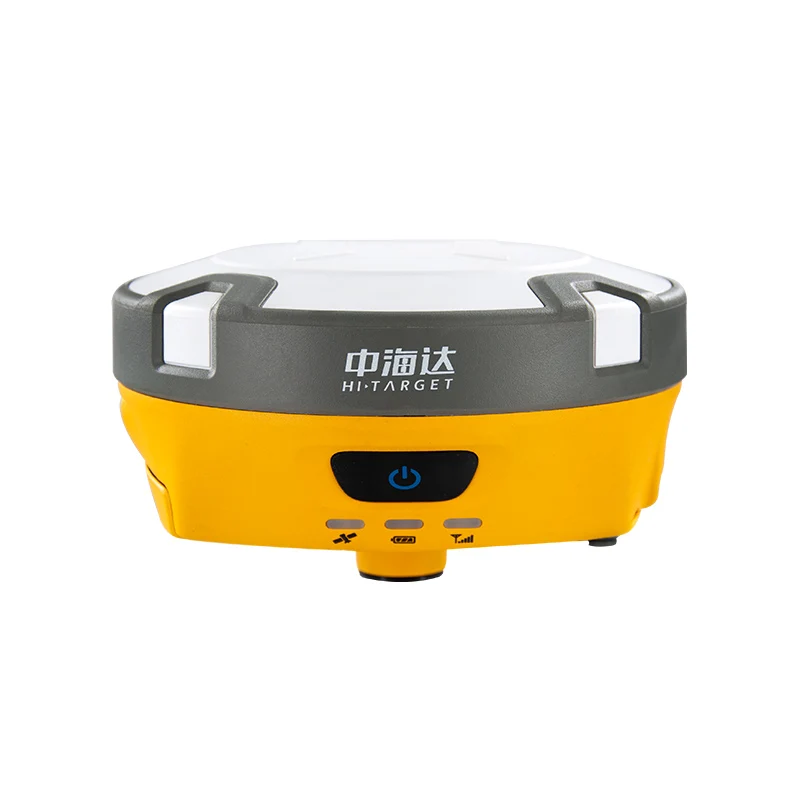

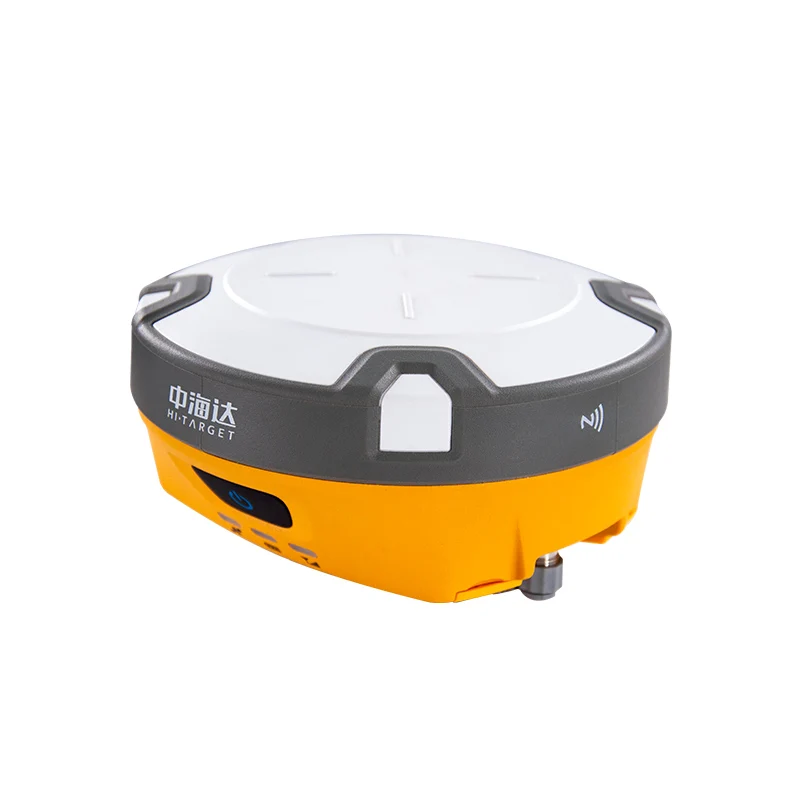

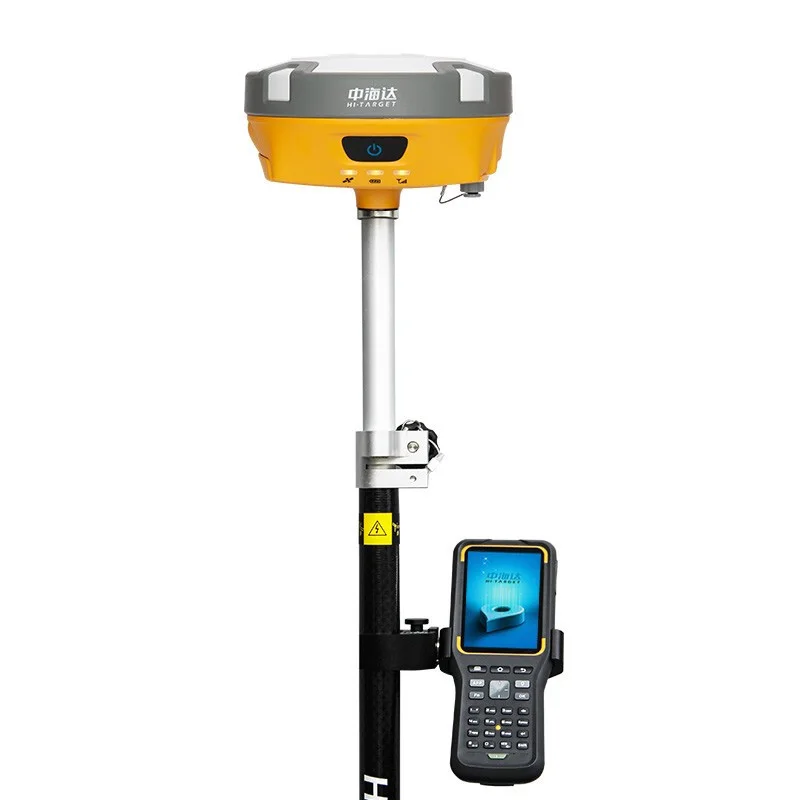

Advanced Hi target V90 V30 V60 Gps Rtk Price Differential Gps Rover Hi Target Gps V90 Plus
- Category: >>>
- Supplier: Chengdu Zhicun Space Surveying And Mapping Instrument Co. Ltd.
Share on (1600317006241):
Product Overview
Description
Products Description
Technical parameter
System kernel | Using multi-star system core | ||
Number of channels | 220 | ||
BDS | B1、B2、B3 | ||
GPS | L1C/A、L1C、L2C、L2E、L5 | ||
GLONASS | L1C/A、L1P、L2C/A、L2P、L3 | ||
GALILEO | GIOVE-A、GIOVE-B、E1、E5A、E5B | ||
SBAS | L1C/A、L5、QZSS、WAAS、MSAS、GAGAN | ||
Output format | ASCII: NMEA-0183, binary code | ||
Positioning output frequency | 1Hz~20Hz | ||
Differential support | CMR、RTCM2.X、RTCM3.0、RTCM3.2 | ||
Static format support | GNS, Rinex dual format static data | ||
Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points) | |||
Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points) | |||
DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm; Elevation accuracy: ±0.50m+1ppm | ||
SBAS positioning accuracy | 0.5m | ||
Initialization time | <10 seconds | ||
Tilt measurement | Within 30 °: ≤ 3cm | ||
Initialization reliability | ＞99.99% | ||
network | Built-in 4G full Netcom network communication | ||
WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service | ||
Bluetooth | Built-in Bluetooth | ||
Built-in transceiver | |||
Power | 1W/2W/5W adjustable | ||
frequency band: | 403MHz-473MHz | ||
Transmission rate | 19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable | ||
Power | 功率：5W/10W/20W/30W adjustable | ||
frequency band: | 450MHz-470MHz | ||
Transmission rate | 19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable | ||
panel | Single button | ||
Indicator light | Satellite lights, signal lights, power lights | ||
I/O port | 5-pin interface, USB interface, TNC interface, SIM card slot | ||
iPOWER smart balance technology, LBS, NFC | |||
Smart service | Voice broadcast, voice guidance, function self-check, DIY voice | ||
Remote Service | Remote upgrade, remote registration, remote data download | ||
battery | High-capacity lithium battery 5000mAh/piece (2 pieces), removable Single battery network mobile station continuously working for more than 10 hours | ||
Input voltage | DC 6~28VDC, with over-discharge protection | ||
size | Φ164mm×83.5mm | ||
weight | ≤1.4kg (including battery) | ||
Power consumption | 4.2W | ||
material | Shell is made of magnesium alloy material | ||
Environmental characteristics | Dust and water release | P68, can resist temporary immersion under 2 meters water, completely prevent dust from entering | |
Anti-fall | Resistance to natural drop of 3 meters | ||
Operating temperature | -40℃~75℃ | ||
Operating hand thin | |||
model | iand3.0 | ||
operating system | Android 6.0 operating system | ||
processor | 1.5G, quad-core processor | ||
storage | 2GB RAM+16GB ROM; support T-Flash memory card, support up to 128GB | ||
display | 3.7 inch color capacitive touch screen | ||
enter | Physical full keyboard | ||
Cellular mobile | Built-in 4G full Netcom, dual card dual standby | ||
WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service | ||
Bluetooth | Built-in Bluetooth | ||
NFC | Support NFC IGRS | ||
USB | USB Type C interface，Support OTG function | ||
Power performance | Built-in battery | Removable lithium battery 3.7V/5200mAh, supports fast charging (charging time is less than 3 hours) | |
Working time | A single battery can work continuously for 15 hours | ||
Physical properties | size | 208mm×83mm×24mm | |
Weight | 0.44g (battery) | ||
Operating temperature | 20℃C-+55℃ | ||
Packing and shipping
Company Profile
Chengdu Zhicun Space Surveying and Mapping Instrument Co.Ltd inJanuary 2019,is a professional manufacturer andexporter that is concerned with the sale, development and production ofSurveying instrument. We are located inChengDu, with convenient transportation access. All ofour products comply with international quality standards and are greaappreciated in a variety of different ChengDu markets throughout the worlde have over50 employees, an annual sales figat exceeds USD6000000 and are currently exporting20% of our production worldwide.Ourwquipped facilities and excellent quality control throughout all stages of productionabto guarantee total customattactionAs a result of our high quality products and outstanding customer service, we have gained a global sales network reaching(Indonesia.Southeast Asia.South Asia.Africa.Russia.Middle East)you are interested in any of our products or would like to discuss a custoorder, please feel free to contact us.e looking forward to forming successfubusineselationships with new clients around the world in the near future.
Certifications
Exhibition
FAQ
Q1.What kind payment method we accept?
A1.T/T, Western Union, Trade Assurance on Alibaba, Moneygram .
Q2.How can you guarantee payment safety ?
A2.Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE
service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
Q3.What kinds of shipment for goods and how long time it takes ?
A3.Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea,by air and other methods. Shipping time is 3-5 days after the paments are received.
Q4.Does your company ship battery or not ?
A4.Our company can receive battery order and ship to customer normally, except for a few special countries
Q5.Do you have other items not displayed on your website ?
A5.Yes, our company supplies full range survey products. If you are looking for product not whowed on
our website. Please contact us freely. We will reply you in time.
our website. Please contact us freely. We will reply you in time.
Q6. Can you do a custom logo on the products?
A6. Yes. We can print your logo on our products and boxes.
