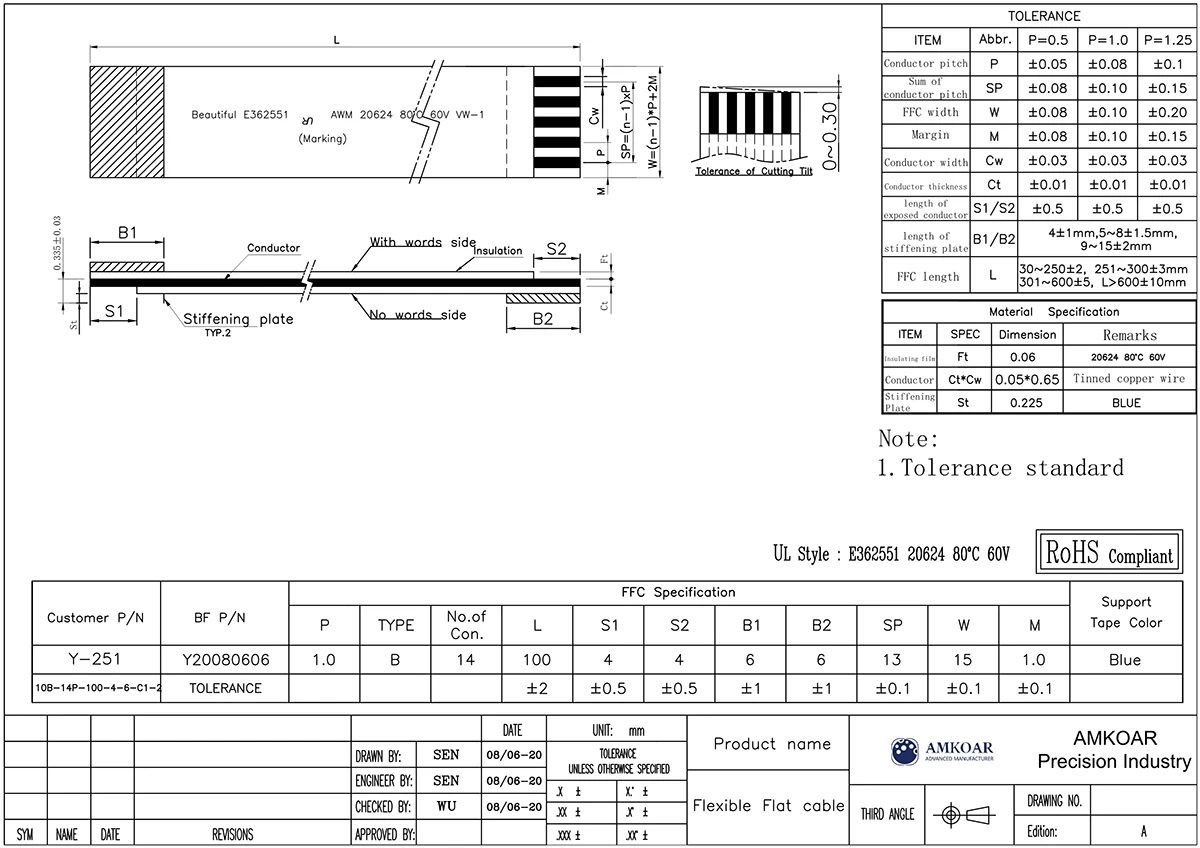

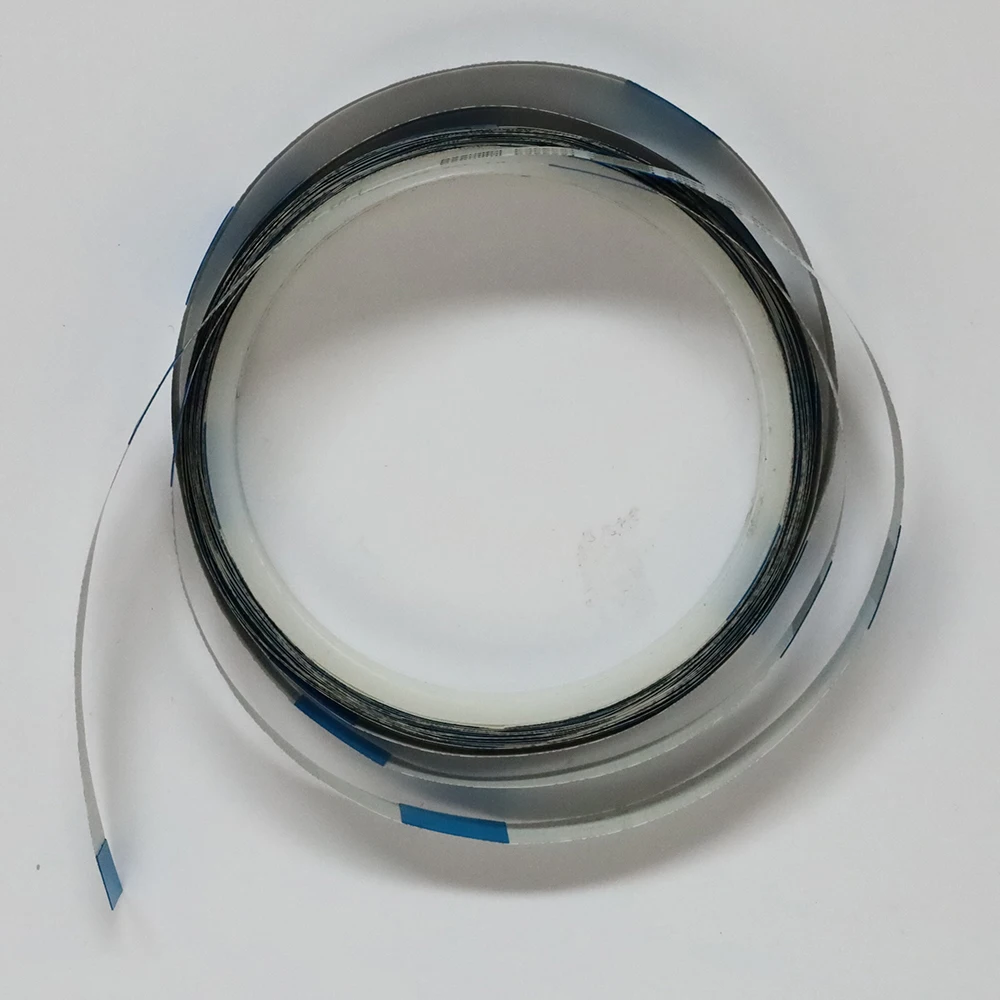

Customized 10 pin 05mm type a ffc cable 1MM pitch FFC cable with conductive cloth flexible flat cable
| Items | FFC Assembly Basic Attribute | FFC Assembly Parameter | |||
| ID | Model No. | Y20080606 | |||
| Flat Wire | Conductor | Materials | Tinned Copper | ||
| Conductor Gauge | Cw*Ct=0.65*0.05mm | ||||
| Resistance (Ω) | <2.2Ω/m | ||||
| Freeze Frame Voltage (V) | 60V | ||||
| Pitch (p) | 1 PH | ||||
| Pin Number | 14 pin | ||||
| Electroplating Method | Tinned | ||||
| Electroplating Thickness | |||||
| Span (Pt) | Cw=13 mm | ||||
| Margin (M) | M=1 mm | ||||
| Flammability Standard | UL sub.758 VW-1 | ||||
| PET Film | Materials | Polymer-based | |||
| Thickness | 0.06 T | ||||
| Printed (can be customized) | Beautiful E362551 AWM 20861 105℃ 60V VW-1 | ||||
| Absorbing material | Materials | Polymer-based | |||
| Width | NO | ||||
| Length | NO | ||||
| Thickness | NO | ||||
| Conductive Cloth | NO | ||||
| Acetate Cloth | NO | ||||
| Damping Cotton | NO | ||||
| Sound-absorbing Cotton | NO | ||||
| Resistance Temperature Film | NO | ||||
| Foam Glue | NO | ||||
| Connector | Connector Basic Attribute | Connector A Parameter | Connector B Parameter | ||
| Connector Brand | Qiaoyu | ||||
| Pin Number | 51pin | ||||
| Pin Pitch | 0.5PH | ||||
| Support Tape | Materials | Polyester | |||
| Length | 6mm | ||||
| Thickness | 0.06 T | ||||
| Items | FFC Important Attribute | FFC Parameter | |||
| Mechanical Performance | Stripping Strength | The puller conducts a stripping test at a speed of 25+/-3mm/min | |||
| Insertion Force | 20gf-Min | ||||
| Withdrawal Force | 20gf-Min | ||||
| Repeated Insertion/Withdrawal | Insert and withdraw 20 times with suitable FFC connector at a speed of 10 times/min without damage to the appearance | ||||
| Flame Retardance | VM-1 PASS | ||||
| Bending Test | 100000 times (back and forth distance 10mm, 180 times/min) | ||||
| Flexible Type | Small volume, high precision, good flexibility, better weldability, and easy to bend | ||||
| Aging | Up to 60℃ at a speed of 22℃/min; down to the normal temperature at a speed of 2°C/min and maintain 96 h | ||||
| Winding Resistant | 100000 times (back and forth distance 10mm, 180 times/min) | ||||
| Abrasion Resistant | Travel 100mm at 60 times/min with a load of 600±5g and conduct abrasion test 10000 times without damage to the appearance. | ||||
| Bending | Manually bend FFC 20 times at 180° | ||||
| Electrical Performance | On-Resistance | DC3V,0.1mA no short circuit | |||
| Contact Resistance | 0.38MΩ | ||||
| Insulation Resistance | About DC 500 v, 1000MΩ | ||||
| Rated Voltage | There was no breakdown phenomenon when 500V AC and 5mA AC were added | ||||
| Rated Current | ≥0.5A | ||||
| Dielectric Strength | Increase the voltage to 1500V gradually in 10s and maintain 1 min. Then decrease the voltage to 750V in 10s. No flash line or breakdown. | ||||
| Environmental Adaptability | Salt Spray Test | Test time: 48H; saltwater concentration: 5% ; pressure barrel temperature 35±5℃; pressure barrel: 3kg | |||
| Moisture Resistance | Place in the air at 40±2℃ and relative humidity 90-95% for 96 hours, and then measure at room temperature for 0.5-2 hours | ||||
| Cold Resistance | Place in the air at -40±2℃ for 96 hours, then measure at room temperature for 0.5-2 hours | ||||
| Heat-resistance | Place in the air at 80±2℃ for 96 hours, then measure at room temperature for 0.5-2 hours. -No damage | ||||
| Temperature Cycling | 40℃→+25℃→85°C→+25℃ x 5 Cycle 40℃:4H / 25℃:0.5H / 85℃:8H | ||||
| Storage Environment | 15°C~25°C | ||||
