Product Overview

Description





Product navigation




Product Paramenters

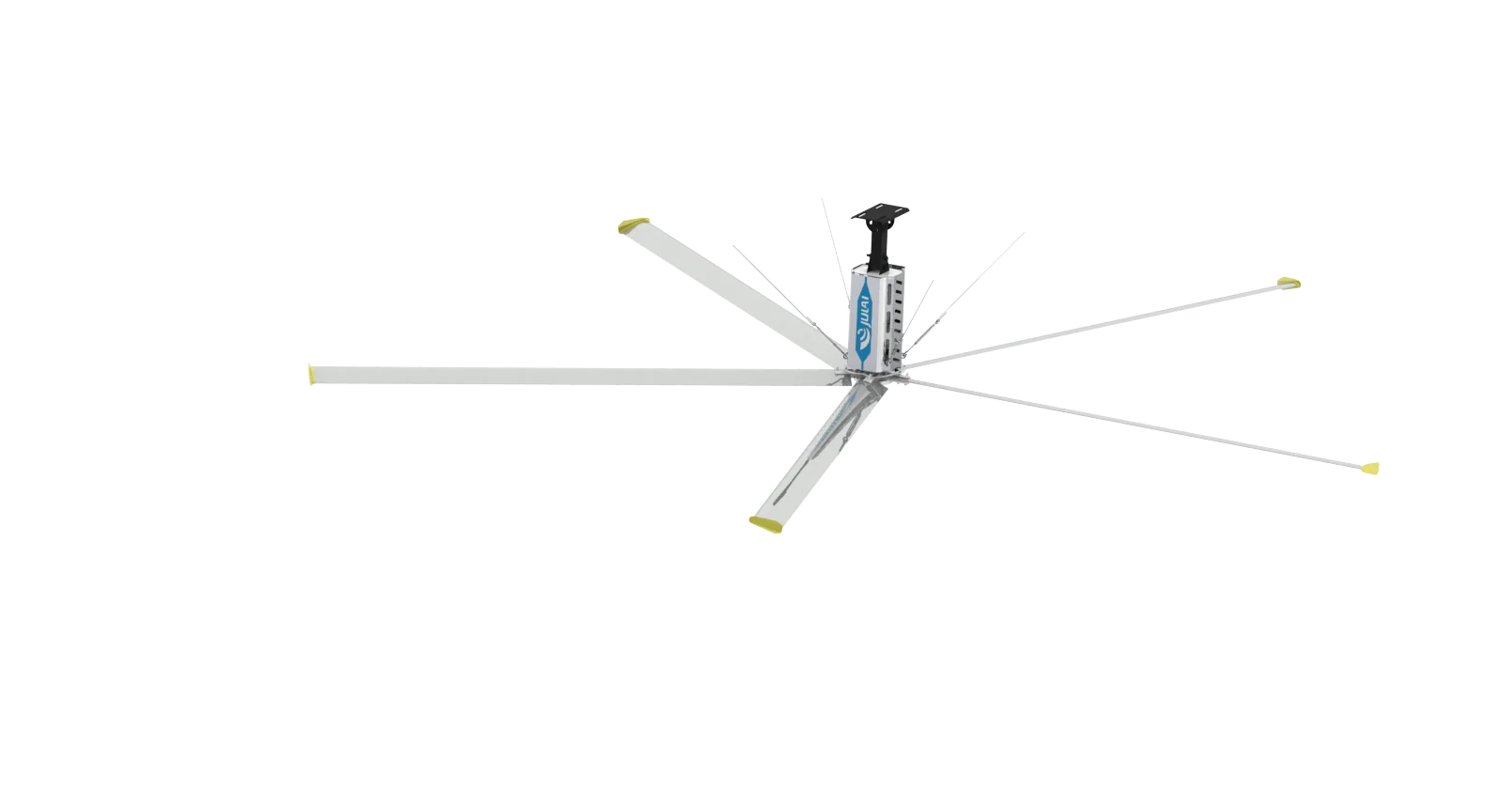

"Fengbawang" series is a large ceiling fan with a diameter of 7.3 meters, independently developed by Julai Ventilation based on the principle of aerodynamics and modern aviation wing technology! The motor is imported from Lentz, Germany. It has the characteristics of low speed, large air volume, low noise and low energy consumption. A large range of imitation natural breeze, no dead Angle of air circulation, play a dual function of ventilation and cooling, effectively solve the tall space hot and humid,air stratification, smoke and other problems, suitable for industrial, commercial, animal husbandry and many other fields.




Blade diameter
24ft(7.3m)
20ft(6.1m)
18ft(5.5m)
model
JL-HVLS-F1A5A73
JL-HVLS-F1A5A61
JL-HVLS-F1A5A55
power(KW/hp）
1.5/2.0
1.5/2.0
1.5/2.0
speed（rpm）
0-57
0-65
0-75
Air volume（m³/min）
14800
13500
12000
cover（m2）
1850
1480
1200
self-respect（kg）
127
115
110
noise（dBA）
43
43
43


Details Images




Wing technology
The air will streamline the end of the fan blade in motion, creating a vortex. The installation of winglets eliminates this energy
loss, stabilizes fan operation, and brings benefits.


Blade technology
High-strength aluminum magnesium alloy for aviation uses powder spraying process and salt spray performance test to ensure the corrosion resistance of product components, aerodynamic blade profile and up to three sets of reinforcement reinforcement support
systems inside the blade to avoid the tip sag of the blade and the fatigue loss of the blade to the connected components.


The plug-in technology
The outer clamped plug is made of aviation hard aluminum 7075 for aging heat treatment to ensure strength and toughness. Certified by quality inspection department, it has been subjected to more than one million fatigue tests to avoid safety problems caused by
long-term metal fatigue.


Installation Instructions








Company Profile












FAQ




Q: Are you a factory or a trading company
A: We are a factory specializing in industrial ceiling fans. Headquartered in Chongqing, China, we are your direct fan supplier.

Q: Where is your fan used?
A: HVLS fans are widely used in factories, supermarkets, farm warehouses, restaurants, etc


Q: Is it for electrification?
A: Yes, it's powered by electricity, but only 1.5 kilowatts or less, which is very energy efficient.

Q: How long is the lead time?
A: We have fans in stock, order less than 30 sets, 5-7 working days


Q: How long is the warranty?
A: We offer a one-year warranty to guarantee quality. Most importantly, it has a service life of 12-15 years.

Q:What's the price?
A: It depends on your quantity and requirement, but the price must be reasonable.

Q: what are the main benefits of this HVLS fan?
A. Three-dimensional natural wind with a wind speed of 1-3m /s can significantly improve the comfort of employees;
B. Energy saving, the most economical start-up and operating costs;
C. The coverage of Open Series fans with a diameter of 7.3m(24 ft) is equivalent to 50 small 0.75m(2.5 ft) fans.
