4Kx2K@30Hz HDMI1 Video Capture Card with audio separation

Product Overview

Description

USB acquisition card



1. Description

USB capture card is small in size, popular in appearance design, small and beautiful in appearance, easy to carry, can plug and play, support hot plug and pull, with advanced USB 2.0 high-speed interface, can capture high quality dynamic and static pictures, support hot plug and pull. Video and audio signal capture, timing recording, real-time network video and audio live broadcast.







2. Features

l HDMI1.4, 4K@30Hz input;

l HDMI ring out resolution up to 4K@30Hz;

l Type - C output up to 1920 * 1080P@30Hz;

l Support audio output and microphone input;

l Simple and convenient installation, plug and play, do not need to set up.



3. Specifications



Parameter		Description
Video	input interface	HDMI
	Support agreement	HDMI 1.4; HDCP 1.2
	Maximum pixel clock	225MHz
	Supports input resolution	Up to 4K@30Hz
	Ring out	HDMI
	Ring out resolution	Maximum 4K@30Hz
	Output interface	Type-C
	Output resolution	Up to 1920*1080@30Hz
Other	Other maximum input cable length	Less than 5 m, at 1920x1080@30Hz
	Power	5V
	Temperature	Operating:-5℃ ~ +70℃
	Humidity	Operating:5% ~ 90%

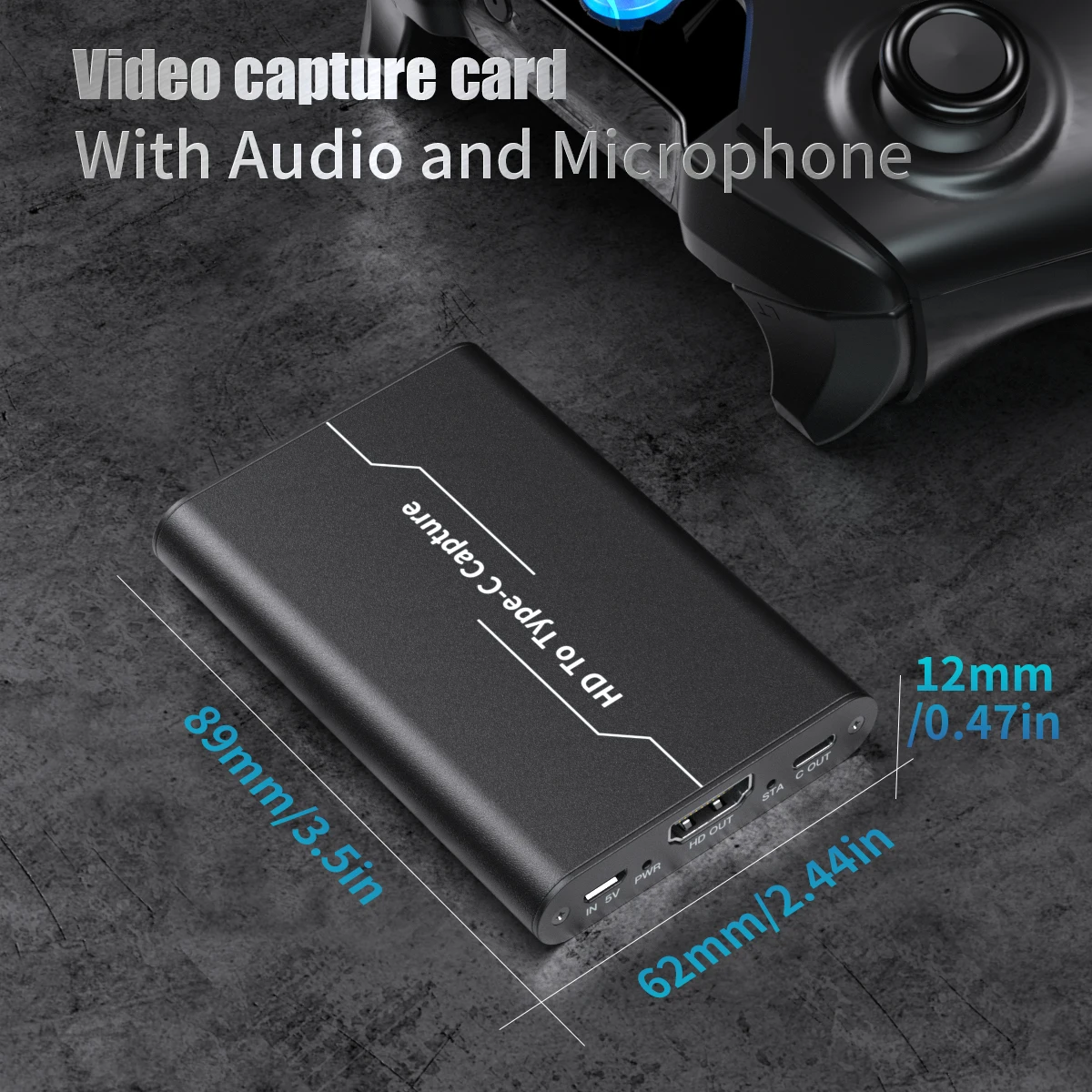

	Size	89*62*13mm
	Warranty	1 year free warranty

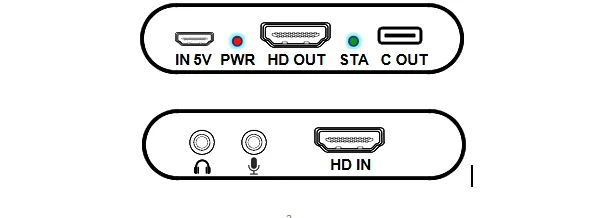

4. Panel

Port name	Description
HD IN	HDMI signal input
HD OUT	HDMI signal output
C OUT	Type-C output
	Audio output
	Microphone input
IN 5V	The power input
LED indicator	Description
STA	Ring out the signal light
PWR	System power indicator

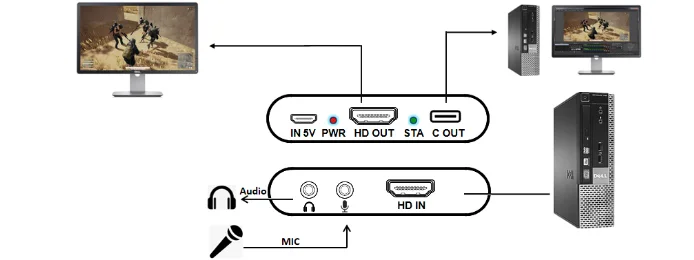

5. Diagram

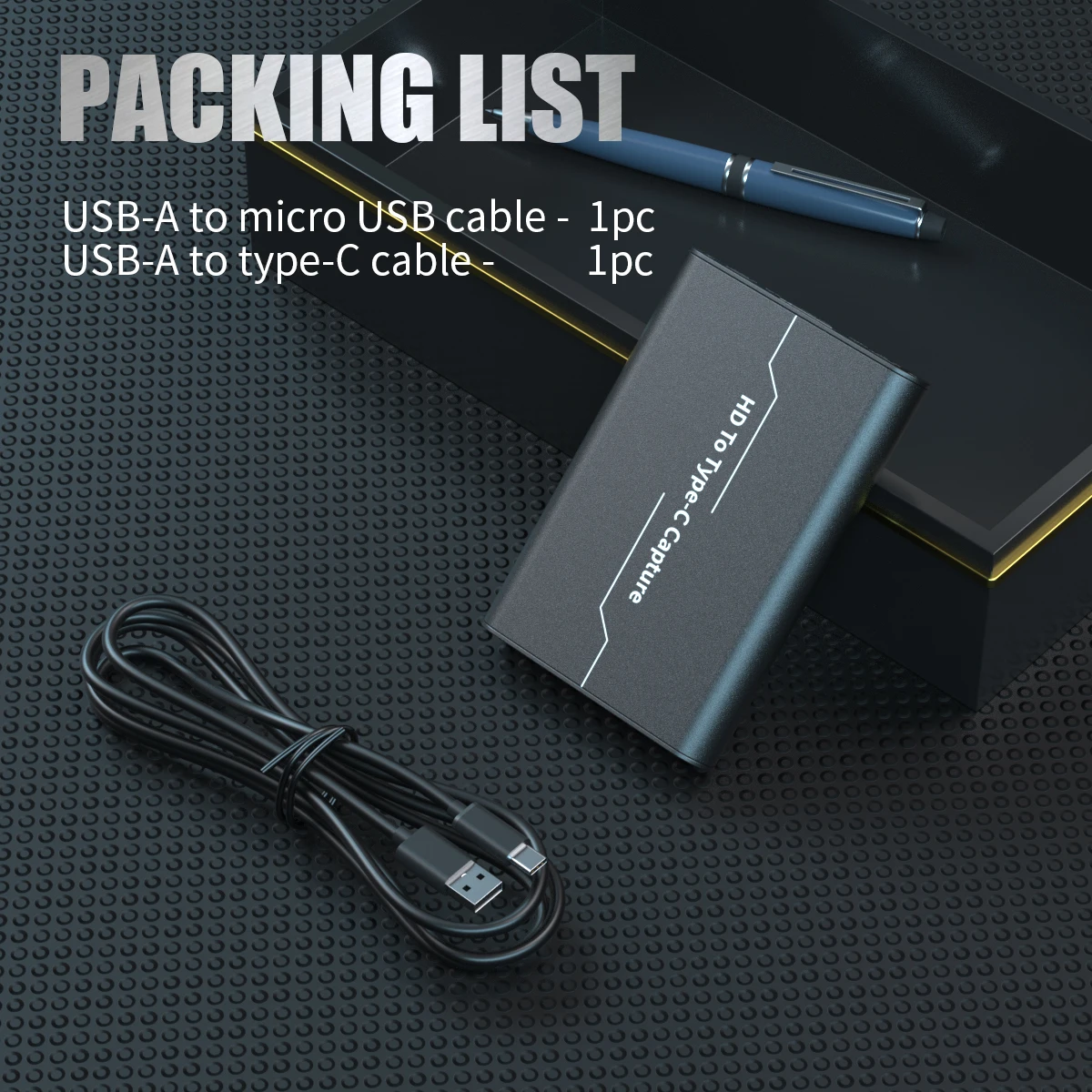

6. Package list

l USB capture card                        .  1 pc

l Micro USB power cord                    1 pc

l USB-A to Type-C cord                     1 pc

l User manual                           .          1 pc
