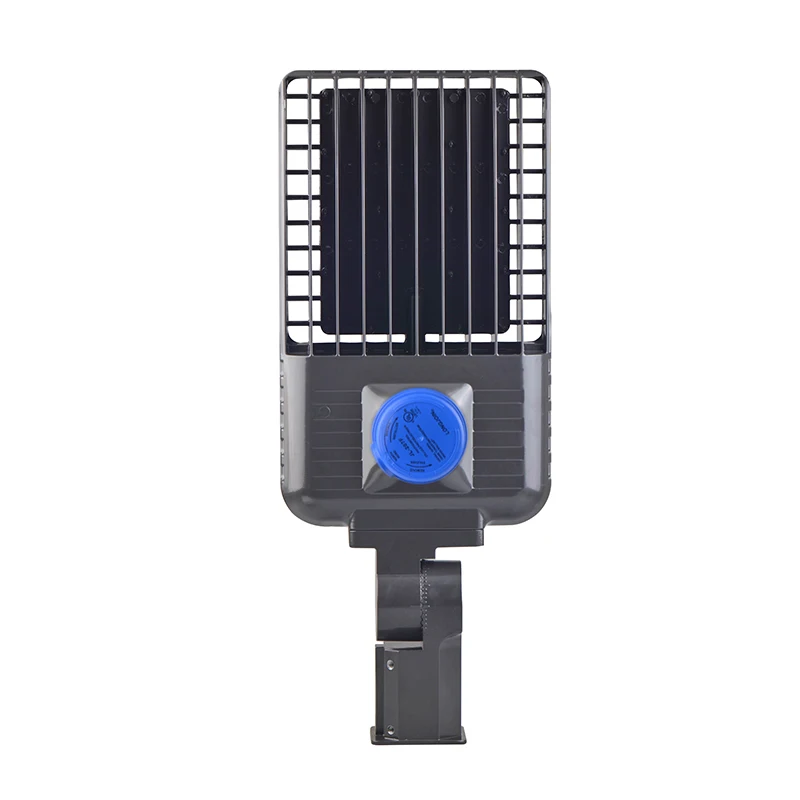

street light electric street light cover road side lights (1600317177656)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description





Product Description


Benefits
1.Replace conventional shoebox light.
2.Precision die cast aluminum housing.
3.Durale chip and fade resistant power coat finish.
4.Easy installation.
5.CE ROHS listed.
6.California new policy request shoebox have to need 3 step dimming with sensor.


Features
Example:BB-LD-100W-S-A-DW



1.Aluminum die casting heat sinks is good for heat dissipation.
2.It's major to replace the conventiona shoebox light.
3.Green ,energy saving,long and relialble life of 50,000 hours.
4.No RF interference ,no IR / UV radiation,no mercury pollution.
5.Wide colour availability in degrees Kelvin(K),2700-6700K.
6.Streamline exterior design,beautiful appearance.
7.Environment friendly ,energy saving (70%~80%).
8.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.

Application
1.Area lighting,street lighting.
2.Architectural decorative lighting.
3.Industrial lighting.
4.Stadium lighting.
5.Port wharf lighting.
6.Roadway lighting.




California new policy request shoebox have to need 3 step dimming with sensor.


Specification


Power
 100W
150W
185W
200W
240W
300W
 Model
BB-LD-100W-S
BB-LD-150W-S
BB-LD-185W-S
BB-LD-200W-S
BB-LD-240W-S
BB-LD-300W-S
Replacement
 HPS 300W
 HPS 400W
 HPS 600W
 HPS 700W
 HPS 700W
 HPS 1000W
Luminous Flux
13000lm
19500lm
24050lm
26000lm
31200lm
39000lm
 Light Source
SMD LED
Luminous Efficacy
 >130lm/w
IP
65
Voltage
100-277VAC/50-60HZ 100-480VAC available
CRI
>80
Remark
Model suffix can add X,X can be blank,A,B,or C,A means no photocell sensor,B means photocell sensor,C means motion sensor.
 Operation Temp.
 -40 to +45℃
 CCT
 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW
 Life Span
 50,000 hours at 25℃
Color
Black,white,bronze,silver
With sensor
Timer control,motion sensor ,photocell sensor ,3 in 1 dimming,wifi zigbee connect ,photocell + timer control ,3 step dimming,GPRS
,3G/4G ,bluetooth ,PLC and smart motion sensor.
Microwave sensor default setting
Someone brightness 100% ,microwave sensitivity 75% ,hold time 5 minutes,start illumination 50 LUX,continuous brightness 30% ,the
duration of 30 minutes.
PF
>0.95
Warranty
5 Years


Dimensional Drawing


Luminous Intensity Distribution

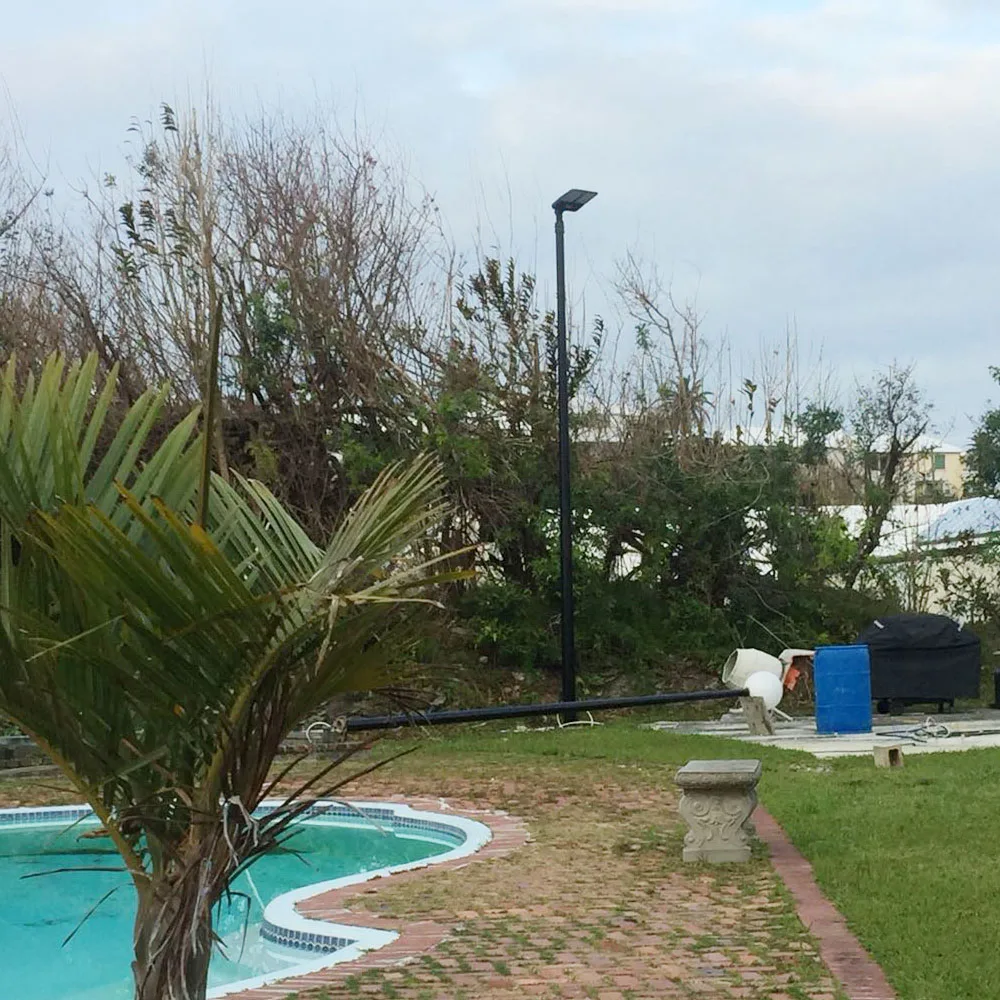

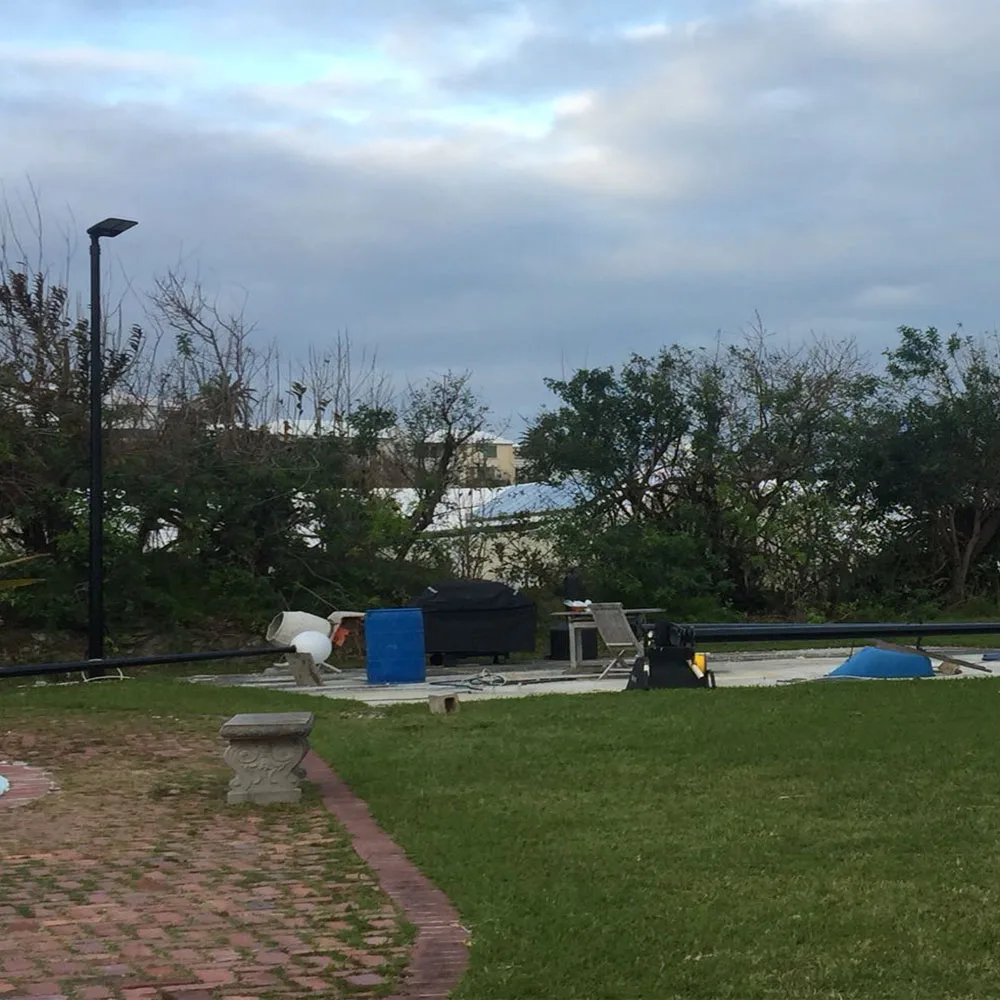

Projects
By using our 150w LED shoebox light to replace 400w metal halide bulb for shoebox lighting fixtures,
the customer is now able to save a lot per month from his electric bill.


Note
1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.
Microwave sensor






Features
1.Provides line voltage on/off switching and 0-10 VDC dimming control.
2.Works with ballasts or LED drivers.
3.High and low modes fully adjustable from 0-10V.
4.Time delay from 5 to 30 minutes.
5.Optional cut off delay.
6.Adjustable ramp up and fade down times .
7.High inrush stability 0 crossing circuitry for reliable ,long life speration latching relayis durable for all load.
8.Optional daylighting setpoints feature automatic calibration,or permit manual adjustment.
9.Polycarbonate,flame retaradant,UV resistant,impact resistant.
10.FCC.
Dimming function
3 step dimming function
The product can achieve 3 step dimming control ,to choose from:Brightness 100% →Dimming brightness(10% 20% 30% optional)→Off;Provides two delay times:full bright delay time and half brightness time;Daylight detection threshold and sensing distance adjustable.
If the set light value (10 LUX,30LUX,50LUX) is less than the brightness of the ambient natural light,the lamp does not
automatically enter the semi-bright sate(10%,20%,30%).
When someone enters the room,the sensor senses the movement of the human body,the light will be 100% full ,when the person leaves,the full light delay time after the light will enter hald bright(10%,20%,30%),half light delay time off.


Wireless handheld configuration tool



Feature of wireless handheld
1.Establishes high and low mode light levels for 0-10V control.
2.Sets time delay ,cut off time and sensitivity for motion detection.
3.Enables light level settings for either hold off control or daylighting control.
4.Initiates automatic setpoint configuration.
5.Allows ramp up and fade down rate adjustments.
6.Locks sensor settings to prevent unauthorized changes.
7.This product mees the materials restrictions of ROHS.
IR coverage of wireless handheld


Installation
Warning:if the lamp pole has existing ballast or capactitor,please take them off,because the shoebox street lamp just connecting
to AC(alternating current) input it will work.
