Cosmetic emulsion cream cream emulsifying homogenizer mixing tank high shear homogenizer soap liquid mixing equipment
- Category: >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (1600317409333):
Product Overview
Description
Products Description

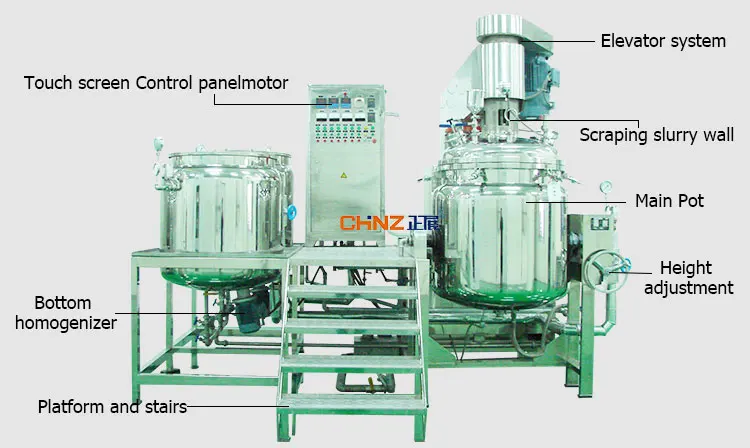

Vacuum Emulsifying mixer series
1. System adopts one-way or two-way wall scraping agitation and frequency conversion speed regulation, suitable for different working environment
2. It can heat or cool materials according to process requirements, heating mode can choose steam or electric heating according to customer requirements;
3. There are a variety of agitator forms, suitable for the production of different types of products;
4. Material is SUS304 or 316L stainless steel, the tank and pipe are mirror polishing;
5. Optional dispersion head or emulsion head to accelerate the dissolution and emulsification of materials; Set high-speed shear, dispersion, homogenization, mixing, crushing in one. The emulsified tank also has the functions of heating, cooling, heat preservation and stirring. The tank is designed with material inlet and outlet, which can provide all the conditions of emulsification process
6.Stainless steel electronic control box can fully monitor the operation of the equipment, can display temperature, stirring speed and other data;
2. It can heat or cool materials according to process requirements, heating mode can choose steam or electric heating according to customer requirements;
3. There are a variety of agitator forms, suitable for the production of different types of products;
4. Material is SUS304 or 316L stainless steel, the tank and pipe are mirror polishing;
5. Optional dispersion head or emulsion head to accelerate the dissolution and emulsification of materials; Set high-speed shear, dispersion, homogenization, mixing, crushing in one. The emulsified tank also has the functions of heating, cooling, heat preservation and stirring. The tank is designed with material inlet and outlet, which can provide all the conditions of emulsification process
6.Stainless steel electronic control box can fully monitor the operation of the equipment, can display temperature, stirring speed and other data;
Details Images
Name | ZRJ-100 | ZRJ-150 | ZRJ-200 | ZRJ-250 | ZRJ-350 | |
Emulsifying Pot | Design Volume(L) | 100 | 150 | 200 | 250 | 350 |
Working Capacity(L) | 80 | 120 | 160 | 200 | 280 | |
Scraper Stirring Power(KW) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |
Scraper Stirring Speed(rpm) | 0-86 | 0-86 | 0-65 | 0-65 | 0-65 | |
Homogenizer Power(KW) | 3 | 4 | 4 | 4 | 4 | |
Electric heating power(KW) | 6 | 6 | 8 | 12 | 12 | |
Homogenizer Speed (rpm) | 2800 | 2800 | 2800 | 2800 | 2800 | |
Water Pot | Design Volume(L) | 60 | 100 | 120 | 160 | 250 |
Working Capacity(L) | 45 | 80 | 95 | 128 | 200 | |
Power(KW) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | |
Speed (rpm) | 1400 | 1400 | 1400 | 1400 | 1400 | |
Electric heating power(KW) | 4 | 6 | 8 | 8 | 12 | |
Oil Pot | Design Volume(L) | 45 | 75 | 100 | 130 | 250 |
Working Capacity(L) | 35 | 60 | 80 | 105 | 150 | |
Power(KW) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | |
Speed (rpm) | 1400 | 1400 | 1400 | 1400 | 1400 | |
Electric heating power(KW) | 4 | 6 | 8 | 8 | 12 |
