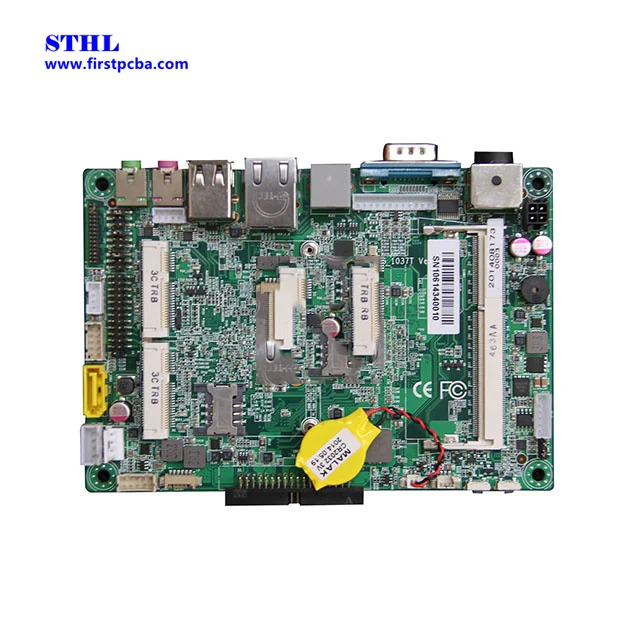

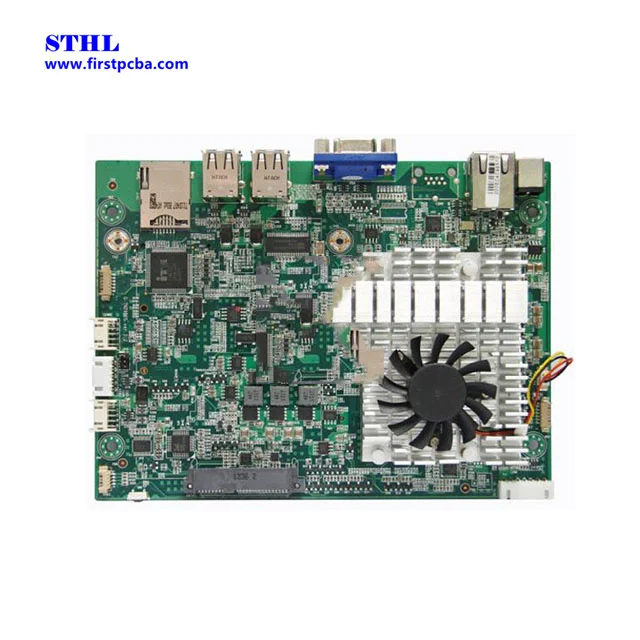

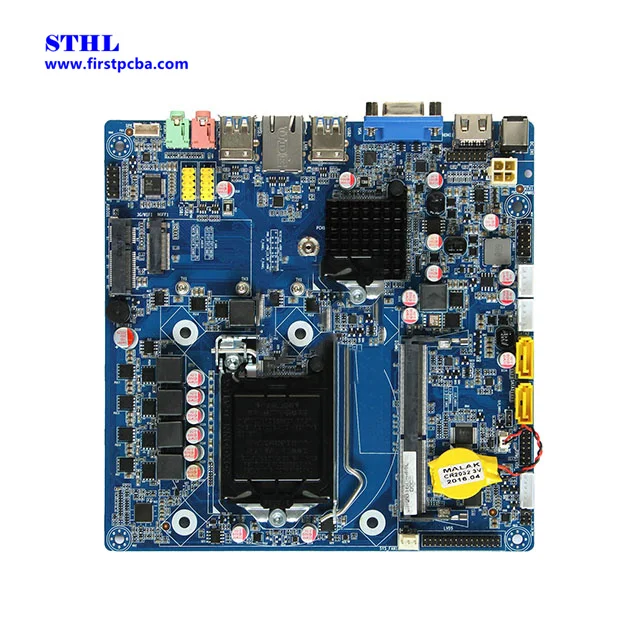

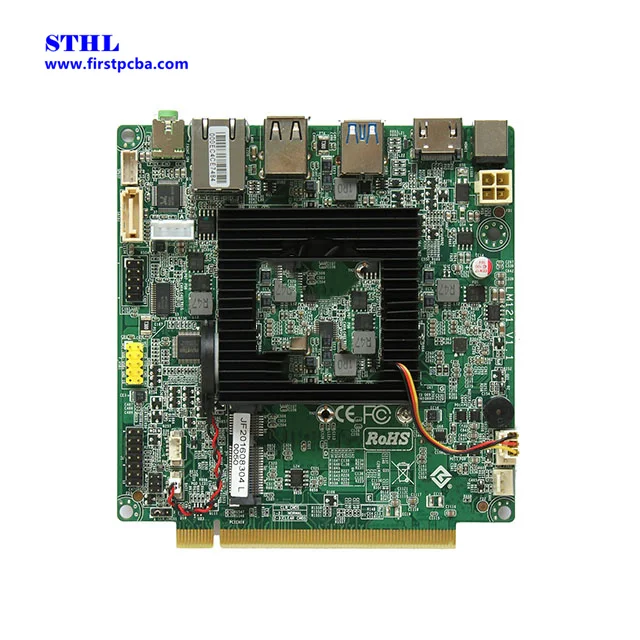

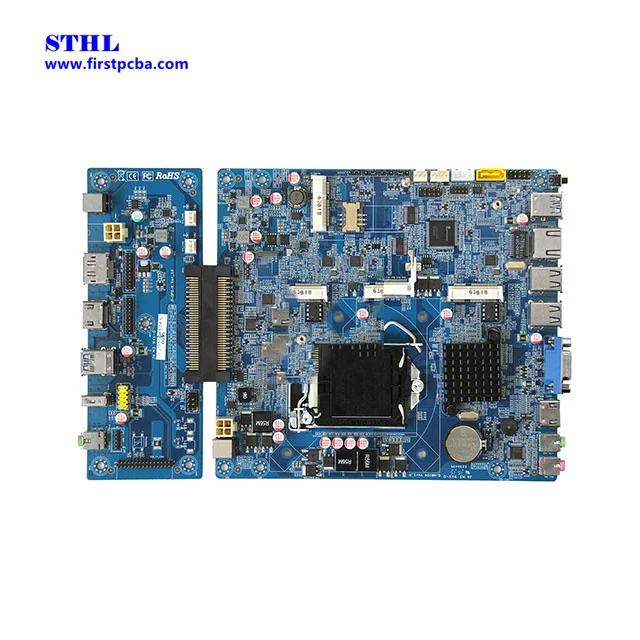

PCBA Manufacture weighing scale circuit board for inverter welding machine PCB and PCBA services assemble
- Category: >>>
- Supplier: Shenzhen Sthl Electronics Co. Ltd.
Share on (1600317412166):
Product Overview
Description
Our Services
STHL 14+ Years One-Stop PCB & PCBA Factory
High-quality PCB PCBA Factory PCB Assembly Manufacture

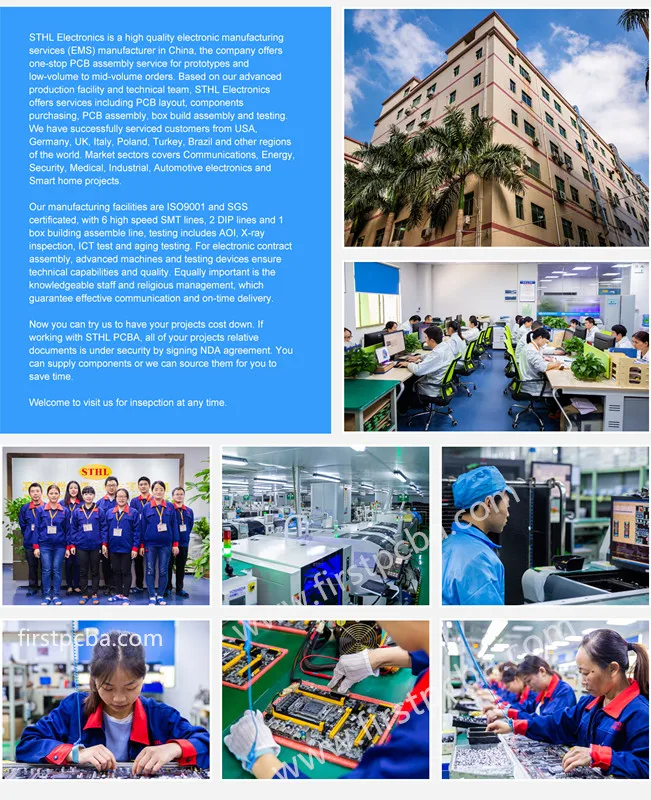

Company Information
Shenzhen STHL Electronics Co., Ltd. is a professional electronic manufacturing services (EMS) manufacturer in Shenzhen, China, with 4000 square meters factory areas, about 150 employees, 10-15 R&D staffs.
We offer one -stop PCB assembly service for prototypes and low-volume to mid-volume orders.
AS an IS09001 certificated electronics assembly manufacturer, we work all projects exactly complain with ROHS standard and quality guarantee.
Our Teams
STHL management team are 10+ years experience in PCB and PCBA field, our sales representatives are very stable and mostly worked here since the company establish. They can help you remember your projects details and requested. And our engineers can contact with customers directly in English if necessary, the faster and more effective communication helps lead time a lot.
PCBA Capability
Items | PCBA capacity |
Product name | mobile app controlled elevator drone flight controller board pcb |
Assembly details | SMT and Thru-hole, ISO SMT and DIP lines |
Testing on products | Testing jig/mold , X-ray Inspection, AOI Test, Functional test |
Quantity | Min quantity : 1pcs. Prototype, small order, mass order, all OK |
Files needed | PCB : Gerber files(CAM, PCB, PCBDOC) |
| Components : Bill of Materials(BOM list) |
| Assembly : Pick-N-Place file |
PCB Panel Size | Min size : 0.25*0.25 inches(6*6mm) |
| Max size : 1200*600mm |
Components details | Passive Down to 0201 size |
| BGA and VFBGA |
| Leadless Chip Carriers/CSP |
| Double-sided SMT Assembly |
| Fine BGA Pitch to 0.2mm(8mil) |
| BGA Repair and Reball |
| Part Removal and Replacement |
Component package | Cut Tape, Tube, Reels, Loose Parts |
PCB+ assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching----- Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity |
PCBA Capabilities
PSMT PCB Assembly Capabilities
We are equipped with advanced assembly and inspection equipment to support reliable PCB Assemblies. Our highly trained and experienced staff make sure your projects completed faster with high quality. Our capabilities in high-quality SMT PCB assembly services include, but not limited to:
– Ball Grid Array (BGA)
– Ultra-Fine Ball Grid Array (uBGA)
– Quad Flat Pack No-Lead (QFN)
– Quad Flat Package (QFP)
– Small Outline Integrated Circuit (SOIC)
– Plastic Leaded Chip Carrier (PLCC)
– Package-On-Package (PoP)
– Small Chip Packages (pitch of 0.2 mm)
– AOI inspection
– X-Ray Inspection
PCB Assembly Capabilities

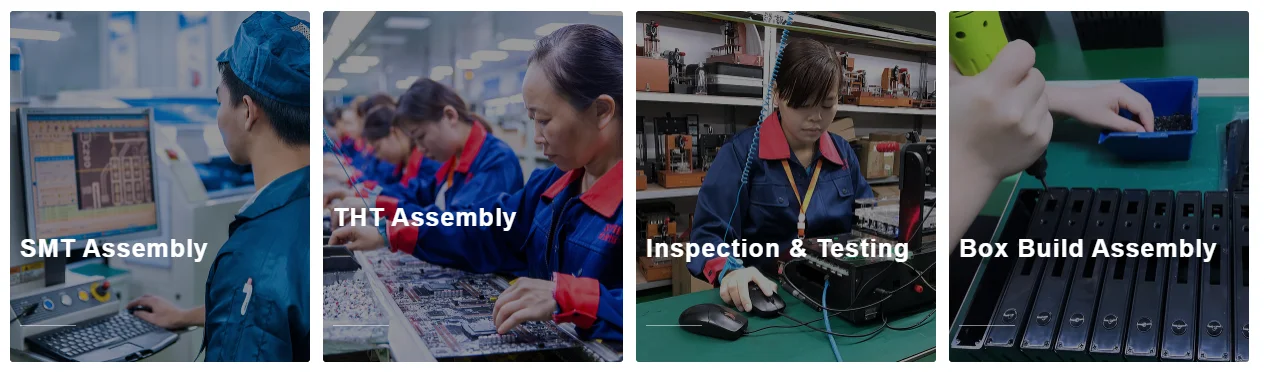

Armed with advanced equipment and supported by a sophisticated technical team, STHL Technology provides extremely reliable turnkey PCBA manufacturing services cover the following: PCB layout & design, material sourcing, IC programming, SMT assembly, THT assembly, mixed technical assembly, ICT test, function testing, conformal coating, cable assembly and labeling, as well as complete box build service.

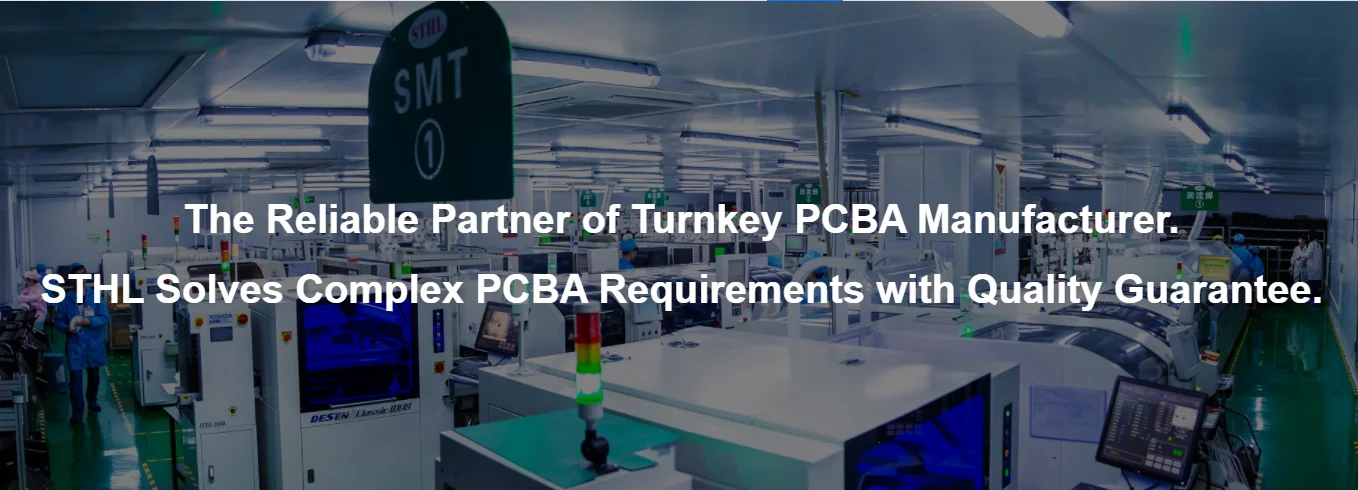

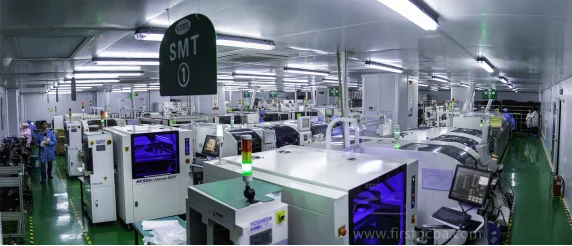

Factory & Equipment
STHL Electronics is a real factory with 4000 SQM production base and 150 employees.We have the most advanced equipment from Japan,US and Germany to improve our production and provide high-quality PCBA boards for customers.

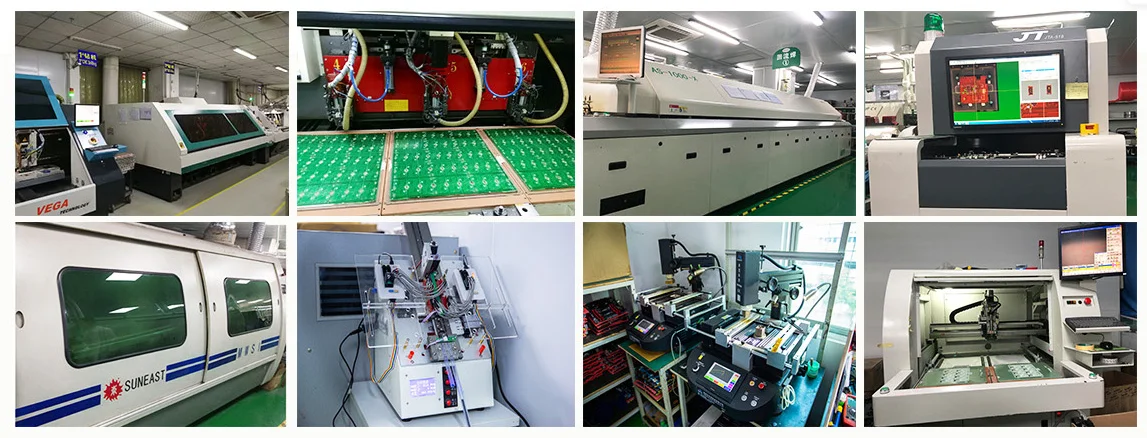

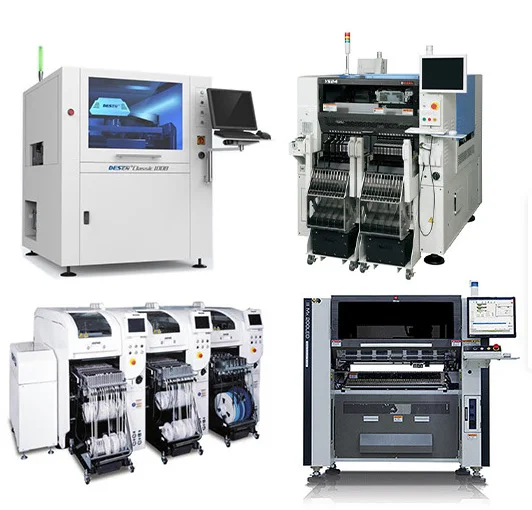

SMT and DIP Equipment
Advanced SMT Equipment:
* HITACHI Screen Printer
* FUJI NXT-Ⅱ & FUJI XPF-L Modules
Assembly Production Machines:
* 3 automatic YAMAHA YS24 and YS12 SMT lines and 3 automatic MX400 and MX200 STM lines
* 2 DIP Dual wave soldering line
* 2 manual soldering production line
* 2 testing lines
* 2 box building assemble line
Component range:
* 0201,0402,0603,0805,1206,1608,2125,3216
* Fine Pitch QFP to 0.2mm
* BGA, Flip Chips, Connectors
* BGA to 0.2mm
FAQ
1. What is your MOQ?
Our MOQ is 1 PCS, sample and mass production all can support.
2. How could I can a quotation?
PCB: Please send us Gerber file.
PCBA:Please send us Gerber file+BOM
3. Are you factory?
Yes, we are a true factory.
4. Can you produce the goods as customer design?
Welcome to send us the design or sample, we will calculate the cost and unit price for you as soon as possible.
5. How about the products packing?
Flexible packing according to the specific requirements of the clients.
6. Are my design files secure when I send them to you?
We can sign NDA, don’t worry your files held in complete safety and security.
7. How can you make sure the components quality?
We buy components from famous international platform like Mouser, Digikey, Farnell, Future, Avnet, Arrow or agents. Repeat orders material normally ordered from the same source, we do not change suppliers time by time if everything goes well. And we have IQC workers test.
8. How long is the delivery time ?
Make pcb board or pcba assembly need 15-20 workdays , Test the function need 1-2workdays .
CONTRACT
GET QUOTATION NOW, PLS CONTACT:
Melody Wang
Email:Sales01@firstpcba.com
MOBILE/WHATSAPP/WECHAT: 0086 13632851496
