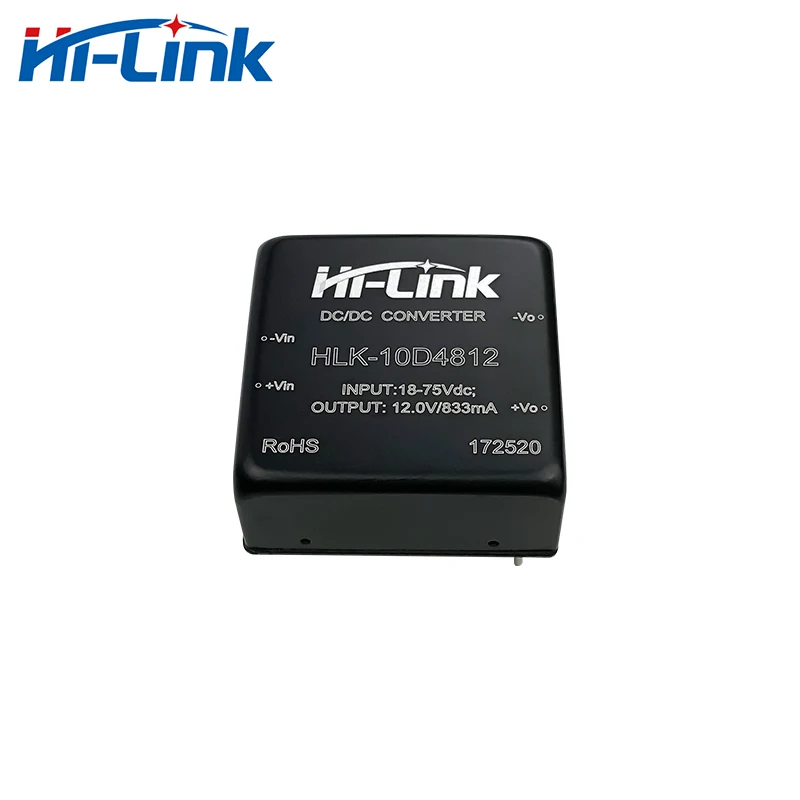

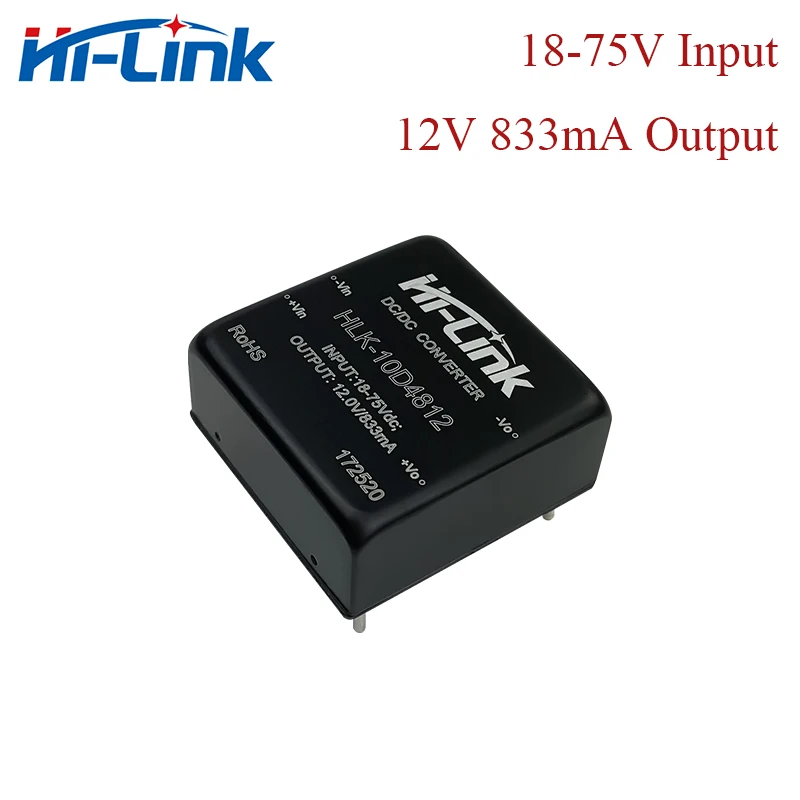

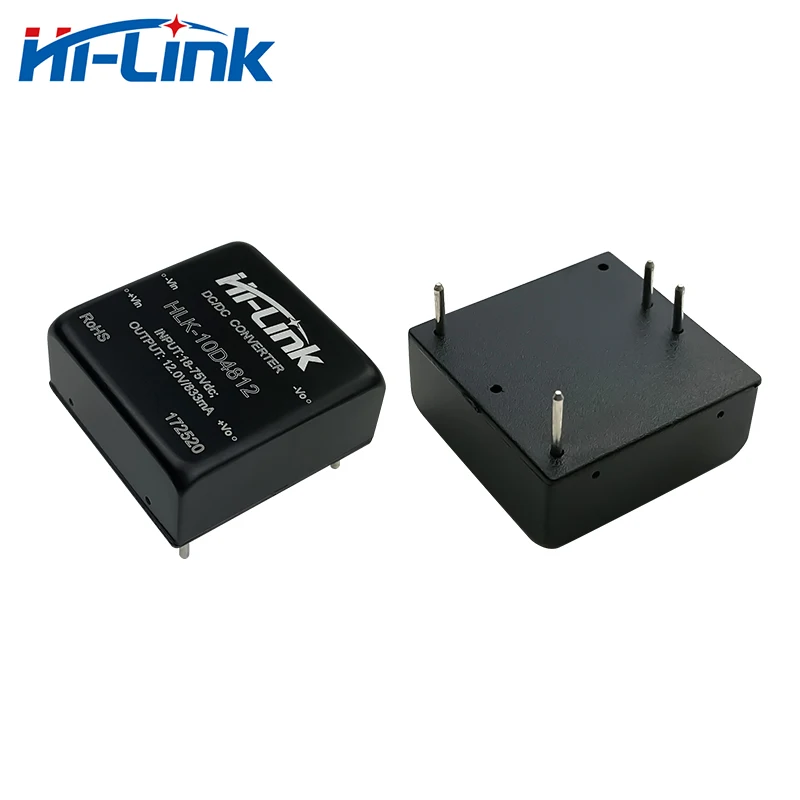

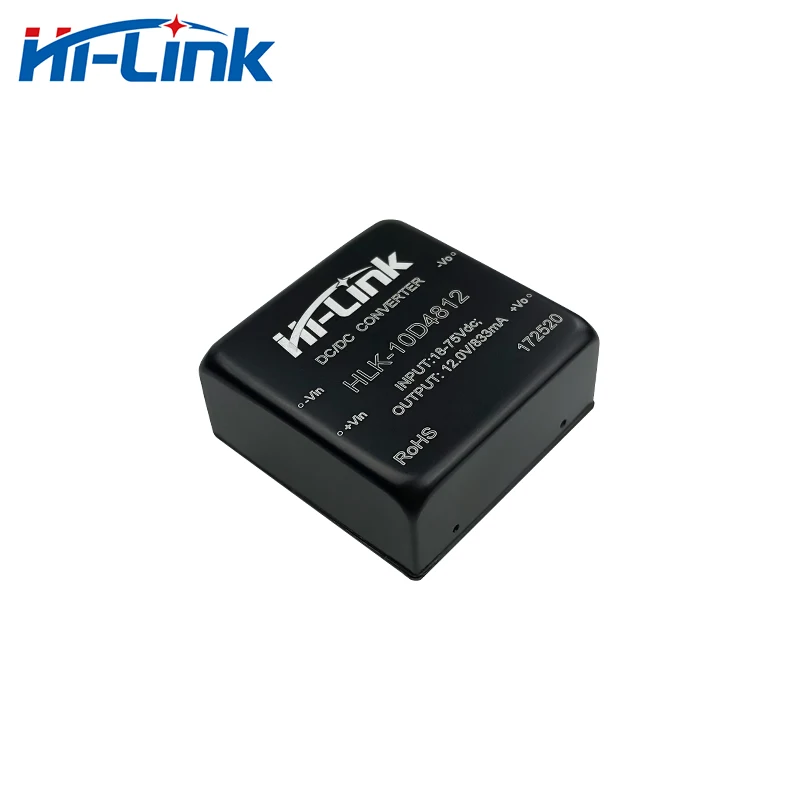

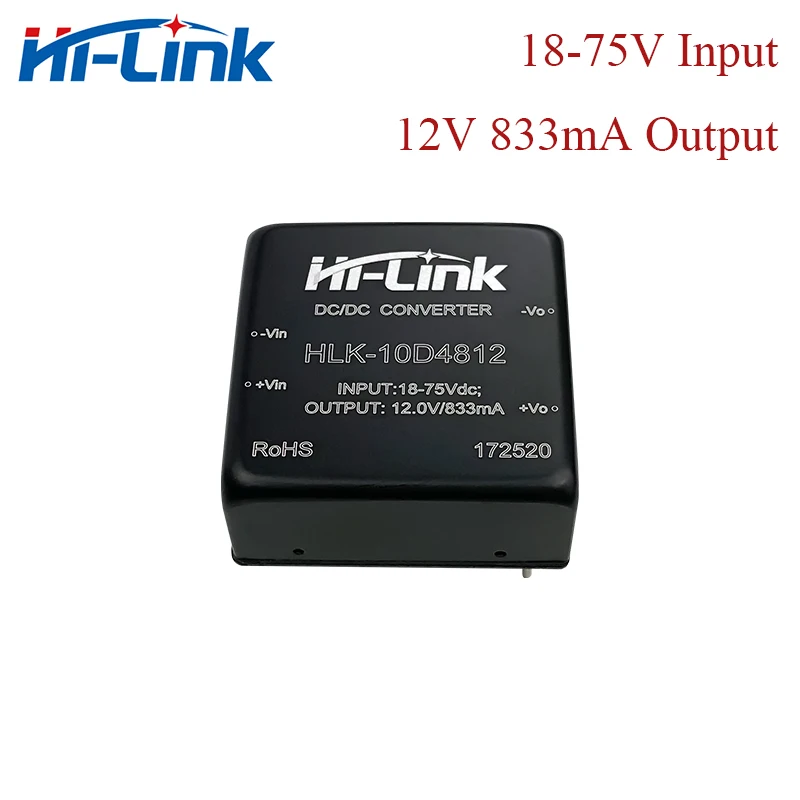

Модуль преобразователя постоянного тока 12 В, мА, вход 18 75 В постоянного тока для изолированной цепи, источник питания Hi Link
- Category: Other Circuit Protection >>>
- Supplier: Shenzhen Hi-Link Electronic Co. Ltd.
Share on (1600317435707):
Product Overview
Description
Product Description
Product Name | HLK-10D4812 |
Material | Transformer+PCB Board+Wire |
Function | DC DC Converter |
Package | Tray |
10W DC / DC power module A series output power is 10W, 4: 1 wide voltage input range, efficiency up to 91%
1500VDC conventional isolation voltage, allow working temperature -40 ℃ to + 85 ℃, with input undervoltage protection, Output over-voltage, over-current, short-circuit protection, bare metal meets CISPR32 / EN55032 CLASS A
Widely used in medical, industrial control, power, instrumentation, communications, railway and other fields.
Product performance
1. Ultra wide range input (4: 1), output 10W
2. Conversion efficiency 91% (Typ)
3. Isolation voltage 1500Vdc
4. Ultra-low standby power consumption: 0.036W (typical)
5. Ultra fast start: 1mS (typical value)
6. Operating temperature range: -40 ° C ~ + 85 ° C
7. Output short circuit protection, over current protection
8. Metal casing, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopting high-quality environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
11. High reliability, long life design, long continuous working time
1. Ultra wide range input (4: 1), output 10W
2. Conversion efficiency 91% (Typ)
3. Isolation voltage 1500Vdc
4. Ultra-low standby power consumption: 0.036W (typical)
5. Ultra fast start: 1mS (typical value)
6. Operating temperature range: -40 ° C ~ + 85 ° C
7. Output short circuit protection, over current protection
8. Metal casing, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopting high-quality environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
11. High reliability, long life design, long continuous working time
Contact me please if you need the full datasheet of it .
***We are the manufacturer , for bulk order , can offer better price .
