General Specifications | Thiele - Small Parameters | Mounting Informations |

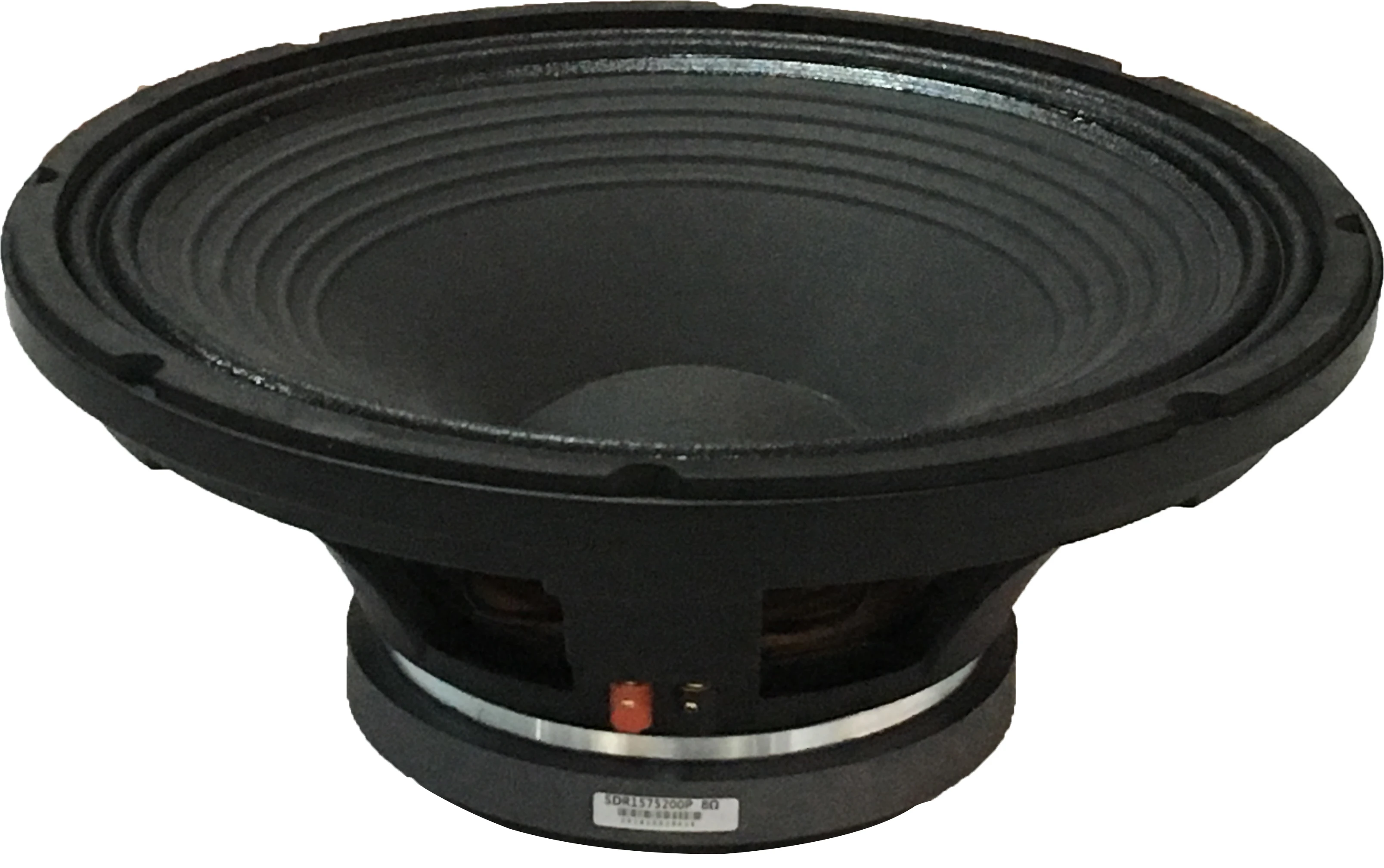

Product Name:15 inch Woofer | FS:37Hz | Overall Diameter:388 mm / 15.2inch |
Model Number:SD - R1575200P | Re:4.9 ohm | Bolt Circle Diameter:372 mm / 14.6 inch |
Rated Impedance:8 ohm | Qms:6.3 | Baffle Cutout Diameter:354 mm / 13.9inch |
Voice Coil Diameter:3 inch / 75 mm | Qes:0.32 | N.Of Mounting Holes:8 pcs |
Rated Power:450 W | Qts:0.30 | Mounting Holes Diameter:6.5 mm |
Frequency Range:37 - 4000 Hz | Mms:78.86G | Depth:172 mm / 6.3 inch |
Sensitivity:98 dB | BL:168 T - M | |
Magnet Material:Ferrite Ring | Sd:868m² | |
Magnet:200 mm | Vas:247 L | |
