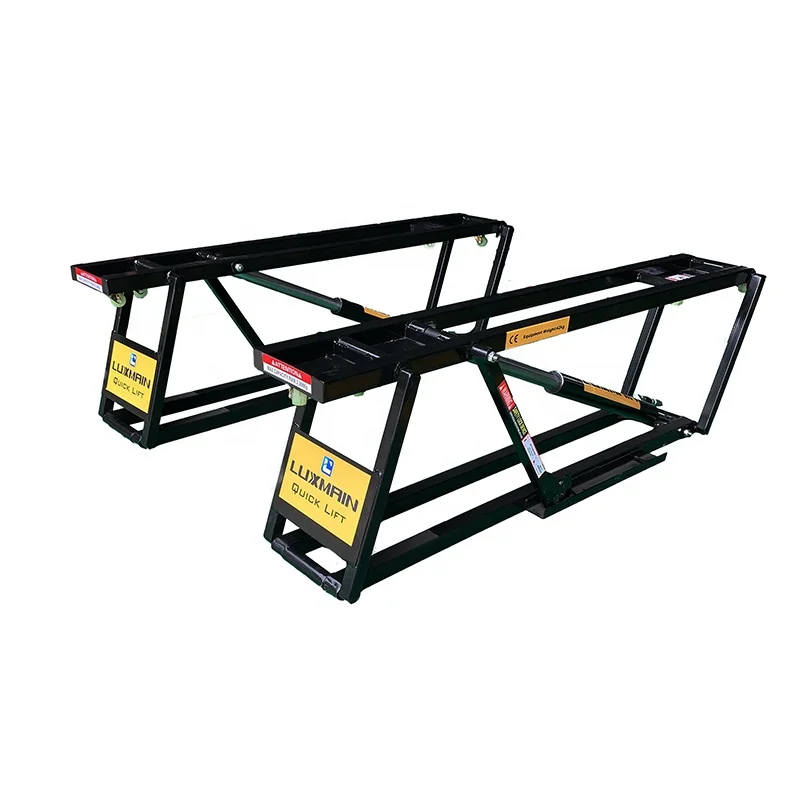

L520E 1 2500kg portable quick jack vehicle scissor car lift with extension plate made in China oil cylinder CE ISO9001
- Category: >>>
- Supplier: Yantai Tonghe Precision Industry Co. Ltd.
Share on (1600317466017):
Product Overview
Description
Product Description
Product Description
Feature:
Frame type lightweight body design,which is easy to use and take less space.
Single frame independent hydraulic design,which rising rapidly

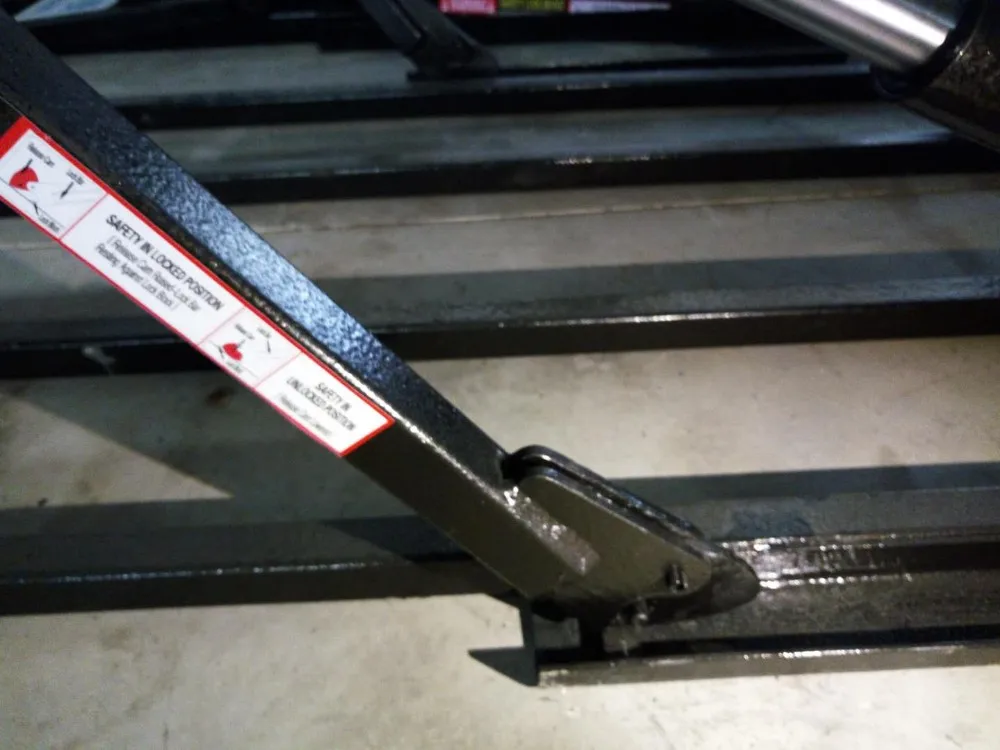

Single frame independent safety lock rod,which is safe in use
Applicable to the tire shop ,quick repairing ,repairing and maintenance for rescue, household use etc.
Technical Data:
Model L-520E-1
Supply Voytage DC 12V
Frame spread length 1746mm
Collapsed height 88mm
Frame Length 1468mm
Max Lifting Height 460mm
Max Lifting capacity 2500kg
Single side Frame width 216mm
Single Frame Weight 39kg

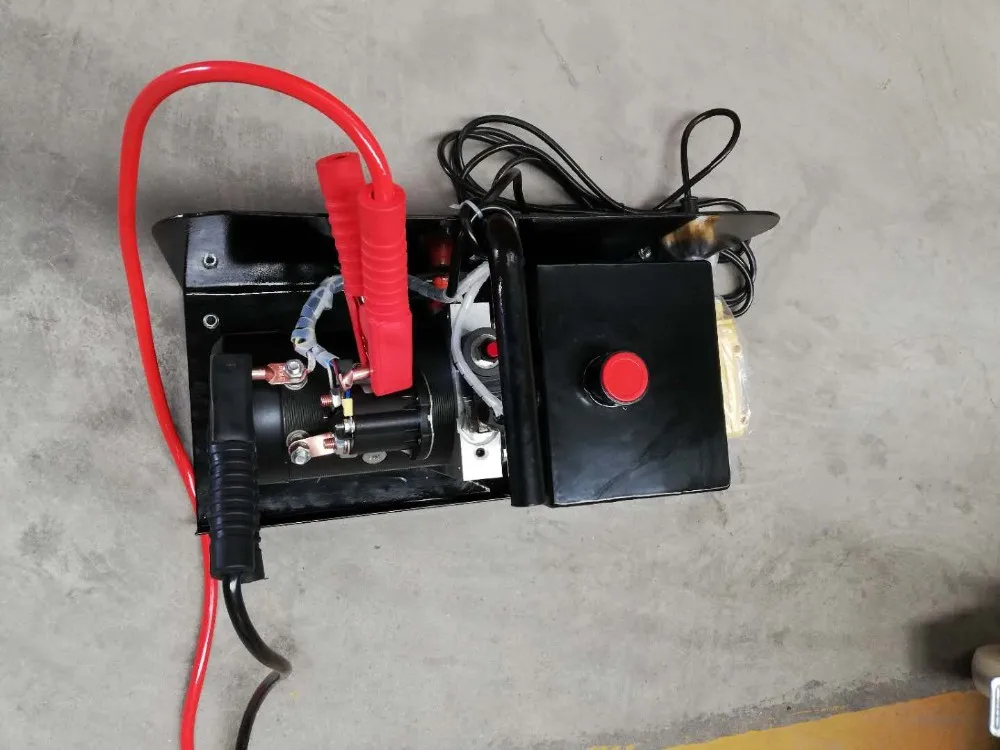

Power Unit Weight 17.6kg
Raising/Lowering Time 35/52sec
Oil tank capacity 4L
Supply voltage 12V/220V/110V(optional)
Adapted wheelbase with extension plate: 3200mm
Note: AC 110V power supply is optional.

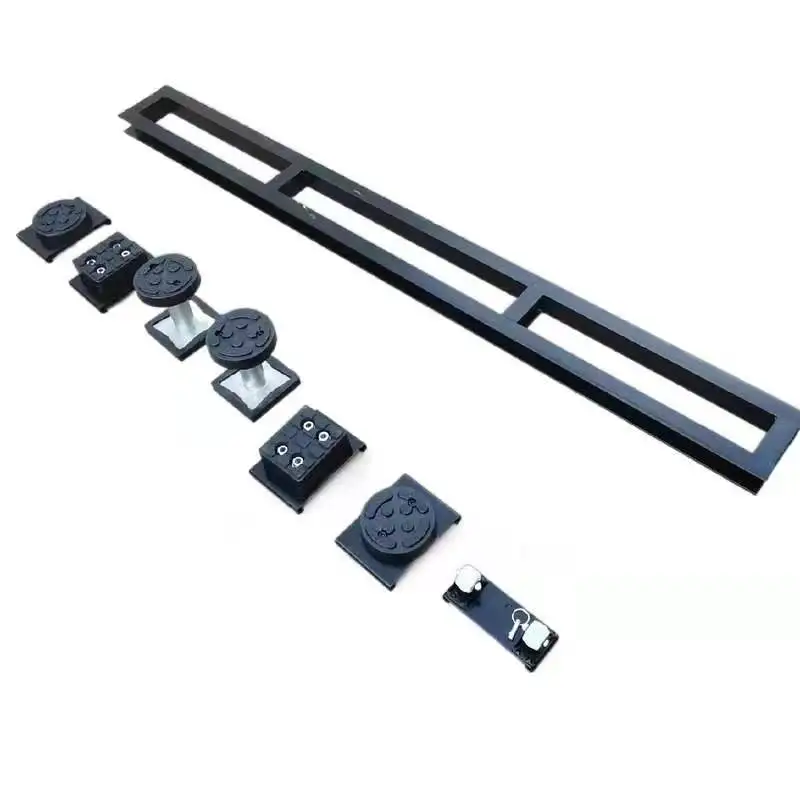

Optional Parts: exclusion plates; Wall hanger set; Rubber Pad; Height Adaptors

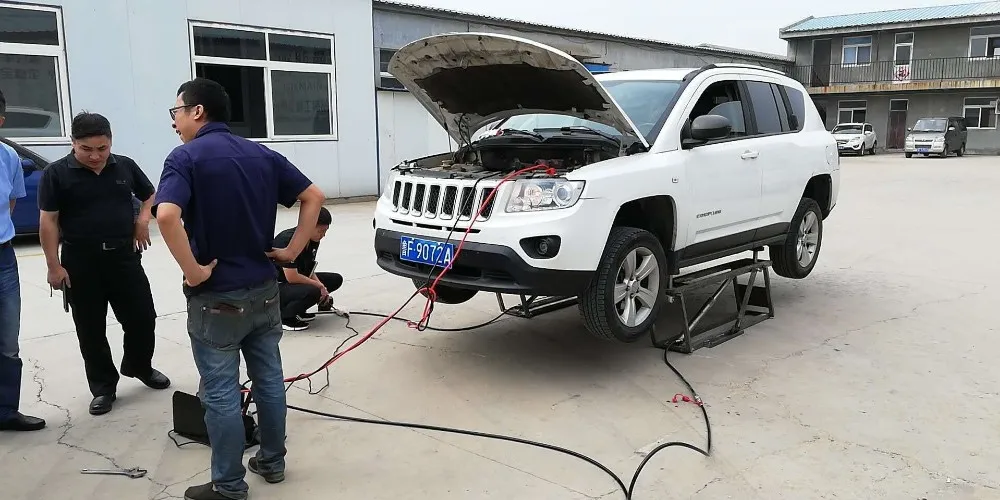

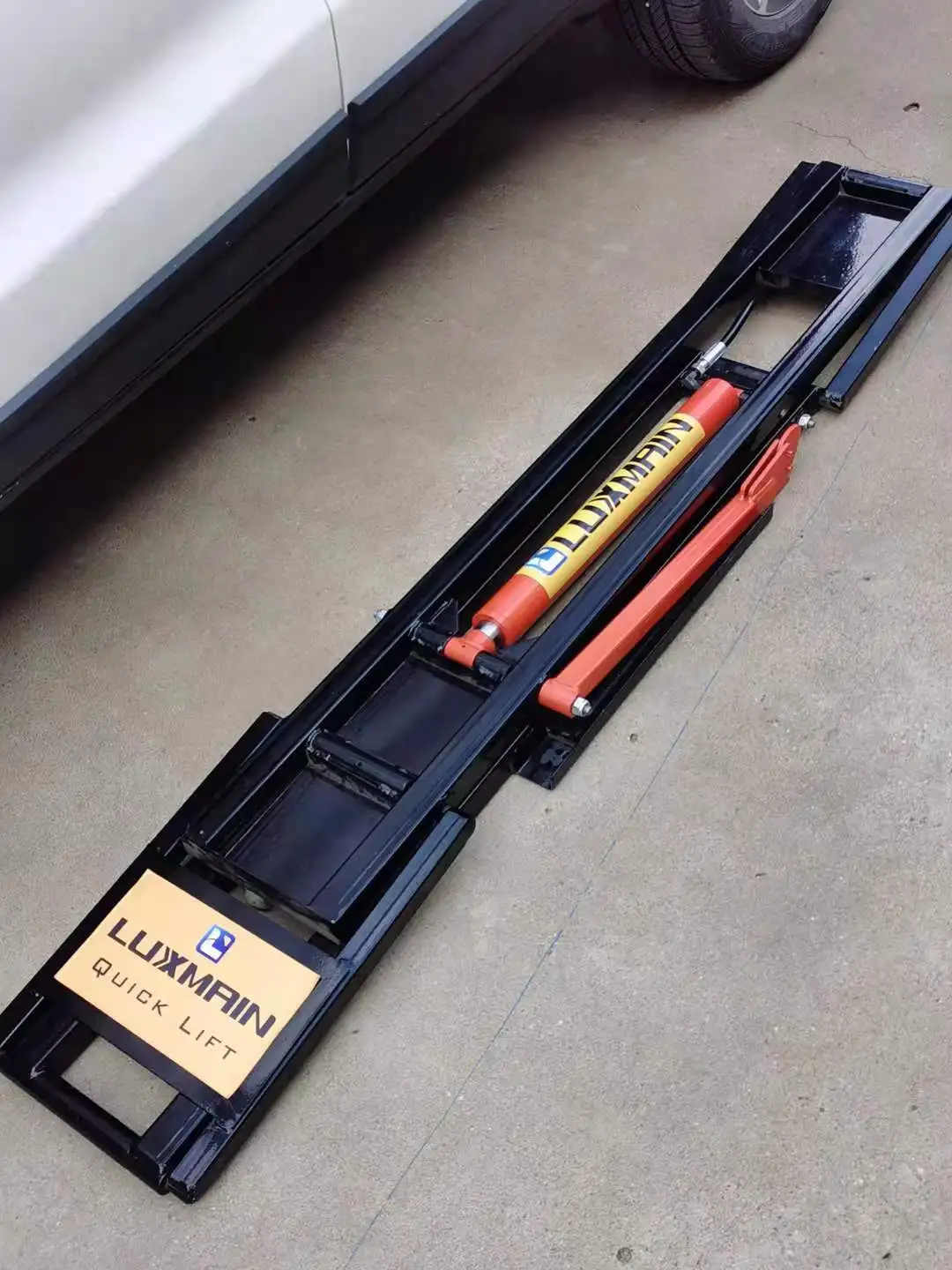

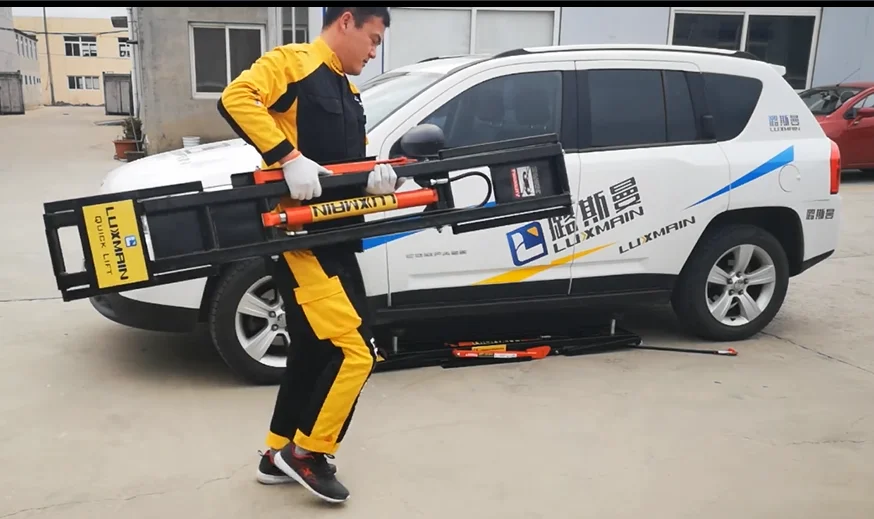

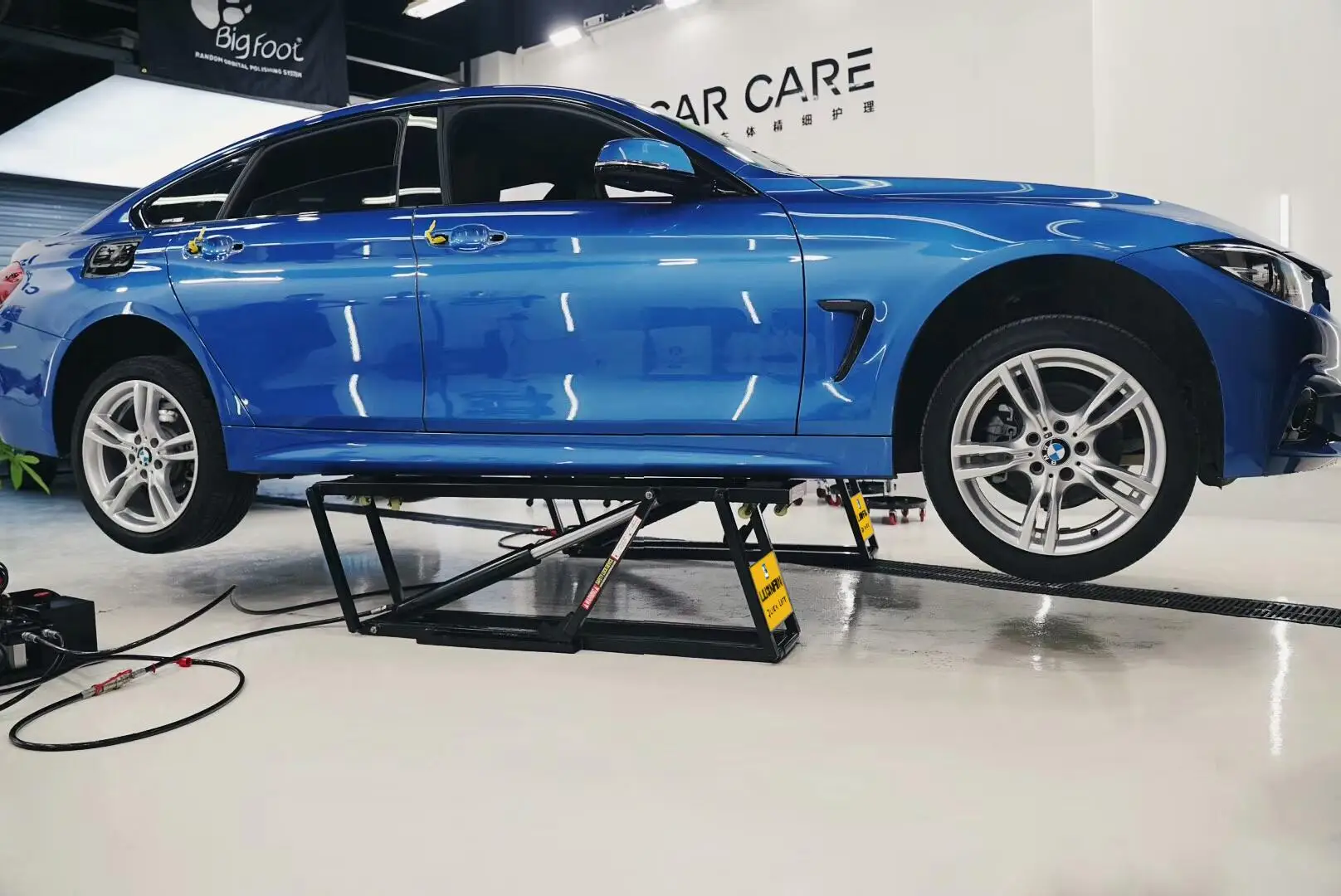

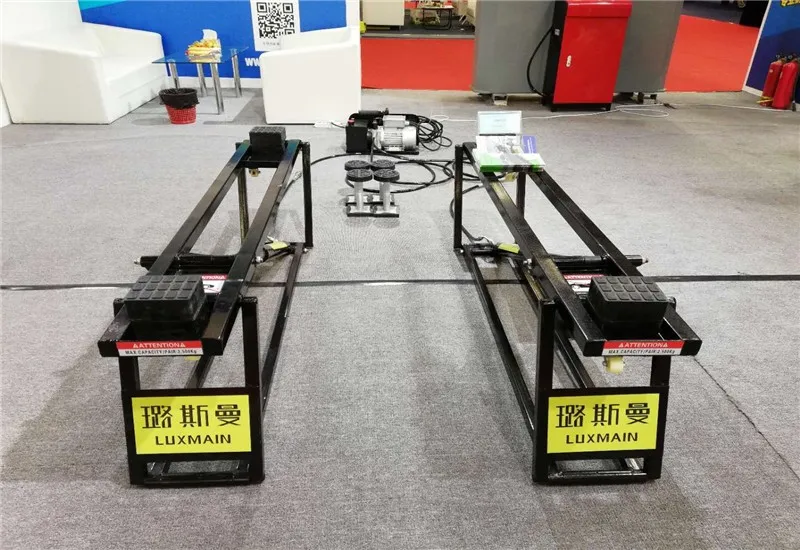

Detailed Images
Detailed Images

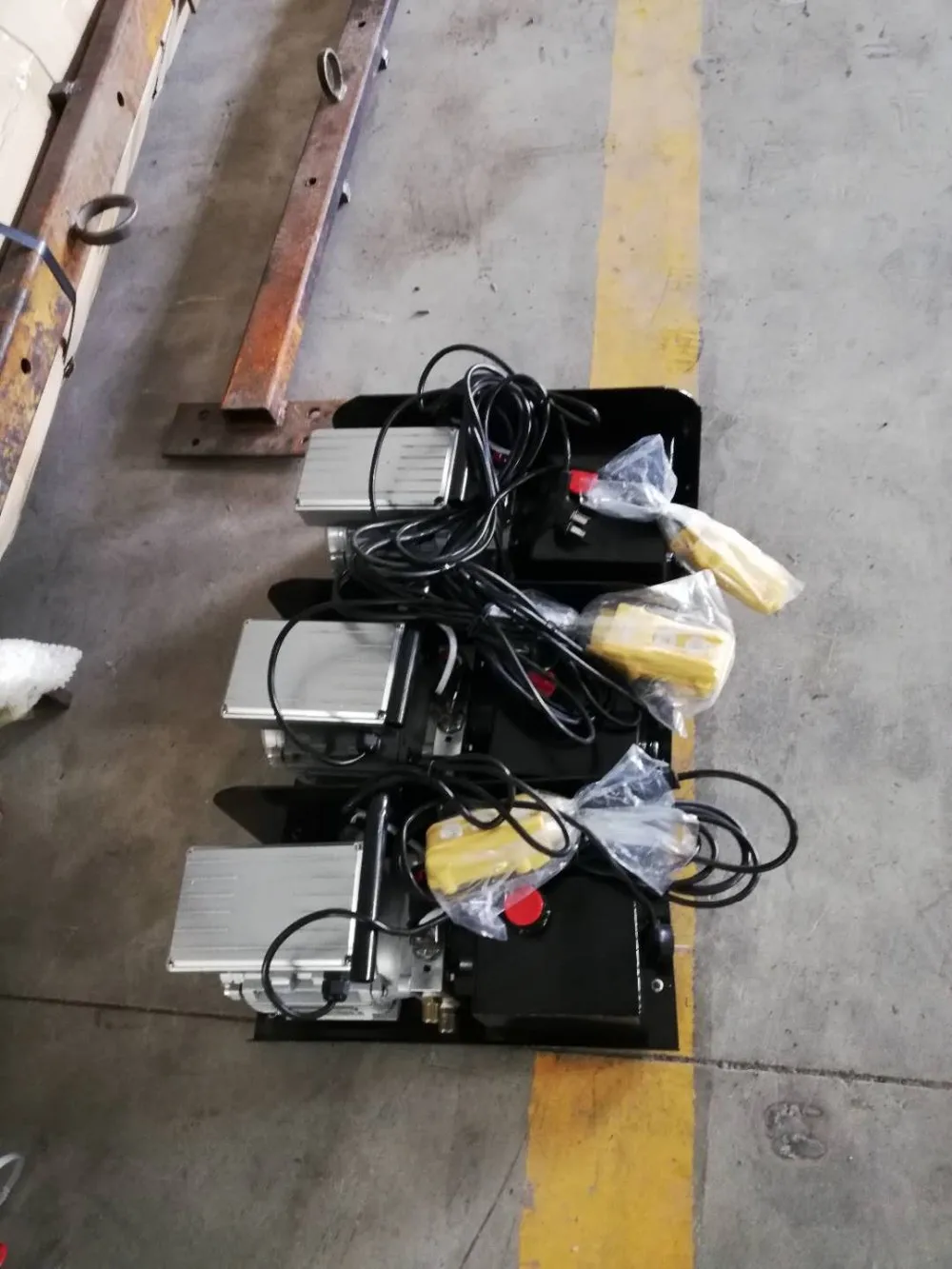

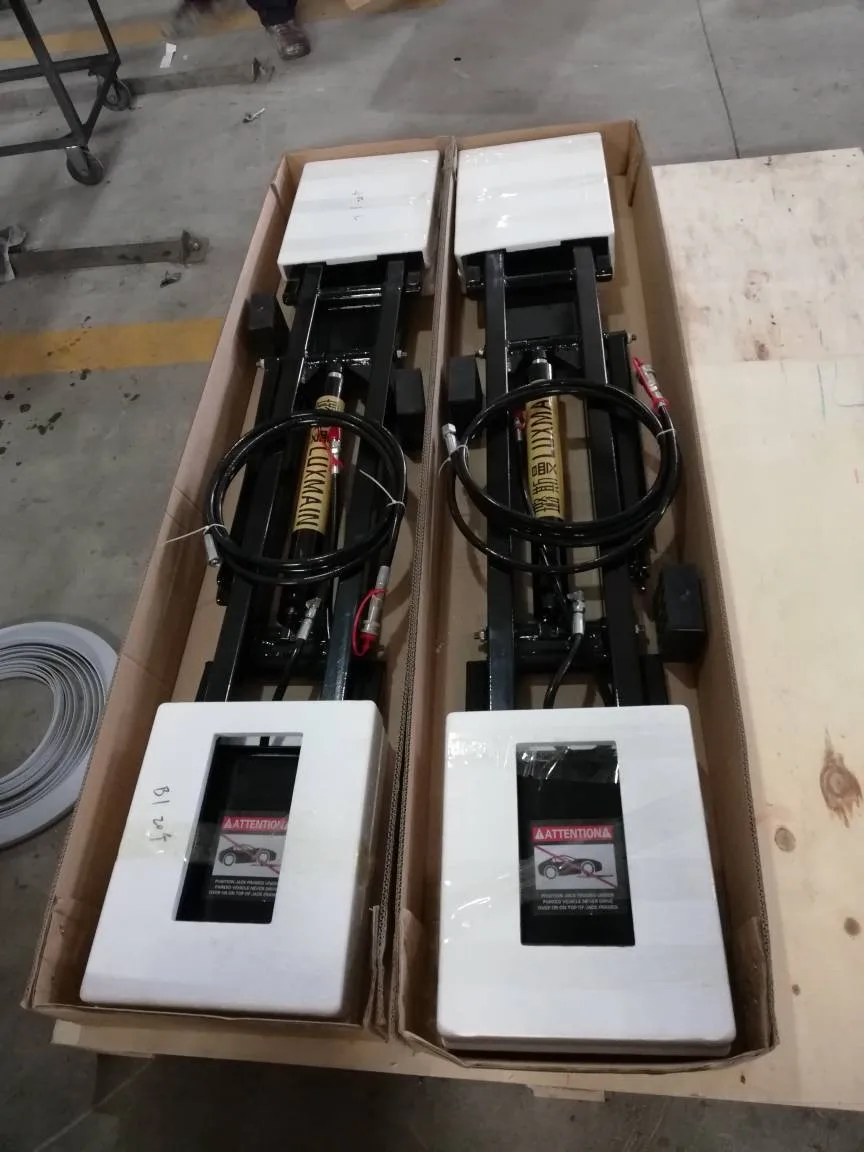

Packing & Delivery
