Machine Laser China Cut Laser The Same cutter Machine Tokyo 2020 Cuts Logos On Podiums
- Category: >>>
- Supplier: Nantong Usky Import And Export Co. Ltd.
Share on (1600317495950):
Product Overview
Description
Product Description
1500w/2000w/3000w/4000w Automatic Fiber Laser Cutting Machine MODEL FEATURES
● The mechanical structure adopts gantry type, stable performance and stable operation of the equipment.
● Professional CNC control system, with laser power adjustment function, can guarantee the cutting quality and the operation is
simple and convenient;
● This model adopts AC servo motor drive system. The machine movement mechanism adopts gear and rack double drive to ensure high
speed, high precision and high reliability of the equipment;
● The gas system adopts integrated control type, advanced design, full import of pneumatic components, and can simultaneously
access three different auxiliary gases. The customer selects the auxiliary gas according to the actual situation. High-pressure
gas circuit design improves the cutting ability of hard-to-cut materials such as stainless
● High-quality, high-efficiency fiber laser resonator, low processing costs, energy saving and environmental-friendly.
● The mechanical structure adopts gantry type, stable performance and stable operation of the equipment.
● Professional CNC control system, with laser power adjustment function, can guarantee the cutting quality and the operation is
simple and convenient;
● This model adopts AC servo motor drive system. The machine movement mechanism adopts gear and rack double drive to ensure high
speed, high precision and high reliability of the equipment;
● The gas system adopts integrated control type, advanced design, full import of pneumatic components, and can simultaneously
access three different auxiliary gases. The customer selects the auxiliary gas according to the actual situation. High-pressure
gas circuit design improves the cutting ability of hard-to-cut materials such as stainless
● High-quality, high-efficiency fiber laser resonator, low processing costs, energy saving and environmental-friendly.
Specification
Feature/Model | 3015 | 4015 | 4020 |
Working Area (L*W)) | 3000mm*1500mm | 4000mm*1500mm | 4000mm*2000mm |
Stroke (X/ Y/ Z Axis) | 1525mm/3025mm/150mm | 1525mm/4025mm/150mm | 2025mm/4025mm/150mm |
X/Y Axis Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
X/Y Axis Repositioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
Max. Moving Speed | 100m/min | 100m/min | 100m/min |
Max. Acc. Speed | 1.0G | 1.0G | 1.0G |
Power Porection Grade | IP54 | IP54 | IP54 |
Laser Power | 1500W~4000W | 1500W~4000W | 1500W~4000W |
Max. Loading Weight | 800kg | 1000kg | 1400kg |
Machine Weight | 3300Kg | 4000Kg | 5100Kg |
Overall Dimensions (L*W*H) | 4850×2730×1700mm | 6015×2730×1700mm | 6015×3300×1700mm |

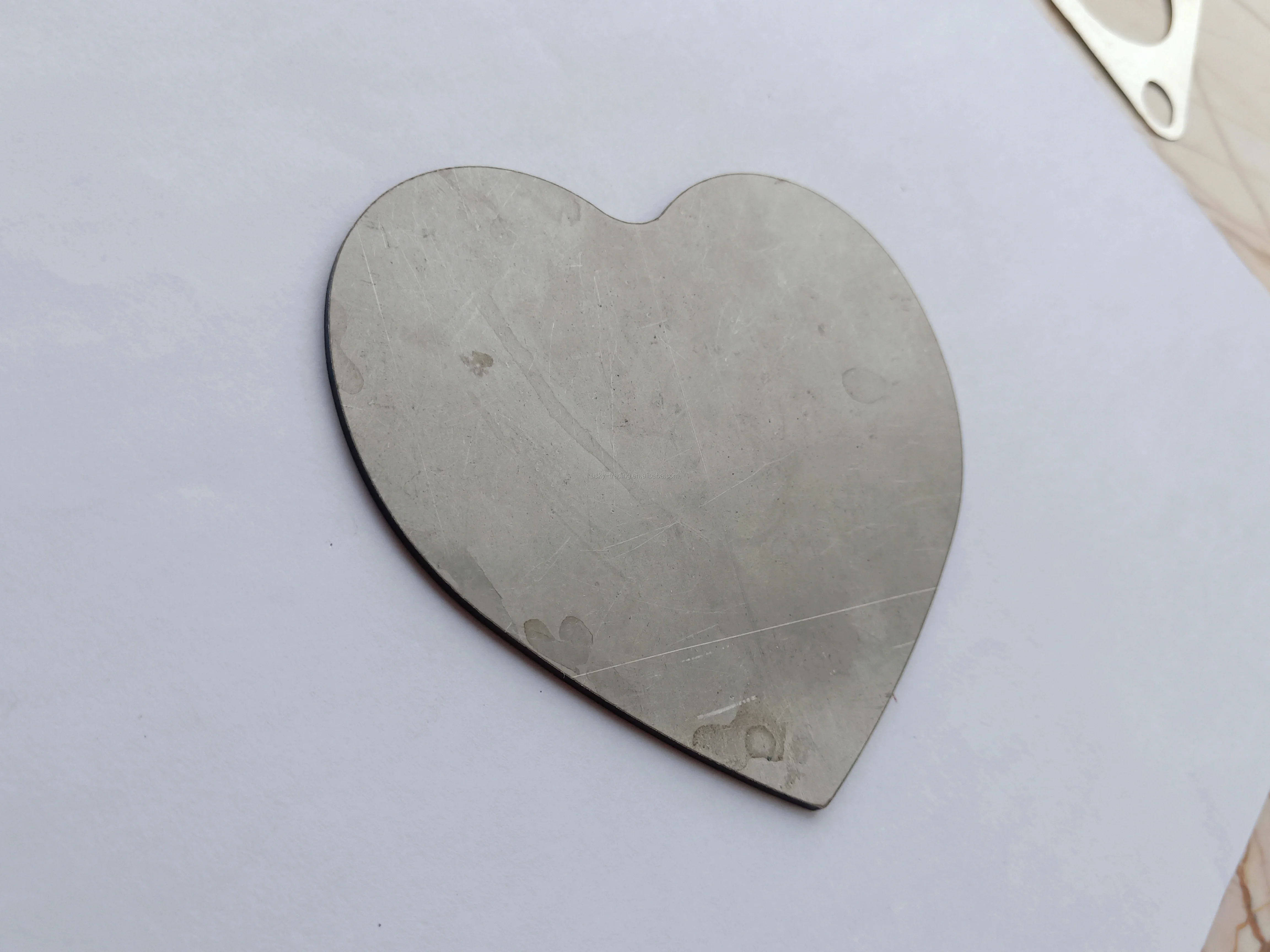

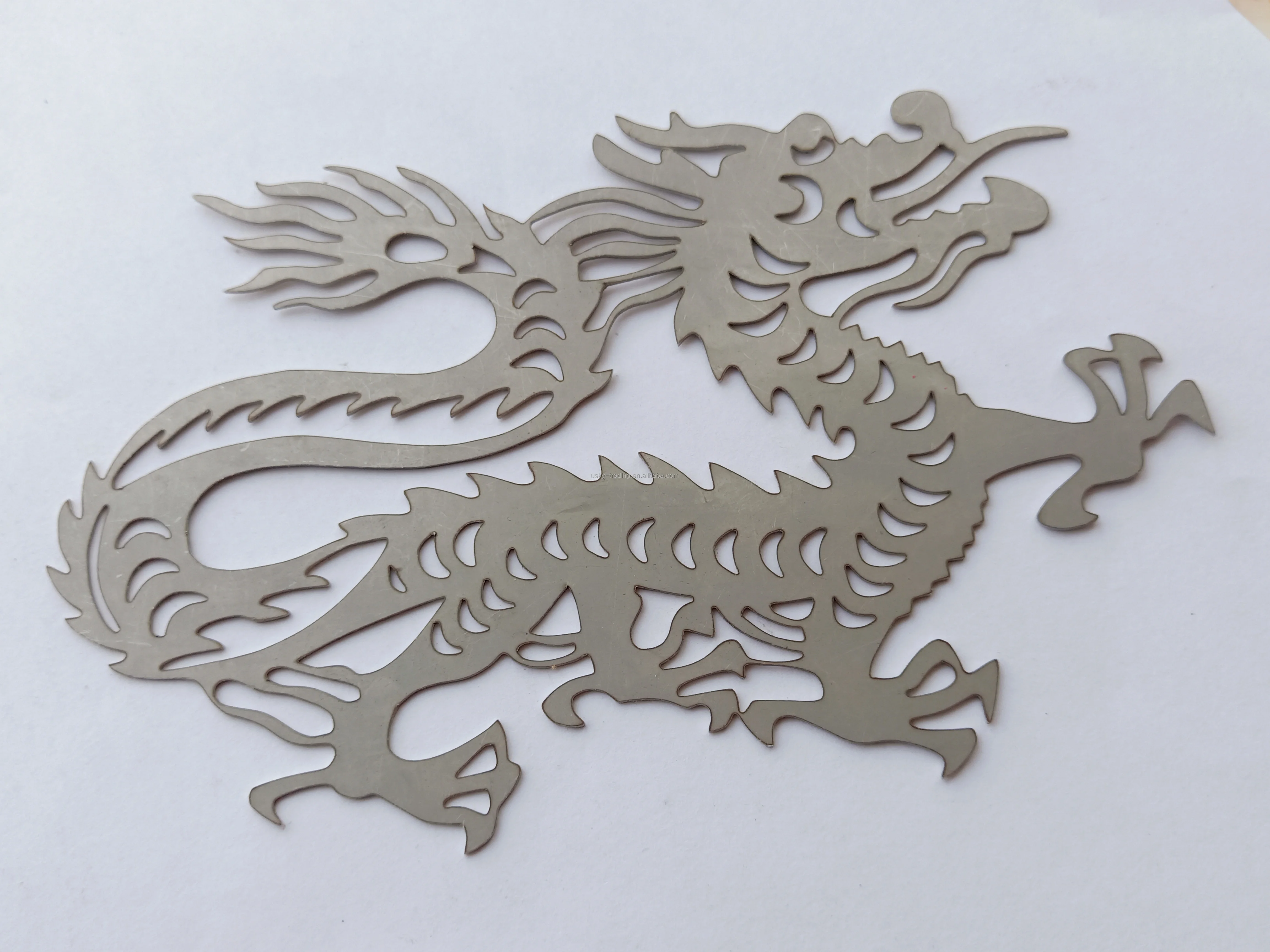

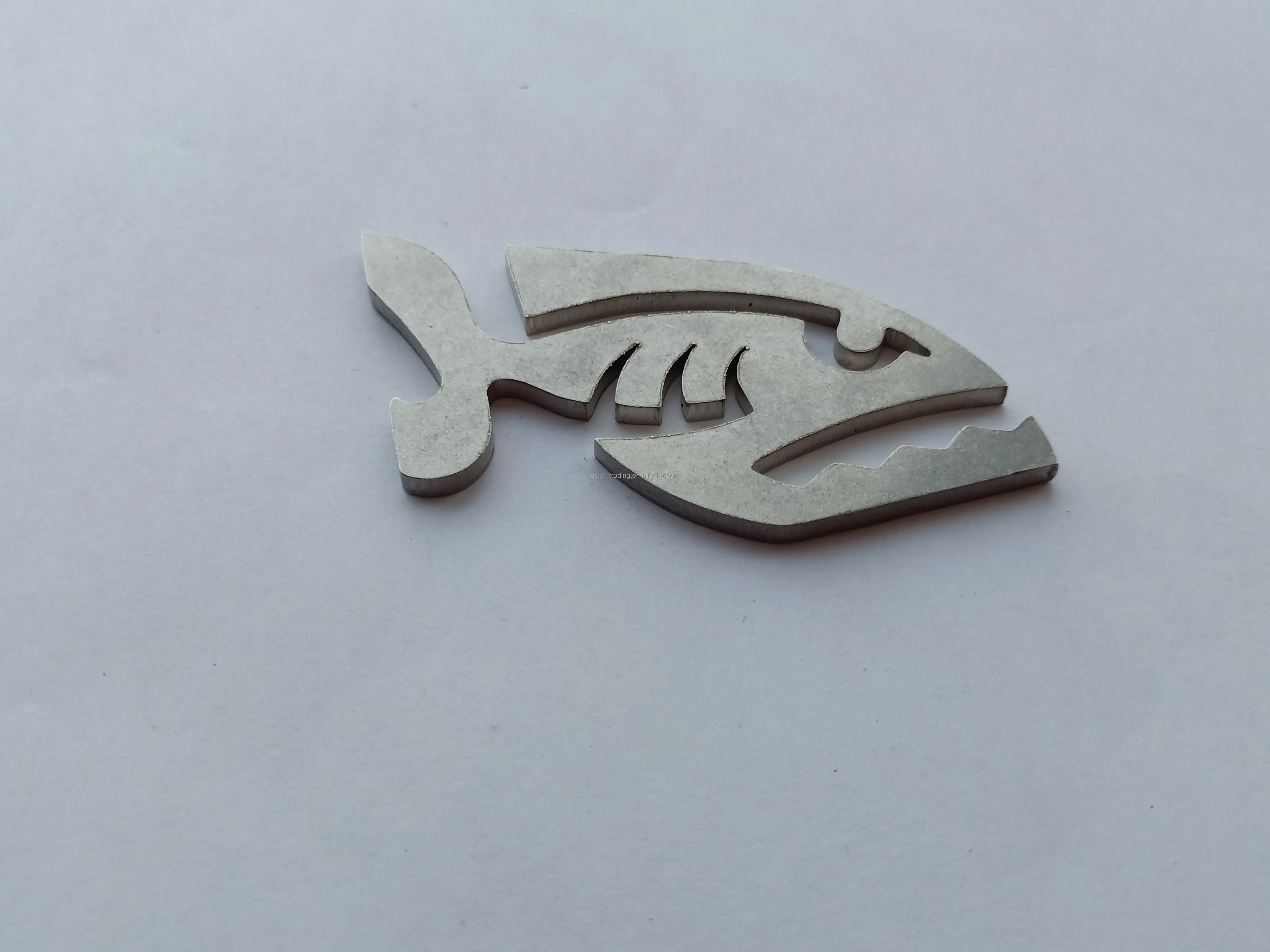

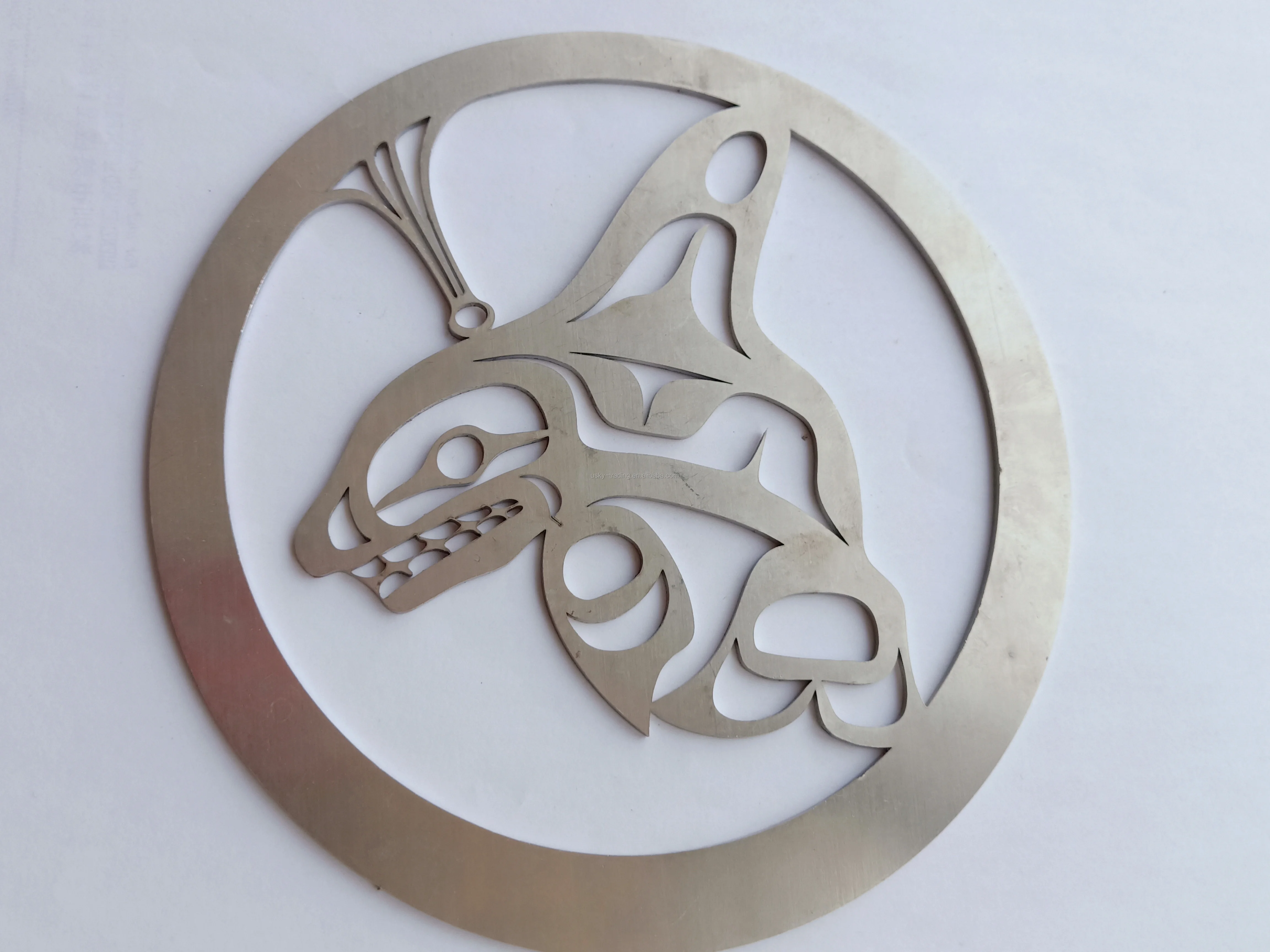

Samples

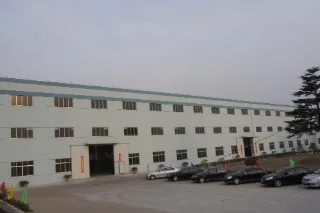

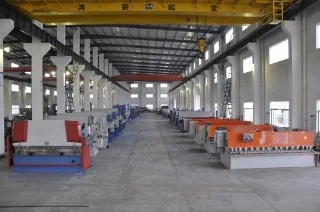

Company Profile
Nantong Usky Import And Export Co., Ltd. is a national foreign trade company and mainly deals with the following products: shearing machines, press brakes, rolling machines, hydraulic presses, etc. Our company has established long-term stable business relationships with overseas customers from Europe, South America, North America, the Middle East, Southeast Asia and other countries and regions. Our company has won a better reputation among overseas customers. Our quality policy is "Studying good quality widely from other people; Trying to be the first; Being honest and Keeping our promise; Progressing together with the times". We provide our customers with high quality products and high quality services.
Our company is sincerely prepared to cooperate with customers from all over the world for mutual benefits and progress.
Our company is sincerely prepared to cooperate with customers from all over the world for mutual benefits and progress.
