Management OCR Scanner Id Checker ISO7816 Reader NFC Visitor All Windows OS or Android OS Windows7(beta) or Android Optional SDK

Product Overview

Description

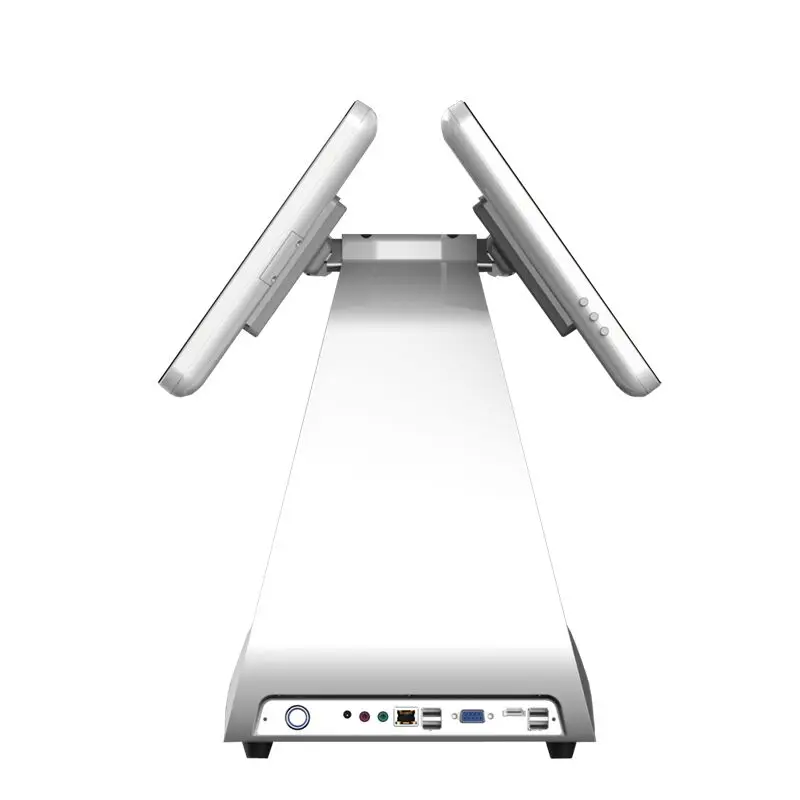

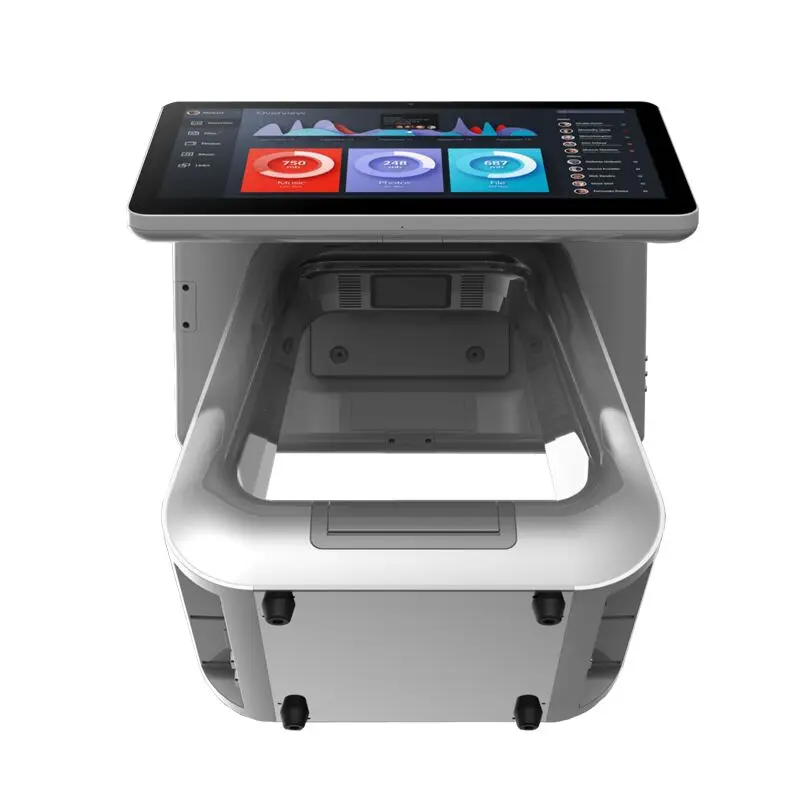

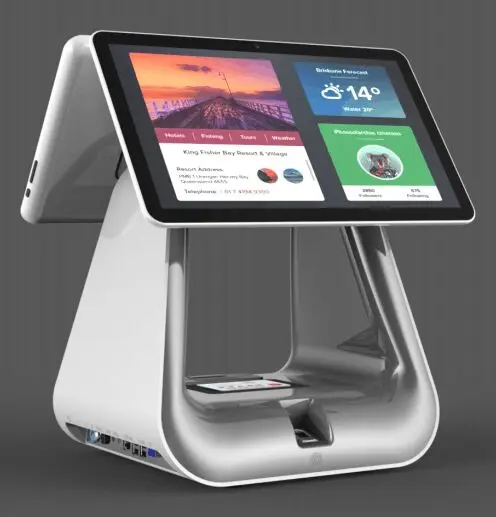

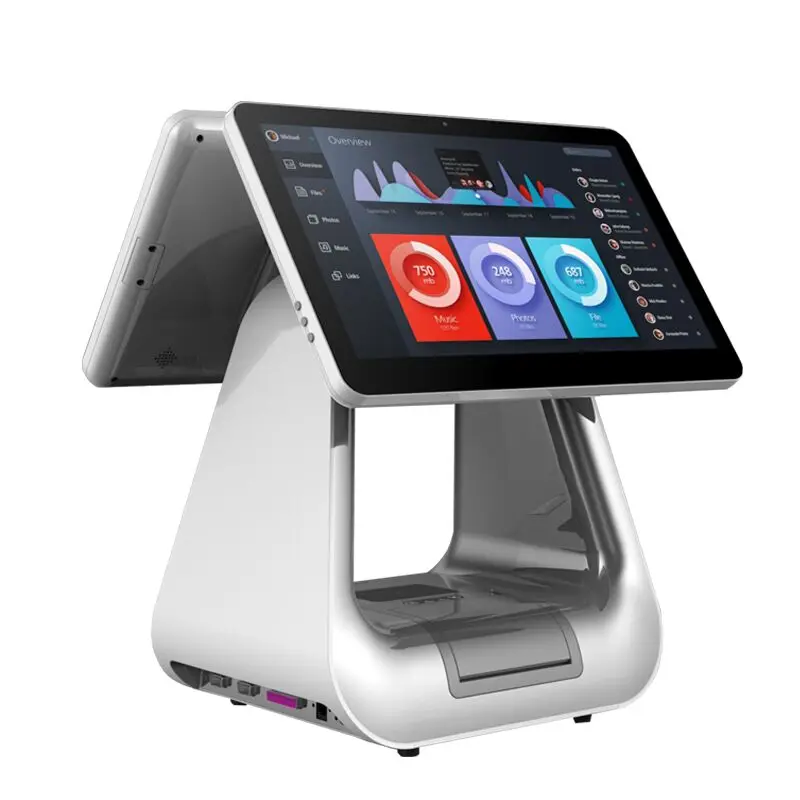

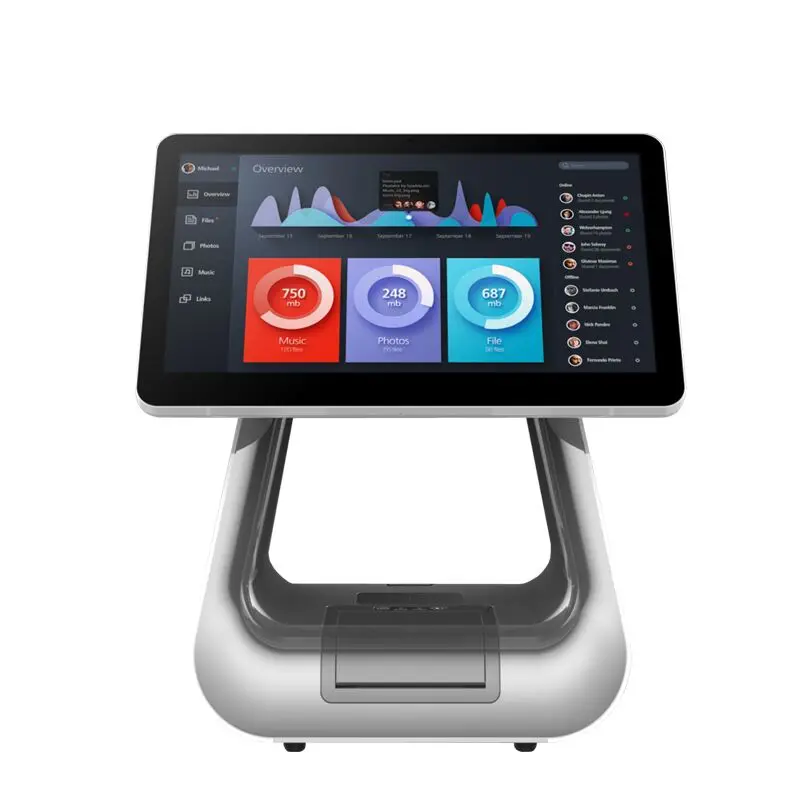

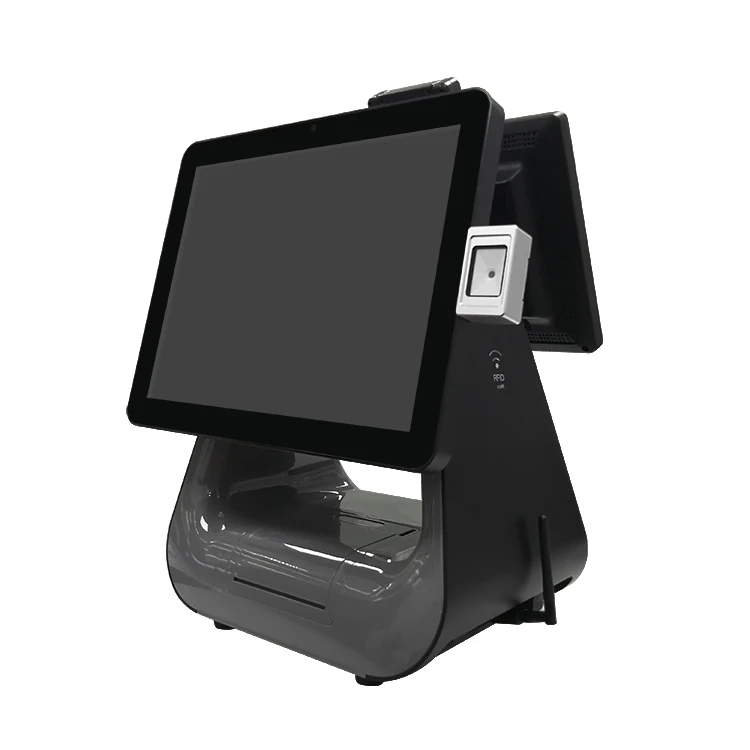

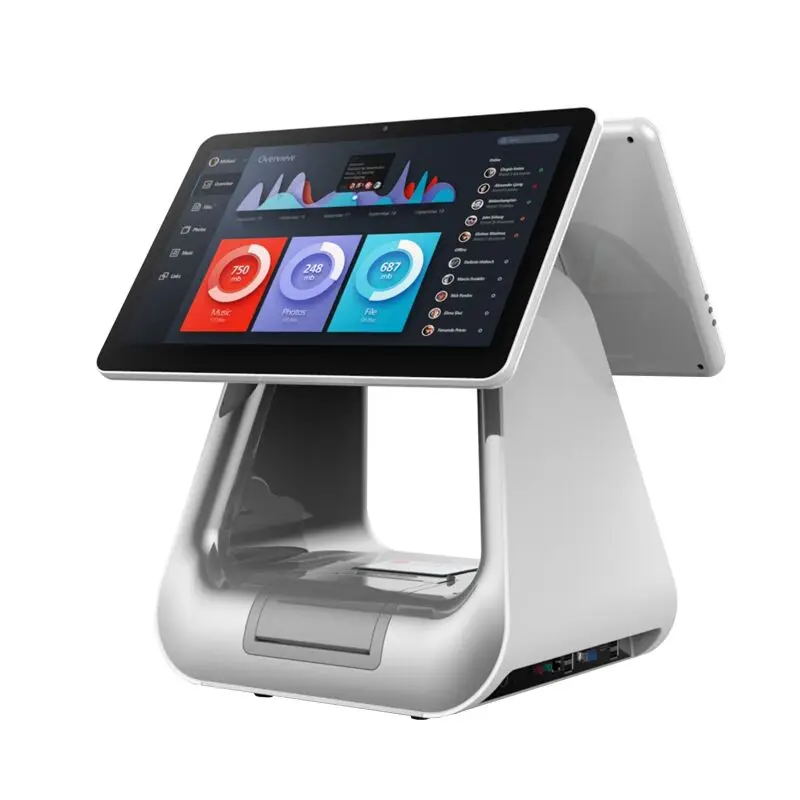

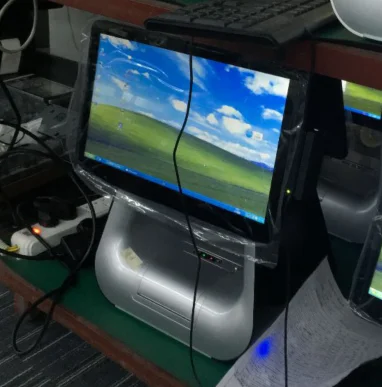

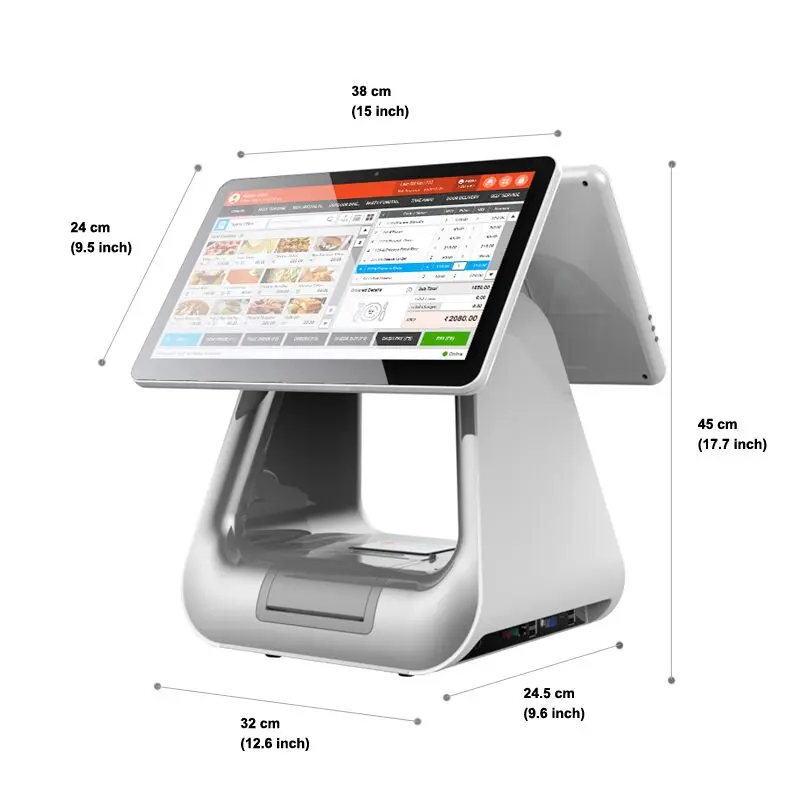

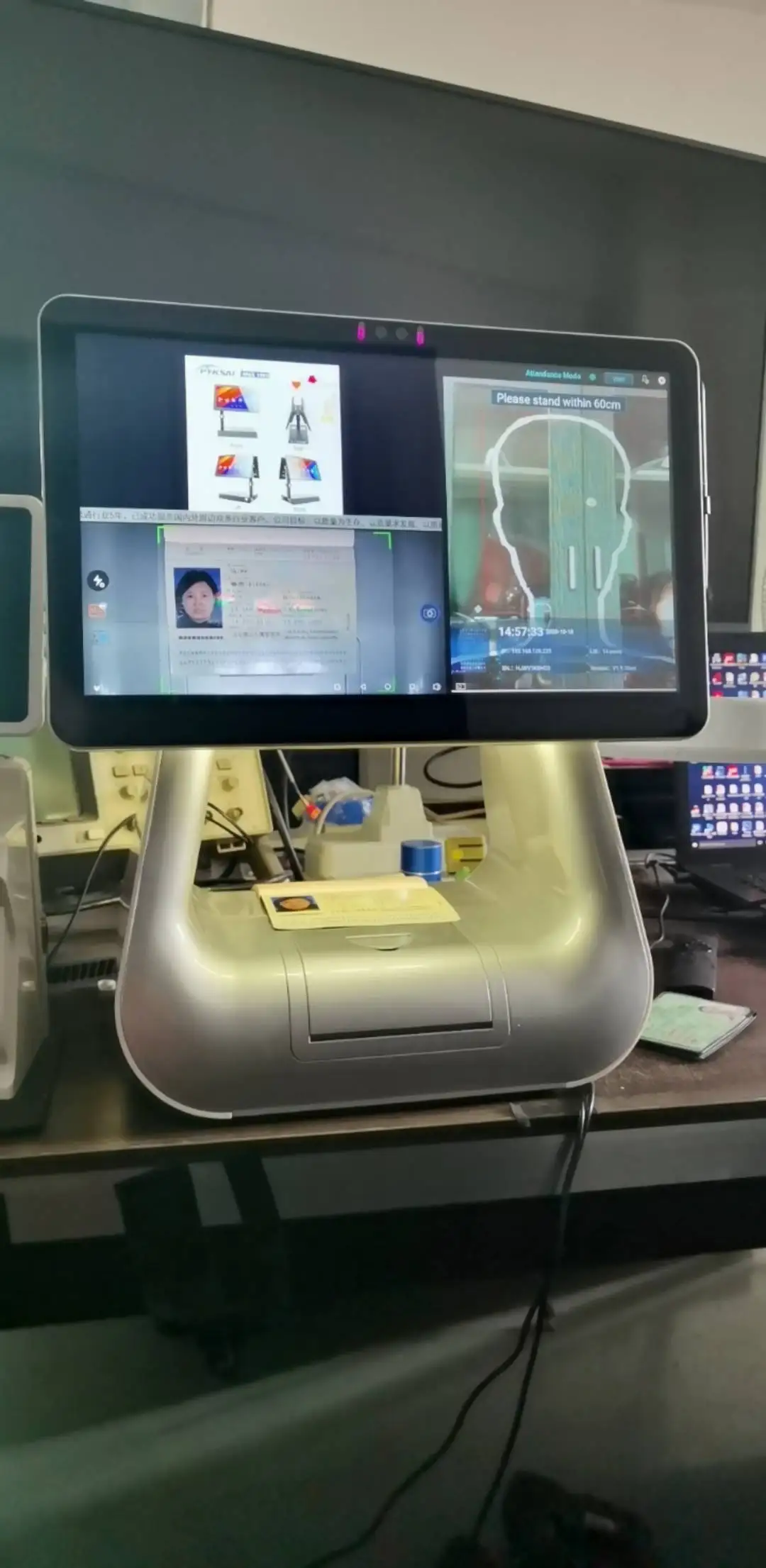

Windows/Android Supported All-in-one Visitor Machine

(M/N:PC-003)



 Features:

l Intel Celeron Processor J1900 Quad core 2.0GHz CPU for Windows system

l 2.0GHz RK3288 for Android system

l 2GB RAM+8GB ROM standard (Android)

l 2GB RAM+32GB SSD standard (Windows)

l Multi-point capacitive touch screen

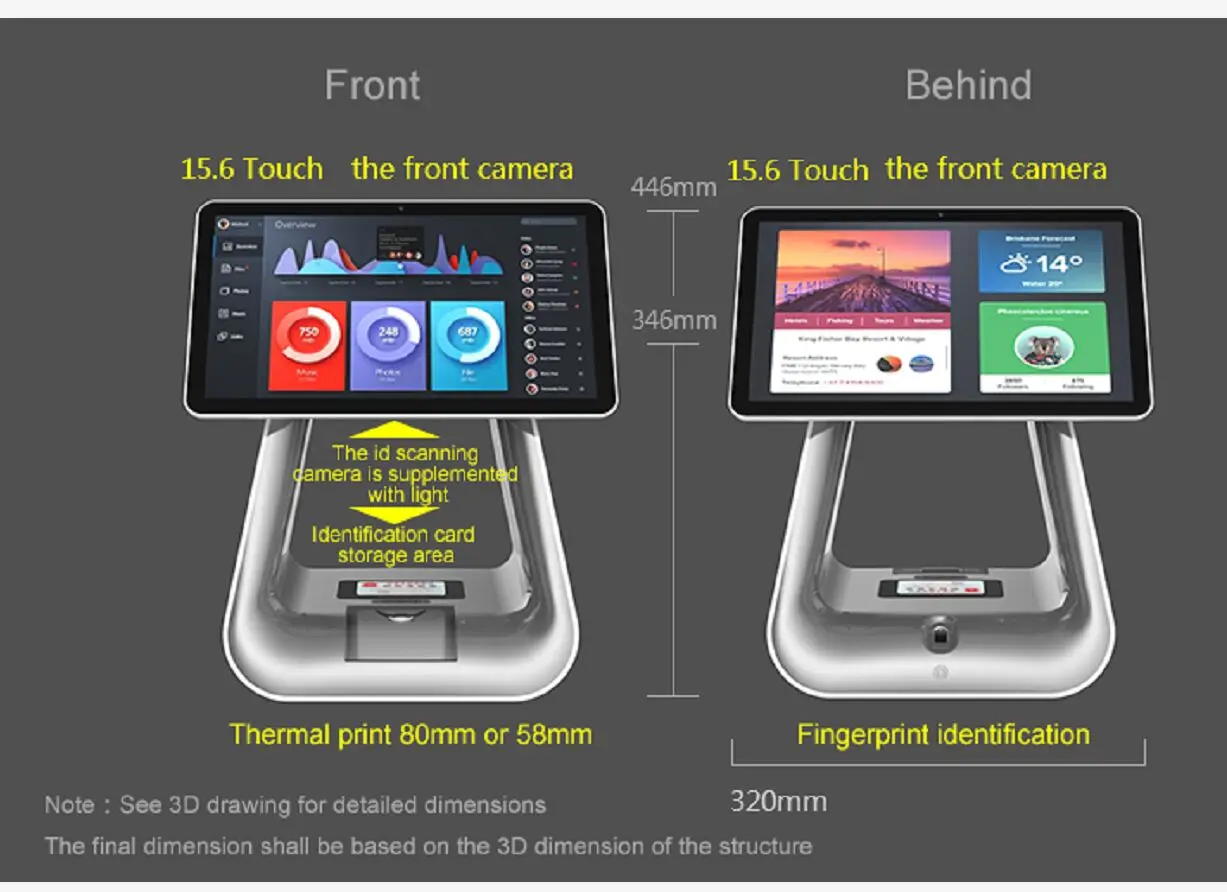

l 11.6 or 15.6 inch monitor for selection

l Secondary screen function

l Main and secondary screens can be embedded in face recognition HD cameras

l MSR,RFID,OCR,Finger Scanner,Barcode scanner(Optional)



Parameter:

Model	PC-003
Main Board	Intel Celeron Processor J1900 Quad core 2.0GHz
Main Board	2.0GHz RK3288 Processor
OS	Windows7(Beta)
OS	Android 6.0
Memory	2GB RAM  32GB SSD, Can up to high version
Memory	2GB RAM  8GB ROM, Can up to high version
Touch Screen	Multi-point capacitive touch
Screen Size	11.6 inch(15.6 inch for optional)
Color	Black or White
I/O port(J1900)	USB*4
	RJ45*1
	VGA*1
	LINE-OUT*1 MIC-IN*1
	DB9 RS232 port *1
I/O port(RK3288)	TF slot *1
	RJ45*1
	USB*2
	Audio*1
	USB OTG port
Operating temperature	0℃ to 40℃
Other Function (Android)	BT, WIFI
Optional items(Windows)	I3 I5 CPU, 3G/4G MSR,RFID,OCR HD camera,Face recognition camera,Finger Scanner,Barcode scanner, WIFI,BT
Optional items(Android)	3G/4G MSR,RFID,OCR HD camera,Face recognition camera,Finger Scanner,Barcode scanner
Storage temperature	-20℃to 60℃
Power adapter	110-240V/50-60HZ AC power,  Input DC12/5A out put



Optional Function Features:





5	OCR HD Camera	Sensor Size:1/2.5" Optical Range: 0.2m-50m Pixels: 2592 (H)x1944(V) LED flash: ON/OFF Power consumption: 200mA - LED OFF                               470mA - LED ON Compatible with Wins/Andriod 4.0 above
6	Built-in Camera	Pixels: 2M
7	2D scanner	Resolution: 648*488 Scan Depth: 5mil/0.125mm Scan codes: Code 39, All UPC/EAN, 128code, code 93, code 11 etc. PDF417, QR code, Data Matrix Interface: TTL-232/USB Illumination: 10,000 lux max Voltage: 3.3V, DC±5% Current: 2mA-86mA
8	RFID Reader	ISO14443A, 13.56MHZ DC 5v (3.3-5V) SDK Avaliable
