T80 Effon android 2D qr code reader handheld terminal pda android barcode scanner with nfc rfid reader medical device pdas
- Category: PDAs >>>
- Supplier: Shenzhen,Effon,Ltd.
Share on:
Product Overview
Description
T80 Effon android 2D qr code reader handheld terminal pda android barcode scanner with nfc rfid reader medical device pdas
HS90 is a kind of industrial rugged android terminal , supporting 2D 1D barcode
1. Android 9.0
2. HS90 adopts a customized high-strength anti drop touch screen with 8h touch screen strength, which can withstand greater pressure impact
3. WiFi supports 2.4G, 5.8G dual frequency communication and WiFi roaming (WiFi roaming time is 120 ms)
4. Anti reverse USB typec socket
5. Bearing 1.5 drop test, supporting IP66 waterproof grade in harsh environment
6. Supporting OEM and system customization including On / off page logo
Feacture
High-speed operation performance:
With the Android 9.0 operating system, matching 2GHz Cortex-A53 1.3GHz high-speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirements.
Excellent identification ability
Fully support 1D and 2D barcode scanning, NFC(optional).

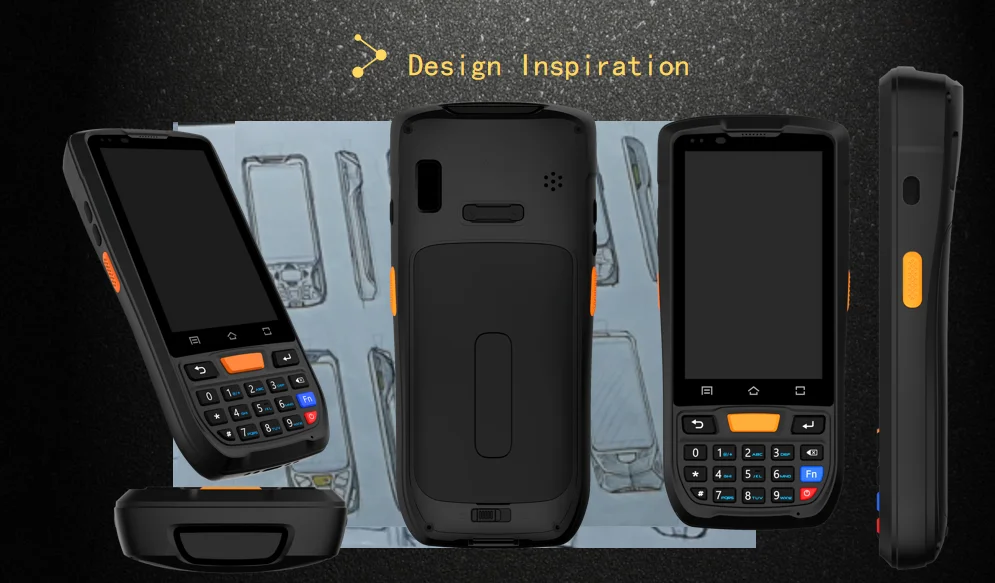

Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.0 inch IPS (720x1280) Work even with water or Gloves.
Abundant means of data transportation(option)
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial-grade durability
IP66 industrial grade, solid and light body can bear the height of 1.5m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof, dustproof provide a long time using without fatigue.
HD Camera
Postposition 8-megapixel autofocus camera is convenient for the client to collect all kinds of images and videos.
Multiple extensions
Support GPS, AGPS, and Beidou compass navigation.
Always-available wireless connection
Supports 802.11 a/b/g/n full-band wireless communications and maintains a real-time connection with the system to ensure high efficient operation.
Industrial Rugged Android Handheld Terminal HS90 Manufacturers,Industrial Rugged Android Handheld Terminal HS90 Price
| Structural Parameter | |
| Dimensions | 157(H)*73(W)*21.6(T)mm(head 26mm) |
| Weight | <500g |
| Display Screen | 4 inch color display with resolution 480*800 |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface | Type-C USB |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4200mAh |
| Frequency | 8ohm 1W speaker |
| Key | Silicone keyboard |
| Performance Parameter | |
| OS | Android 8.1 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
| RAM | 1G/2G RAM |
| Flash ROM | Standard 8G/16G NAND Flash Storage |
| micro SD/TF port (Max up to 32G) | |
| Data Communication | |
| WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
| WCDMA 3G | B1,B2,B5,B7,B8 |
| GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
| bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Standard Modules | |
| Camera | 8MP autofocus camera with flash |
| GPS | Support A-GPS |
| Operating Environment | |
| Operating | -20°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP66 |
| 1D Laser Scanner (OPTIONAL) | |
| 1D Laser Scanner | Mindeo SE966 Honeywell N4313 Newland EM1300(CCD) |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| 2D CMOS (OPTIONAL) | |
| CMOS Scanner | Zebra SE4710 / SE4750/Honeywell N6603/EM3090 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code, etc. |
| LF RFID Reader (Optional) | |
| Frequency | 125kHz, 134kHz (FDX-B / HDX) |
| Protocol | ISO11784/5, ISO18000-2 |
| Range | 3-8cm |
| NFC Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
