Hardness pressure testing machine for mobile phone pressure hard press testing machine
- Category: >>>
- Supplier: Dongguan Hongjin Test Instrument Co. Ltd.
Share on (1600317718643):
Product Overview
Description
A brief introdction

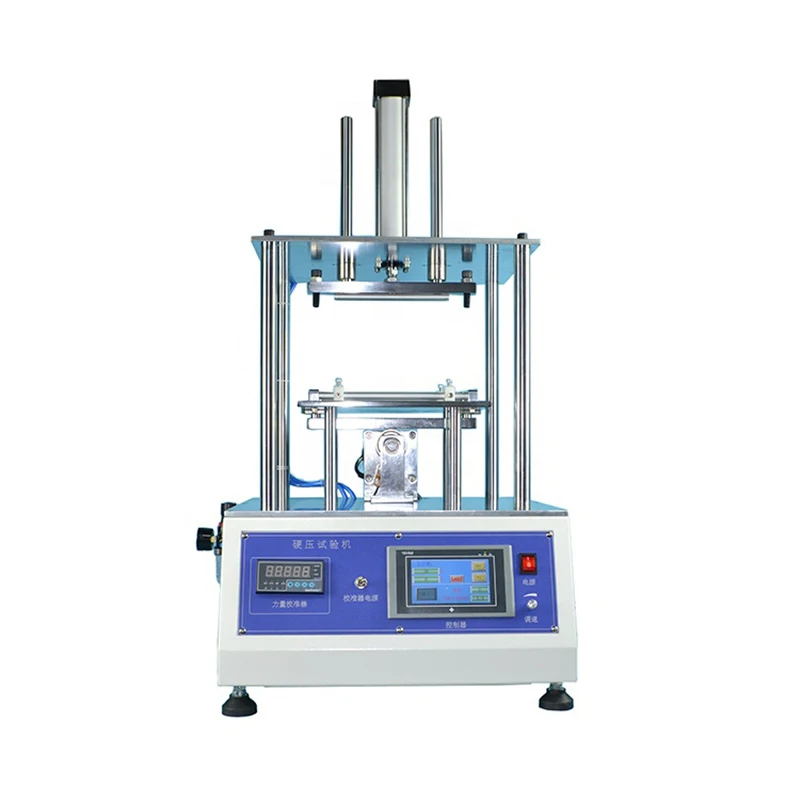

This instrument can simulate mobile phones and other products, imitating people's repeated seating pressure life test, using a certain hardness of round aluminum rod as the indenter, driving it with a cylinder, adjusting a certain pressure of 17kg, and measuring the number of arrivals to see the degree of damage
Detailed introduction of mobile phone hard pressure testing machine

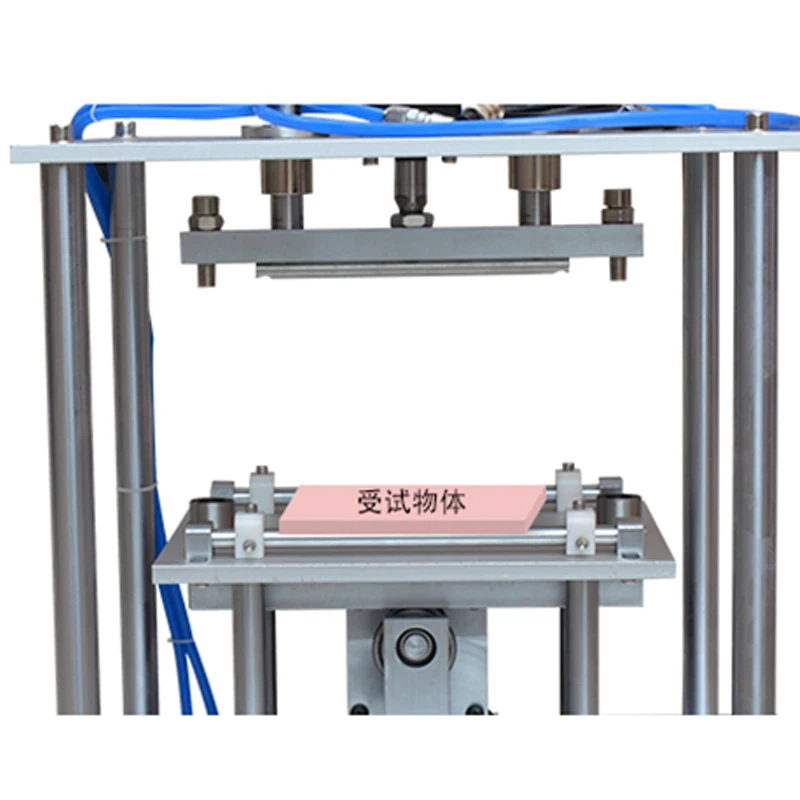

This instrument can simulate mobile phones and other products, imitating people's repeated seating pressure life test, using a certain hardness of round aluminum rod as the indenter, driving it with a cylinder, adjusting a certain pressure of 17kg, and measuring the number of arrivals to see the degree of damage. Meet the YD/T 1539-2006 standard. Turn on the mobile communication handset without packaging, install the battery and lock the keyboard with the front face up, and place the body and the fixed bracket axially perpendicular to the 12cm round aluminum extrusion head with a length of (250±10) ) N, squeeze the sample 1000 times at a frequency of 15-30 times per minute, and then the function, appearance and assembly should meet the requirements of relevant standards. The hand-held machine with folding, sliding and rotating structure shall be tested in its closed state.
Equipment technical parameters:

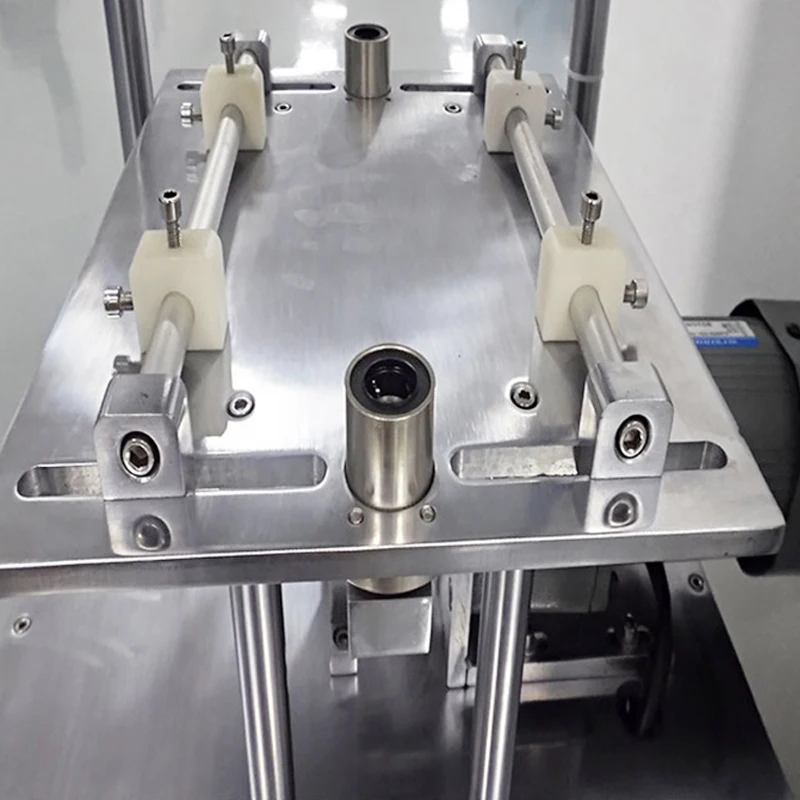

1. Test the largest sample: 200cm*10cm, height adjustable within 4cm

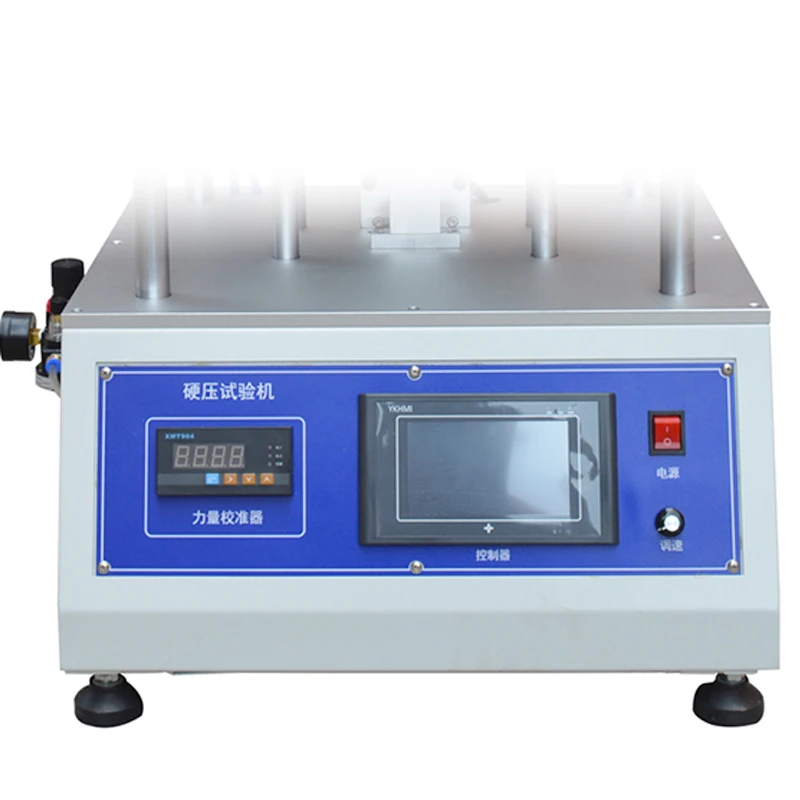

2. Touch screen control
3. Working frequency: 10~60 times/minute

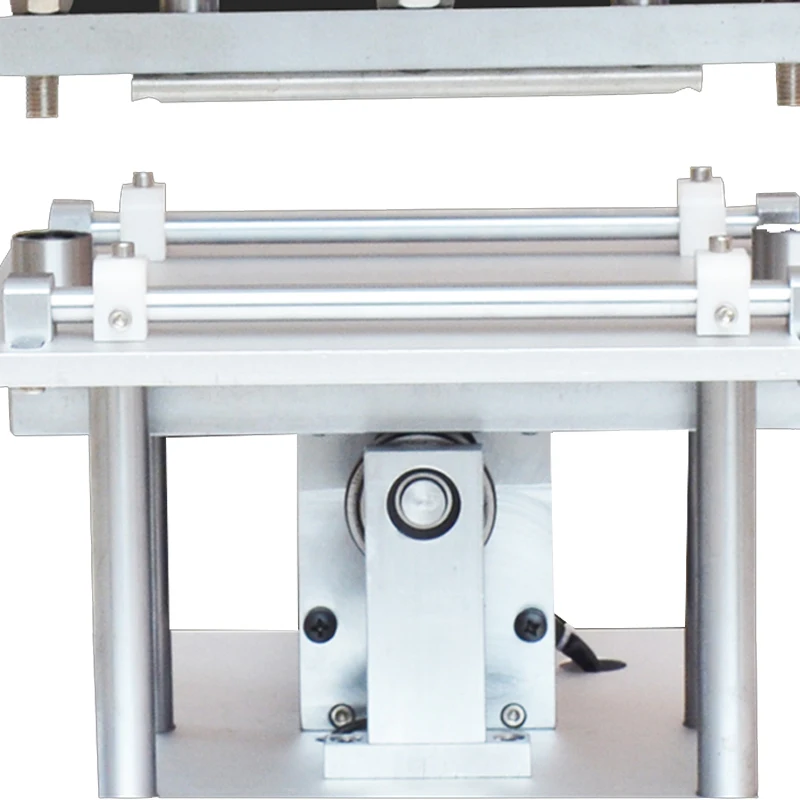

4. One set of calibration device, pressure sensor 100kg
5. Alarm time: 5-10 seconds (fixed)
6. Indenter requirements: use round bar aluminum
7. Machine size: about 450*330*500mm
8. Weight: 40kg
9. Power supply: AC220/50HZ
This instrument can simulate mobile phones and other products, imitating people's repeated seating pressure life test, using a certain hardness of round aluminum rod as the indenter, driving it with a cylinder, adjusting a certain pressure of 17kg, and measuring the number of arrivals to see the degree of damage
Detailed introduction of mobile phone hard pressure testing machine
This instrument can simulate mobile phones and other products, imitating people's repeated seating pressure life test, using a certain hardness of round aluminum rod as the indenter, driving it with a cylinder, adjusting a certain pressure of 17kg, and measuring the number of arrivals to see the degree of damage. Meet the YD/T 1539-2006 standard. Turn on the mobile communication handset without packaging, install the battery and lock the keyboard with the front face up, and place the body and the fixed bracket axially perpendicular to the 12cm round aluminum extrusion head with a length of (250±10) ) N, squeeze the sample 1000 times at a frequency of 15-30 times per minute, and then the function, appearance and assembly should meet the requirements of relevant standards. The hand-held machine with folding, sliding and rotating structure shall be tested in its closed state.
Equipment technical parameters:
1. Test the largest sample: 200cm*10cm, height adjustable within 4cm
2. Touch screen control
3. Working frequency: 10~60 times/minute
4. One set of calibration device, pressure sensor 100kg
5. Alarm time: 5-10 seconds (fixed)
6. Indenter requirements: use round bar aluminum
7. Machine size: about 450*330*500mm
8. Weight: 40kg
9. Power supply: AC220/50HZ
Product Description
Specification
Test the largest sample: | 200cm*10cm, height adjustable within 4cm |
working frequency: | 10~60 times/min |
Alarm time: | 5-10 seconds (fixed) |
Head requirements: | Choose round bar aluminum |
Machine size: | About 450*330*500mm |
weight: | 40kg |
power supply: | AC220/50HZ |
