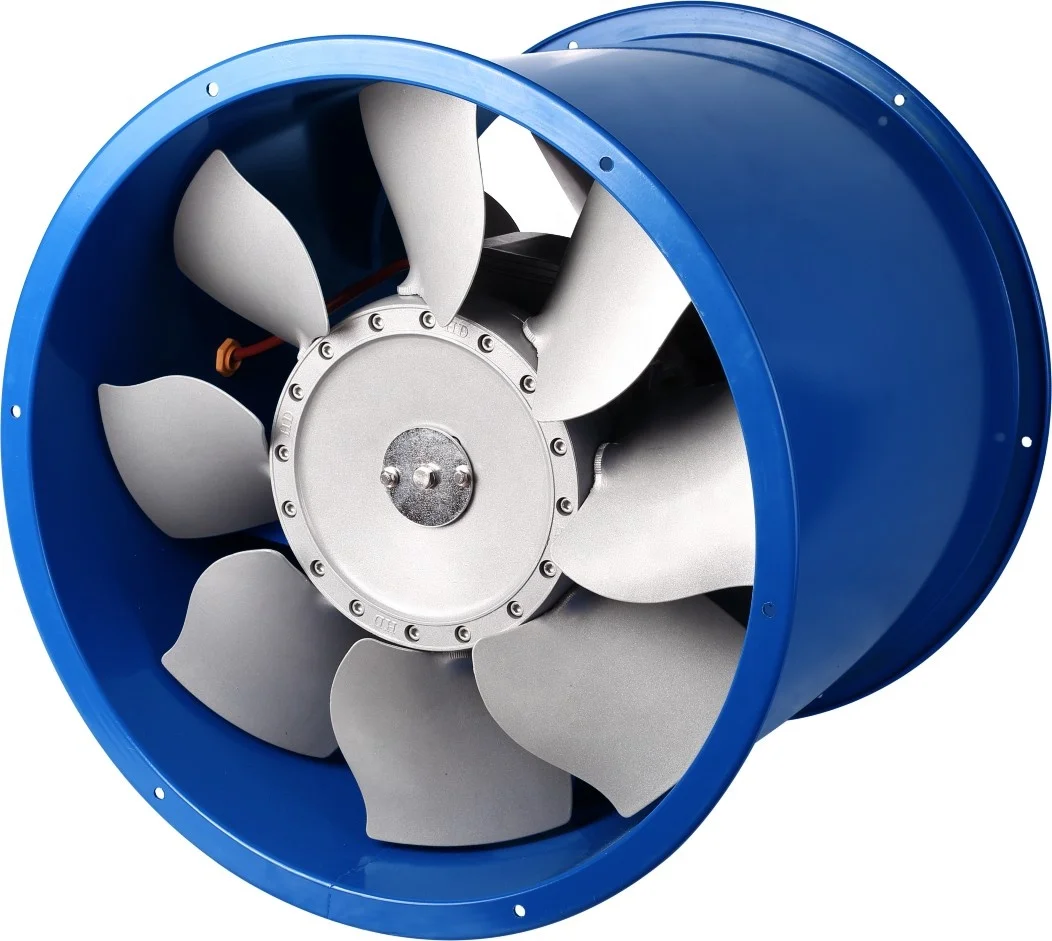

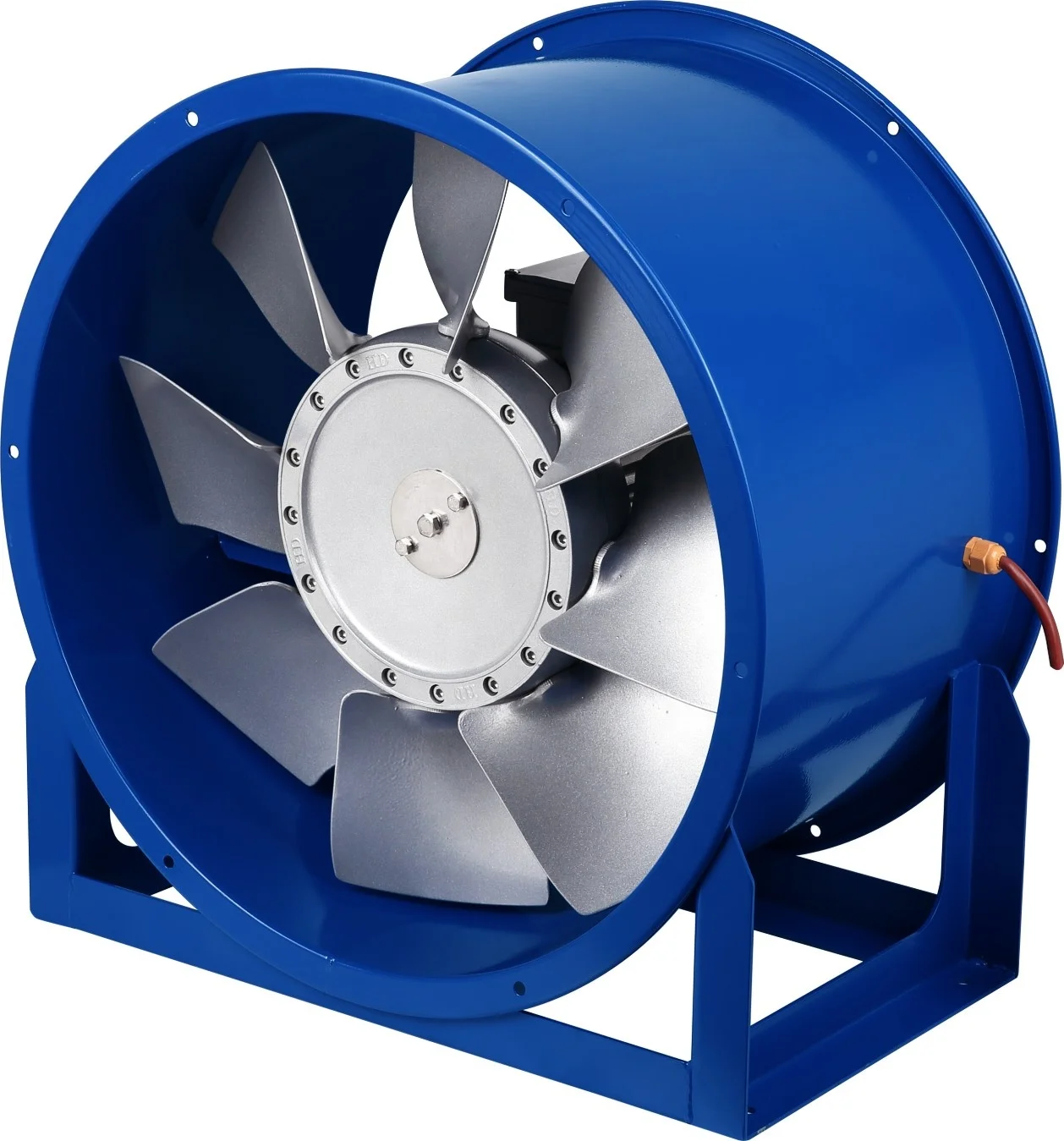

High temperature aluminum blades axial ventilation fan
- Category: >>>
- Supplier: Fujian Diamond Electrical And Mechanical Equipment Co. Ltd.
Share on (1600317759259):
Product Overview
Description

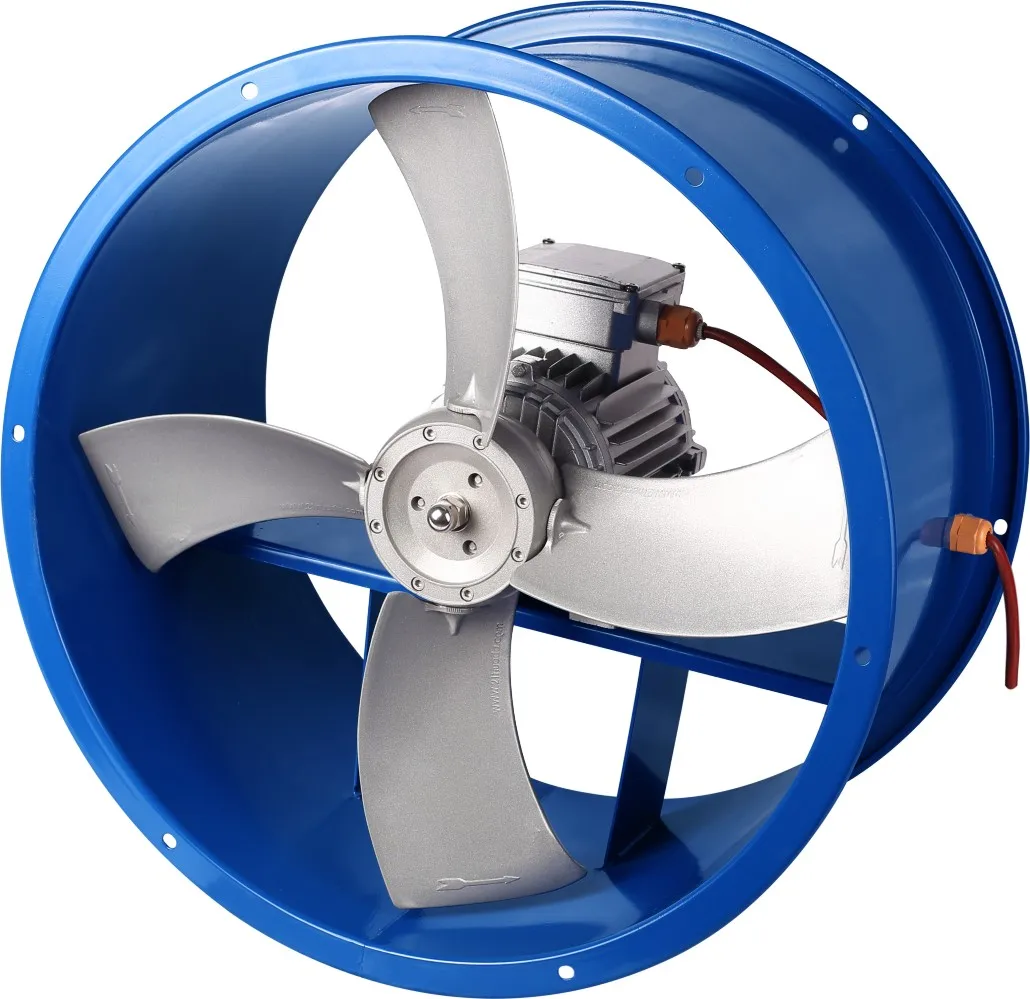

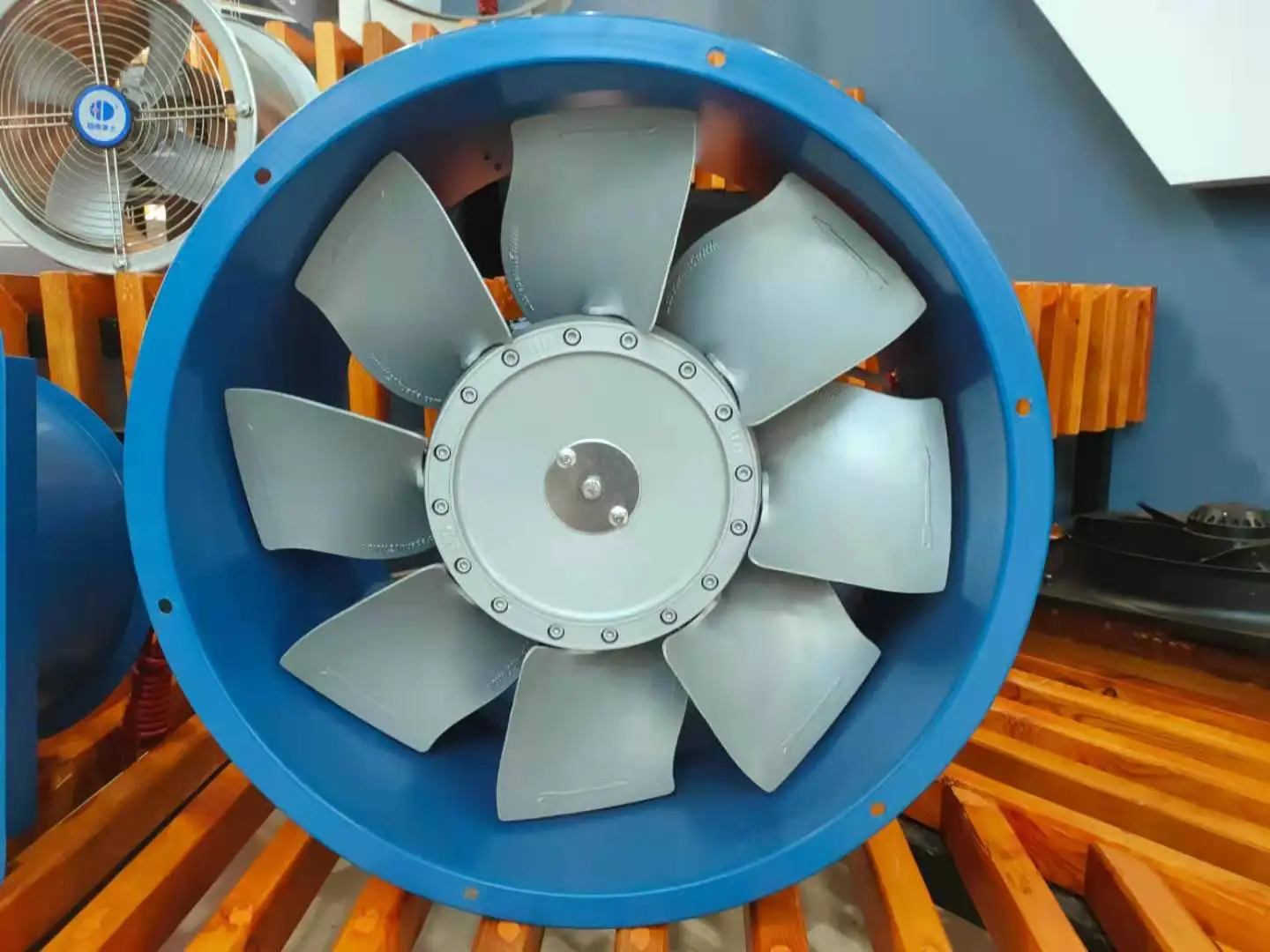

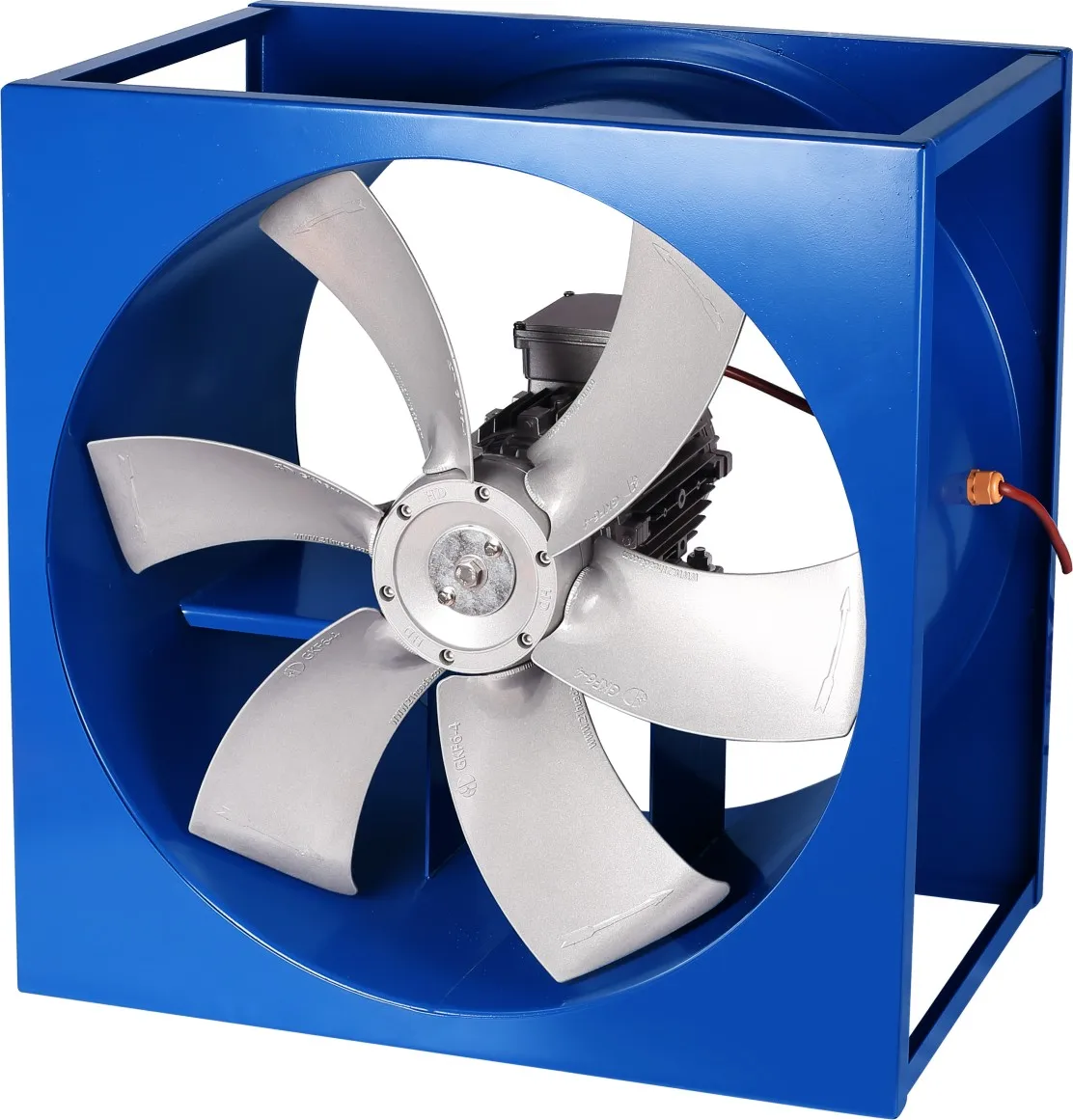

High temperature high humidity axial fan
GKF series high temperature high humidity axial ventilator fan is widely used in the painting,tobacco,wood drying,production of rubber.About vented exhaust,the fan can be used in the lots of high temperature and high humidity environment,for example:the factory,the workshop,the office,the warehouse,the basement.The axial fan is unidirectional vented exhaust equipment .The fans has characteristic of resistance to high-temperature ,large air volume,high pressure,energy-efficient,low noise,convenience maintenance,etc.The gas has no more than 150mg/cbm dust and hard particles.
Since the frame size and the blades diameter are different ,the installation angle of the
blades,speed of main shaft is different .Air flow,air pressure and motor output are different. The air pressure from 50Pa to
400Pa,the air flow from 1000 CBM/H to 45000 CBM/H.
blades,speed of main shaft is different .Air flow,air pressure and motor output are different. The air pressure from 50Pa to
400Pa,the air flow from 1000 CBM/H to 45000 CBM/H.
Tech Data
Item No. | Speed （rpm) | Motor No. | Power (KW) | Total pressure (Pa) | Hydrostatic(Pa) | Air Volume(m³/h) | No. of blades | Noise(dB) |
2.5 | 2900 | 631-2 | 0.18 | 120-160 | 40-110 | 2200-1400 | 4 | ≤64 |
632-2 | 0.25 | 130-170 | 50-116 | 2500-1500 | 4 | ≤65 | ||
1450 | 631-4 | 0.12 | 55-60 | 20-28 | 1600-1000 | 4 | ≤59 | |
3 | 2900 | 632-2 | 0.25 | 120-180 | 80-150 | 3200-1800 | 4 | ≤68 |
633-2 | 0.37 | 140-200 | 90-170 | 3500-2000 | 4 | ≤68 | ||
1450 | 631-4 | 0.12 | 60-80 | 30-60 | 2200-1200 | 4 | ≤61 | |
3.5 | 2900 | 711-2 | 0.37 | 200-250 | 130-200 | 4500-2500 | 4 | ≤71 |
712-2 | 0.55 | 250-280 | 150-220 | 5200-3000 | 4 | ≤72 | ||
1450 | 711-4 | 0.25 | 80-100 | 35-65 | 3500-2200 | 4 | ≤63 | |
4 | 2900 | 712-2 | 0.55 | 230-300 | 145-250 | 5500-3000 | 4 | ≤73 |
801-2 | 0.75 | 250-330 | 145-270 | 6500-4000 | 4 | ≤74 | ||
802-2 | 1.1 | 270-380 | 150-320 | 7500-5000 | 6 | ≤75 | ||
1450 | 711-4 | 0.25 | 80-106 | 40-80 | 4300-2500 | 4 | ≤66 | |
712-4 | 0.37 | 100-120 | 50-95 | 5000-2800 | 6 | ≤68 | ||
801-4 | 0.55 | 110-130 | 70-90 | 5200-3200 | 6 | ≤68 | ||
5 | 2900 | 90S-2 | 1.5 | 250-450 | 150-420 | 8500-5200 | 4 | ≤90 |
90L-2 | 2.2 | 300-550 | 200-500 | 10000-6000 | 4 | ≤90 | ||
100L-2 | 3 | 400-600 | 250-550 | 12000-7000 | 4 | ≤90 | ||
1450 | 712-4 | 0.37 | 110-140 | 70-114 | 7000-4500 | 4 | ≤85 | |
801-4 | 0.55 | 115-150 | 75-120 | 7500-5000 | 4 | ≤70 | ||
802-4 | 0.75 | 140-170 | 80-137 | 8700-5400 | 6 | ≤74 | ||
802-4 | 0.75 | 190-210 | 110-170 | 9000-6000 | 8 | ≤75 | ||
90S-4 | 1.1 | 200-220 | 135-175 | 9500-6000 | 8 | ≤76 | ||
960 | 801-6 | 0.37 | 84-92 | 60-77 | 6300-4300 | 8 | ≤63 | |
5.5 | 1450 | 802-4 | 0.75 | 180-210 | 120-160 | 10000-6500 | 4 | ≤74 |
90S-4 | 1.1 | 190-210 | 125-165 | 11000-7500 | 6 | ≤75 | ||
960 | 801-6 | 0.37 | 80-88 | 50-73 | 7300-5000 | 6 | ≤65 | |
6 | 2900 | 100L-2 | 3 | 250-650 | 150-560 | 14500-8000 | 4 | ≤94 |
112M-2 | 4 | 400-700 | 250-630 | 18000-10000 | 8 | ≤94 | ||
1450 | 90S-4 | 1.1 | 195-220 | 130-180 | 12500-7500 | 4 | ≤76 | |
90L-4 | 1.5 | 250-280 | 160-230 | 14500-9000 | 6 | ≤78 | ||
100L1-4 | 2.2 | 270-310 | 180-230 | 16000-10000 | 8 | ≤80 | ||
960 | 801-6 | 0.37 | 90-100 | 70-80 | 8500-5000 | 6 | ≤66 | |
802-6 | 0.55 | 105-114 | 80-95 | 9600-6000 | 6 | ≤68 | ||
7 | 1450 | 90L-4 | 1.5 | 170-150 | 100-210 | 18000-11000 | 4 | ≤78 |
100L1-4 | 2.2 | 200-275 | 120-230 | 20500-13000 | 4 | ≤80 | ||
100L2-4 | 3 | 265-370 | 150-310 | 21500-13500 | 6 | ≤82 | ||
960 | 90S-6 | 0.75 | 90-120 | 60-96 | 14000-9000 | 4 | ≤71 | |
90L-6 | 1.1 | 100-130 | 65-98 | 15000-10000 | 6 | ≤74 | ||
8 | 1450 | 100L1-4 | 2.2 | 200-320 | 100-280 | 25000-16000 | 6 | ≤80 |
100L2-4 | 3 | 220-340 | 110-290 | 29000-20000 | 8 | ≤82 | ||
112M-4 | 4 | 300-400 | 170-340 | 32000-22000 | 8 | ≤86 | ||
132S-4 | 5.5 | 320-420 | 175-360 | 35000-25000 | 8 | ≤87 | ||
960 | 100L-6 | 1.5 | 130-175 | 75-150 | 21000-14500 | 8 | ≤78 | |
112M-6 | 2.2 | 140-190 | 78-155 | 24000-16500 | 8 | ≤80 | ||
9 | 1450 | 132S-4 | 5.5 | 300-450 | 180-370 | 37000-24000 | 8 | ≤88 |
132M-4 | 7.5 | 320-470 | 185-380 | 40000-27000 | 8 | ≤89 | ||
160M-4 | 11 | 330-480 | 190-385 | 42000-30000 | 8 | ≤89 | ||
960 | 112M-6 | 2.2 | 170-205 | 105-150 | 26500-15000 | 6 | ≤82 | |
132S-6 | 3 | 180-230 | 110-180 | 29000-18000 | 8 | ≤83 | ||
132M1-6 | 4 | 210-250 | 127-210 | 32000-21000 | 8 | ≤83 | ||
132M2-6 | 5.5 | 250-320 | 150-262 | 36000-23000 | 8 | ≤83 | ||
10 | 1450 | 132S-4 | 5.5 | 330-470 | 200-400 | 42000-34000 | 8 | ≤90 |
132M-4 | 7.5 | 350-480 | 210-410 | 46000-38000 | 8 | ≤91 | ||
160M-4 | 11 | 400-500 | 220-415 | 52000-43000 | 8 | ≤92 | ||
160L-4 | 15 | 490-610 | 230-480 | 56000-46000 | 8 | ≤93 | ||
180M-4 | 18.5 | 500-640 | 260-500 | 60000-48000 | 8 | ≤94 | ||
960 | 132M1-6 | 4 | 200-230 | 130-180 | 33000-21000 | 8 | ≤85 | |
132M2-6 | 5.5 | 260-290 | 160-250 | 40000-27000 | 8 | ≤85 | ||
730 | 132S-8 | 3 | 160-180 | 110-135 | 32000-20000 | 8 | ≤83 | |
160M1-8 | 4 | 170-200 | 115-145 | 38000-26000 | 8 | ≤83 |

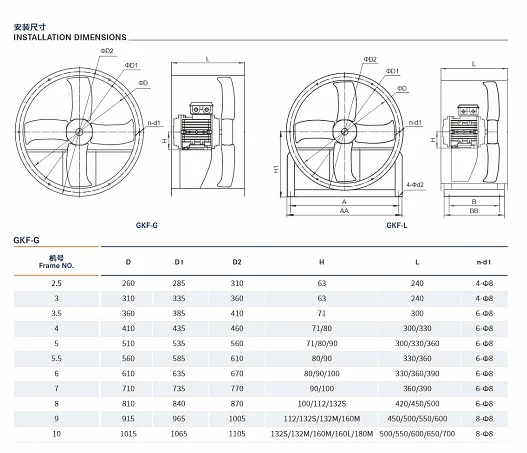

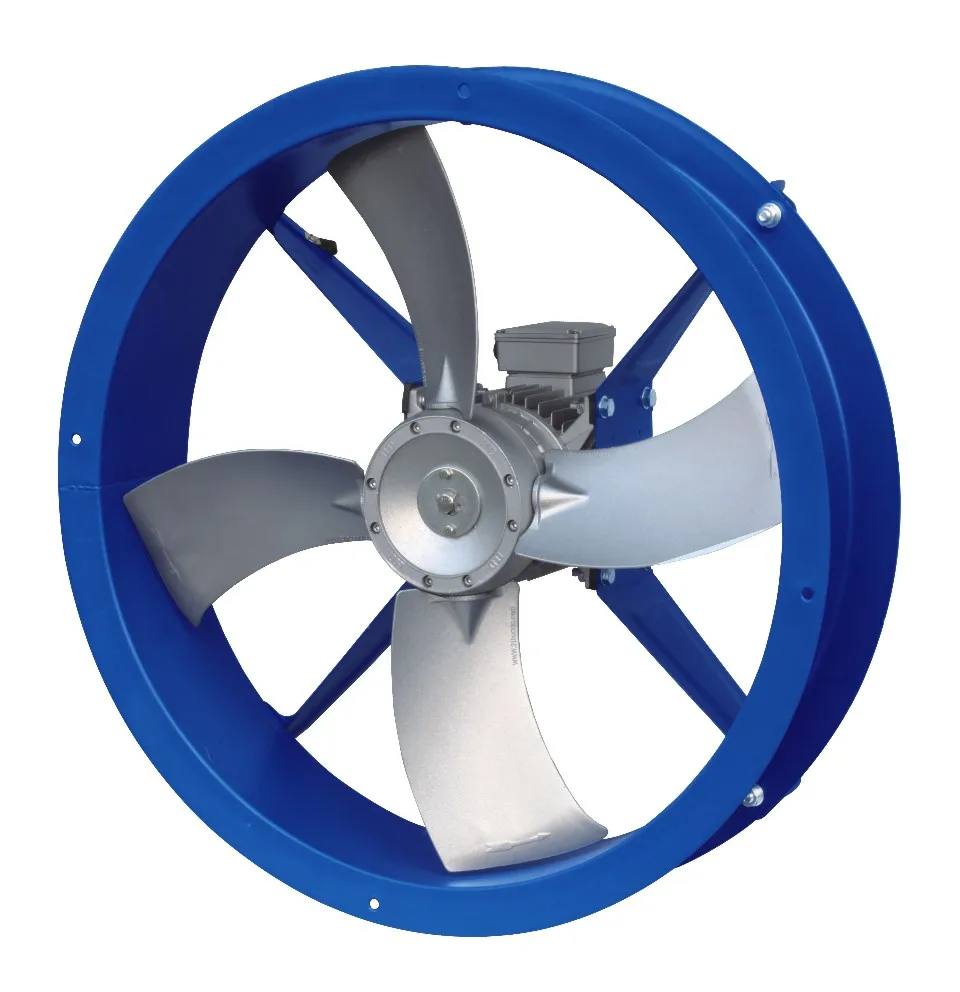

GKF Series axial flow fans
As the blades diameter is different,there are 11 model,No.2.5,3,3.5,4,5,5.5,6,7,8,9,10.The angle of fan can be adjusted according
to the clients’ requirements. The fan blades can be direct connected with the motor.The circumferential velocity of the impeller
does not exceed the condition,there are three different rotational speed:2900r/min,1450r/min,960r/min.When face the air inlet ,the blades are counterclockwise rotation.
to the clients’ requirements. The fan blades can be direct connected with the motor.The circumferential velocity of the impeller
does not exceed the condition,there are three different rotational speed:2900r/min,1450r/min,960r/min.When face the air inlet ,the blades are counterclockwise rotation.
