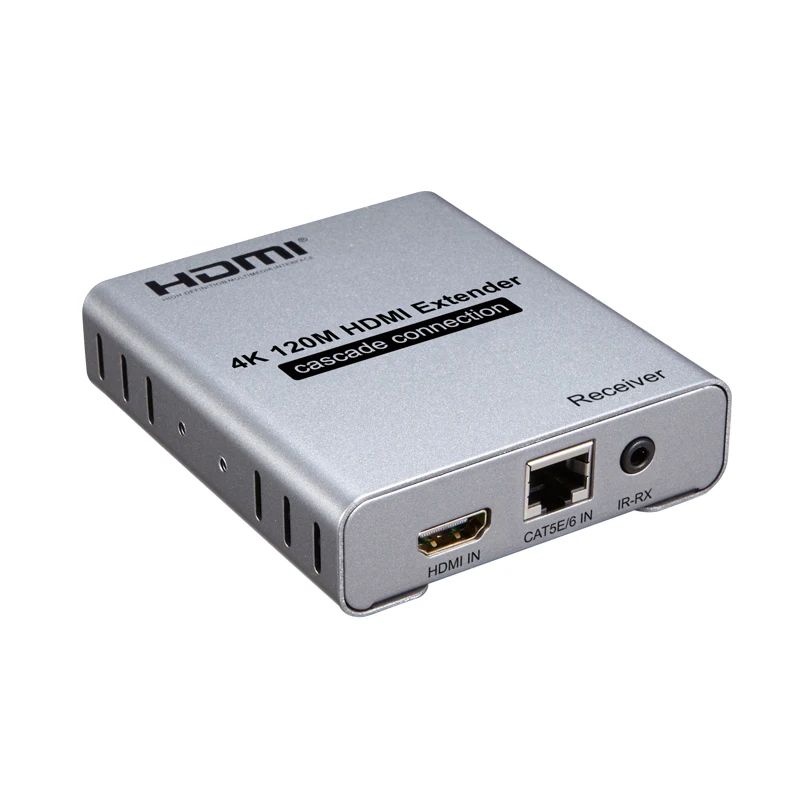

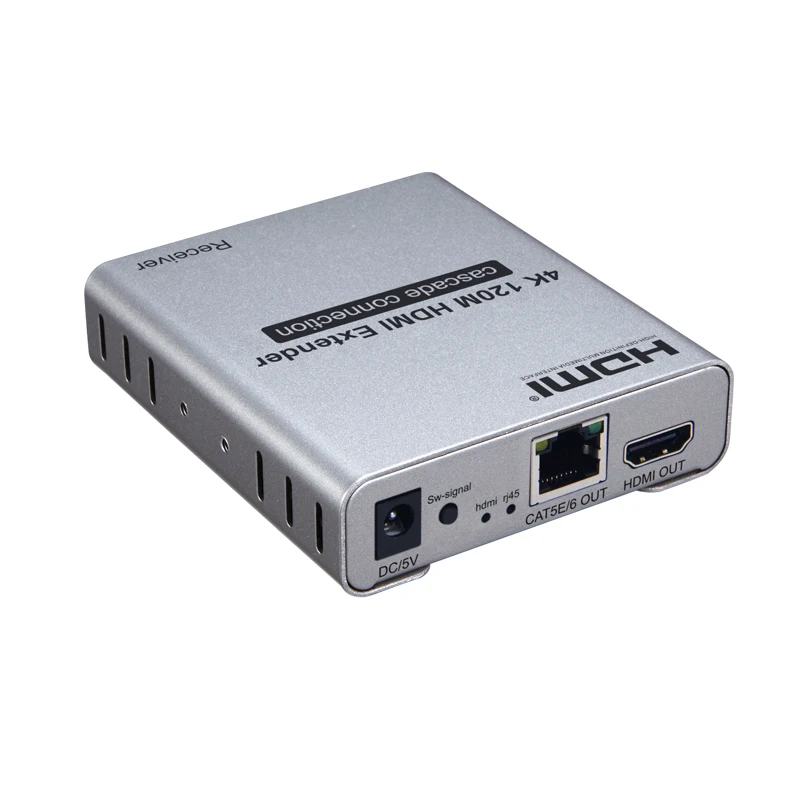

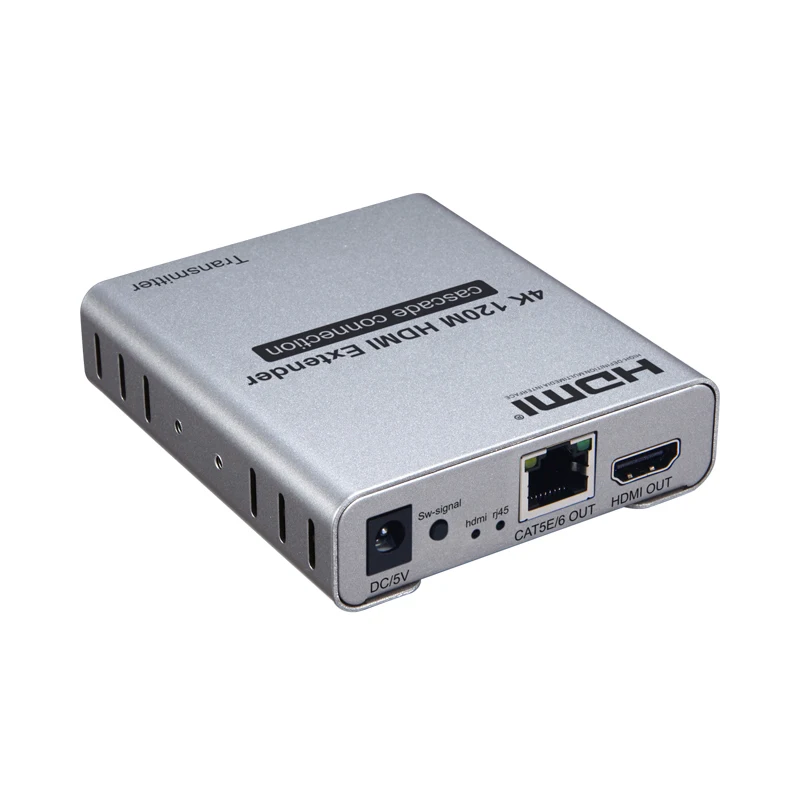

Xput HDMI 1.4 HDMI Extender Ethernet Transmitter Receiver 120M Over TCP/IP Cat5e/6 4K 30Hz

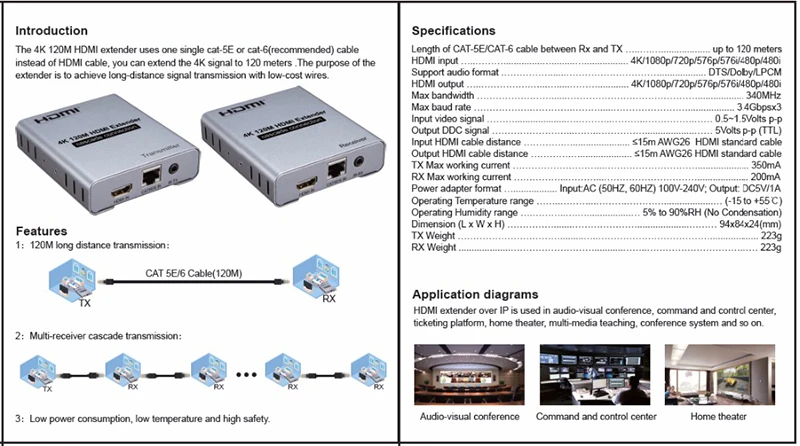

Introduction: The 4K 120M HDMI extender uses one single cat-5E or cat-6(recommended) cable instead of HDMI cable, you can extend the 4K signal to 120 meters .The purpose of textender is to achieve long-distance signal transmission with low-cost wires. |

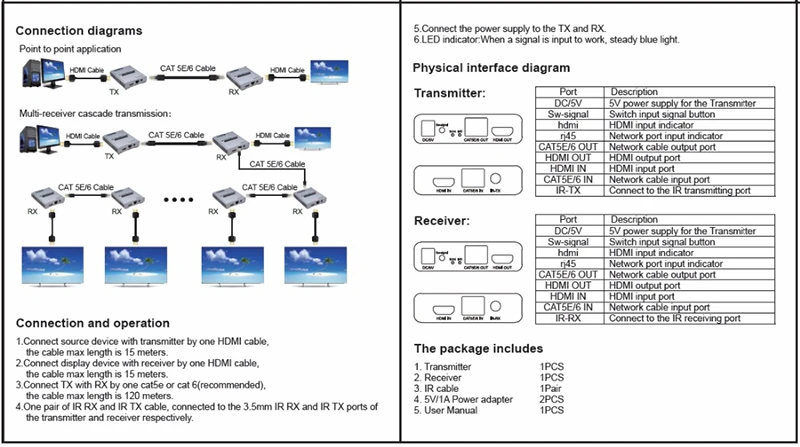

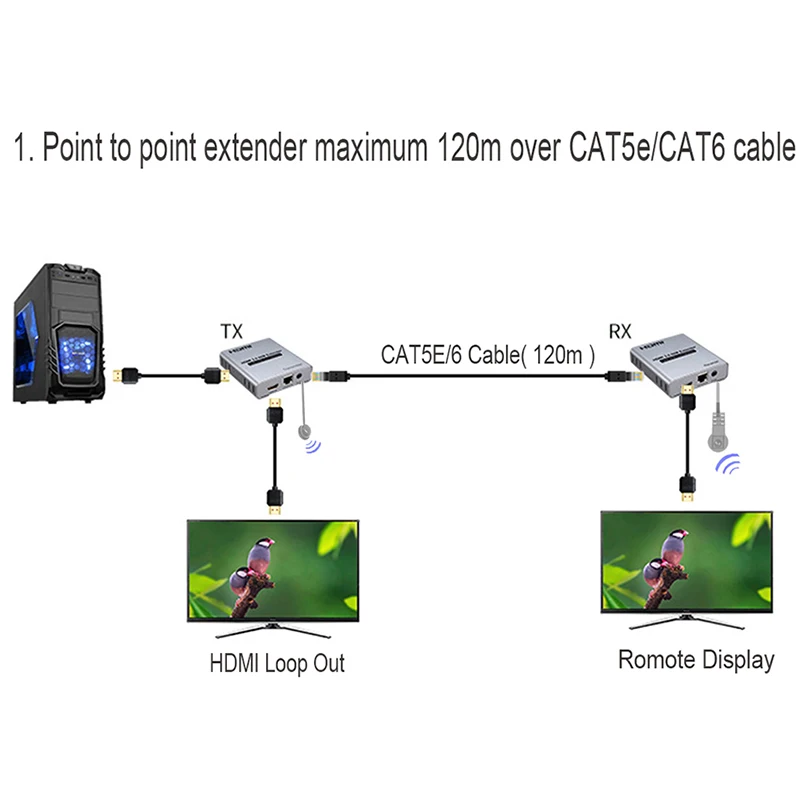

Connection and Operation: 1.Connect source device with transmitter by one HDMI cable,the cable max length is 15 meters. 2.Connect display device with receiver by one HDMI cable,the cable max length is 15 meters. 3.Connect TX with RX by one cat5e or cat 6(recommended),the cable max length is 120 meters. 4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively. 5.Connect the power supply to the TX and RX. 6.LED indicator:When a signal is input to work, steady blue light |

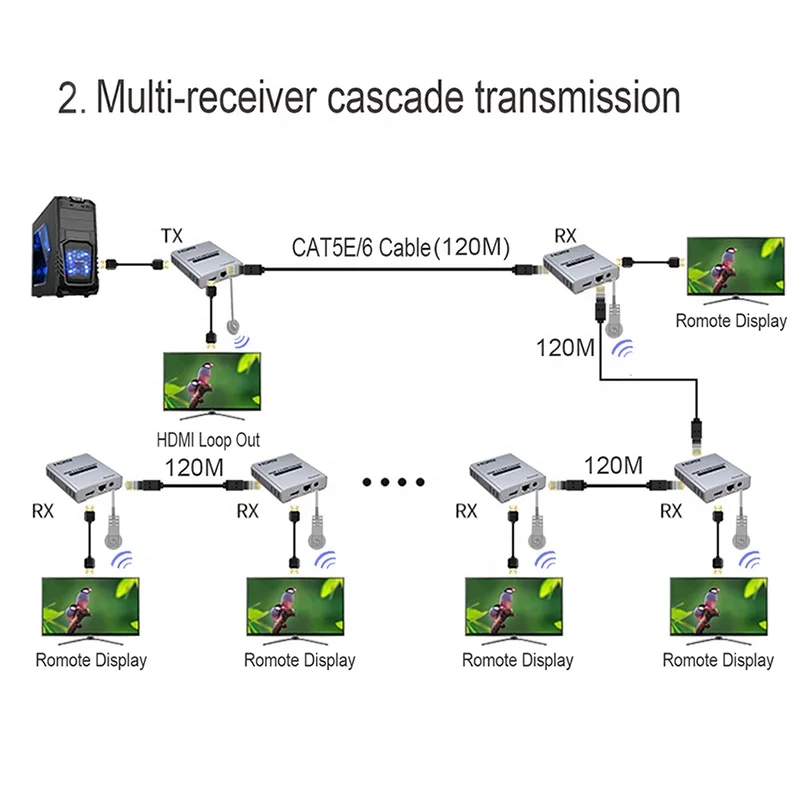

1 HDMI1.4 4K @ 30Hz HDM1.3 1080P can be transmitted 120 meters by replacing the HDMI cable with a CAT5e or CAT6 cable (recommended). 2. The transmitter supports an HDMI ring for easy source control. 3 HDMI1.4 4K @ 30Hz transmission technology, support point-to-point, multi-receiver cascade transmission mode. 4.Support infrared remote control remote expansion, remote control source device on the side of the screen, easy to install, plug and play! 5 widely used in video conferencing, monitoring center, multimedia teaching, home theater, etc., fast and efficient video transmission to meet the needs of your different occasions. Product parameters: HDMI version: HDMI1.4 (drop compatible) Support: Point to Point Support: Multi-receiver cascade transmission HDMI1.4 4K at 30Hz HDM1.3 1080P transmission distance: CAT5e or CAT6 cable between receiver and transmitter up to 120 meters HDMI input resolution: 4K @ 30HZ / 1080p / 720p / 576p / 576i / 480p / 480i Resolution HDMI output: 4K @ 30HZ / 1080p / 720p / 576p / 576i / 480p / 480i Support audio format: DTS / LPCM Maximum transmission bandwidth: 340 MHz Maximum transmission rate: 10.2 Gbps |
