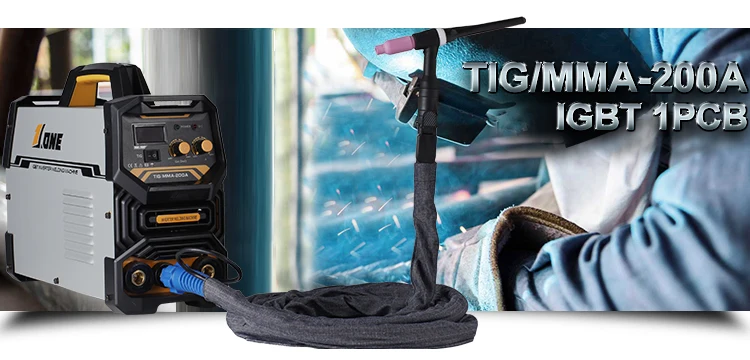

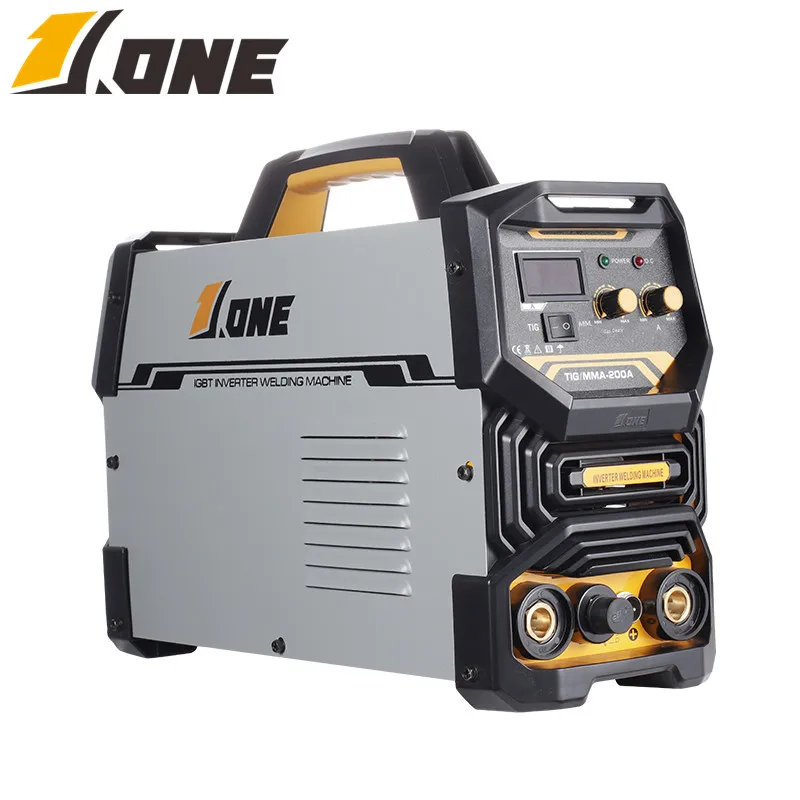

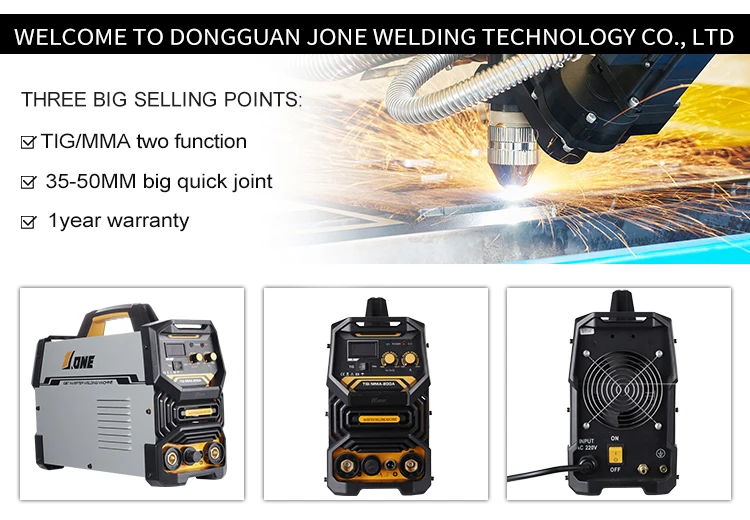

JONE Portable MMA GTAW welding machine ARC TIG welding 200

Model

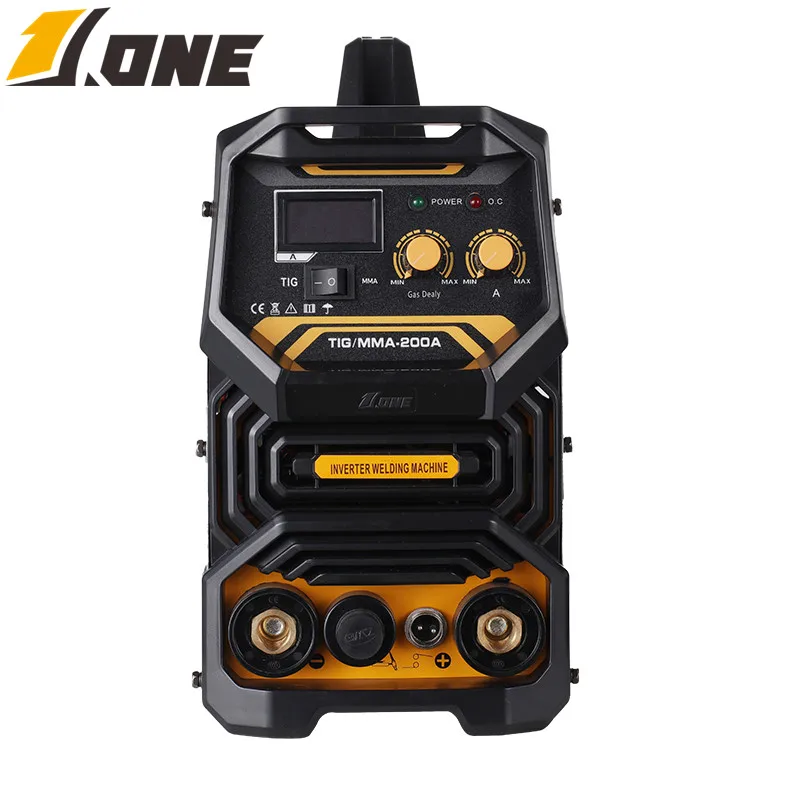

TIG/MMA-200A

Type

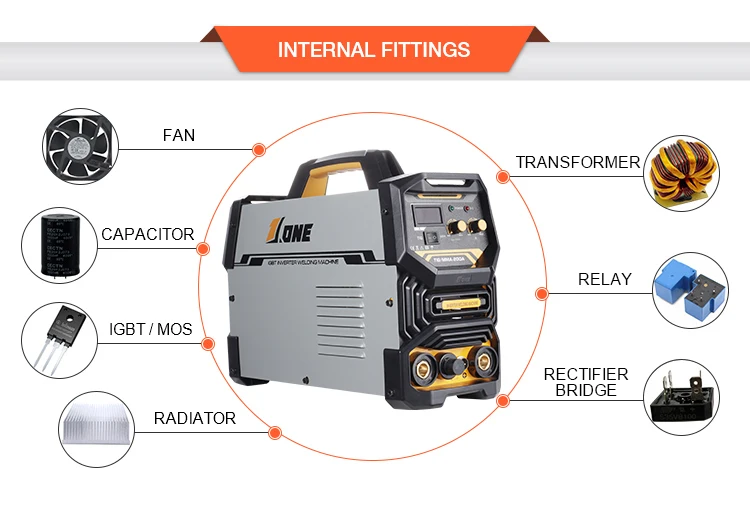

IGBT 1PCB

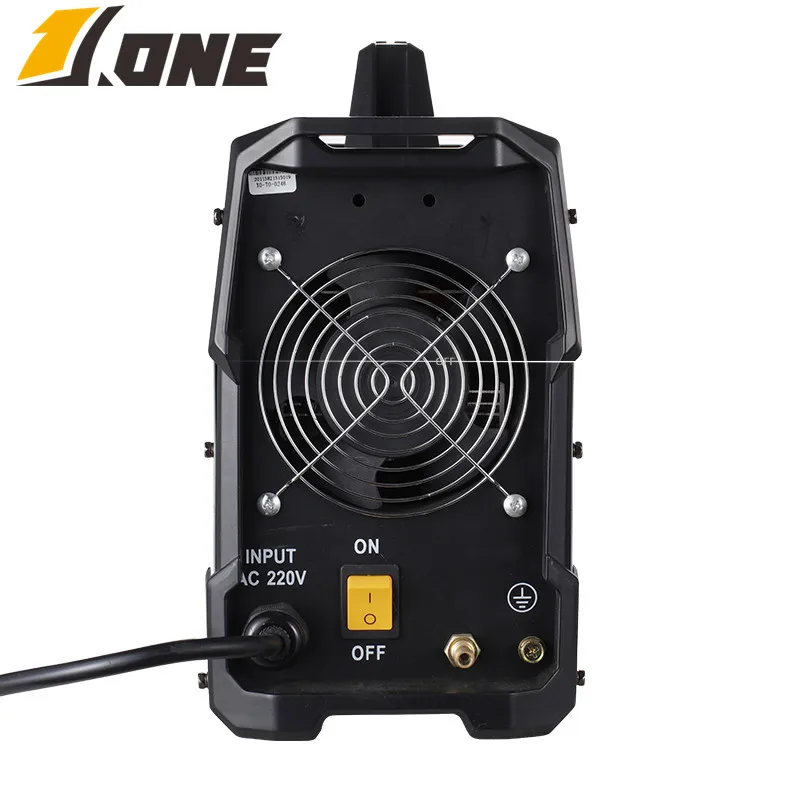

AC Input Voltage(V)

220V(110V/220V can do)

Rated Input Power Capacity(KVA)

7

Input Frequency(Hz)

50/60

Non-load Voltage(V)

56

Output current range(A)

20-200

Rated Duty Cycle(%)

60%

Efficiency(%)

85%

Class of Insulation

F

Protection class of case

IP21

Quick joint Size(mm)

35-50

Input power cable(m)

1.8

N.W./G.W.(kg)

4.5/8.3KG

Machine Size(LxWxH mm)

420*160*310

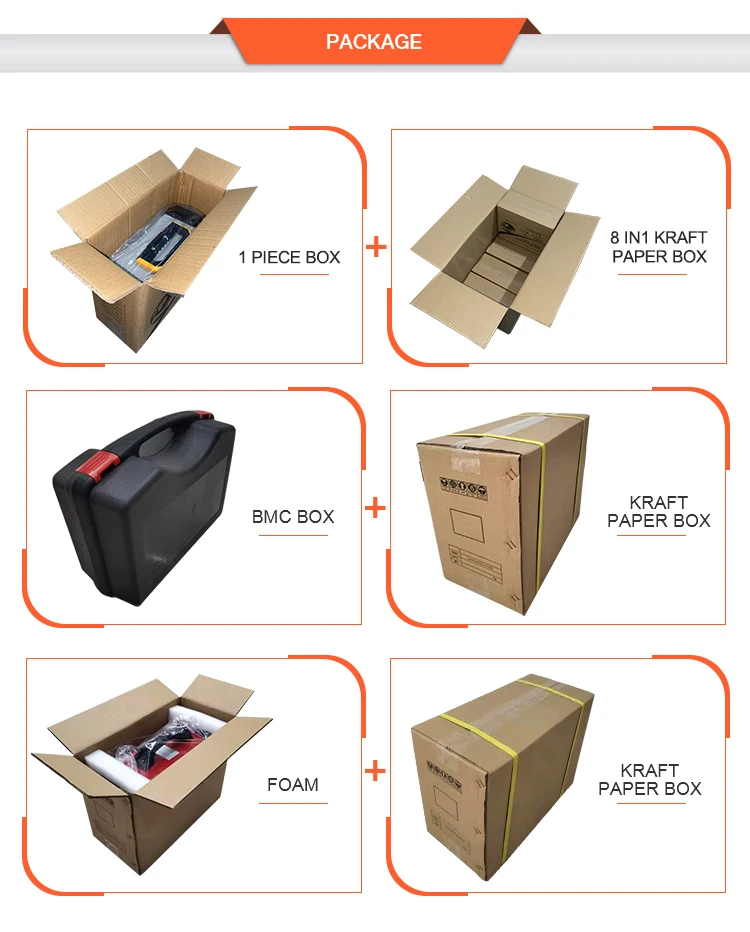

Package(LxWxH mm)

455*270*355  kraft paper box+ foam

Accessories

1.8M 16mm² 200A holder

1.2M 16mm² 300A clamp

4M WP-17 Black Torch

Brush, Mask, Manual
