Sunnen Model AN112 Portable Honing Head
- Category: Other Vehicle Tools >>>
- Supplier: Shanghai THL Machine Tool Co. Ltd.
Share on (1600317879751):
Product Overview
Description
AN112 Portable Honing Head
I.D. Range:64mm –140mm
AN-112 Portable Hone assembled with Stone Set, 76mm (3") Drive Shank and 305mm (12") Shaft Extension. 102mm (4") stone length. Requires 13mm (1/2") chuck capacity.

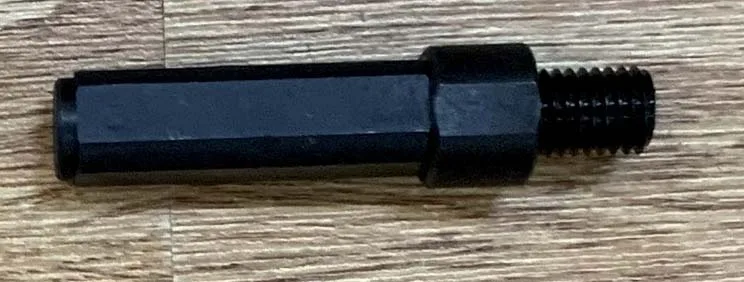

Drive Shanks
mm | in | Number |
76 | 3 | AN-26A* |

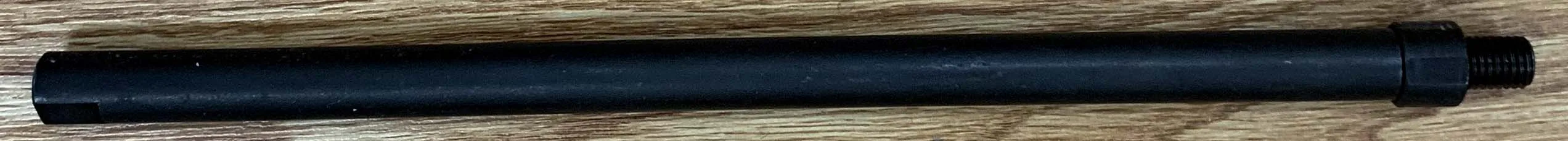

Shaft Extensions
mm | in | Number |
305 | 12 | AN-241* |
610 | 24 | AN-242 |
1220 | 48 | AN-244 |

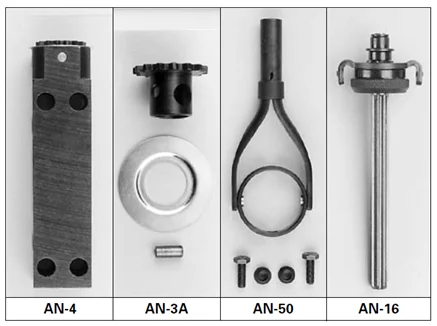

AN-112 Portable Hones
AN-4 Hone Body
AN-3A Body Gear
AN-50 Universal Joint Complete
AN16 Center Pinion Adjustment

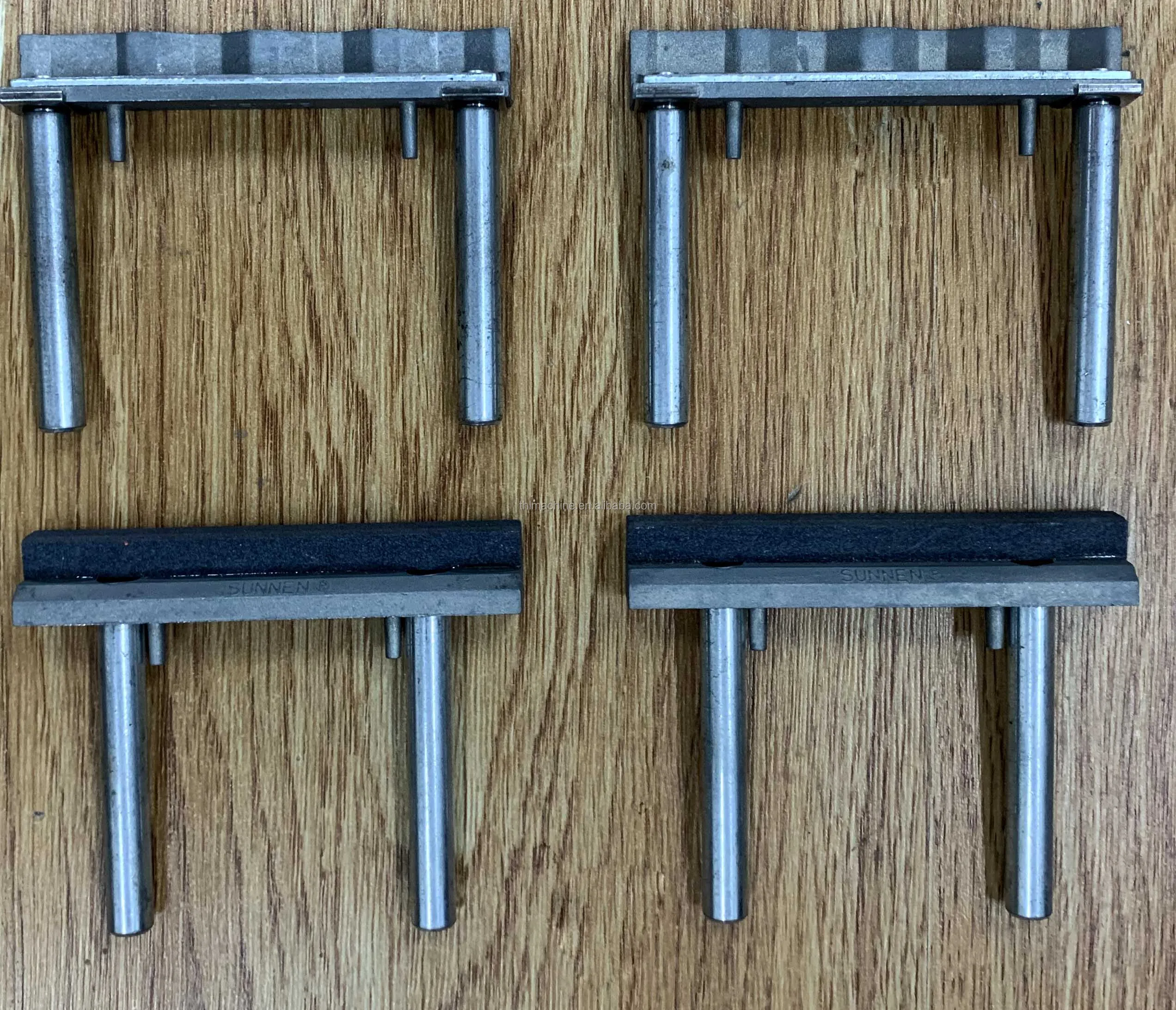

| Grit Size | General Purpose | ||
| 69 to 104mm | 89 to 140mm | ||
| (2.7"-4.1") | (3.5"-5.5") | ||
| Aluminum Oxide Stones | |||
| M27 | N37 | ||
| 80 | H-S | M27-A23 M27-A25 M27-A27 | N37-A23 N37-A25 N37-A27 |
| 150 | Hard---Soft | M27-A43 M27-A45 M27-A47 M27-A49 | N37-A43 N37-A45 N37-A47 N37-A49 |
| 220 | H-S | N37-A55 | |
| 280 | H-S | M27-A65 M27-A67 | N37-A65 |
| Silicon Carbide Stones | |||
| M27 | N37 | ||
| 70 | H-S | M27-J17 | N37-J11 N37-J13 N37-J17 |
| 150 | H-S | M27-J45 M27-J47 | N37-J43 N37-J45 N37-J47 |
| 220 | H-S | M27-J55 M27-J57 | N37-J55 N37-J57 |
| 280 | H-S | M27-J63 M27-J65 M27-J67 | N37-J65 N37-J67 |
| 400 | H-S | M27-J85 M27-J87 | N37-J85 N37-J87 |
| 500 | H-S | M27-J95 | N37-J95 |
| 600 | M27-C05 | N37-C05 | |
