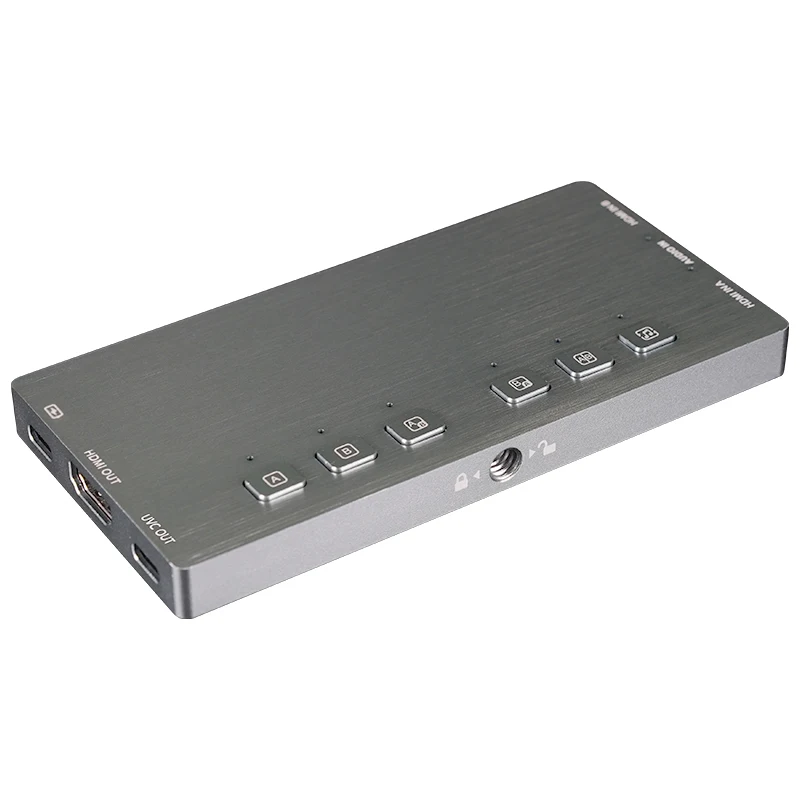

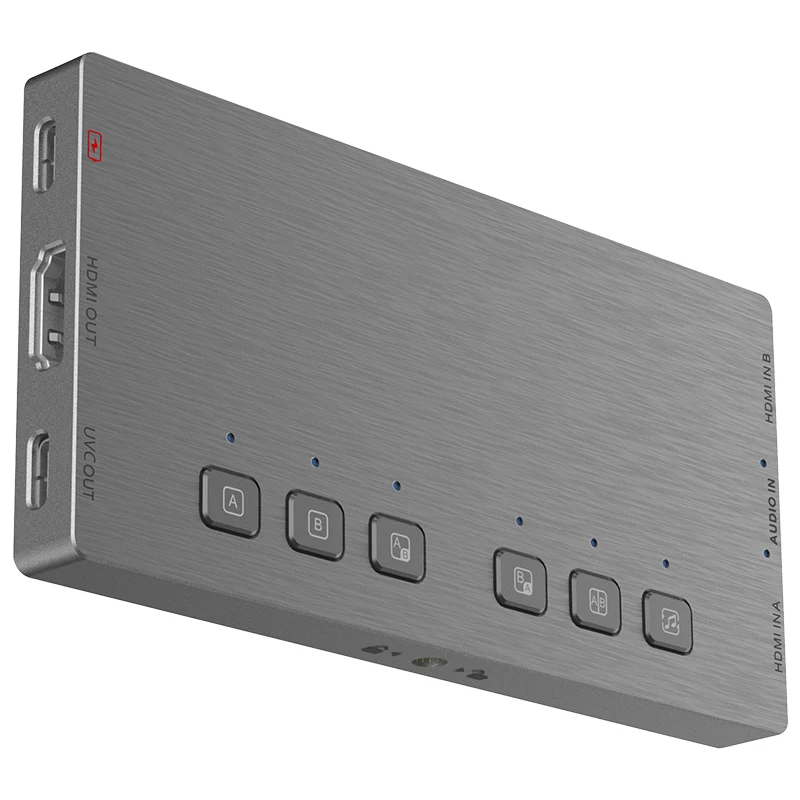

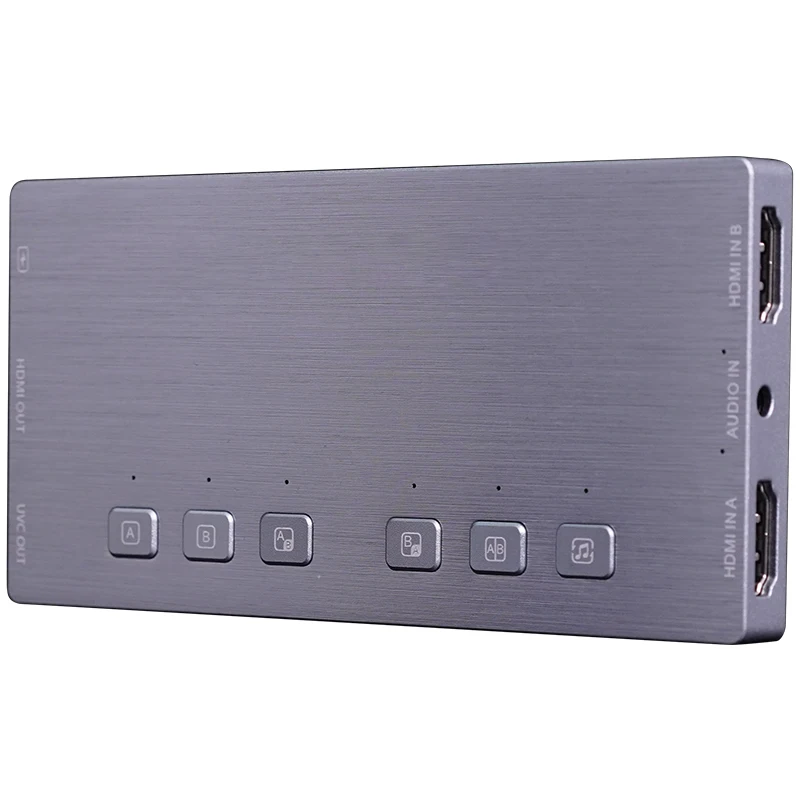

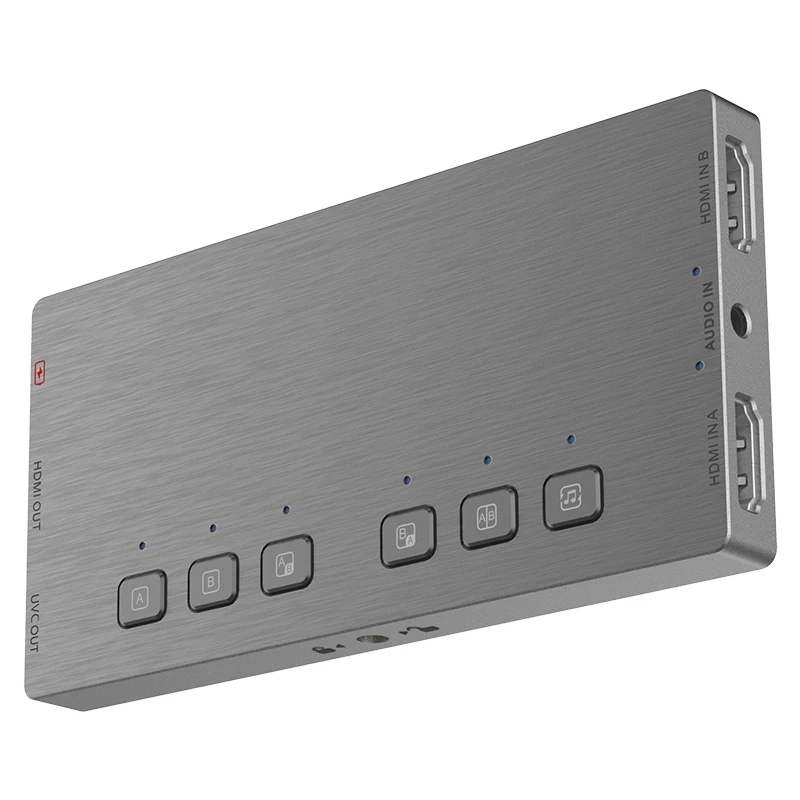

dual HDMI video capture card

 1. Introduction

Dual HDMI video capture is a Full HD video and audio high-performance record/playback through USB-C and PGM output, capturing dual HDMI input and one-way analog audio input. It has a built-in audio mixer function, allowing users to toggle between different audio settings and three audio inputs. Based on UVC (Universal Video Class) )standard, the device features a laptop/mobile phone or live broadcast software fast connection with the system-supplied driver. Moreover, its lightweight design and intuitive Plug-and-play USB make it possible to fit in any case so that you can take it to any live event or production

 2. Features

1)Based on UVC Standard, the device allows to connect laptop/mobile phone and output Full HD video with a high performance of recording and live streaming through USB-C.

2) 2 HDMI input for capturing High-Definition video at 1080P/60fps.

3) 1 HDMI output(PGM) for streaming high-definition video at 1080P/60fps.

4) It features a flexible audio connection via dual HDMI or analog 3.5 mm ports so that you can directly choose any one to switch.

5)Easily switch between 6 different screen modes configurations and adjust transition effects with the built-in buttons.

6)Do not need an additional power supply. Regular working will be available only by the host power.

7)A separate USB Type-C 18W port can be used to quick-charging a mobile phone (partially reverse charging).

8) It can be fixed on the bracket through a 1/4 "hot hole for better live streaming.

9)The device has a memory feature of the previous picture mode.

10)Support operating systems of Windows^ Mac,Android.

3. Package Contents

4. Specifications

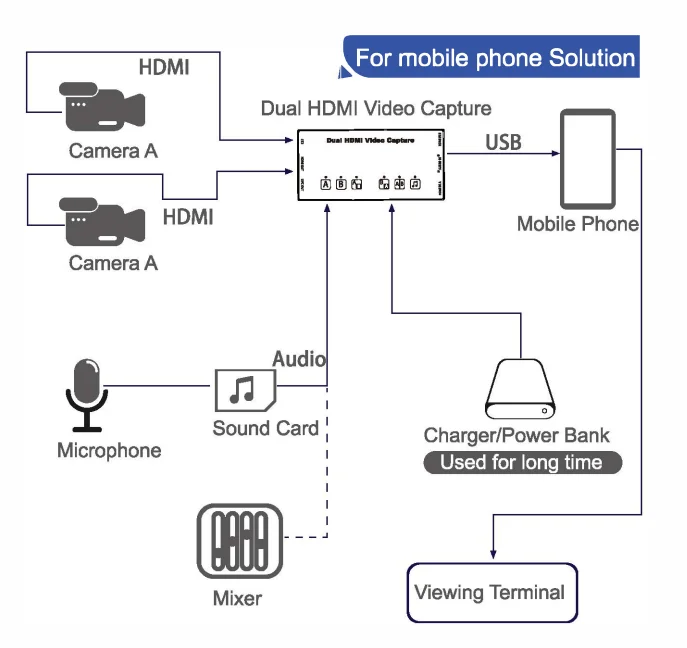

  5. Connection Diagram
