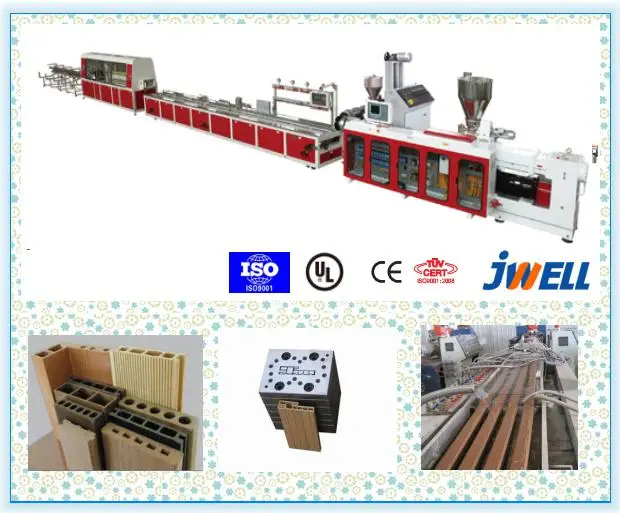

WPC wood grain 3D deep embossing machine PVC wood plastic ASA coextrusion decking production line surface embosser

Product Overview

Description

Contact with Jwell,for easily and quickly contact and reply by whatsapp +86 188 5121 1065 or email infhh@ jwell.cn

JWELL-PVC/WPC Window and Door Frame Making Machine/WPC Profile Production Line

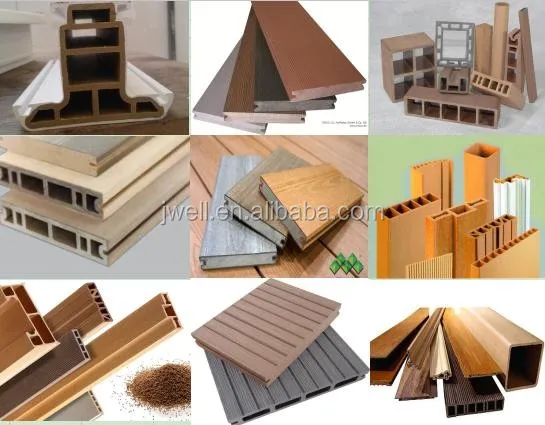

 1.PVC WPC profile series making machine

1/PVC Window or WPC Door Frame

2/ WPC Outdoor Decking Floor

3/Another kind of specifical PVC/WPC Profile

2.  PVC/WPC Profile Making Machine application:

 1)Guard bar

 2)Tray

 3)Partition board

 4)Window and door sheath

 5)Skirting line

 6)Packaging box board

 7)Decorative floor
3.pvc wpc profile making machine process:



Wood powder + PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum calibration table→ Haul-off  machine→ Cutting machine → Stacker



Wood piece →Miller →  wood powder → dryer →  cleaning and drying wooden powder



Unqualified products →Crusher →Extruder

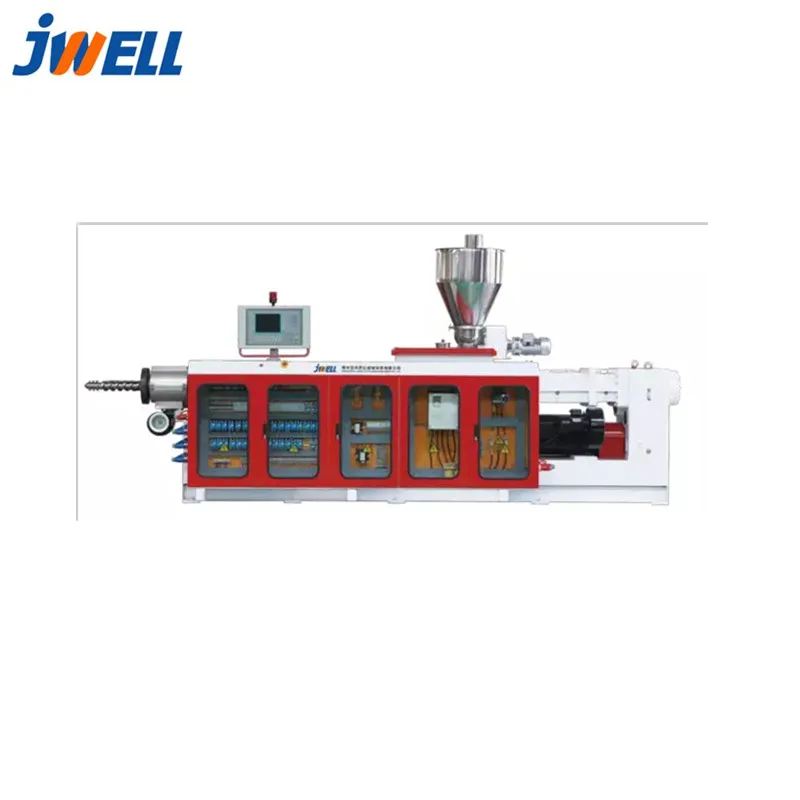

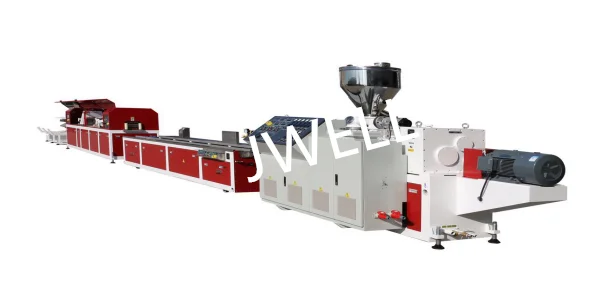

4.Conical twin screw extruder:

Machine electrical part:ABB inverter,Siemens Motor,Schneider Contactor,CHNT Air switch,Electrical wire is CE export standard,China brand (USA Technology) Gear Box,JWELL Brand Screw(China first screw from JWELL)

Control system have two choices,one is Siemens Screen touch control

Another one is Normal standard RKC or OMRON table control.

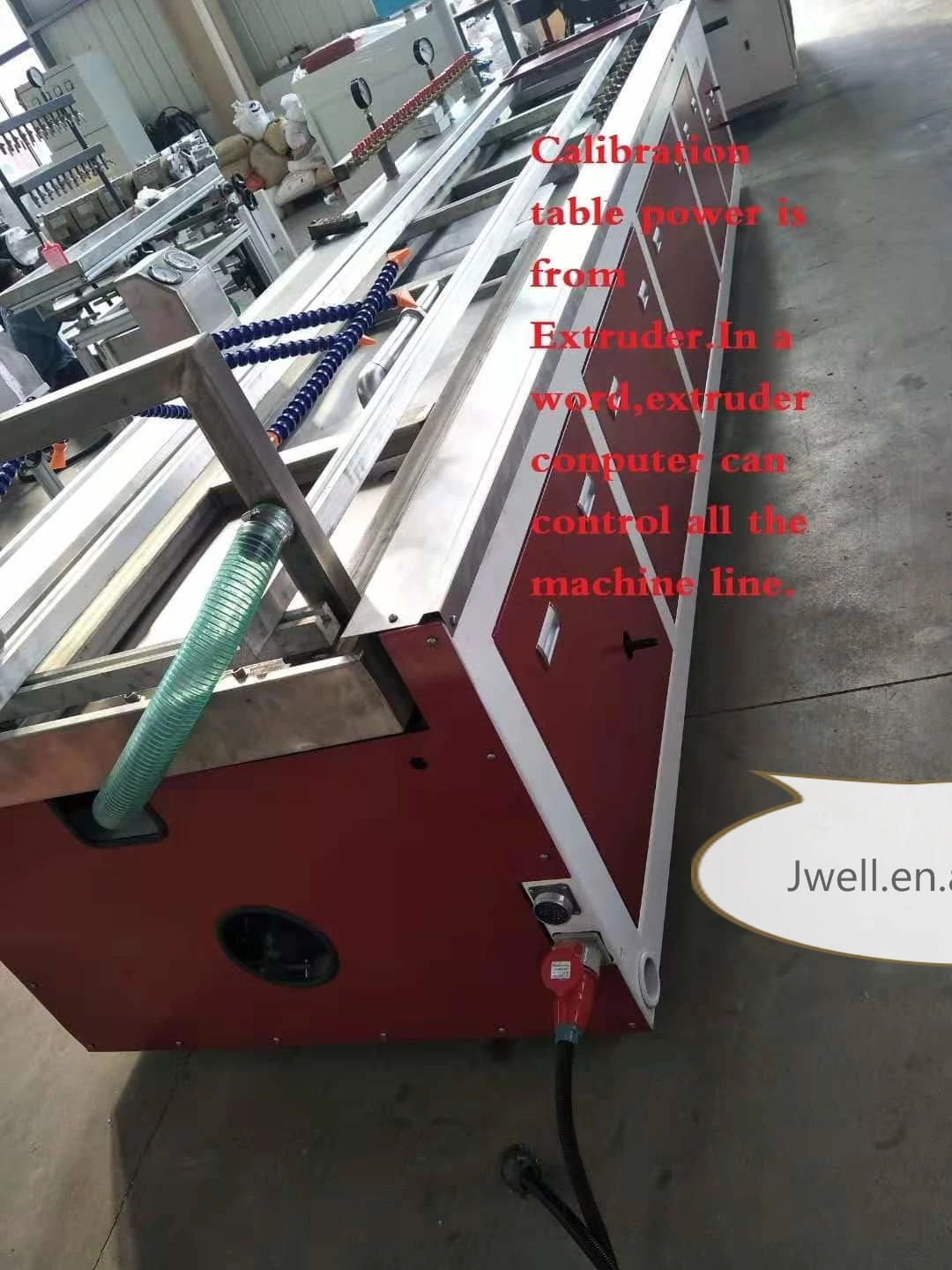

5.Vacuum calibration table:

Vacuum calibration table structure adopt 304# Materia.There is also table up & down motor and forward & back motor,It is all automatic.It is easy to adjust the mold with Vacuum table.

All material what touch with water ,we all use stainless steel.

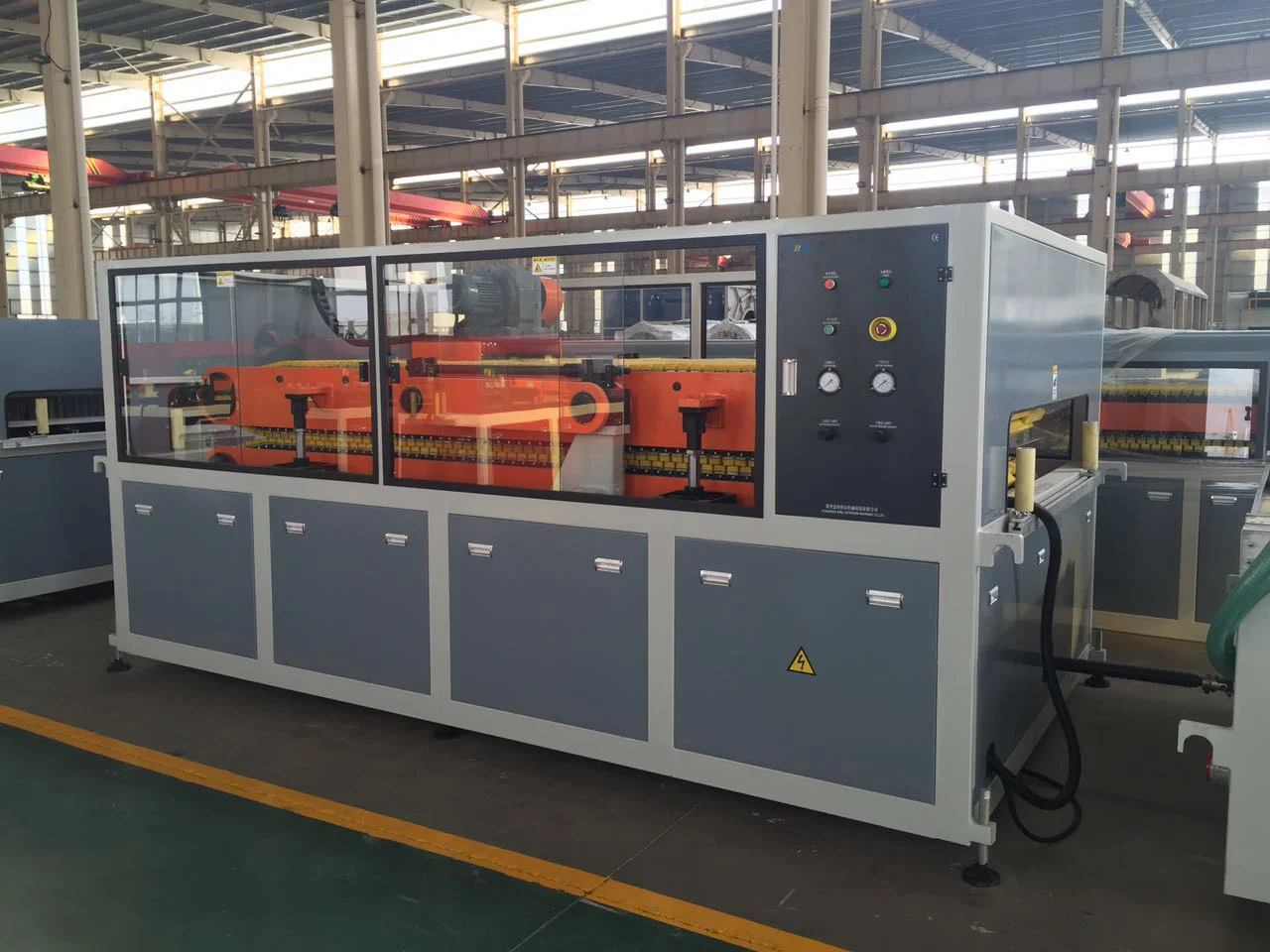

6. PVC/WPC Haul-off machine:

Rubber block is soft material,import from Koera.Adopt best design,it can press products closed,and delivery stably.We choose Geax motor,and control two sets motor by ABB inverter,this mean confirm the two arm run with precise.

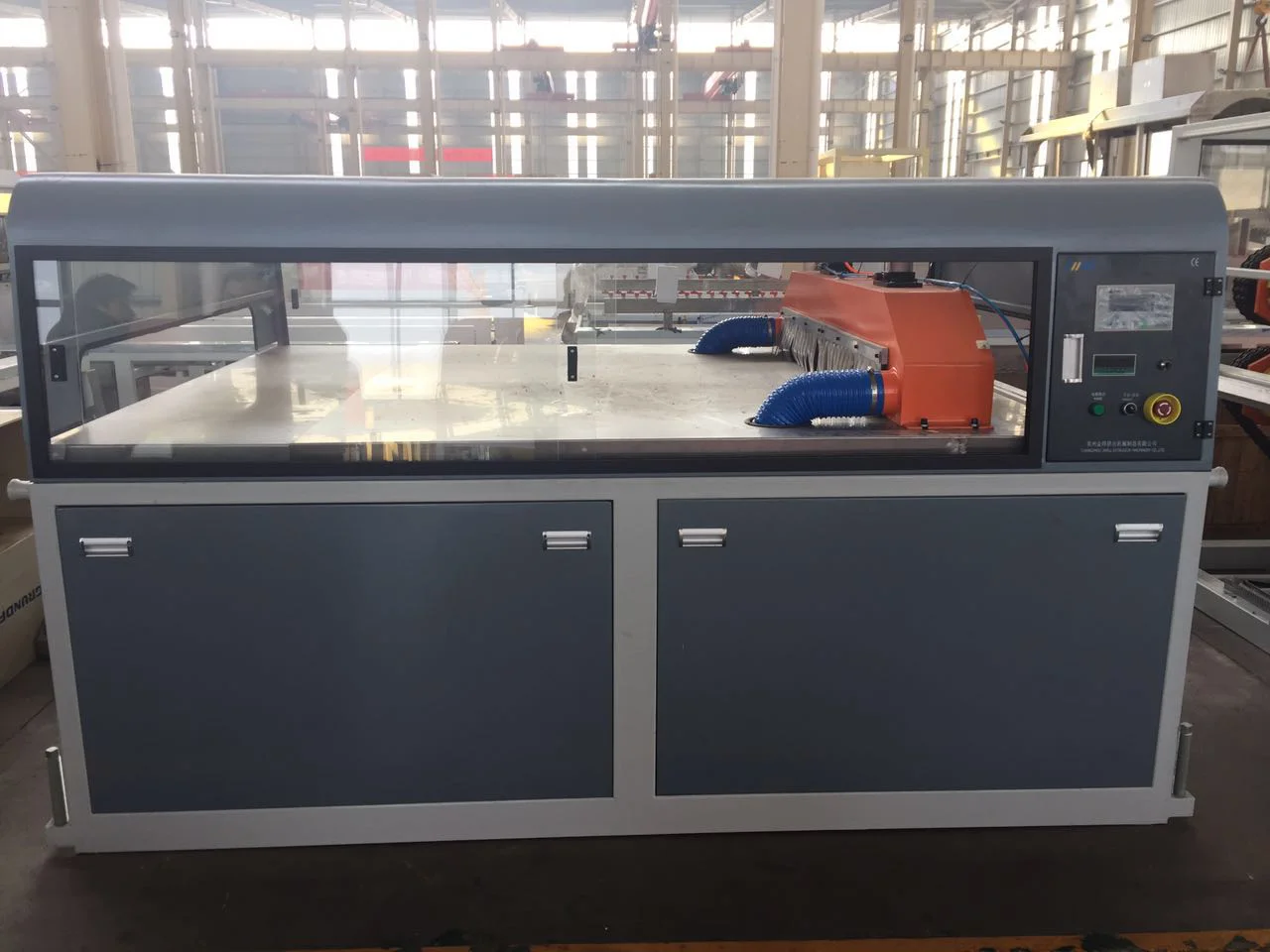

7. Cutting machine:

Cutting machine control by PLC,we can cutting by meter.We provide different saw to cut different material products,we also have two kind of cutter.One is saw cutter,another one is no-dust cutter(cutting by knife).

Most important,we also can confirm some special products cutting accuracy.

8.Products type,we take WPC Door frame for example:



All Key parts: screw&barrel,melt pump, screen changer, mold, and downstream equipment are made by Jwell factory!

China first come from JWELL company!

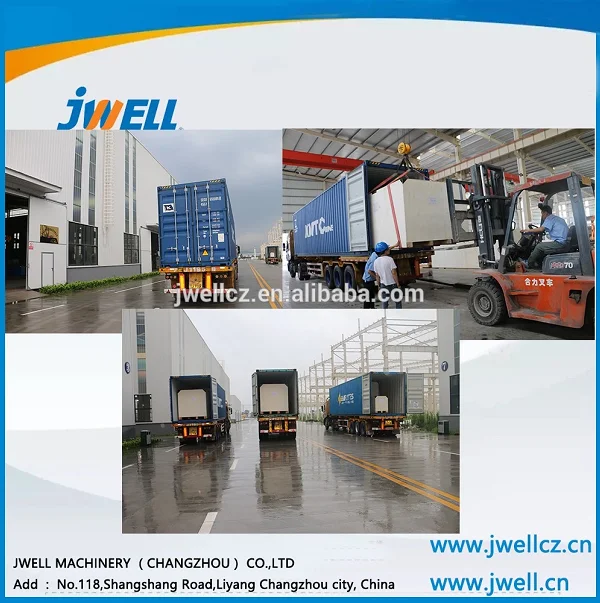

 Packaging & Shipping:

JWELL Group Company have hundreds of millions of dollars machine are sold every year.But 80% are aborad customers,we have enough strength and after-service team to service all over the world customers with 24-48hours.

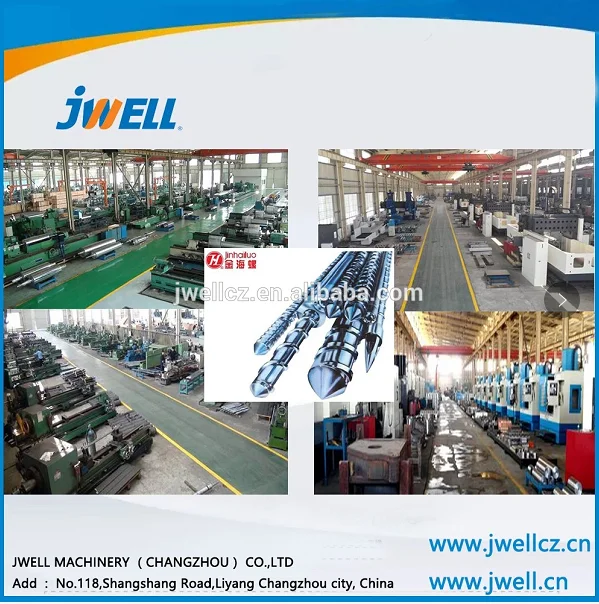

Company Brief Information:

• The largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.

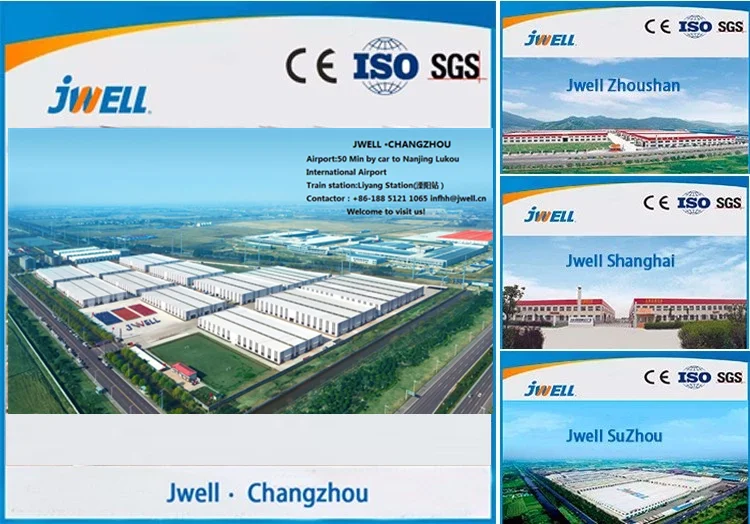

• Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area.


• CHANGZHOU JWELL EXTRUSION MACHINERY CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province.


• We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
