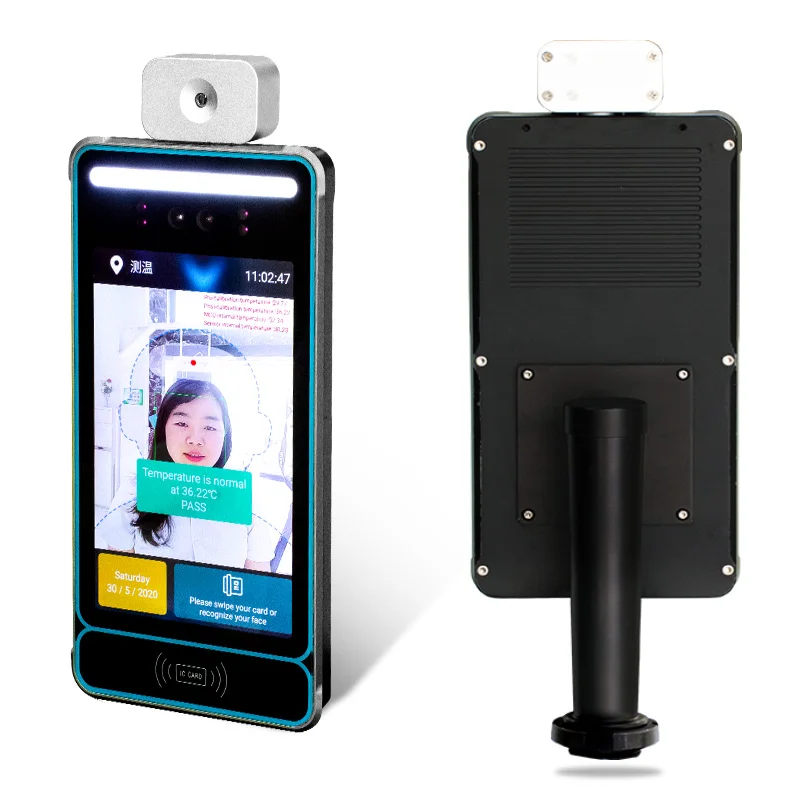

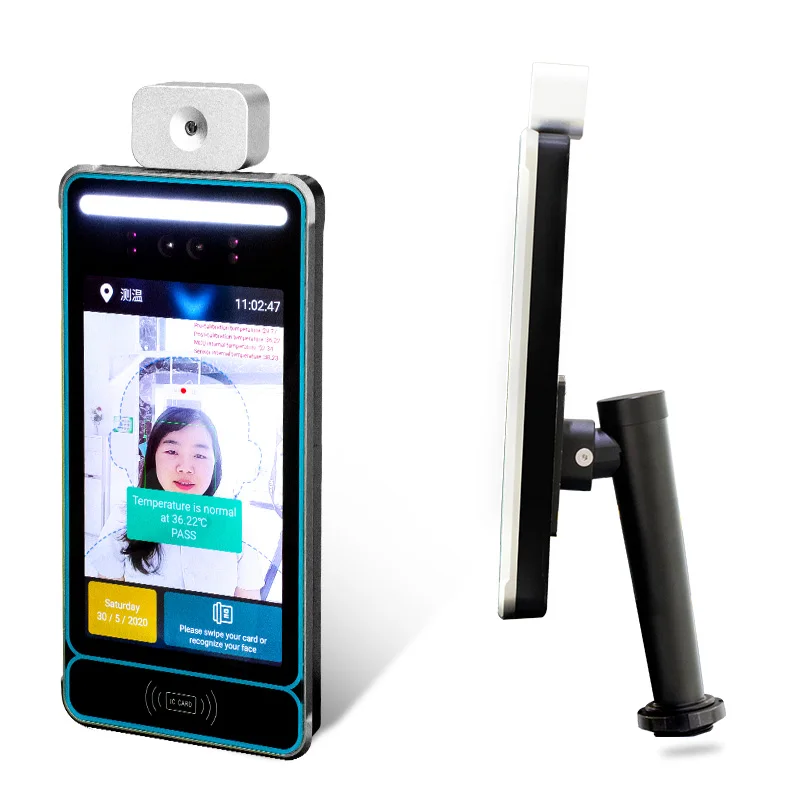

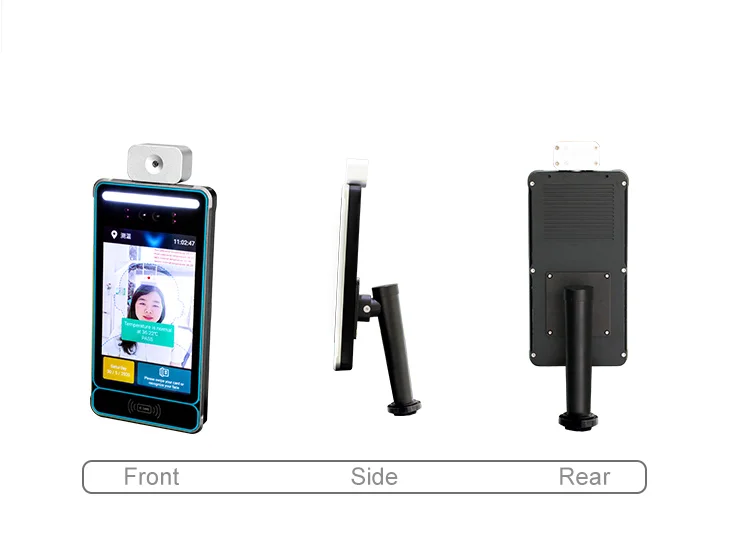

8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine
8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine
8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine
8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine
8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine
8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine
8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine

8 inch IPS HD LCD Screen Face Recognition Attendance Access Control Body Temperature Measurement All In One Machine

Share on (1600317991108):


Price:

Quantity:


Product Overview

Description





Function
Web Configuration
support
Remote Upgrade
support
Deployment Method
support public network and local area network use
General Parameters
Working Humidity
0～90% relative humidity, no condensation
Salt Spray Grade
Rp6 level or above
Antistatic
contact person 6KV, air soil 8KV
Powered Supply
DC12V/2A
Equipment Power
20W (MAX)
Equipment Size
252(length)* 136(width)*26(thickness)mm
Screen Specifications
8 inch IPS HD screen
Column Aperture
36mm
Equipment Weight
1.7 kg


Camera Parameters
Video Camera
binocular camera, visible light and near infrared, support live detection
Effective Pixels
2.1 million effective pixels, 1920*1080
Minimum Illumination
color 0.01Lux @F1.2 (ICR); black and white 0.001Lux @F1.2 (ICR)
Signal-to-noise Ratio
≥50db(AGC OFF)
Wide Dynamic
120db, isp algorithm partial face exposure
Video Encoding
H.265 Main Profile encoding/H.264 BP/MP/HP encoding/MJPEG encoding



Image Resolution

main stream
50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)

secondary stream
720*576, 1-25(30) frames/sec/640*480, 1-25(30) frames/sec
320*240, 1-25(30) frames/sec


Interface
Switch Output
1 switch output, other GPIO ports can be customized
Network Interface
1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand Interface
1 * input, 1 *  output
USB Interface
1 pcs
Communication Interface
1 * RS485
