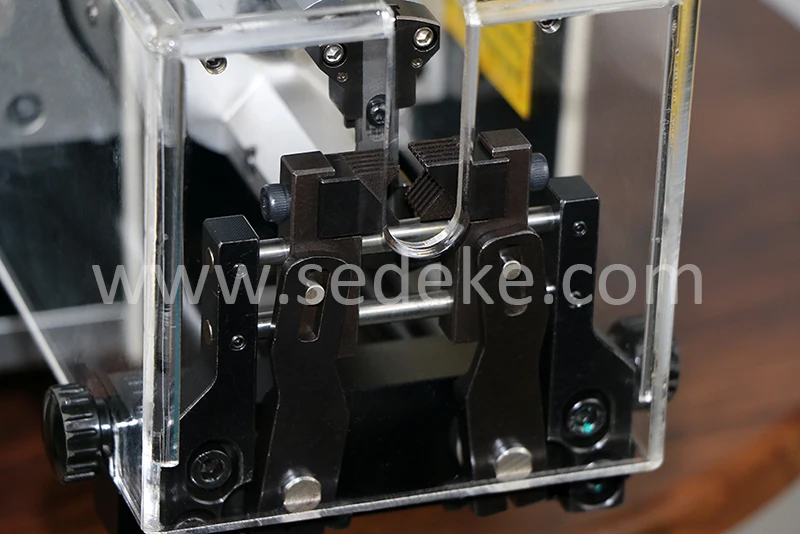

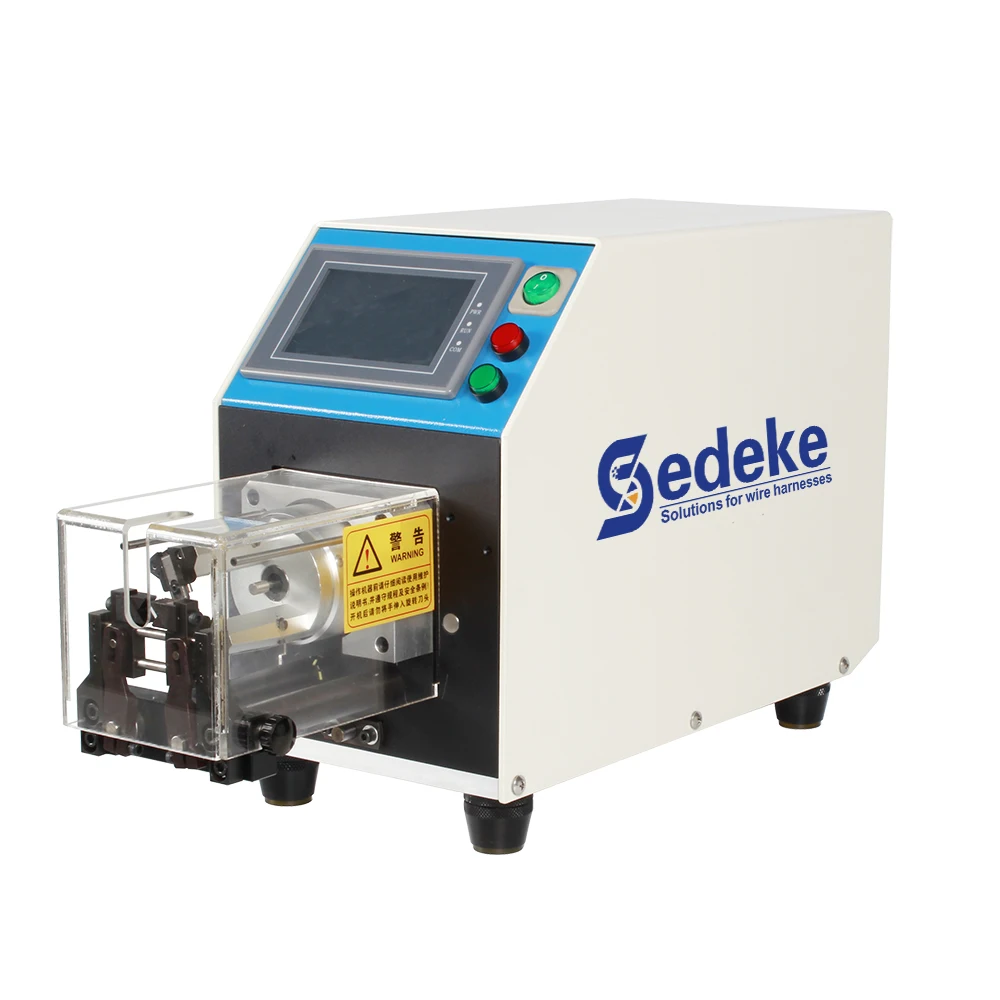

CS-2486 coaxial cable stripping machine is high precision coaxial cable stripping equipment which adopts the intelligent digital photoelectric technology, Japanese NSK ball bearing, screw drive and use the patent design coaxial positioning device.
You don't need to recalibrate the blade when users change tools which makes the operation easier. Using menu dialogue control system can set each function easily and can save 100 kinds of processing data. There are 3 start up ways: button switch / trigger switch / pedal switch. This coaxial cable stripping machine can set up to nine layers of stripping and with twisting function and adjustable speed.
You don't need to recalibrate the blade when users change tools which makes the operation easier. Using menu dialogue control system can set each function easily and can save 100 kinds of processing data. There are 3 start up ways: button switch / trigger switch / pedal switch. This coaxial cable stripping machine can set up to nine layers of stripping and with twisting function and adjustable speed.
Specification
Technical Parameters | ||
Name | CS-2486 Automatic Coaxial Wire Stripping Machine | |
Wire Diameter Range | 0.5-7.5mm | |
Max. Stripping Length | 48mm | |
Max. Stripping Layers | 9 Layer | |
Drive Mode | Servo Motor/TBI Ball Screw Drive | |
Stripping Mode | Rotary Blade | |
Blade Material | Tungsten Steel | |
Application | Coaxial Cable/Wire stripping | |
Weight | 19KG | |
Dimensions | 530X190X300 mm | |
* All the mechanical parts are imported from Japan and Germany combined with domestic high-quality goods, which will be more durable and ensure product quality stable.

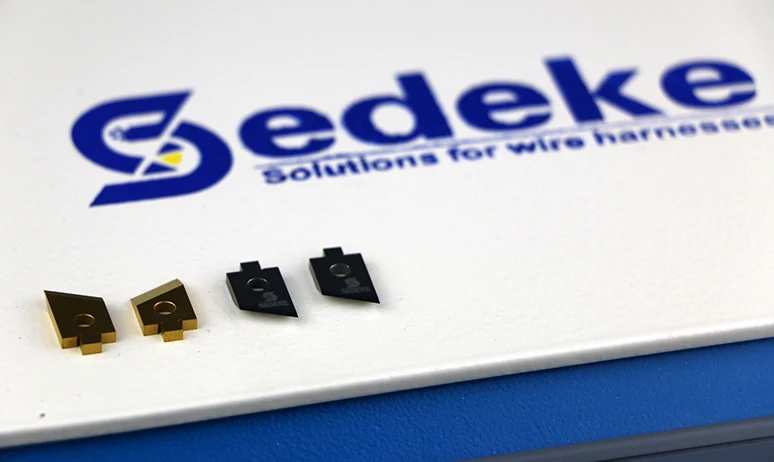

* The blade adopts global top heat treatment technology to make the blade more durable and stable.
* The imported calibration equipment strictly controls the straightness and flatness of the cutting edge. With high accuracy and thickness tolerance less than 0.03mm.
* The cutting edge adopts mirror treatment to ensure that there is no resistance in stripping and cutting, and the wire cuts are more smooth and beautiful. At the same time, it has the features of labor saving and low noise.
* The unique three-side grinding technology of cutting edge makes the abrasion resistance increase by more than 30% compared with other ordinary blades.
* Each machine can be put into storage and shipped after tens of thousands of simulated processing.
* The blade adopts global top heat treatment technology to make the blade more durable and stable.
* The imported calibration equipment strictly controls the straightness and flatness of the cutting edge. With high accuracy and thickness tolerance less than 0.03mm.
* The cutting edge adopts mirror treatment to ensure that there is no resistance in stripping and cutting, and the wire cuts are more smooth and beautiful. At the same time, it has the features of labor saving and low noise.
* The unique three-side grinding technology of cutting edge makes the abrasion resistance increase by more than 30% compared with other ordinary blades.
* Each machine can be put into storage and shipped after tens of thousands of simulated processing.

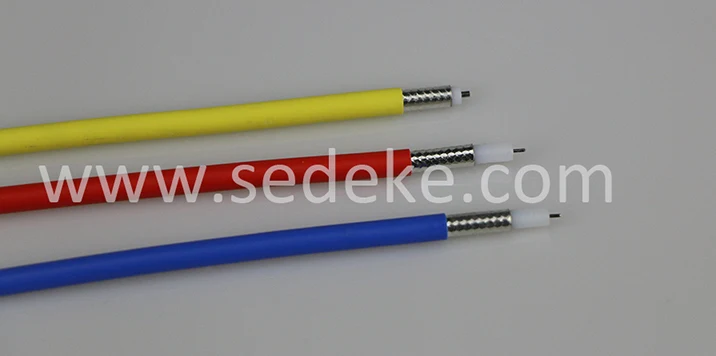

Products Samples
