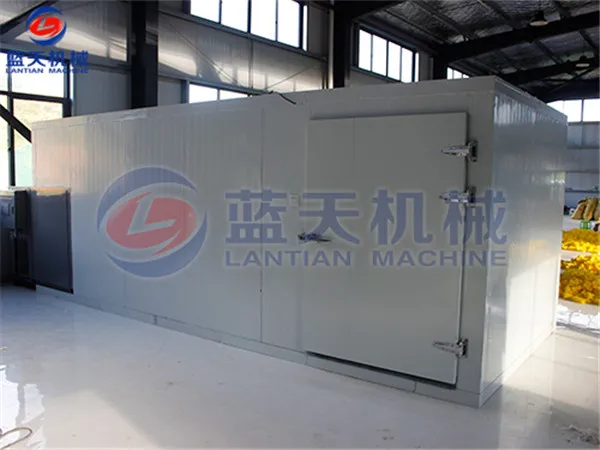

New meat and fish drying line fish heat pump dryer dehydrator oven machine
New meat and fish drying line fish heat pump dryer dehydrator oven machine uses the inverse Carnot principle, the refrigerant is compressed by the compressor, becomes a high temperature and high pressure gas, enters the condenser through the pipeline, and then passes through the fan to send the heat generated by the condenser to the drying. The material is heated and dried in the room, and moisture is discharged from the moisture discharge port.Main Features of New meat and fish drying line fish heat pump dryer dehydrator oven machine
1) Energy-saving. Consuming 1kw of electricity, it can generate 3.5 times of heat energy, and the energy consumption ratio is high.
2) Economical. The cost of electricity is only a quarter of the cost of electric heating equipment.
3) Environmental protection. The machine has zero pollution emissions and meets environmental requirements.
4) High quality. The quality is reliable, have quality inspection certification.
5) PLC system. Touch screen setting, easy to operate.
2) Economical. The cost of electricity is only a quarter of the cost of electric heating equipment.
3) Environmental protection. The machine has zero pollution emissions and meets environmental requirements.
4) High quality. The quality is reliable, have quality inspection certification.
5) PLC system. Touch screen setting, easy to operate.
New meat and fish drying line fish heat pump dryer dehydrator oven machine also can dry other materials
1. Fruits: Apples, bananas, strawberries, blueberries, apricots, etc.
2. Vegetables: potatoes, sweet potatoes, purple potatoes, carrots, green onions, spinach, etc.
3. Seafood: fish, squid, sea shrimp, anchovies, shrimp skin, etc.
4. Industrial items: sponges, chopsticks, paper rolls, charcoal blocks, etc.
Size Information

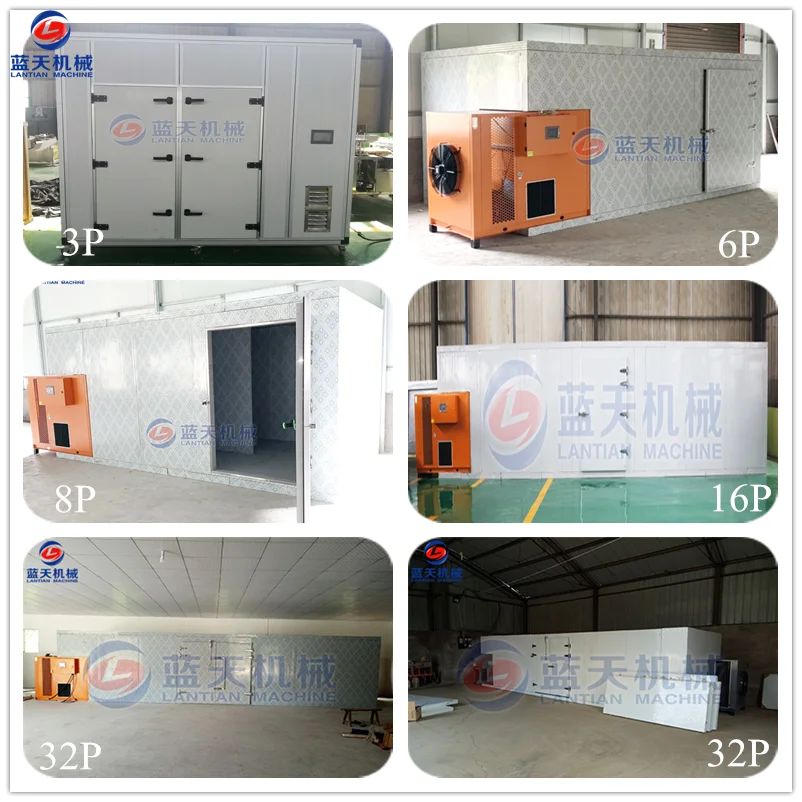

Size Chart of New meat and fish drying line fish heat pump dryer dehydrator oven machine
Type | Dimension | Capacity | Power | Fan | Drying material |
LT-3P | 2.4*1.1*2.2m | 300kg | 2.25kw | 2sets | Charcoal briquettes, Fruits, vegetables, nuts, seafood, etc |
LT-6P | 3.8*2.5*2.2m | 600kg | 4.3kw | 6sets | Charcoal briquettes, Fruits, vegetables, nuts, seafood, etc |
LT-8P | 4.8*2.5*2.2m | 1000kg | 6.5kw | 8sets | Charcoal briquettes, Fruits, vegetables, nuts, seafood, etc |
LT-16P | 9.5*2.5*2.2m | 2000kg | 13kw | 16sets | Charcoal briquettes, Fruits, vegetables, nuts, seafood, etc |
LT-32P | 13*4.0*2.3m | 3000kg | 26kw | 24sets | Charcoal briquettes, Fruits, vegetables, nuts, seafood, etc |
Detailed Images
Working principle of New meat and fish drying line fish heat pump dryer dehydrator oven machine
The air energy dryer uses the reverse Carnot principle. The refrigerant (mostly mixed refrigerant) is compressed by the compressor and becomes a high temperature and high pressure gas, which enters the heat exchanger (condenser) through the pipeline (copper tube) Then through the fan, the heat generated by the heat exchanger (condenser) is sent to the drying room to heat and dry the materials, so that the materials are dried, and the moisture is discharged from the moisture outlet.
The air energy dryer uses the reverse Carnot principle. The refrigerant (mostly mixed refrigerant) is compressed by the compressor and becomes a high temperature and high pressure gas, which enters the heat exchanger (condenser) through the pipeline (copper tube) Then through the fan, the heat generated by the heat exchanger (condenser) is sent to the drying room to heat and dry the materials, so that the materials are dried, and the moisture is discharged from the moisture outlet.
Air compressor
The unit is based on the reverse Carnot cycle and air energy heat pump principle; it uses electric energy to drive the system to
operate, uses high-temperature refrigerant working fluid to do work, and absorbs energy in the air through the heat exchanger.
After direct output of high temperature hot air; that is, 1 part of electric energy input, 3.5 parts of heat can be obtained for
product drying.
operate, uses high-temperature refrigerant working fluid to do work, and absorbs energy in the air through the heat exchanger.
After direct output of high temperature hot air; that is, 1 part of electric energy input, 3.5 parts of heat can be obtained for
product drying.
Polyurethane insulation layer (thickness: 100mm 6 sides)
Polyurethane insulation layer (thickness: 100mm 6 sides)
1. Good insulation performance;
2. Has good fire performance;
3. Excellent resistance to humidity and heat;
4. Good environmental performance;
5. Durable and good environmental performance;.
1. Good insulation performance;
2. Has good fire performance;
3. Excellent resistance to humidity and heat;
4. Good environmental performance;
5. Durable and good environmental performance;.

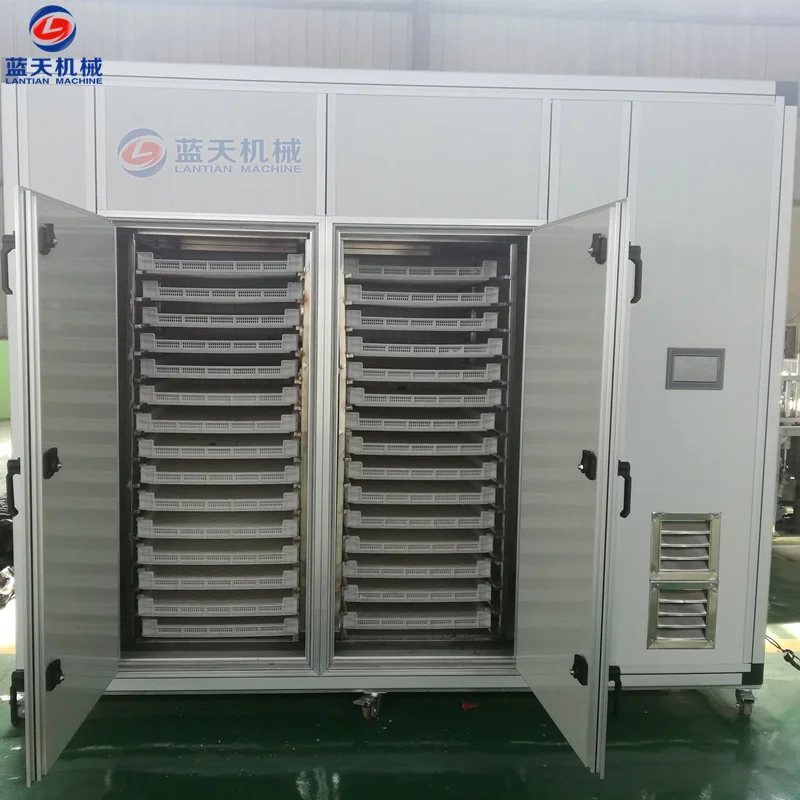

Inside structure
One side is the heat pump host, and the other side is the large-flow axial fan. The hot air of the heat pump blows the hot air to the material through the axial flow fan, thus forming an effective air channel, which is conducive to drying.
PLC intelligent display
Using industrial-grade PLC touch screen controller, the operation is simple, it can be turned on and off and standby at regular time; different drying temperature and time can be set to meet the drying requirements of different materials. The temperature, humidity and drying time in the drying room can be observed at any time during the drying process. Switch between Chinese and English at will, fully automated and intelligent operation.
Axial flow fan
High-quality axial fan, resistant to high temperature and high humidity. The hot air can be evenly blown to the materials to speed up the drying.

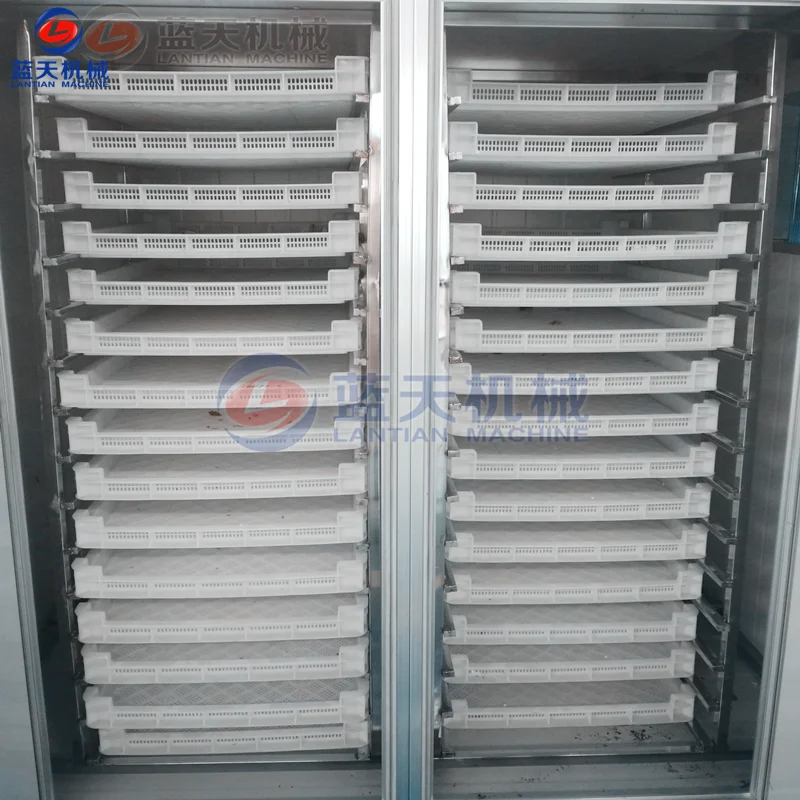

Trays and trolleys
In general, there are 12 trays in a trolley, and the size of each tray is 1*0.8 meters. It can also be customized according to the customer's material requirements.
Our Advantages
Pre-sale service
1. Communicate with customer about machine requirements, production volume, etc.
2. Recommend suitable machine and provide a quotation for you.

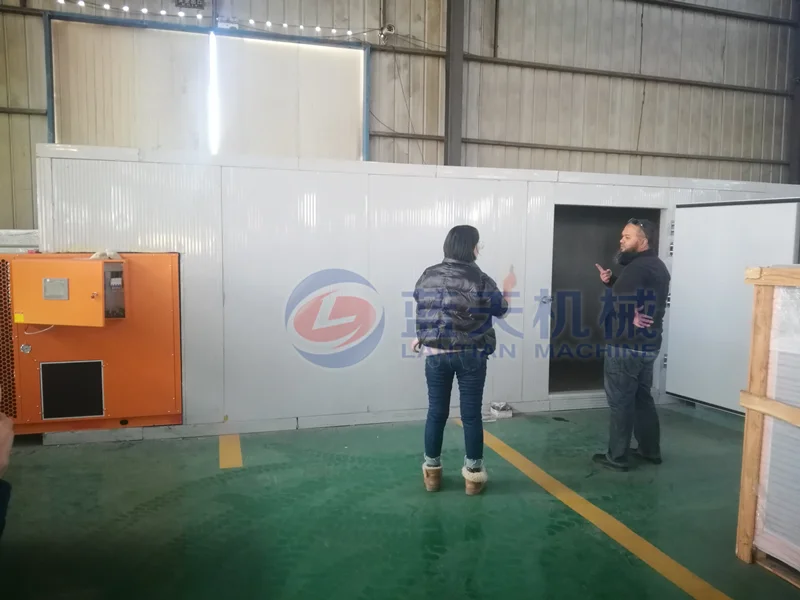

3. Visit our factory and accompany you to check our machine.
3. Visit our factory and accompany you to check our machine.
After-sale service
1. Provide video guidance.
2. Engineers can go abroad to guide installation and teach customers to use the machine.

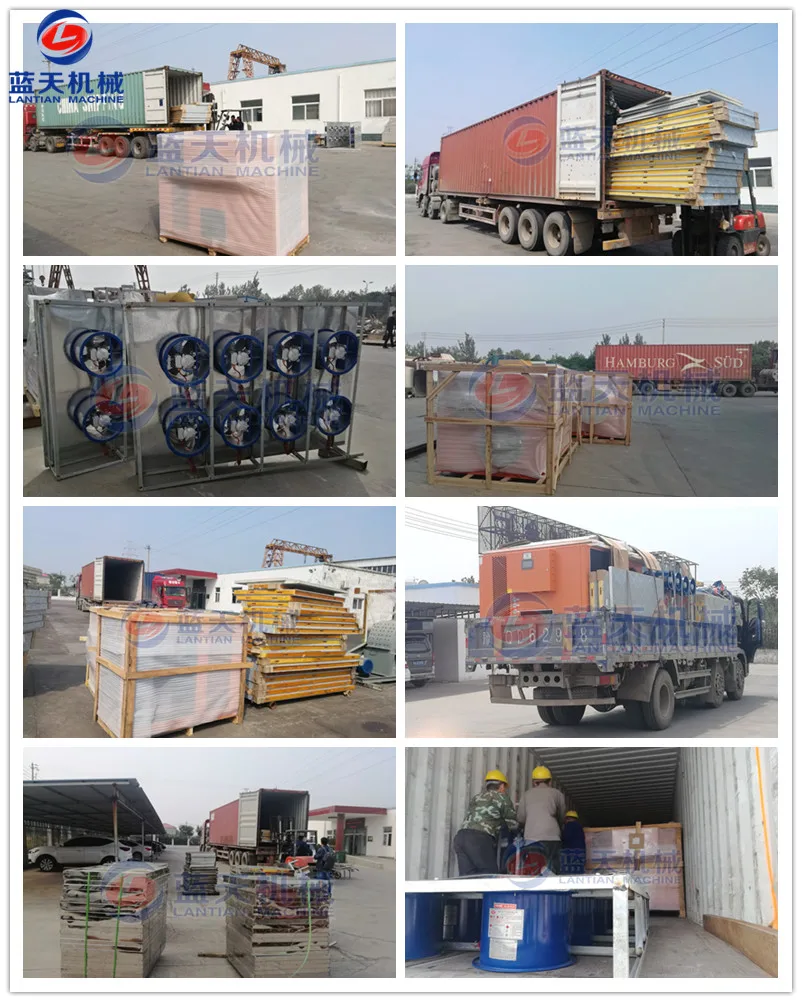

Packing&Shipping
High efficient energy saving dryer machine can delivered by truck, if drying machine is delivered to abroad, should use standard container, such as 20" or 40" container. If there is only one or a few machines, and the entire container can not be used, it can be packed in wooden boxes, and the goods are transported by LCL.
Related Products
Food process line
In addition to dryers, our factory also produces other fruit or vegetable processing equipment, such as washing machines, corers, slicers, and classifiers. If you want to process French fries or other dried fruit, we can design a suitable production line according to your output and requirements.

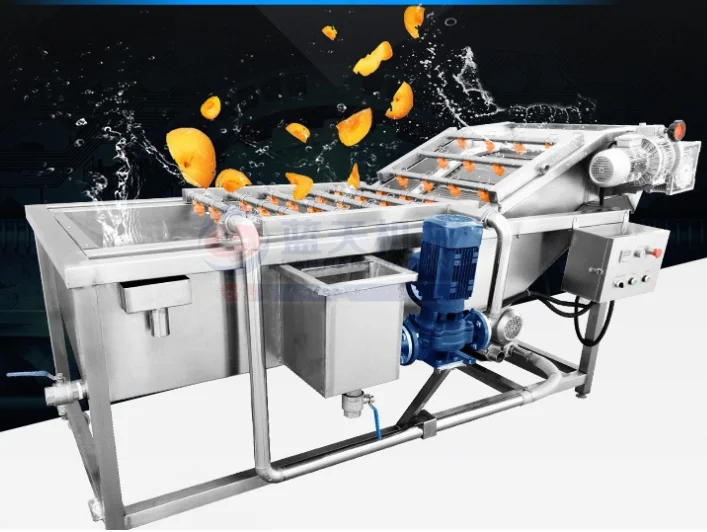

Air bubble cleaning machine
Bubble cleaner is an important product in the production line of jujube, vegetables and aquatic products, mainly used for cleaning jujube, vegetables and aquatic products. The principle of the bubble washer is to use the water in the front part of the box to fill the appropriate amount of water and heat the water temperature through the heating tube. When the raw material passes through the box, it will roll over with the bubble machine and water, With the continuous advancement of the mesh belt, there is a sprinkler head at the high end when the water is out of the water surface, which is washed with high pressure.

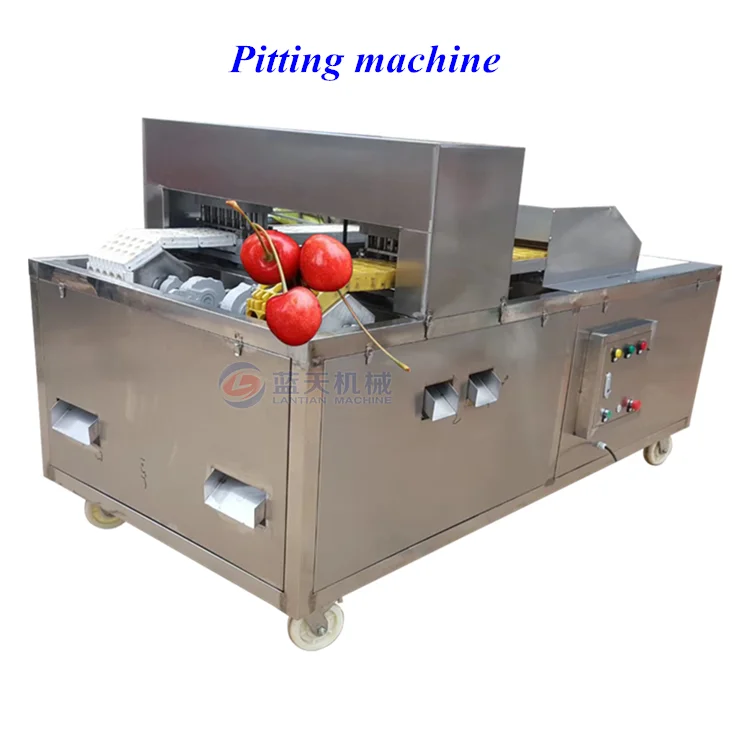

Fruit pitting machine
The pitting machine uses punches on the die to punch out the core of the fruit.

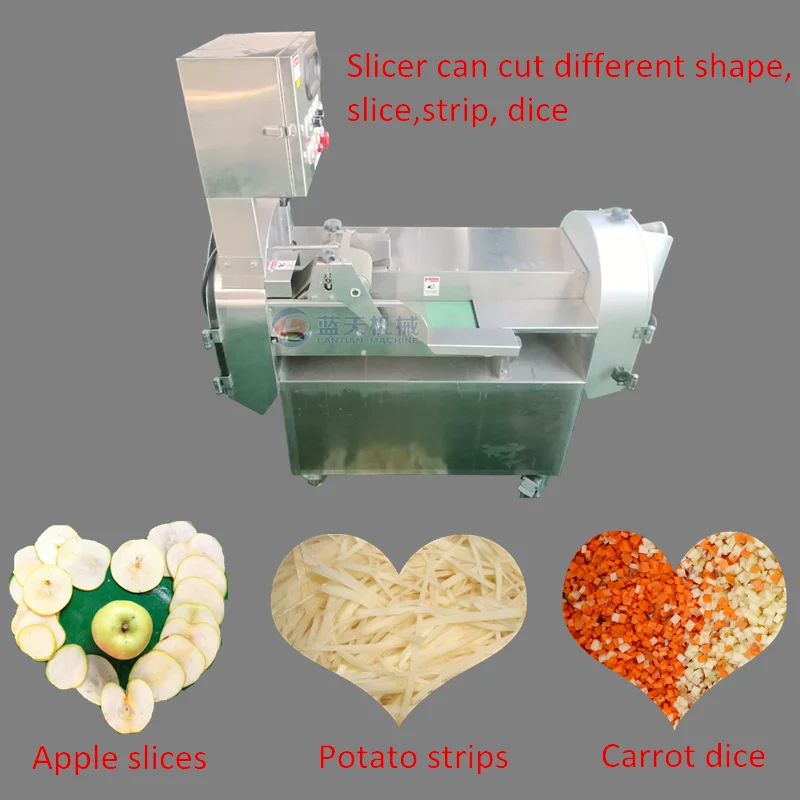

Slicing machine
The multi-function vegetable cutting machine can cut out different shapes by changing different molds, such as shredding, slicing, and cutting strips. It is suitable for the processing of various vegetables and fruits.

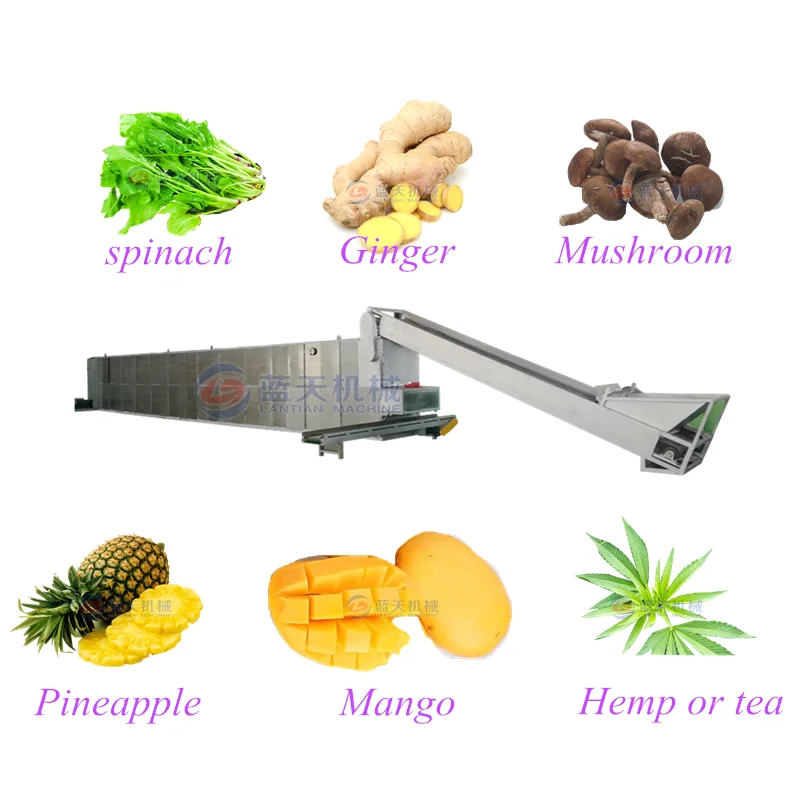

Mesh belt dryer machine
Industrial energy saving air compressor conveyor mesh belt dryer will have to deal with the materials through the appropriate charging machine, distribution on the conveyor belt,conveyor belt through the hot air circulation system, circulation system has one or several wet system. Material from the conveyor belt, through the hot air after allocate, blowing into jet mesh belt, from
the bottom up and from the top down through the conveyor belt material, so that the material uniform drying. Applicable to a variety of vegetables , fruits, seafood, Medicinal materials etc. we can according to your need capacity supply you best suitable type and size.
the bottom up and from the top down through the conveyor belt material, so that the material uniform drying. Applicable to a variety of vegetables , fruits, seafood, Medicinal materials etc. we can according to your need capacity supply you best suitable type and size.

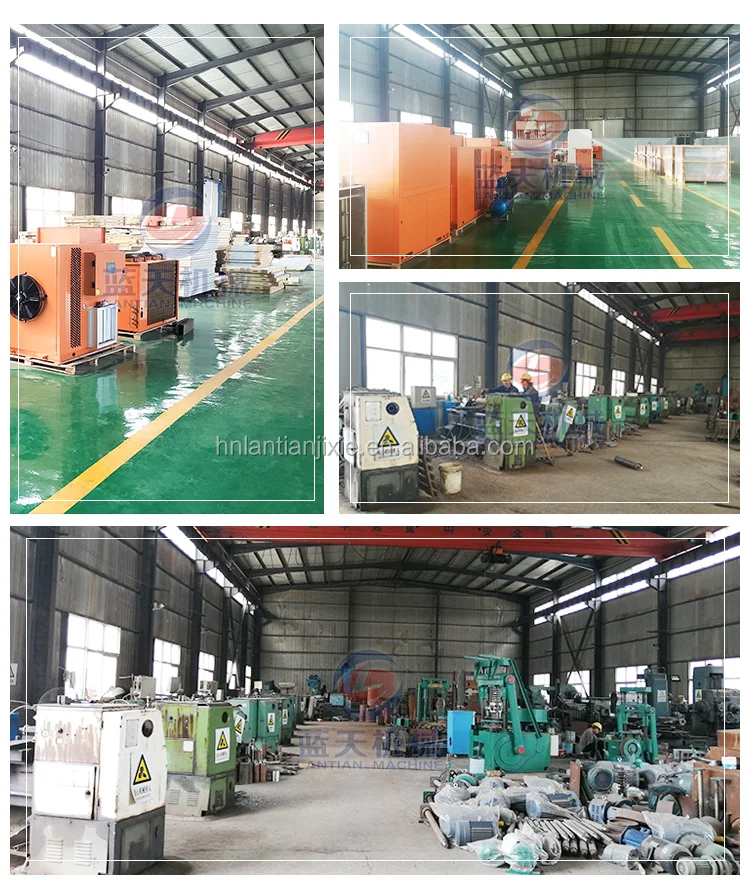

Company Introduction
Henan Lantian Machinery Manufacture Co., Ltd was built at 1980s, more than 20 years manufacturing experience. It is located in Gongyi City, Henan Province, and has an excellent geographical location. Since its establishment, our factory has adhered to the core of professional technology, precise manufacturing, bold innovation concepts, and high-quality services. Our factory mainly produce sawdust briquette machine, coal dust briquette machines, shisha charcoal briquette machine, barbecue charcoal making machine, suitable for drying machine with different materials. We help clients choose and design the best quality product line for different type machine. We can supply various certifications: CE, ISO9001, CO, Form E, COC, CIQ, to help customers from different country custom clearance. Now all products have passed ISO9001: 2000 international certification and are exported to Russia, USA, Canada, South Africa, Germany, Uzbekistan and other countries, and have been well received and recognized by customers.
Welcome to visit our factory and test our machines, please note the address,
Welcome to visit our factory and test our machines, please note the address,
Middle of heluo road, Gongyi city, Zhengzhou city, Henan province.
Air port name: Zhengzhou Xinzheng International air port.
Train station name: Zhengzhou (Zhengzhou East) train station.
Air port name: Zhengzhou Xinzheng International air port.
Train station name: Zhengzhou (Zhengzhou East) train station.
If you have any interest in our briquette machines, charcoal machine, dryer machine, please tell me your requirements, we can provide a good plan for you. Welcome to contact us.
