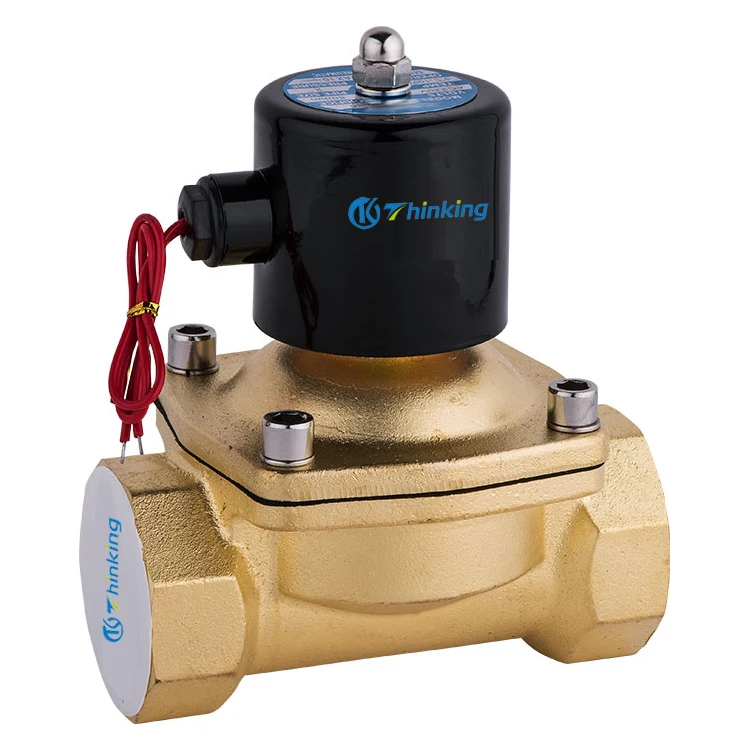

TK Factory price 2 Inch direct acting water air solenoid valve AC220V 24VDC 2W 500 50

Product Overview

Description

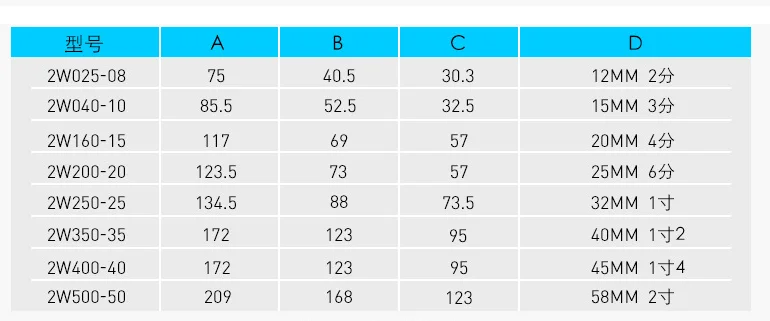

	Overall Dimension
2W-500-50









Product Prarameters





Model	2W025-08	2W040-10	2W160-15	2W200-20	2W250-25	2W350-35	2W-400-40	2W-500-50
Working Medium	Air,Water,Steam
Operation	Direct Acting
Acting Type	Normally Closed
Orifice size(mm)	2.5	4	16	20	25	35	40	50
Value(m^3/h)	0.23	0.6	4.8	7.6	12	24	29	48
Port size(mm)	1/4"	3/8"	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"
Operation Fluid Viscosity	20CST Below
Operating Perssure(Kgt/cm^2)	Air:0-1Mpa,Water:0-0.7Mpa,Oil:0-0.7Mpa
Max.Pressure Resistance(Kgt/cm^2)	1.0Mpa
Operating Temperature(℃)	-5~100℃
Voltage Range	±10%
Material of Body	Brass
Material of Oil Seal	NBR or VITON



Q1. Is the sample order acceptable?

A: Yes, of course.



Q2. What is your MOQ?

A: 1 PCS.



Q3. What is the delivery time?

A: It is about 3-7 days after we receive the payment.



Q4. How to make the payment?

A: We accept T/T, Paypal, Ali Trade Assurance.



Q5. Do you have products in stock?

A: Yes, some stock can be shipped out within 3 days.



Q6. Do you test all your goods before delivery?

A: Yes, all products are fully inspected before delivery.



Q7. What is the warranty?

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
