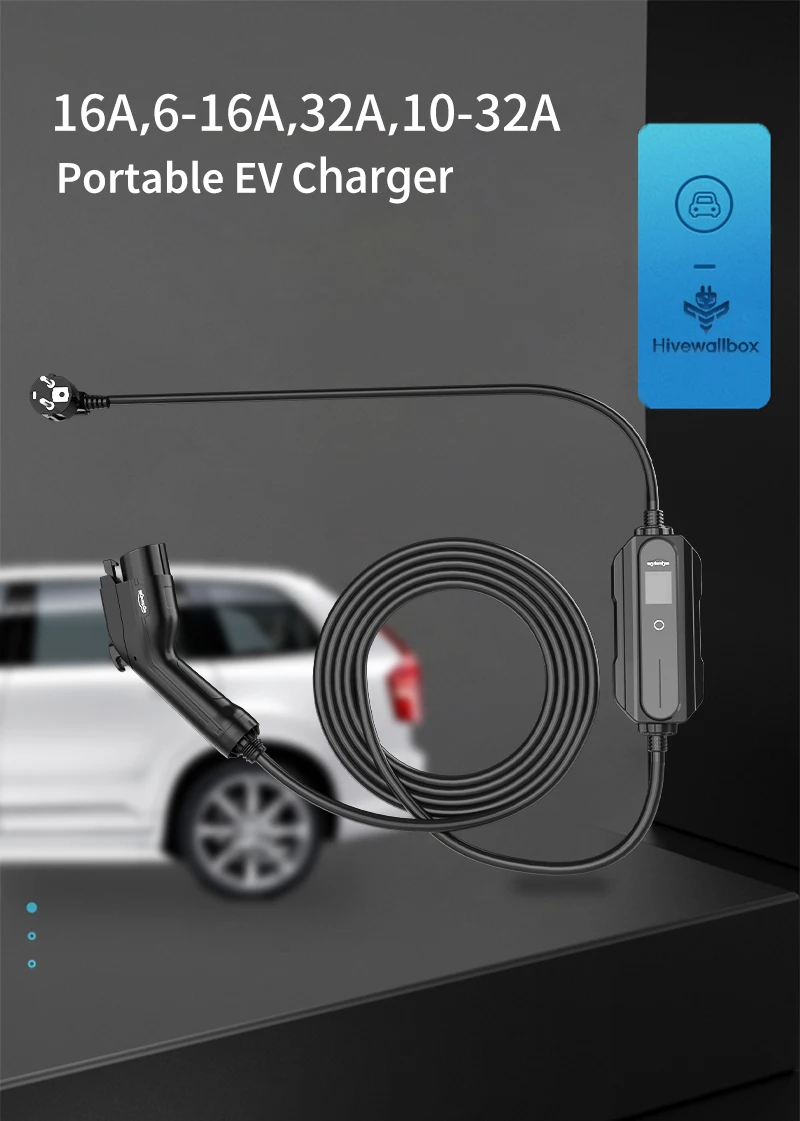

IEC 32A Single Phase type 2 portable chargers Ac Ev home charger Adjustable Current
- Category: >>>
- Supplier: HIVE WALLBOX CO. LTD.
Share on (1600318253441):
Product Overview
Description
Product Photos

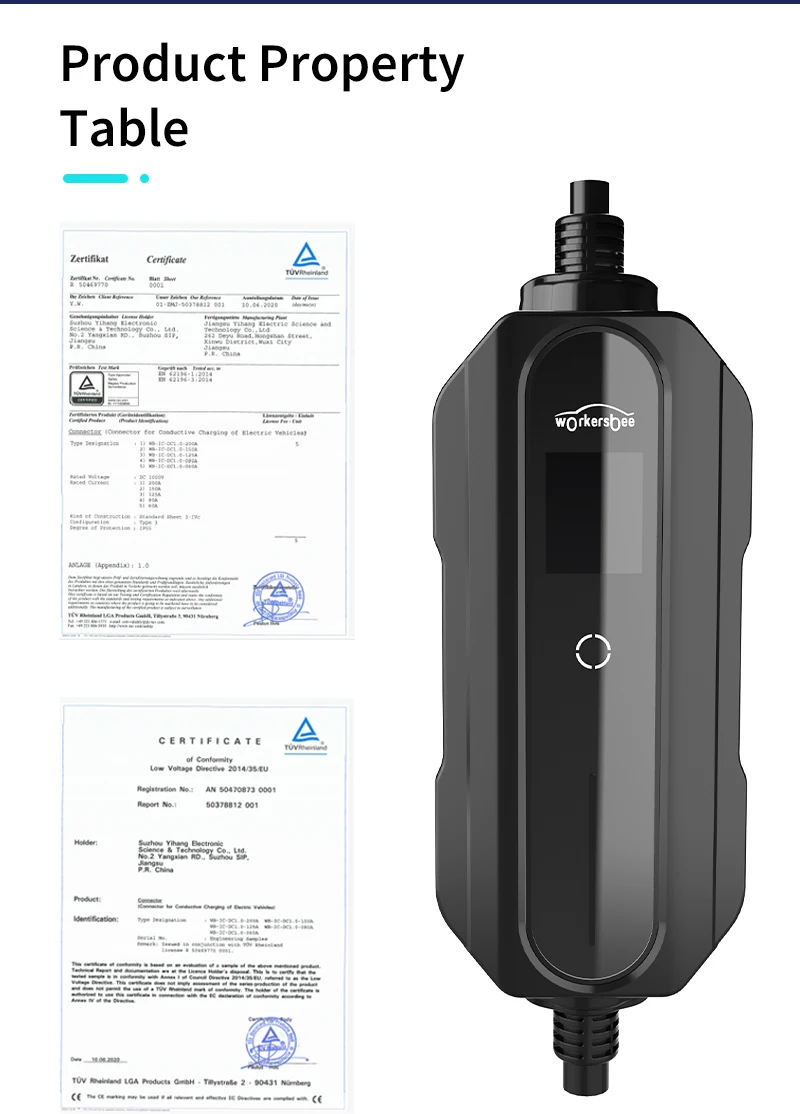

Product Display
Product Description
Brand Name | Workersbee or OEM |
Product Description | Type 1 Portable EV Charger |
Application | Residential Mode 2 portable EV charger |
Charging Mode | Mode 2 EV charging |
Place of Origin | China |
Plug for EV | IEC 62196 Type2 |
Power supply plug | Schuko |
Input power | 1-phase 250 V/AC 10~32A |
Output power | 1-phase 250 V/AC 10~32A |
Control Box | Adjustable, 10~32A |
Operational temperature | -30 °C to +50 °C |
Vandalism-proof | No |
UV resistant | Yes |
Certificate | CE, TUV |
Stainless housing | Plastic |
Over-current protection | Integrated |
Overvoltage protection | Integrated |
Under-voltage protection | Integrated |

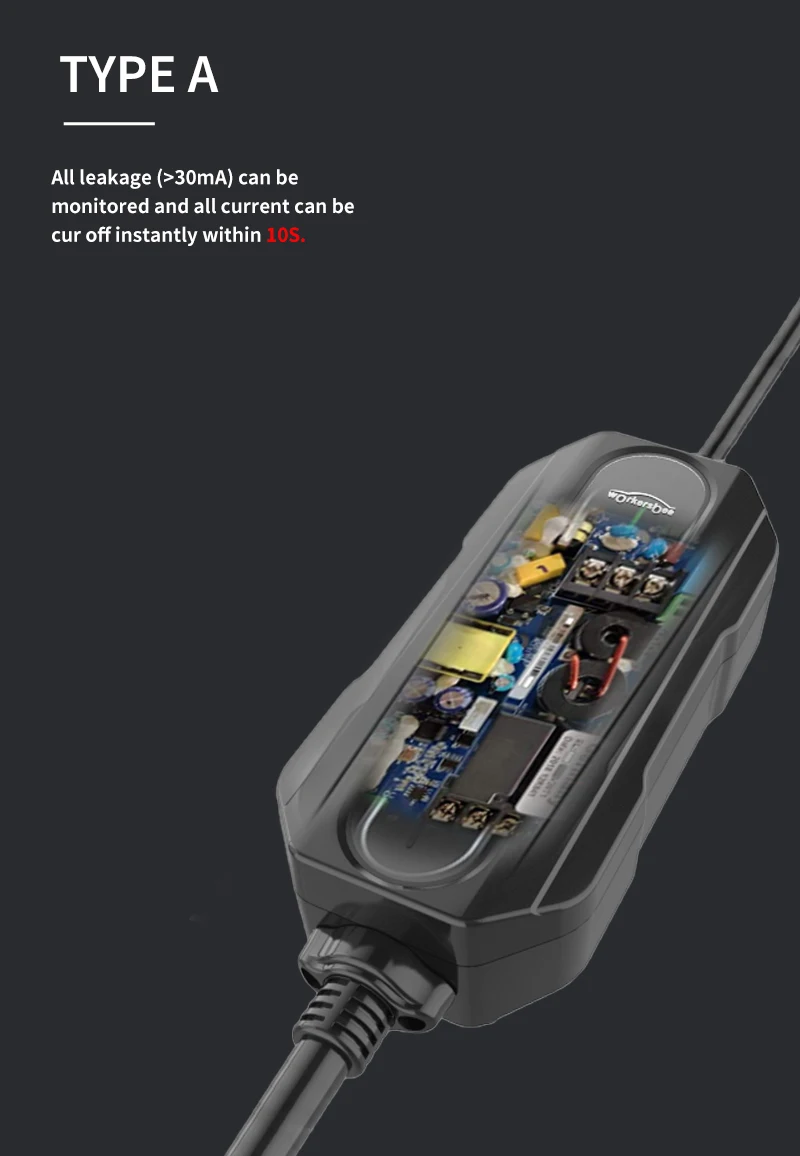

Leakage current protection | Integrated |
Lightning protection | Integrated |
Cable length | 5m or customized |
Weight | 2.3 kg |
Brutto Weight | 2.5 kg |
Brutto Dimensions ( Width x Height x Depth ) | 420 x 80 x 420 mm |
Warranty | 24 months |
EV Charging Power and Time | ||||||||||
Charger | AC/DC | Rated Power | 30kWh Battery | 60kWh Battery | 90kWh Battery | |||||
Schuko 16A | AC | 3.6kW | 8hrs | 16hrs | 24hrs | |||||
Schuko 32A | AC | 7.2kWh | 4hrs | 8hrs | 12hrs | |||||
1-phase 16A | AC | 3.6kW | 8hrs | 16hrs | 24hrs | |||||
1-phase 32A | AC | 7.2kWh | 4hrs | 8hrs | 12hrs | |||||
3-phase 16A | AC | 11kW | 3hrs | 6hrs | 9hrs | |||||
3-phase 32A | AC | 22kW | 1.5hrs | 3hrs | 4.5hrs | |||||
DC Fast charge | DC | 50kWh | 40min | 80min | 120min | |||||
Tesla Supercharger | DC | 120kW | 15min | 30min | 45min | |||||

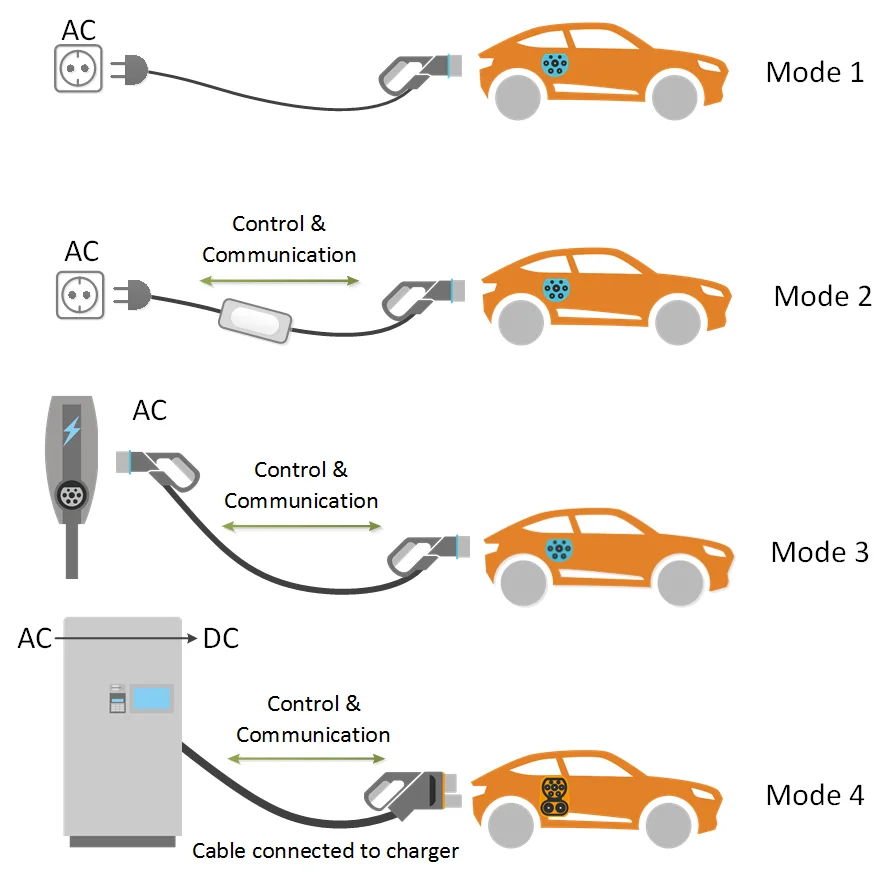

These are 4 charging modes that allows to recharge the electric car: with or without security devices, private and public charging points, in the domestic and industrial sphere.
WHAT is Mode 3 EV charging?
The mode 3 charging cable is a connector cable between the charging station and the electric car. ... To allow electric cars to be charged using type 1 and type 2 plugs, charging stations are usually equipped with a type 2 socket.
WHICH is the correct charging mode for EV batteries?
Mode 1 charging is generally installed at home, but mode 2 charging is installed mostly at public places and shopping malls. Mode 3 and mode 4 are considered as fast charging which typically use the three-phase supply and can charge the battery in less than 30 minutes.
Payment and Packing

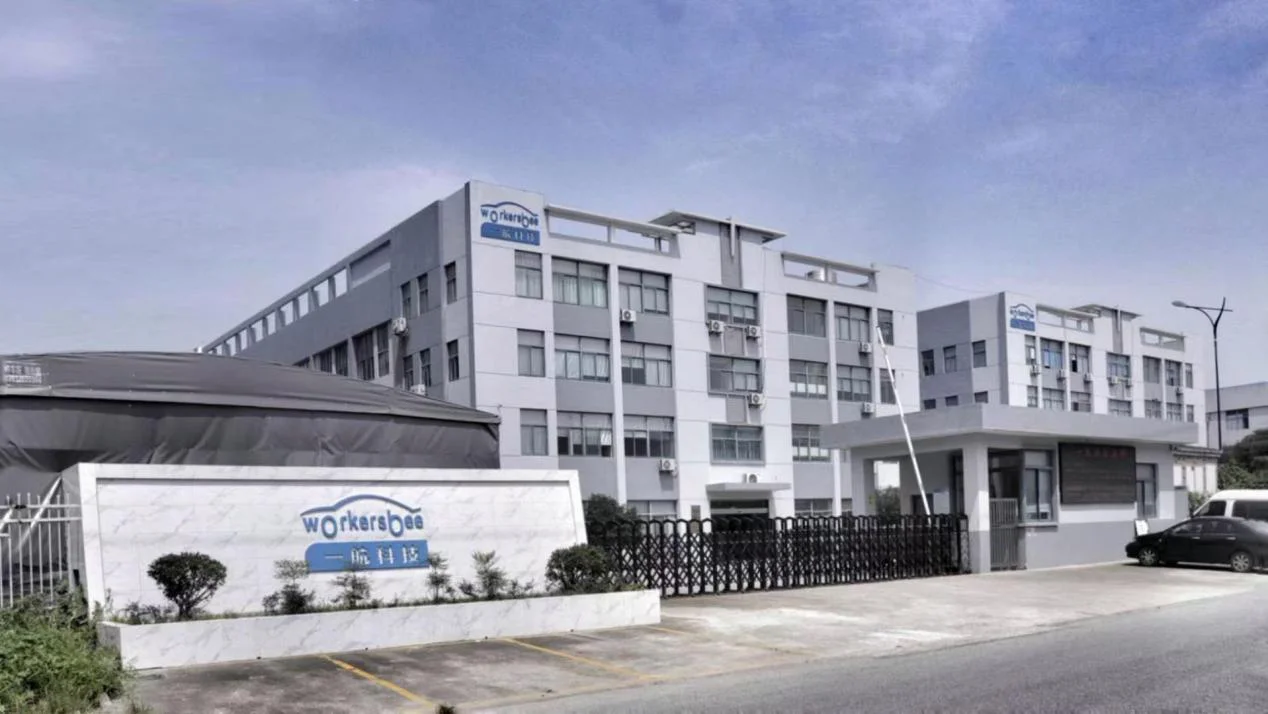

Our Company
SUZHOU HIVE WALLBOX CO., LTD.
Hive wallbox Co.,Ltd established at 2020, the stockholder is Jiangsu Yihang Electric Science and Technology Co., a professional manufacturer focusing on the research and development, design, production, sales and after-sales service of precision parts for automotive shock adsorber and transmissions, as well as electric vehicle charging products. Our main products are AC SAE J1772 Type 1 and IEC62196 TYPE 2 plug & socket, CCS1 & CCS2 plugs and socket, which can be used in Charging piles, and we also produce Mode 2 portable EV charger, Mode 3 EV connector & EV adaptor and EV charging other accessory.
Our company Located in Wuxi High-tech Zone, Wuxi city, 120km to Shanghai Sea port - the center of the Yangtze Delta, China’s most vibrant economic region. Location advantage not only means convenient traffic but also save customers’ transport cost.
Our company Located in Wuxi High-tech Zone, Wuxi city, 120km to Shanghai Sea port - the center of the Yangtze Delta, China’s most vibrant economic region. Location advantage not only means convenient traffic but also save customers’ transport cost.
We provide OEM and ODM service for EV charging products according to our customer’s requirements. In the future, we will continue to uphold the spirit of craftsman, teamwork, hardworking and happiness, for the purpose of striving to make great contributions to society in role of a professional EV charging products supplier and customers' most trusted partner.
Certifications
CE and TUV
