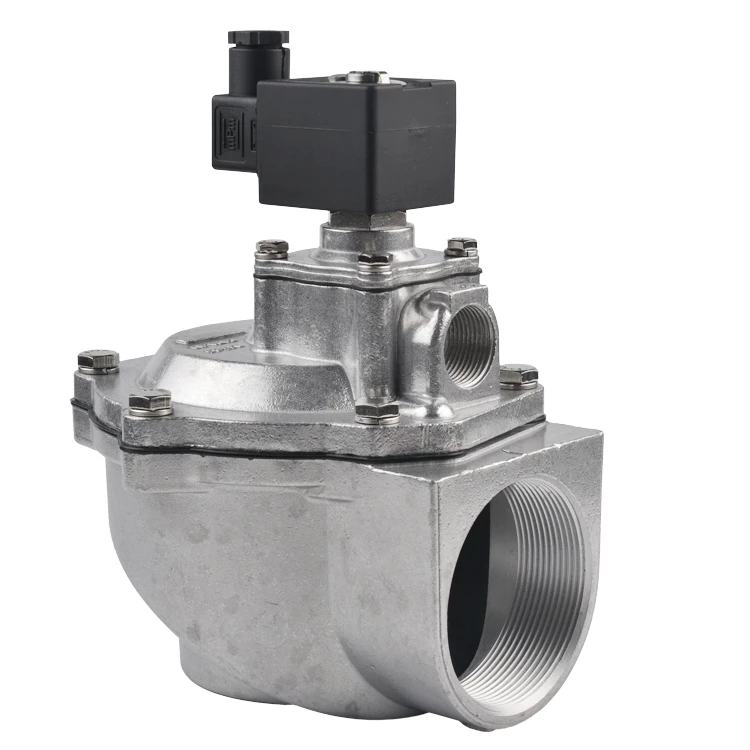

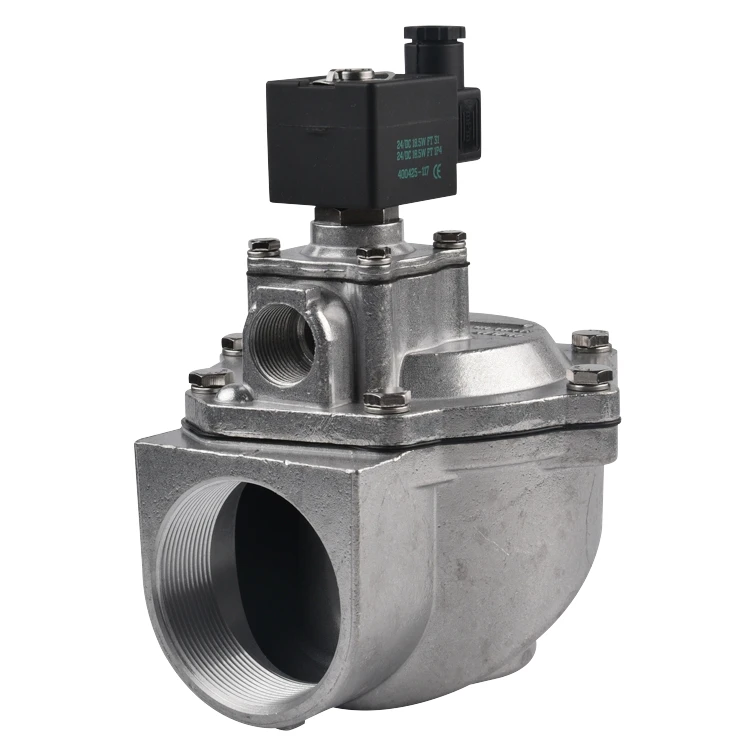

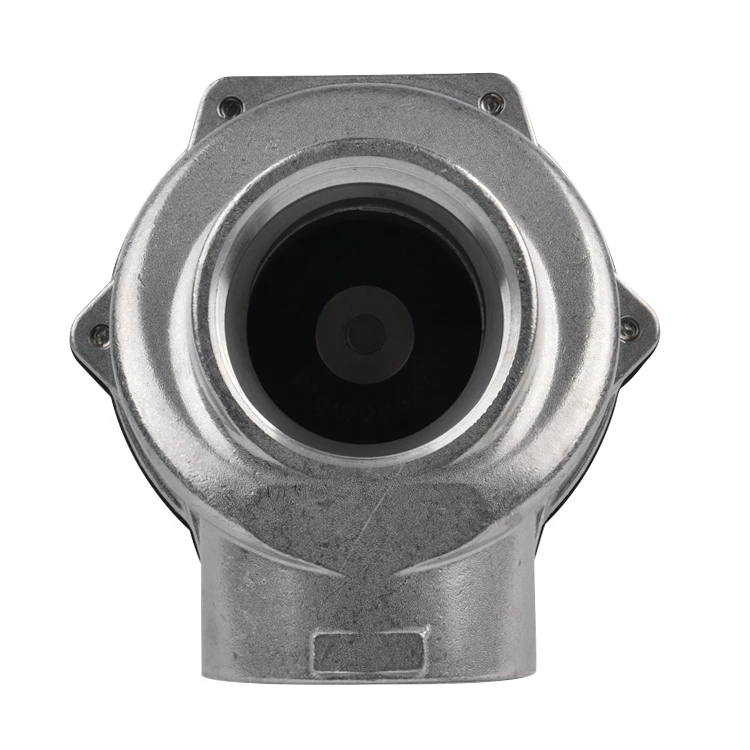

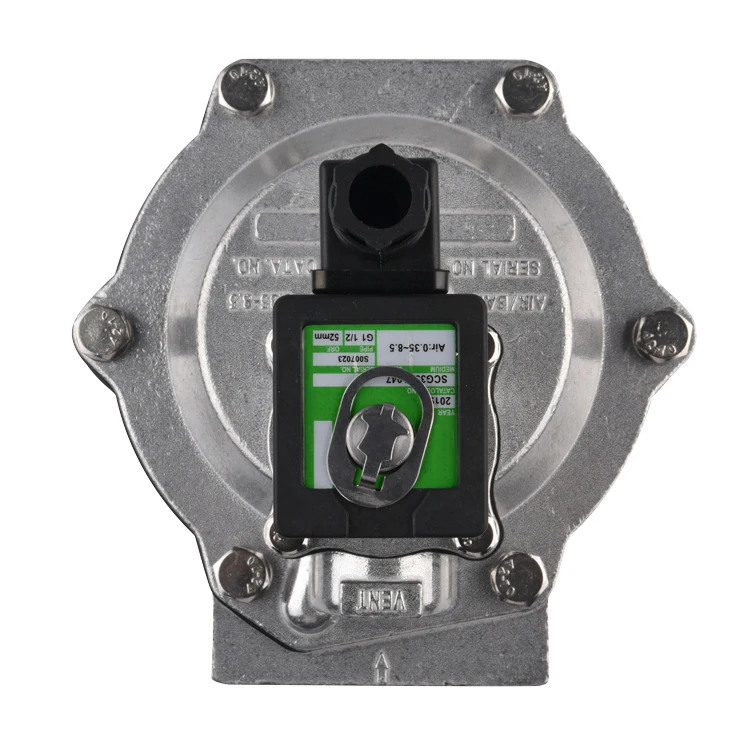

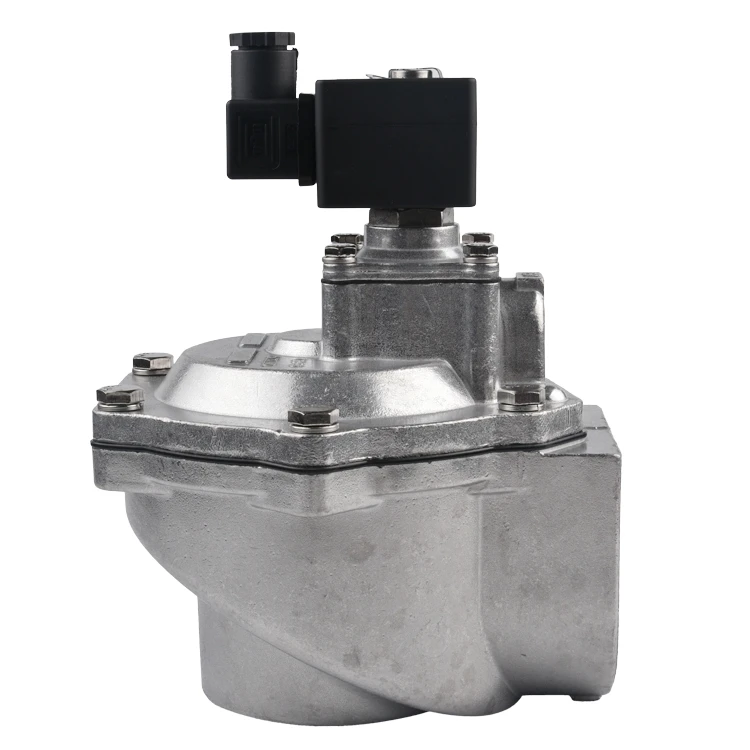

TK Factory price SCG353A051 2.5 Inch Bag Filter Diaphragm Clean Air Right Angle Valve For Dust Collector

Product Overview

Description

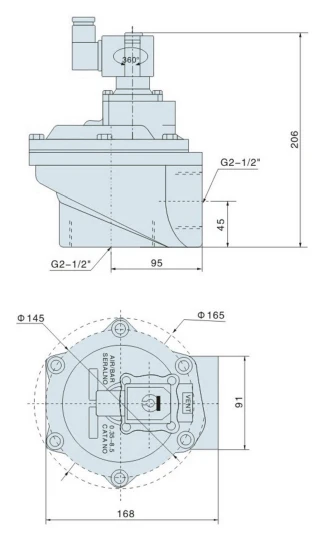

	Overall Dimension
YWA-Z-62S







Model	YWA-Z-62S	Diaphragm
Input Size	G2 1/2"
Ouput Size	G2 1/2"
Outsidediameter/center distance	165mm/145.5mm
Matching diaphragm	AZ62, G-S
Qty.(diaphragm)	2

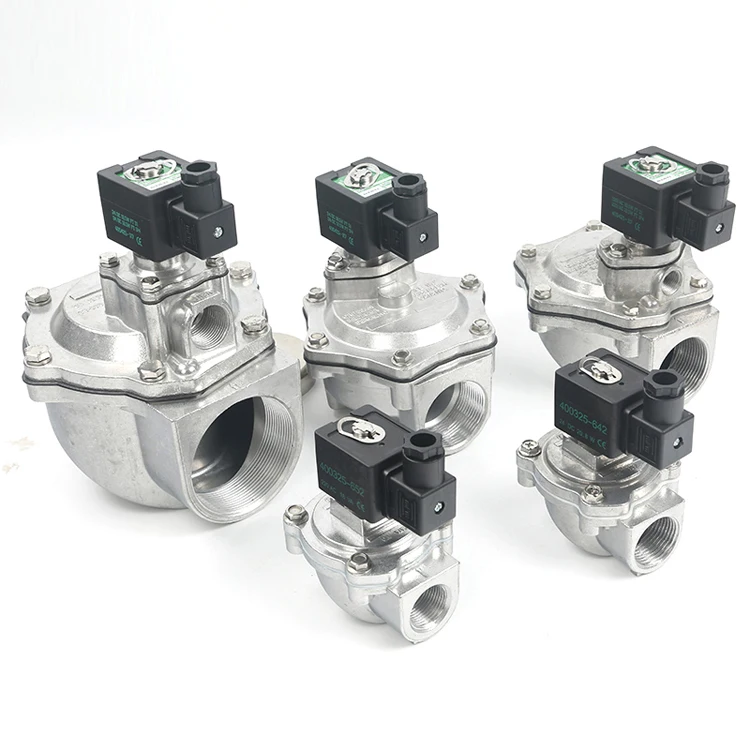

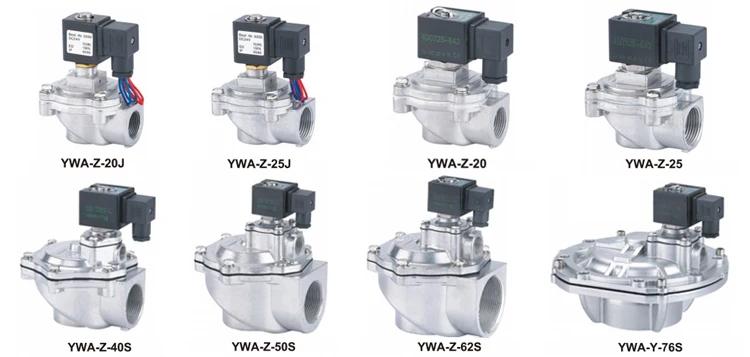

YWA Serie Right Angle Pulse Valve,25J-76S



Product Prarameters

Model	YWA-Z-20J	YWA-Z-25J	YWA-Z-20	YWA-Z-25	YWA-Z-40S	YWA-Z-50S	YWA-Z-62S	YWA-Z-76S
Work pressure	0.3~0.8Mpa
Envionnment temperature	-5~55°C
Relative humidity	<85%
Use medium	Dry clean compressed air
Electric pressure	AC110V/A220V/DC24V
Diaphragm diameter	Injection of million or more
Nominal diameter	20mm	25mm	20mm	25mm	40mm	50mm	62mm	76mm
Connection threed	G3/4	G1	G3/4	G1	G1-1/2	G2	G2-1/2	G3



Product Breakdown





Q1. Is the sample order acceptable?

A: Yes, of course.



Q2. What is your MOQ?

A: 1 PCS.



Q3. What is the delivery time?

A: It is about 3-7 days after we receive the payment.



Q4. How to make the payment?

A: We accept T/T, Paypal, Ali Trade Assurance.



Q5. Do you have products in stock?

A: Yes, some stock can be shipped out within 3 days.



Q6. Do you test all your goods before delivery?

A: Yes, all products are fully inspected before delivery.



Q7. What is the warranty?

A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
