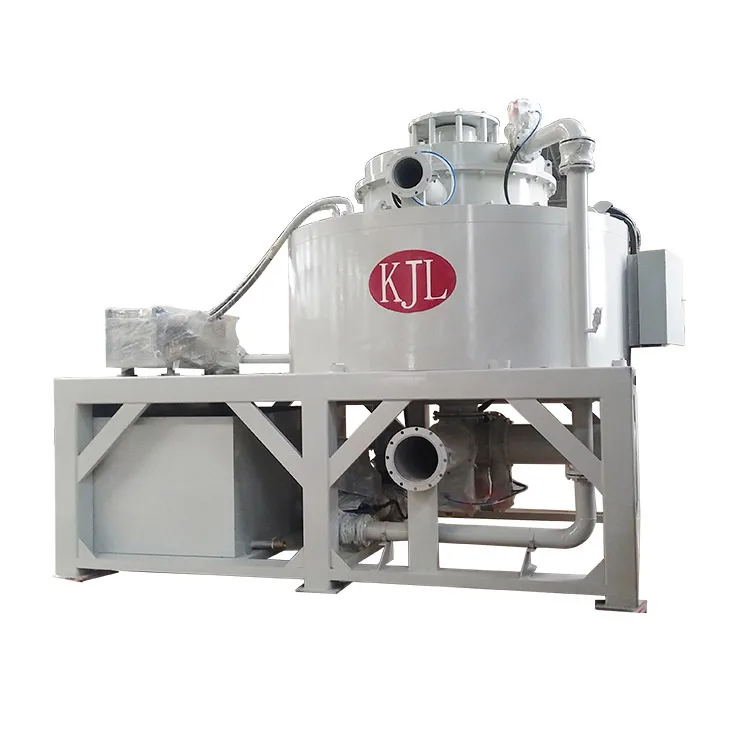

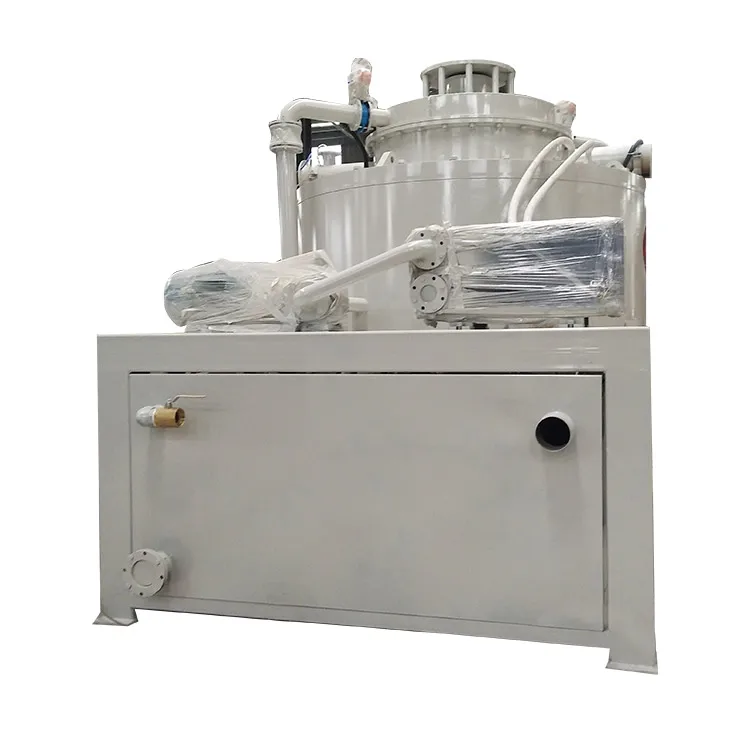

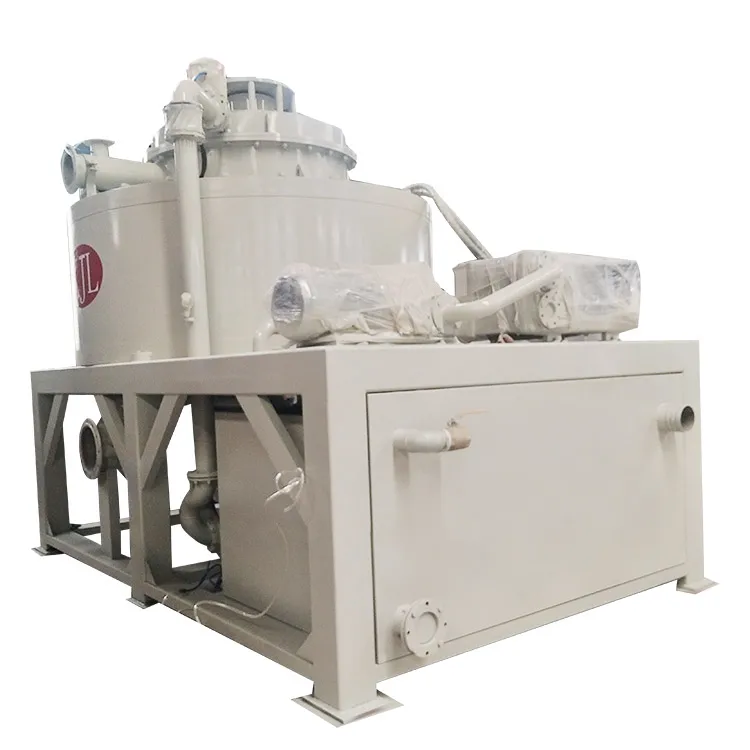

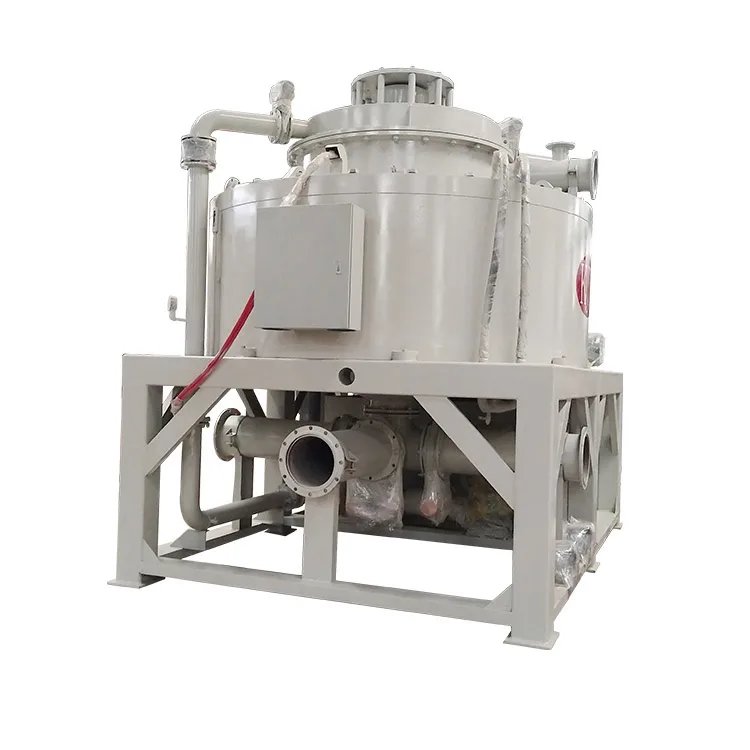

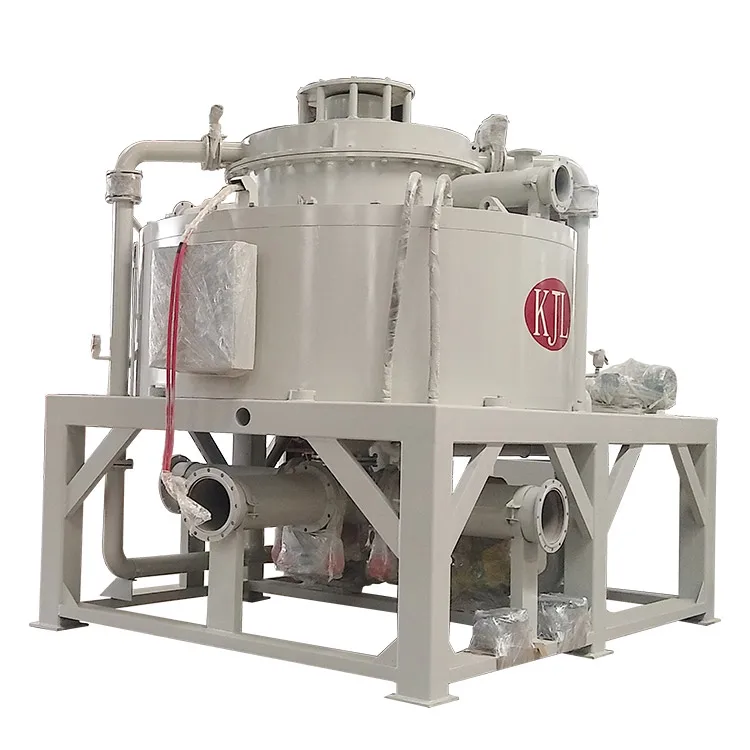

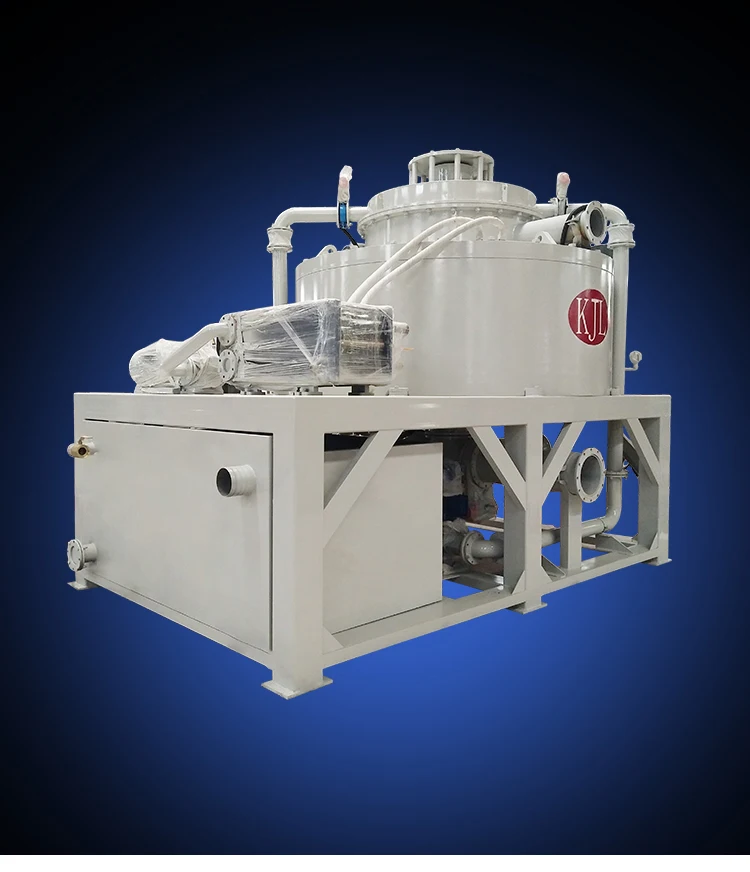

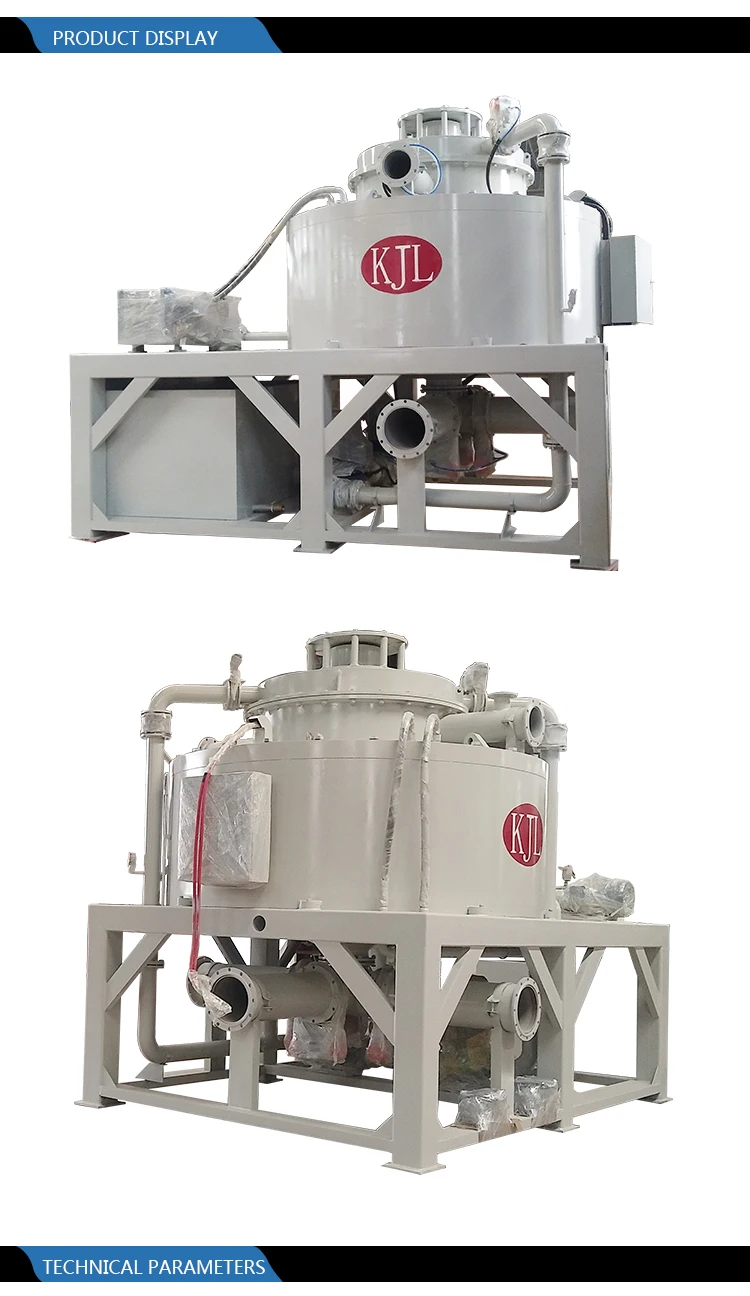

wet process mining equipment magnetic separator equipment for ceramic raw materials

Product Overview

Description

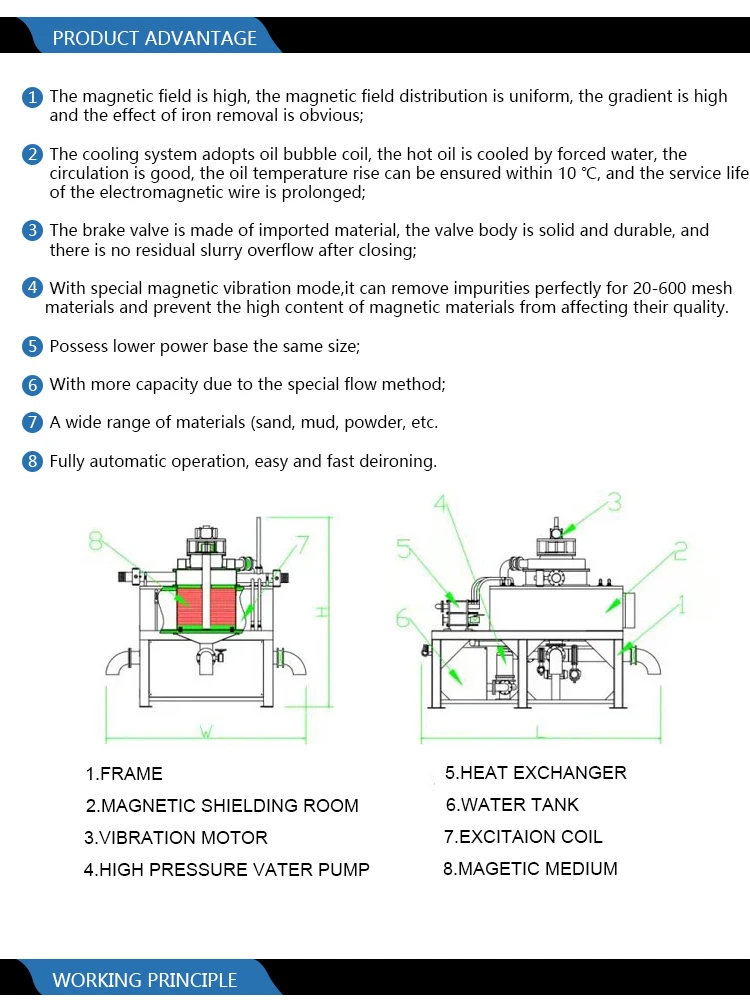

Put certain amount of matrix net inside the working chamber which surrounded by screw coll. The power of AC is transformed into DC excitation power by silicon rectifier control system. The matrix is magnetized after the coil turn on. And it will be create non-uniform magnetic field on the surface of the matrix--high gradient magnetic field.When the slurry pass through the matrix inside the working chamber, the magnetic matter will be absorbed by matrix and the non-magnetic matter will be pass through the working chamber, then the magnetic matter will be separated from non-magnetic .















Model	Input voltage (V±10)	Magnetic flux density	Working diameter (mm)	Power (Kw)	Yield (t/h)	Size (mm)	Weight (T)
KJLSL-500QG	380	3.0T	Φ500	45	>5	1500x1700x2480	6
KJLSL-500GG	380	3.5T	Φ500	45	>5	2000x2073x3530	6
KJLSL-750QG	380	3.0T	Φ750	75	>10	3700x2200x3350	12
KJLSL-750GG	380	3.5T	Φ750	75	>10	3700x2200x3350	12
KJLSL-1000QG	380	3.0T	Φ1000	100	>20	4050x3450x3500	20
KJLSL-1000GG	380	3.5T	Φ1000	100	>20	4050x3450x3500	20
KJLSL-1250QG	380	3.0T	Φ1250	125	>30	2600X3600X3100	30
KJLSL-1250GG	380	3.5T	Φ1250	125	>30	2600X3600X3100	30
KJLSL-1500QG	380	3.0T	Φ1500	150	>45	5160X4220X4600	40
KJLSL-1500GG	380	3.5T	Φ1500	150	>45	5160X4220X4600	40
