NICON Factory sale 4 20mA level sensor level pressure transmitter gauge micro air mini pressure sensor
- Category: >>>
- Supplier: ZHENGZHOU NICON TECH CO. LTD
Share on (1600318310591):
Product Overview
Description
NICON Factory sale 4-20mA level sensor level pressure transmitter gauge micro air mini pressure sensor
Product Description
The pressure transmitter adopts diffused silicon core as sensitive element and intelligent digital circuit.
The overall performance is stable and reliable, and can be transmitted over long distance.
Easy installation, suitable for gas, liquid, steam pressure measurement and control.
Technical Parameter
Model | NIC-2166-S |
Outline mode | Air plug/Hersman/direct outlet |
Measuring range | -100kpa~0~100mpa |
Output signal | 4-20ma,0-10VDC,0-5VDC,0.5-4.5VDC,RS485 |
screw | M20*1.5,G1/2(customizable) |
Power | 12~36 VDC/5VDC |
Temperature: | -30~80℃ |
Relative humidity: | 0~90% |
Overload: | 150% |
Pressure form: | gauge,absolute,negative |
Level of accuracy: | 0.1%,0.25%,0.5% |
long term stability: | ±0.2%/year |
Note | medium temperature over 70℃ need to choose high temperature accessories. |

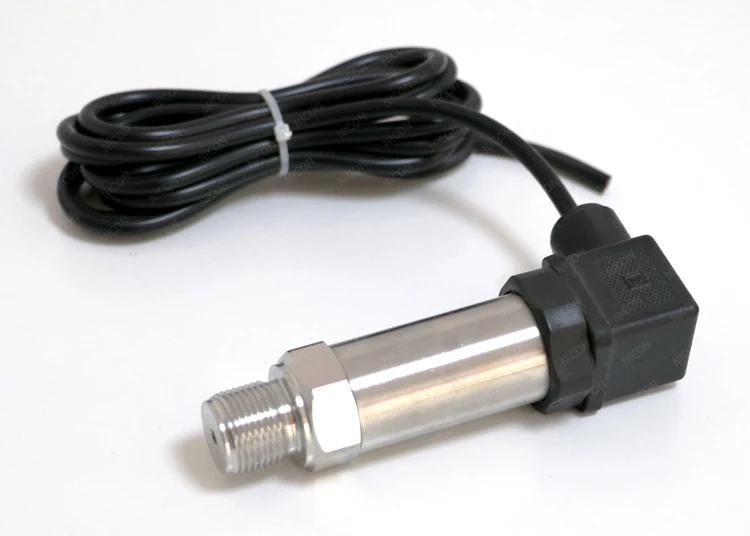

1.Hersman joint
Hesman, PVE engineering plastics waterproof, dustproof, flame-retardant, pressure-resistant, anti-corrosion in line with the site IP65 waterproof grade applicable to more industrial sites, to ensure the service life of products

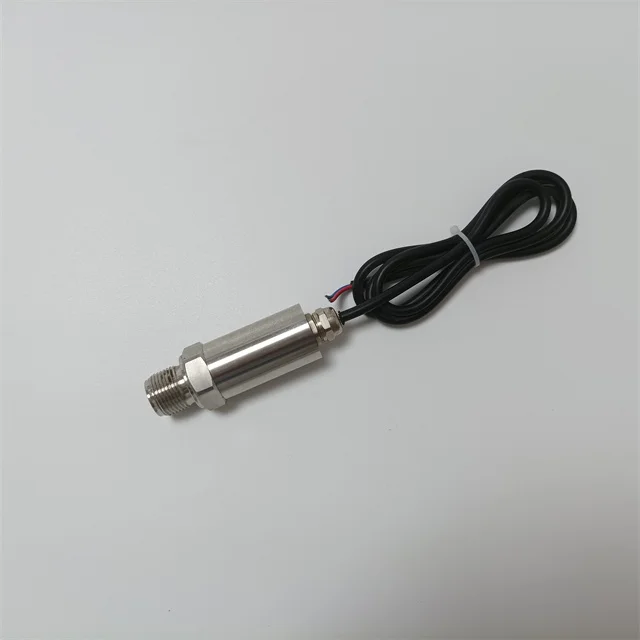

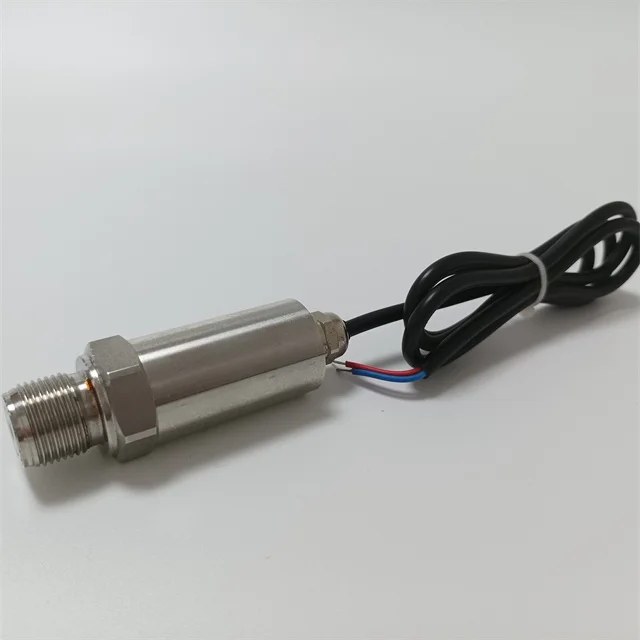

2.Direct outgoing
Waterproof design, in line with the field IP65 waterproof grade shielding line to avoid signal interference, ensure the performance of the product, pure copper wire core, durable, high conductivity
3.Air plug
Waterproof design, threaded extruded rubber plug, super sealing P68 waterproof grade, suitable for outdoor or underwater installation in wet environment, without affecting performance

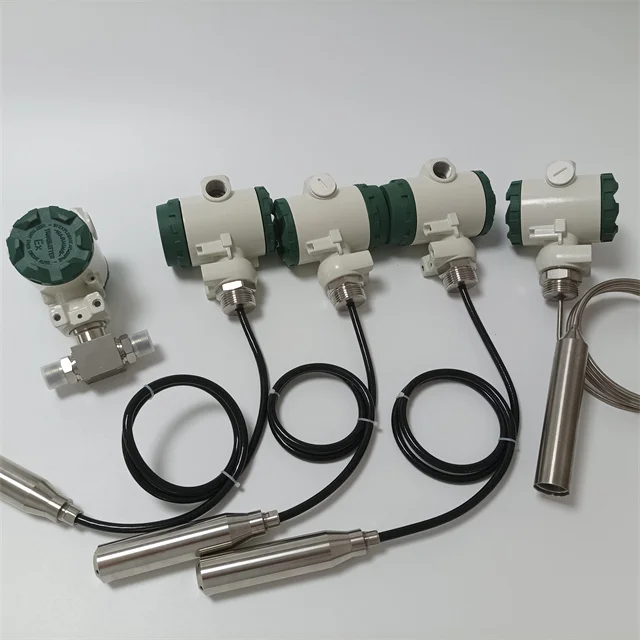

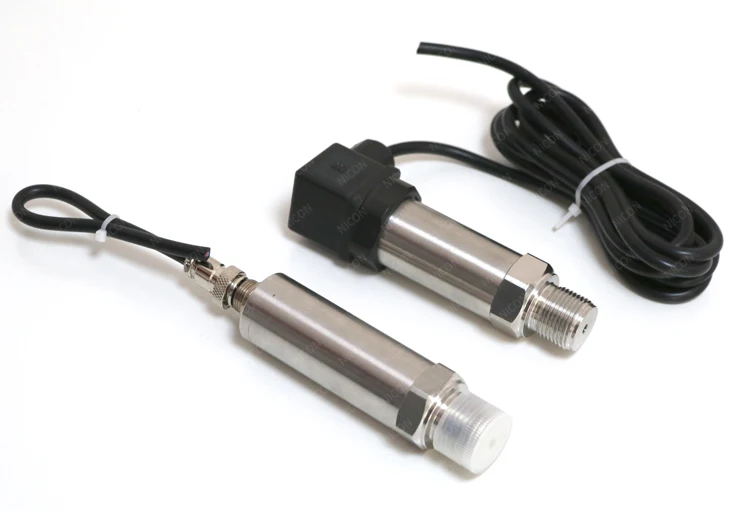

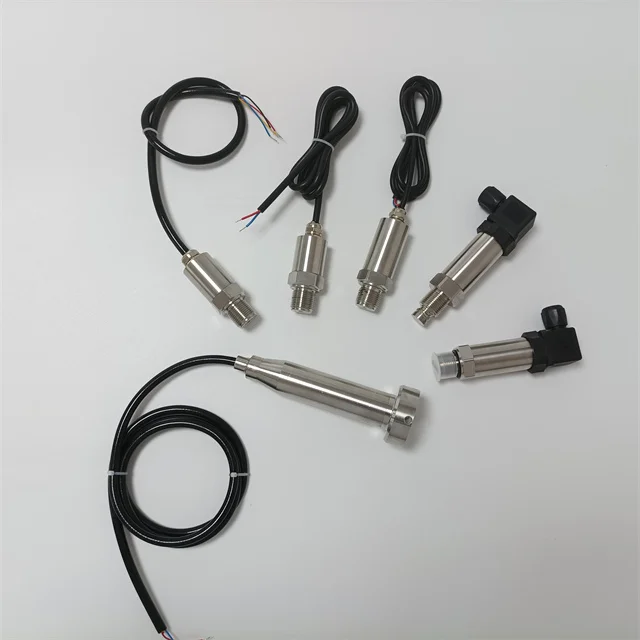

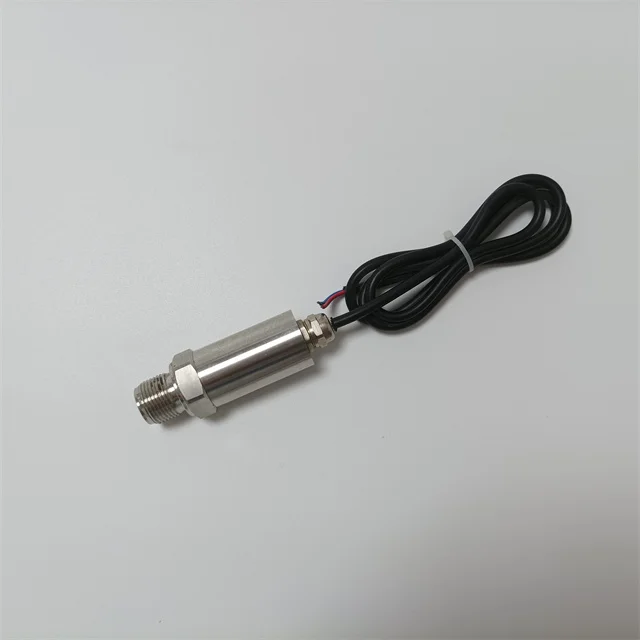

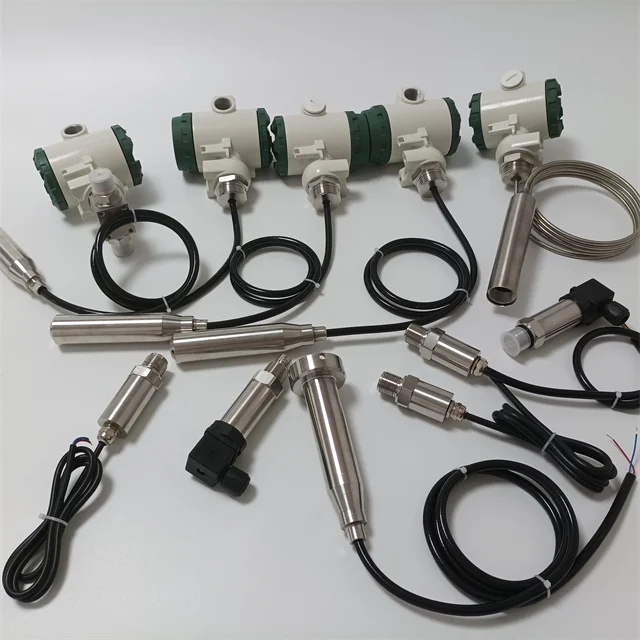

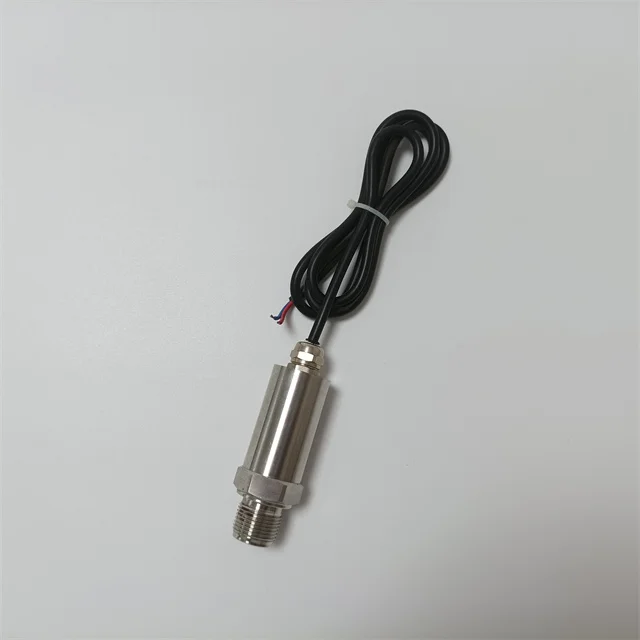

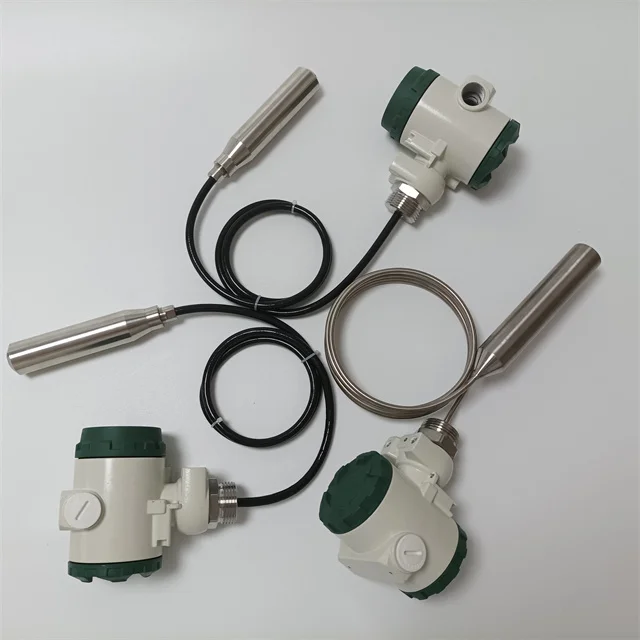

Detailed Images
Product characteristics:
1.High precision, good stability
2.Wide coverage
3.Non-moving parts, high reliability, long service life
4.not affected by the size of the measured medium mass
5.Stainless steel case, IP65 grade of protection
Use scenarios
1. Constant pressure water supply for buildings and water pressure monitoring
2. Hydraulic monitoring
3. Air tightness monitoring
4. Negative pressure measurement
Main production processes
1. The screening of components, using pearl cotton all-round package storage, to prevent shell collision scratch. Layer by layer control for you to provide high-quality pressure transmitter.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
