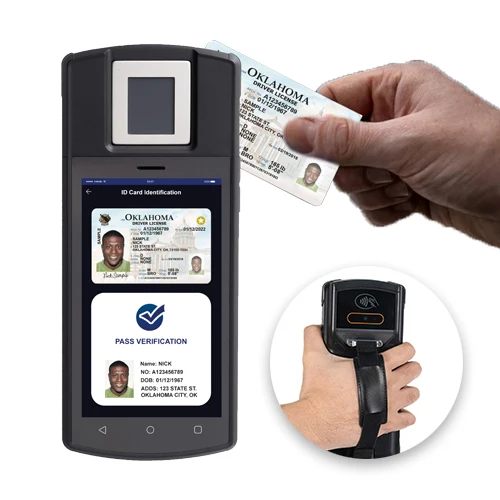

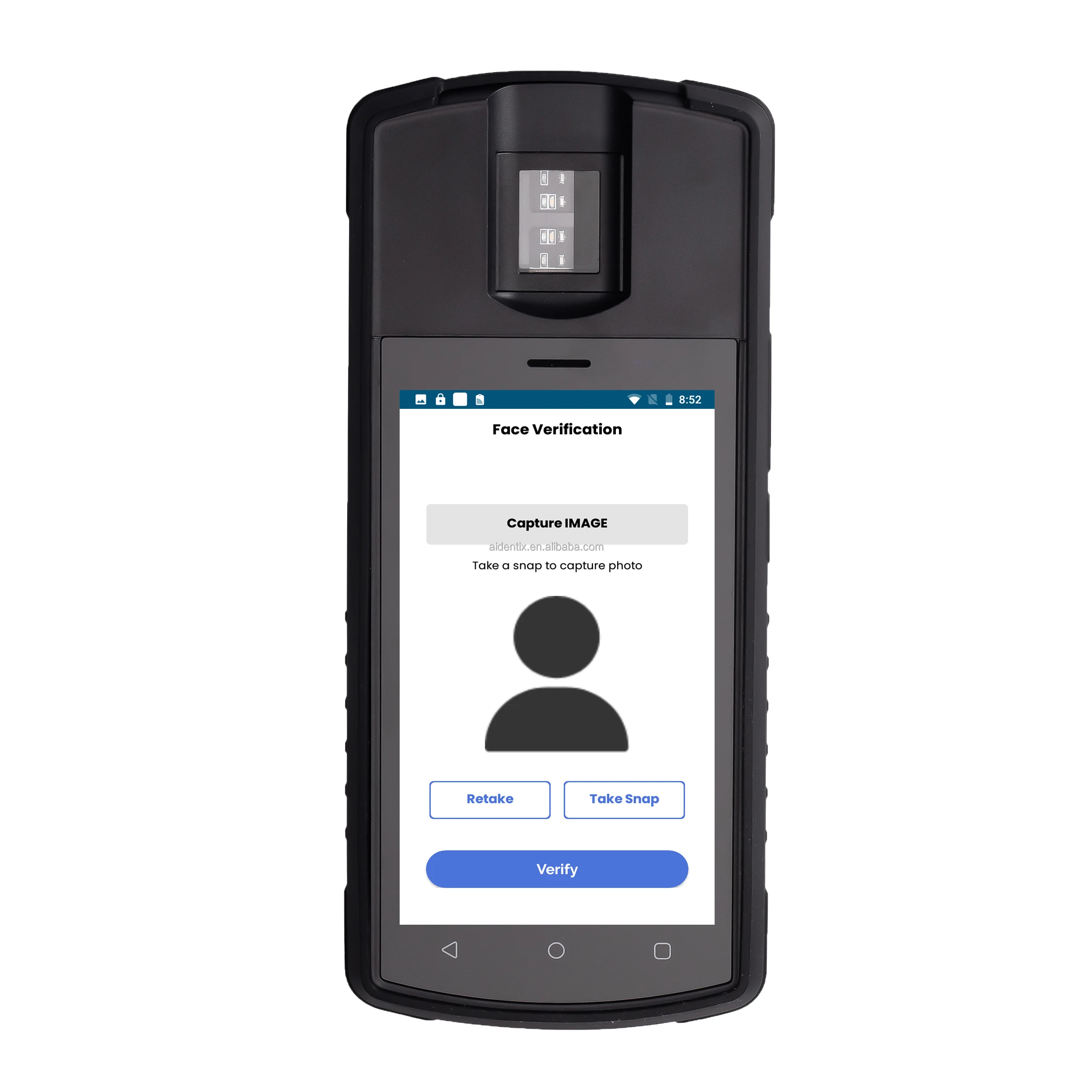

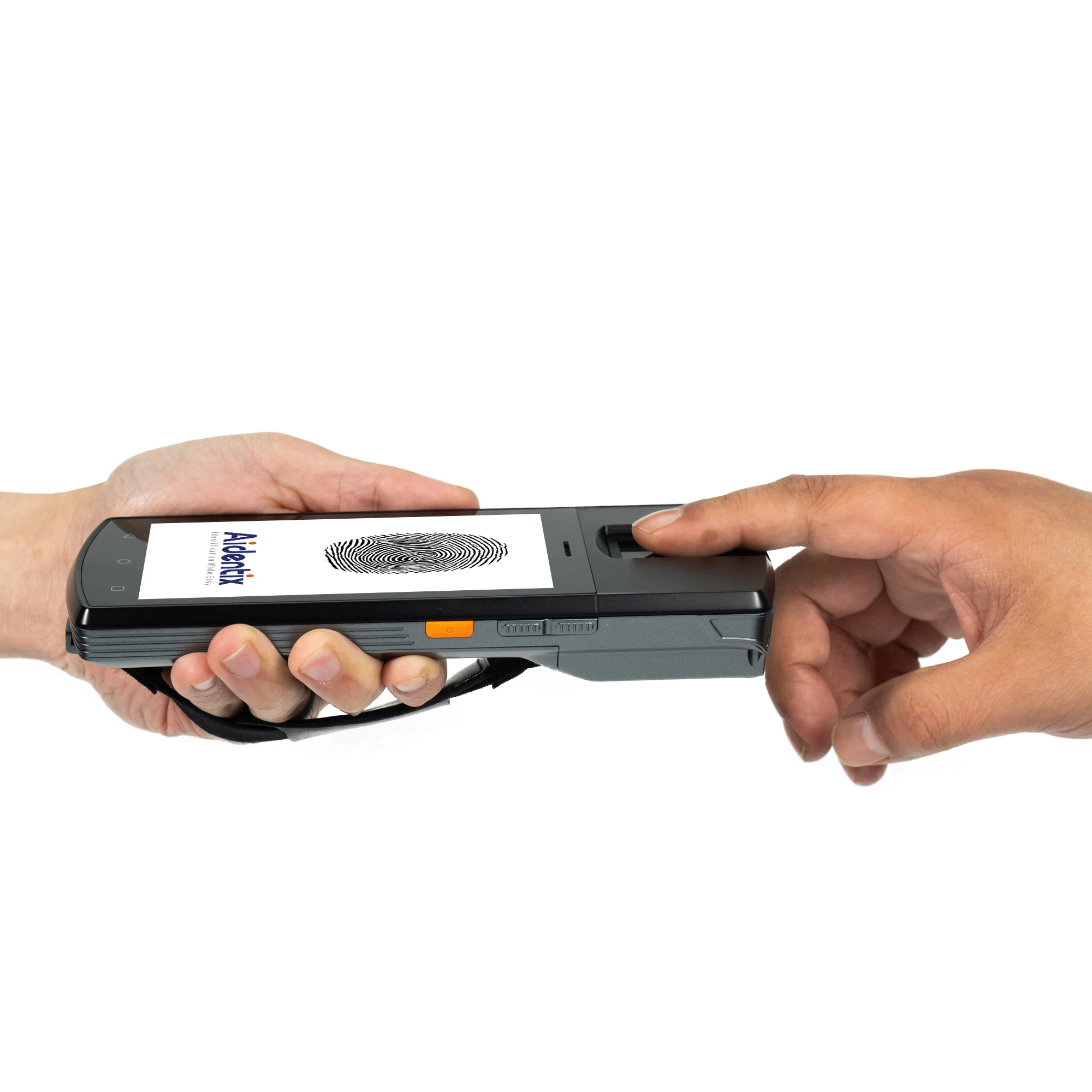

Suprema BioMini Slim 2 FAP20 Optical Fingerprint Scanner Android Handheld Terminal with NFC Scanner Dual Nano SIM Slots

Share on (1600318333228):


Price:

Quantity:


Product Overview

Description





Product Description

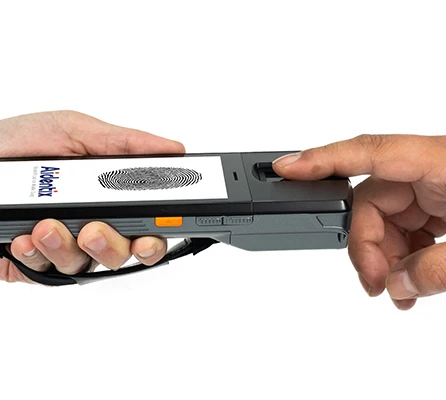

Live Finger Detection Technology
Distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.
Fingerprint template: ANSI-378, ISO 19794-2, etc.
Fingerprint image: ISO 19794-4, WSQ, etc.

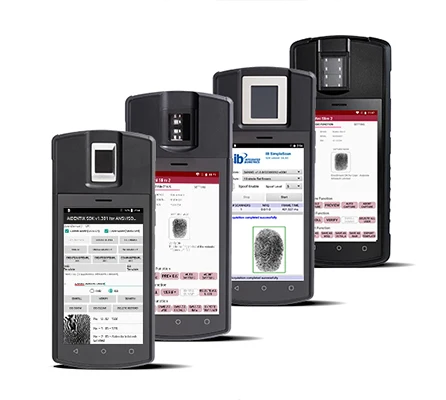

Single Fingerprint Scanners
Built-in FBI PIV & FBI Mobile ID FAP30 (400*500 Pixels) / FAP20 (300*400 Pixels) / FAP10 (256*360 Pixels) certified single
fingerprint scanners including IB LES Danno, Suprema BM-Slim 3 & Suprema BM-Slim 2, etc.

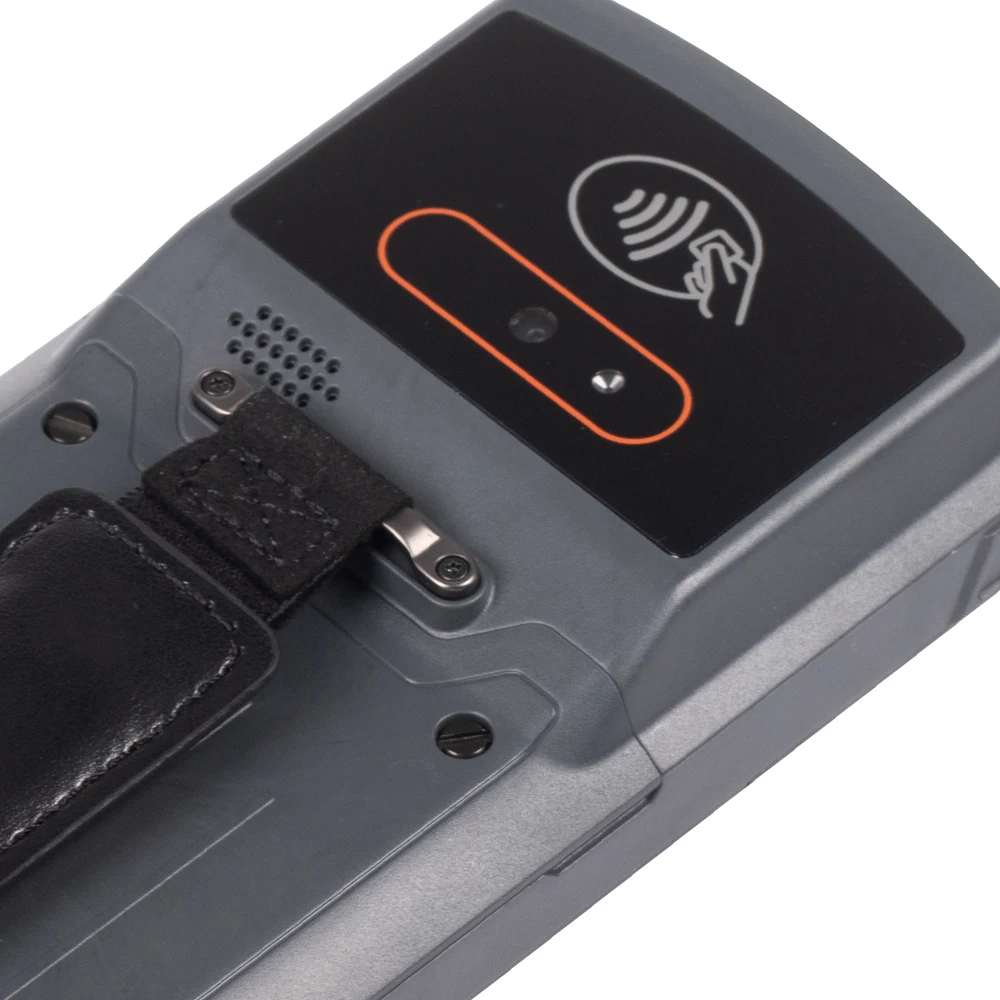

Rear Camera + NFC Scanner
8MP rear camera with auto-focus and LED flash
1D/2D barcode scanning supported via rear camera
NFC Scanner ISO/IEC 14443 A/B, MiFare, etc.

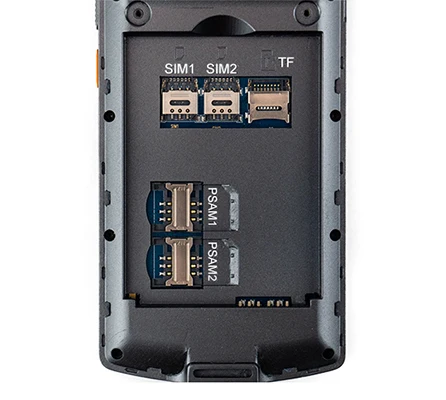

Dual SIMs & Dual PSAMs & TF Card
8MP rear camera with auto-focus and LED flash
1D/2D barcode scanning supported via rear camera
NFC Scanner ISO/IEC 14443 A/B, MiFare, etc.

Widely used for reading ICAO compliant chip-based national ID card, ePassport, driver license, etc.

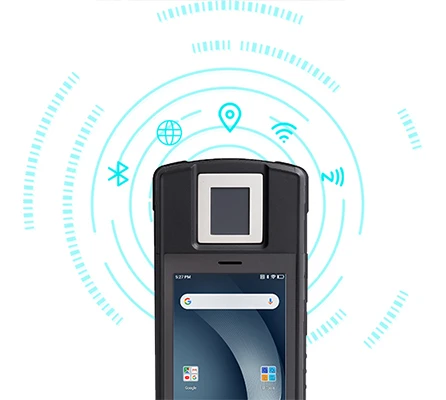

No Communication Limits
4G LTE & 3G WCDMA & 2G GSM
WiFi 2.4G & 5.0G
BT 4.0 Low Energy
GPS, Galileo, GLONASS

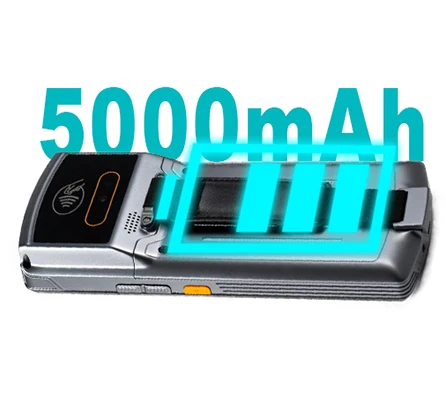

Long Battery Life
F80 features a removable and rechargeable
li-ion battery of 5,000mAh which enables F80 to meet the needs of full day long worktime.

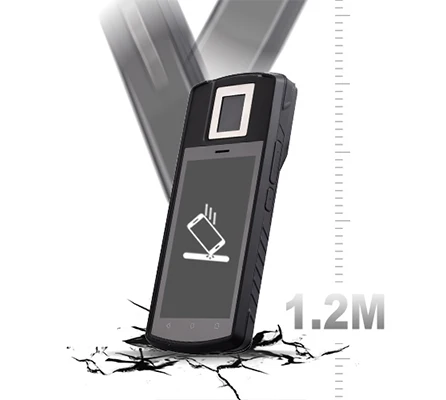

Rugged & Durable Design
With proprietary protective case, it can be used in mobile and harsh environments.


Specification


Model Number
F80
OS
Android 8.1
Memory
1GB/2GB RAM + 8GB/16GB ROM
CPU
Quad-core 1.3GHz
Display
5 inch IPS 720*1280
Communication
4G LTE/3G/GPRS/GSM/Wifi/BT/GPS
Fingerprint Sensor
Live Finger Detection (LFD) Technology
Resolution 500 ppi / Greyscale 256 levels
Built-in FBI PIV & FBI Mobile ID FAP30 / FAP20 / FAP10 certified single flat finger sensors including:
1. IB Danno LES (Light Emitting Sensor);
2. Suprema BM-Slim 3 & BM-Slim 2;
3. Morpho CBM E3 (STQC Certified);
4. Other.
SIM Slot
Dual Nano SIMs
PSAM
Optional Dual PSAMs
Camera
Rear Camera 5MP/8MP Auto-Focus
Front Camera 5MP (Optional)
Battery
5,000mAh Li-ion Rechargeable and Removable Battery
NFC Scanner
Optional
Interface
USB Type C, 3.5mm Audio Jack, Micro SD up to 128GB
Hand Strap
Optional
Silicone Protector
Optional
Power Adapter
5V/2A via USB Type C Cable
Dimension
195*82*28mm


Standard Accessories


Adaptor
USB Cable
Battery


Optional Accessories


Leather Case
Hand Strip






Company Profile


Why Choose Us
Aidentix has been hyper-focused on smart terminal OEM and ODM, offering various form factors e.g. handheld, tablet, desktop, kiosk, suitcase, etc. for public and private sectors.

Aside from hardware expertise, we provide MDM (Mobile Device Management) system as value-added services to help customers empower their solutions.

At Aidentix, we are firmly of the belief that we can bring truly long term value to customers by listening to and understanding the requirements of customers and projects, as well as integrating exceptional hardware, software and services with professional and timely support.








FAQ


Q: Can I have a sample order?
A: Yes

Q: What is your general lead time?
A: 3-5 days for sample orders, 21-30 days for mass production e.g. 500pcs, 1,000pcs, 3,000pcs, etc.

Q: What is your MOQ?
A: 2 pieces

Q: What are your warranty terms?
A: 1 year warranty upon the receipt of the goods (2 years warranty for big orders);

Q: What are your payment terms?
A: Sample orders - advance payment before shipment
Batch orders - 50% downpayment before production, balance before shipment

Q: Do you accept OEM order?
A: Yes, MOQ for OEM is 500pcs
