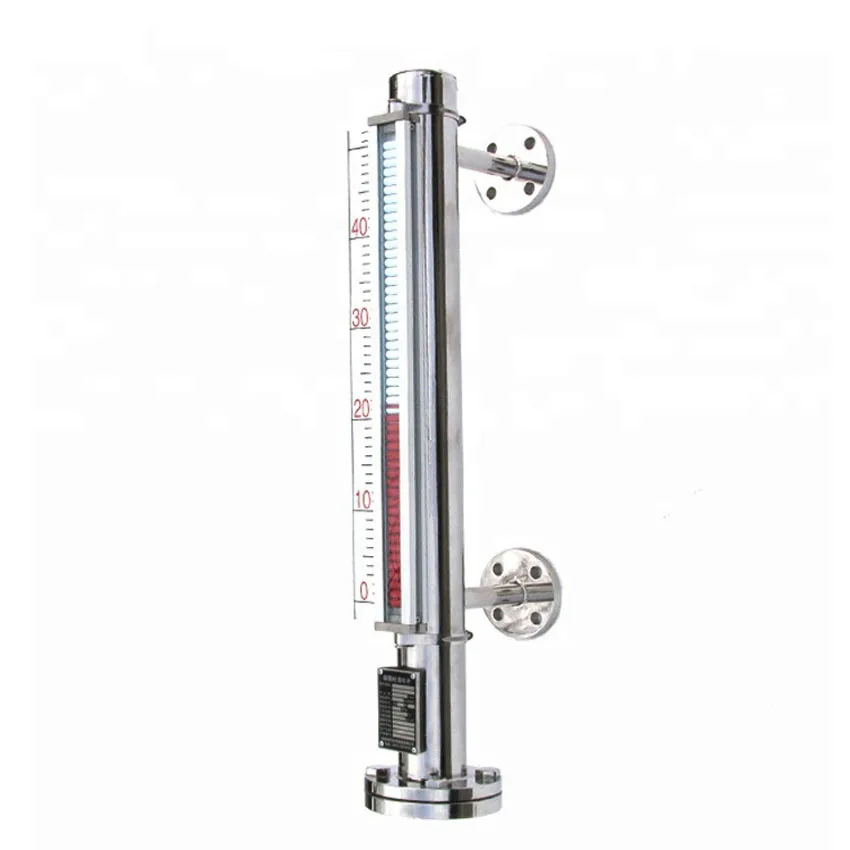

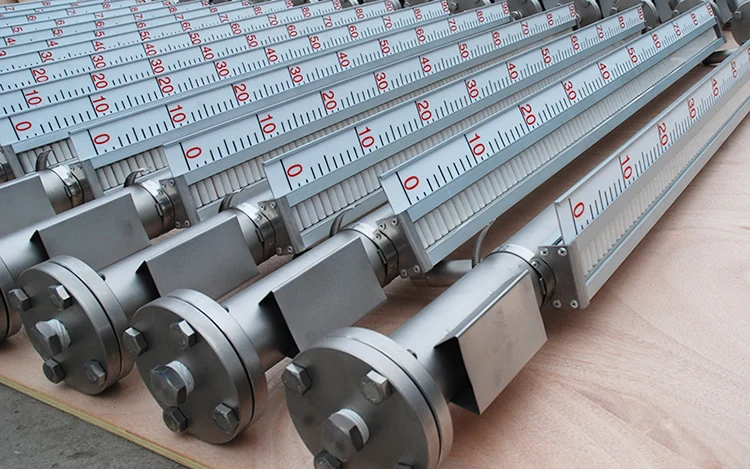

The UHC type magnetic flap liquid level gauge is made up of measuring body,dual-colored display
cylinder, ruler, top&low flange, magnetic ball and transmitter (4-20mA). Based on buoyance
principle, the magnetic ball in the body of the level gauge is up or down with the liquid level
changing and makes dual-colored turning to show the level of medium. Each cylinder is with

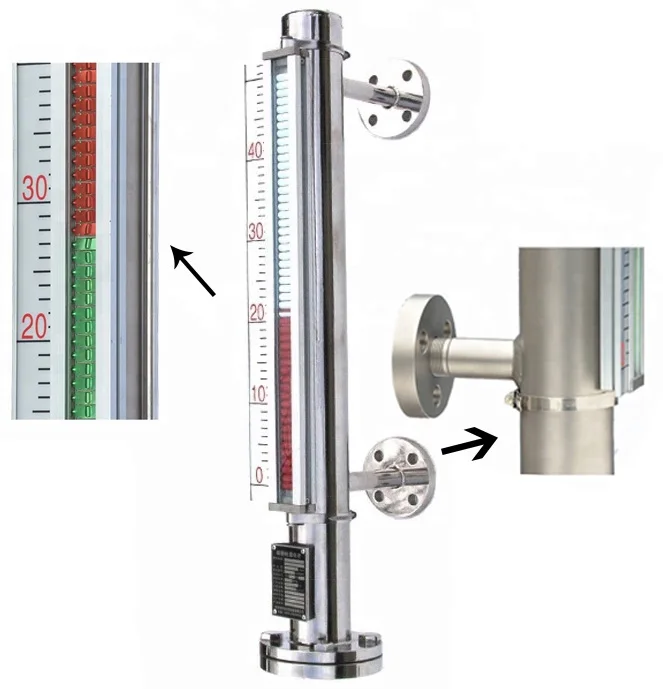

two-color axisymmetric structures. The distance of two cylinders is 10mm. Red side of display
cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid
level, it also could measure the interface of the two kinds of liquid.

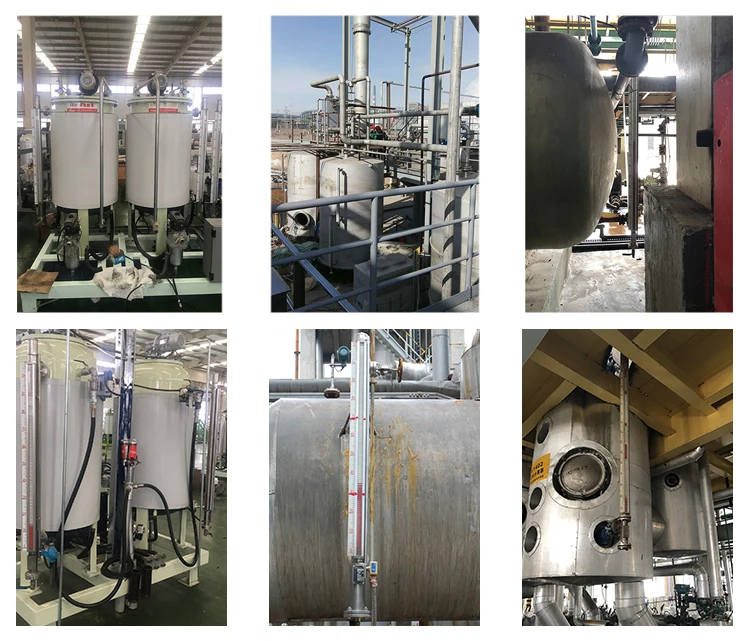

Product Application
Product features
1. Simple structure, good stability and reliability.
2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.
3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.
4. Interface measurement or level measurement of 2 kinds of medium with different density.
5. Two-wire 4~20mADC signal output, 0.8’’ or 0.56” LED digital display.
Product Parameters
(1) Center-center distance:
150~6000mm
(2) Medium density:
More than 0.45g/cm3
(3) Nominal pressure:
PN2.5~PN40, PN40~PN320(x 0.1MPa)
(4) Material:
SS304, 316L, PP, PTFE, or customized
(5)Operating temperature:
-190 ~ +425 °C
(6) Process connection:
DN20~DN80/RF/14,DN80~DN250/RF/14
(7)Indicator types:
A: Al &ABS flap cylinder
B: Al flap plate
C: PVC ABS flap cylinder
D: PP&ABS flap cylinder
E: AL &LED
F: PP&LED
8) Structure of top chamber:
1.Welding cover 2.welding cover with M14*1.5 plug screw 3.flange 4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange 6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve
(9) Structure of bottom chamber:
1.flange cover 2.flange with drain plug screw 3.flange with DN20 welding tube 4.with DN20 flange 5.with needle/ball valve
(10)Protection class:
IP65
(11)Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.
IP65

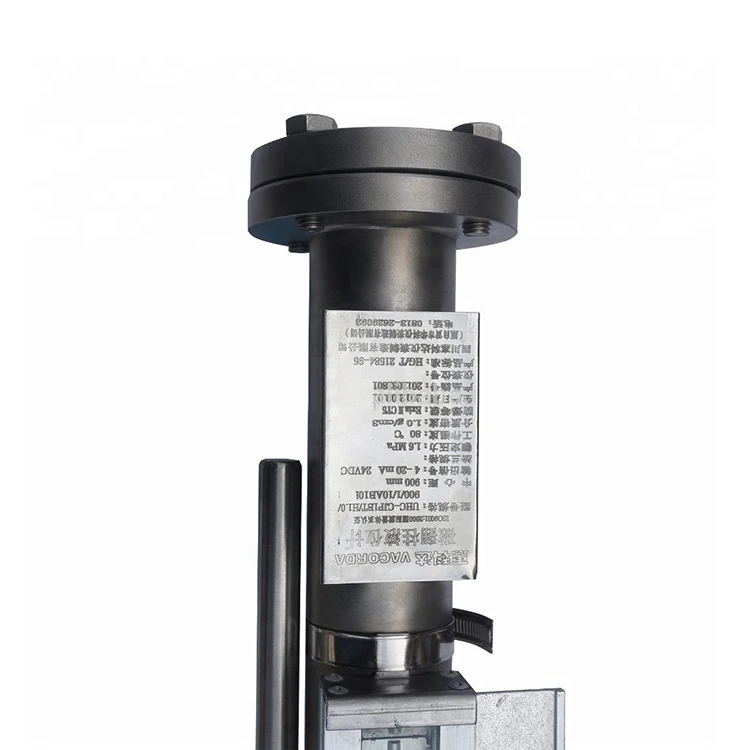

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification.
Exia II CT6Ga,EXd IICT6Gb

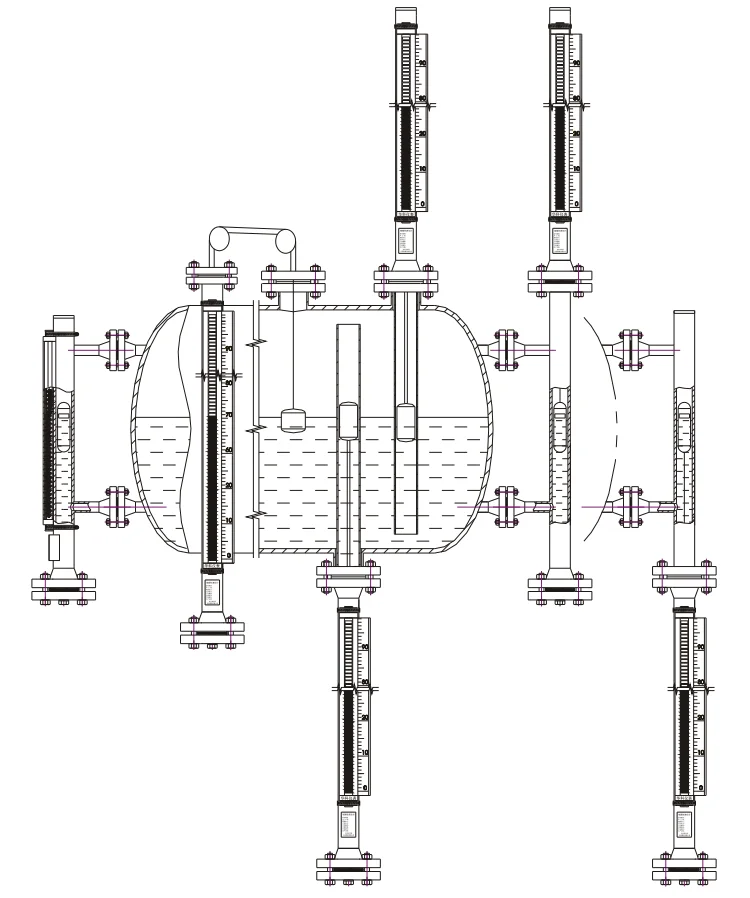

Installation
About us
Yuanda electronics focuses on the research and innovation of sensor technology, focusing on the accurate measurement and perfect control of high temperature melt pressure and temperature. The products have been widely used in chemical fiber textile, rubber and plastic, new materials, nonwovens, water treatment, aerospace, military, petroleum, chemical, power station, automation equipment manufacturing, pharmaceutical, food and other industries. Quality assurance Products are manufactured in strict compliance with ISO and CE directives and in full compliance with RoHS requirements. Based on large production plants and excellent international equipment, Yuanda Electronics is recognized for its inspection, testing and calibration throughout the world and provides experienced OEM services. The sales and after-sales technical service team has won the good reputation and great trust of thousands of customers around the world.

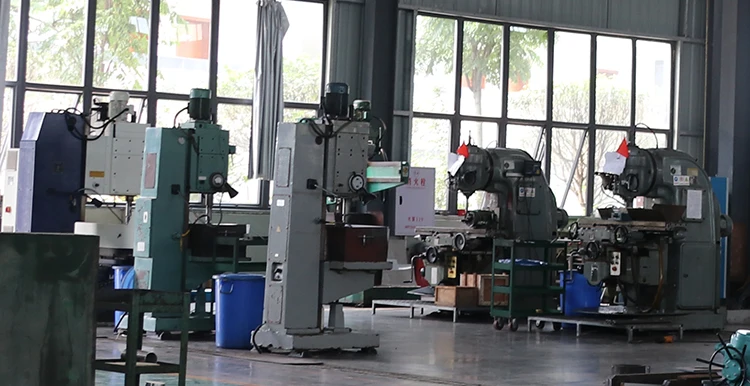

Workshop and Skilled Workers
Equipment
Packaging & Shipping
Why Choose Us:
1. 23 years of instrumentation equipment production experience 2. Product support OEM / ODM, export to more than 100 countries 3. The company area 20,000 square meters, and 150+ orders per month 4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
FAQ
Q: The new magnetic flap liquid level gauge can't show liquid level? A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge? A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence? A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ? A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA? A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: What's specification we need to know before purchasing magnetic flap liquid level gauge? A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
