Brief Introduction Relay protection calibrator is a new generation calibrator developed successfully. The AC/DC voltage and current source in this instrument adopts the latest power supply technology, which provides convenience for field personnel to use the power supply instrument technology for other tests.
Technical Parameter 1.Output Characteristic Alternating-current :0～100A Adjustable（Customizable 200A） 0～20A Adjustable 0～5A Adjustable Alternating voltage :0～250V Adjustable Direct current:0～20A Adjustable Direct voltage :0～250V Adjustable Constant output :DC voltage 24V 48V 110V 220V Millisecond table time：0～99.9999s（Can be changed to s 999.999 per user request)） Resolution ratio：0.1ms Use of power for instruments AC220V±5％，50Hz±5％ 2.Function This instrument can check the following relays or group protection： （1）Measure relay: includes current, voltage type relay, can measure its start value, return value and its coefficient. （2）Time relay: can measure its start value, return value and its action time, time measurement error is not more than 0.2 ms. （3）Intermediate relay: check all kinds of intermediate relays with starting coil and holding coil, can measure starting value, return value, holding value and action time. （4）Reclosing relay: capacitor charging test, charging time, reclosing time, intermediate components can be tested. （5）Differential relay: DC excitation test, braking characteristic test, volt-ampere characteristic test can be carried out. （6）Other unusual relays.
Specification
item
value
Warranty
2 years
Certification
CSA, GS
Customized support
OEM
Place of Origin
China
Brand Name
LANGXUN
country of origin
Hebei province, China
product name

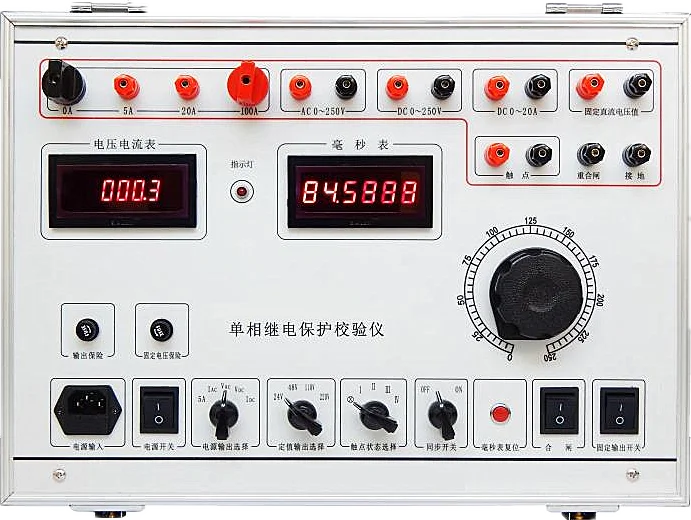

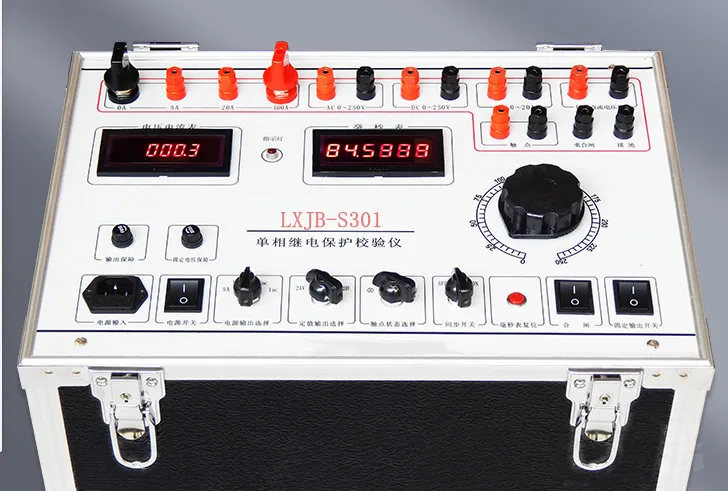

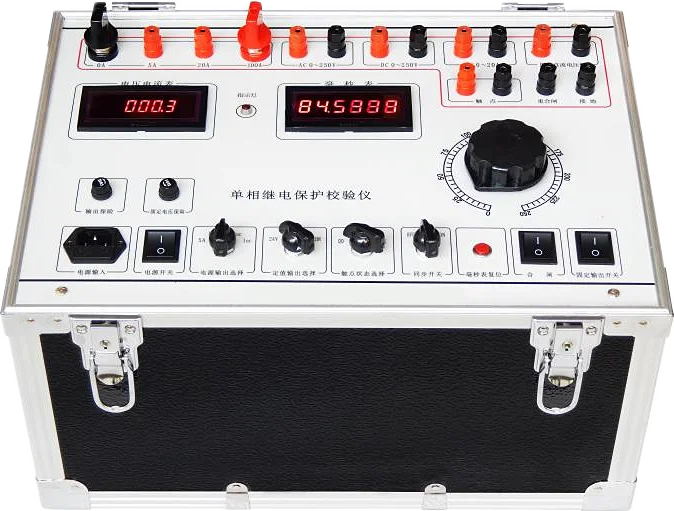

Single phase relay protection tester
Alternating voltage
0~250V Adjustable
Direct current
0~20A Adjustable
Direct voltage
0~250V Adjustable
Constant output DC voltage
24V 48V 110V 220V
Millisecond table time
0~99.9999s(Can be changed to s 999.999 per user request))
Resolution ratio
0.1ms
Use of power for instruments
AC220V±5%,50Hz±5%
