LILLIPUT 7 Inch Audio 12G SDI Broadcast Signal Generator with Closed Caption
- Category: Signal Generators >>>
- Supplier: Zhangzhou,Lilliput,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description

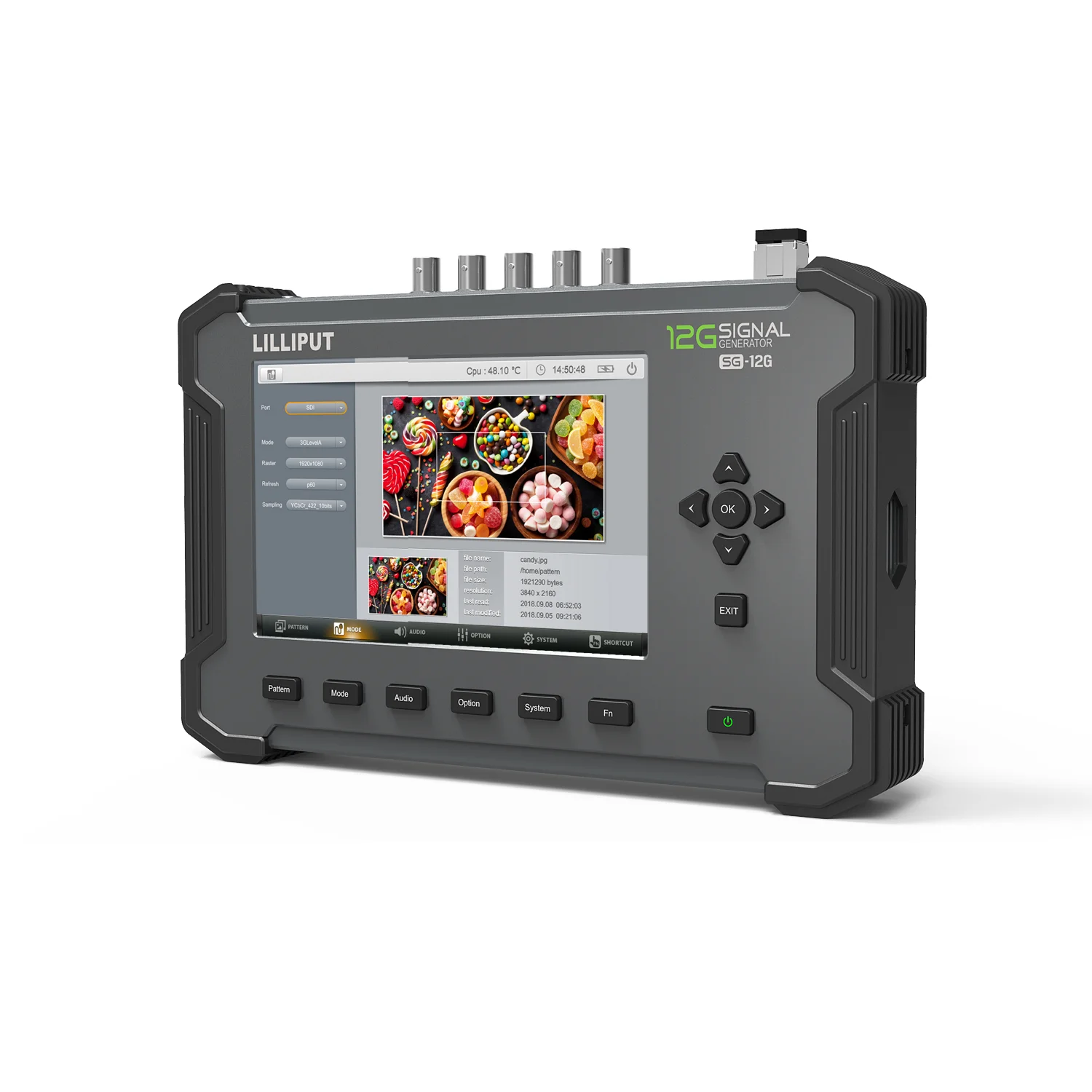

LILLIPUT 7 Inch Audio 12G SDI Broadcast Signal Generator with Closed Caption

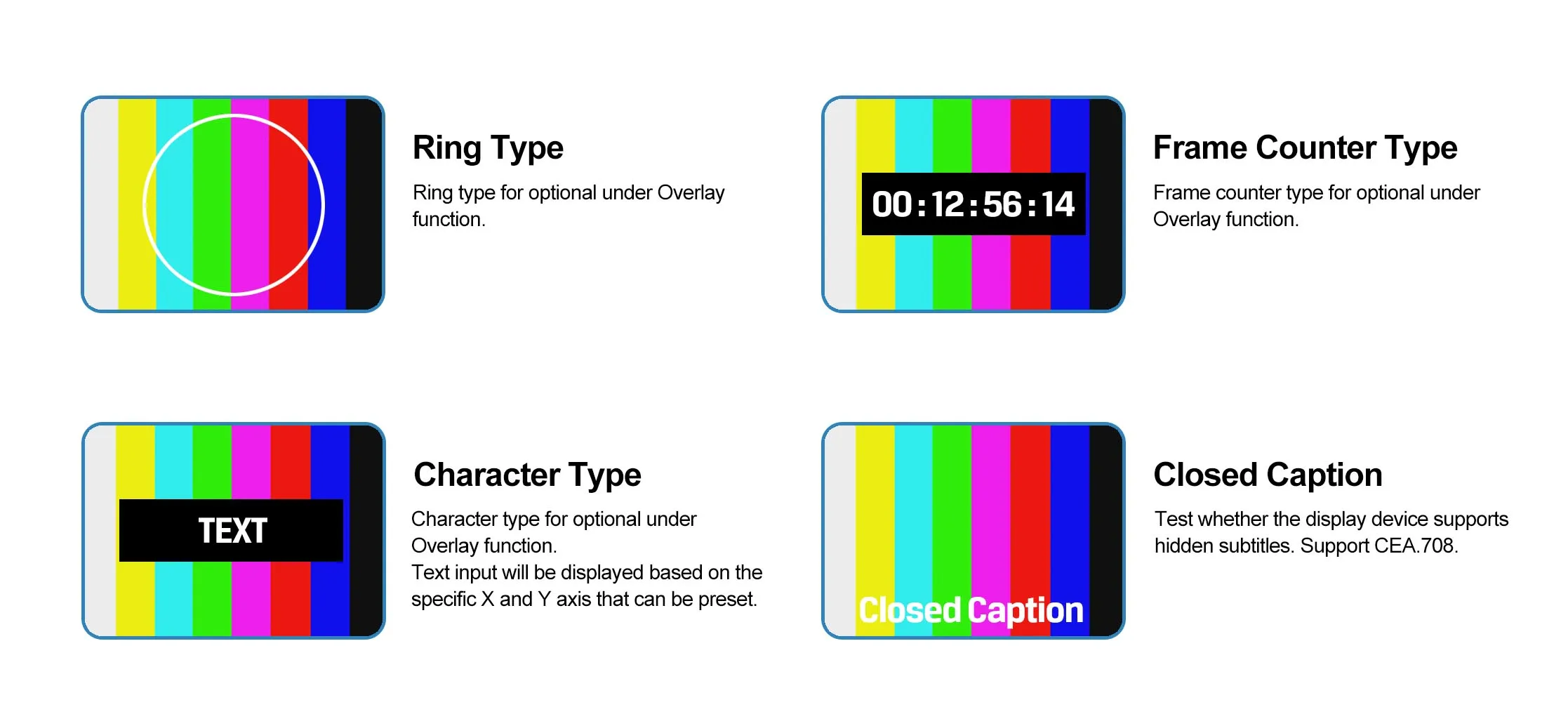

Multi-format advanced SDI pattern generator with Metal housing , Silicon Rubber and built-in battery. It support 12G-SDI and 12G-SFP output.Also have pattren measurement, signal compatibility, audio monitoring, overlay, timecode, ref in functions.
Parameters
Display | ||
Size | 7” | |
Resolution | 1280 x 800 | |
Brightness | 400cd/m² | |
Aspect ratio | 16:10 | |
Contrast | 800:1 | |
Viewing Angle | 178°/178°(H/V) | |

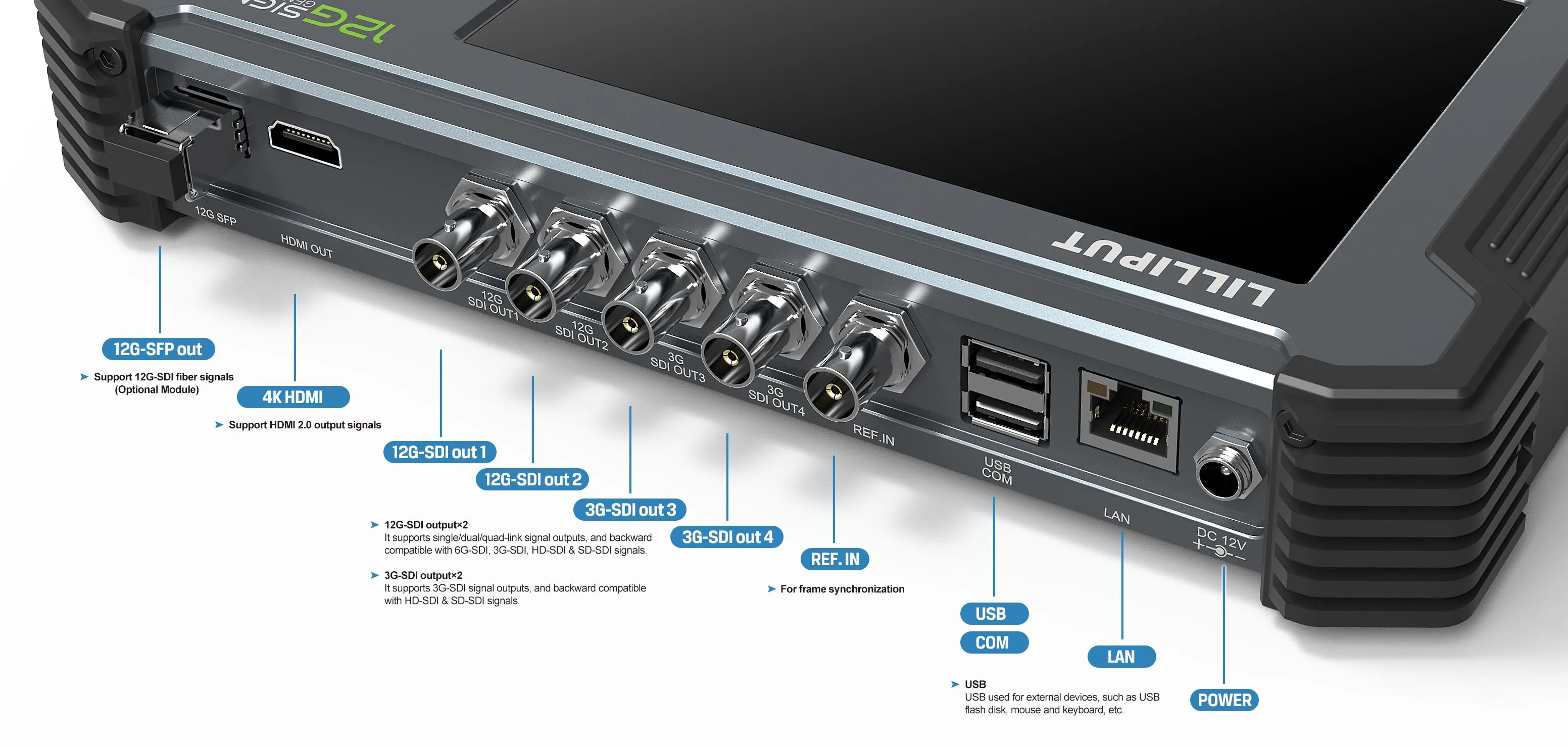

Video Output | ||
SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) | |
HDMI | 1 | |
FIBER | 1(optional module) | |
Video Input | ||
REF | 1 | |
USB | 2 | |
Supported Out Formats | ||
SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 | |
SFP | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 | |
Remote Control | ||
Com | 1 | |
LAN | 1 | |
Power | ||
Operating power | ≤27W | |
DC In | DC 10-15V | |
Built-in Battery | 5000mAh | |
Environment | ||
Operating Temperature | -10℃~60℃ | |
Storage Temperature | -30℃~70℃ | |
Other | ||
Dimension(LWD) | 264×169×42mm | |
Weight | 3kg | |
- Certifications -
Our Advantages
LILLIPUT, established in 1993, specializes in LCD Monitor which includes On-camera Monitor, 4K Director Monitor, Touch Monitor and USB Monitor, as well as Rugged Tablet PC and Industrial PC.
We are able to provide ODM / OEM service to customize devices according to your requirements. Excellent After-sale & Technical Service.Besides products, we can provide technical support and after-sale service for you.
