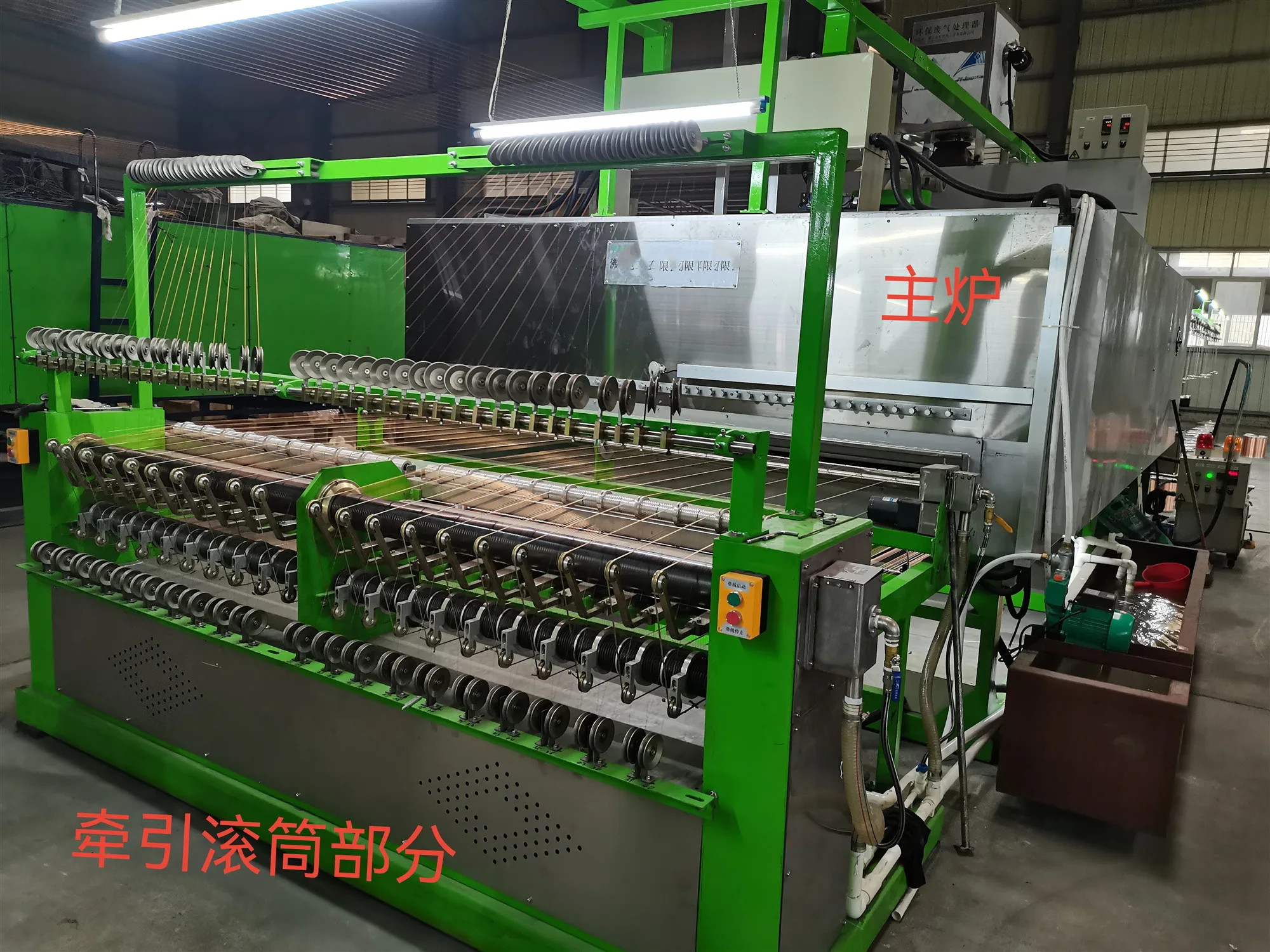

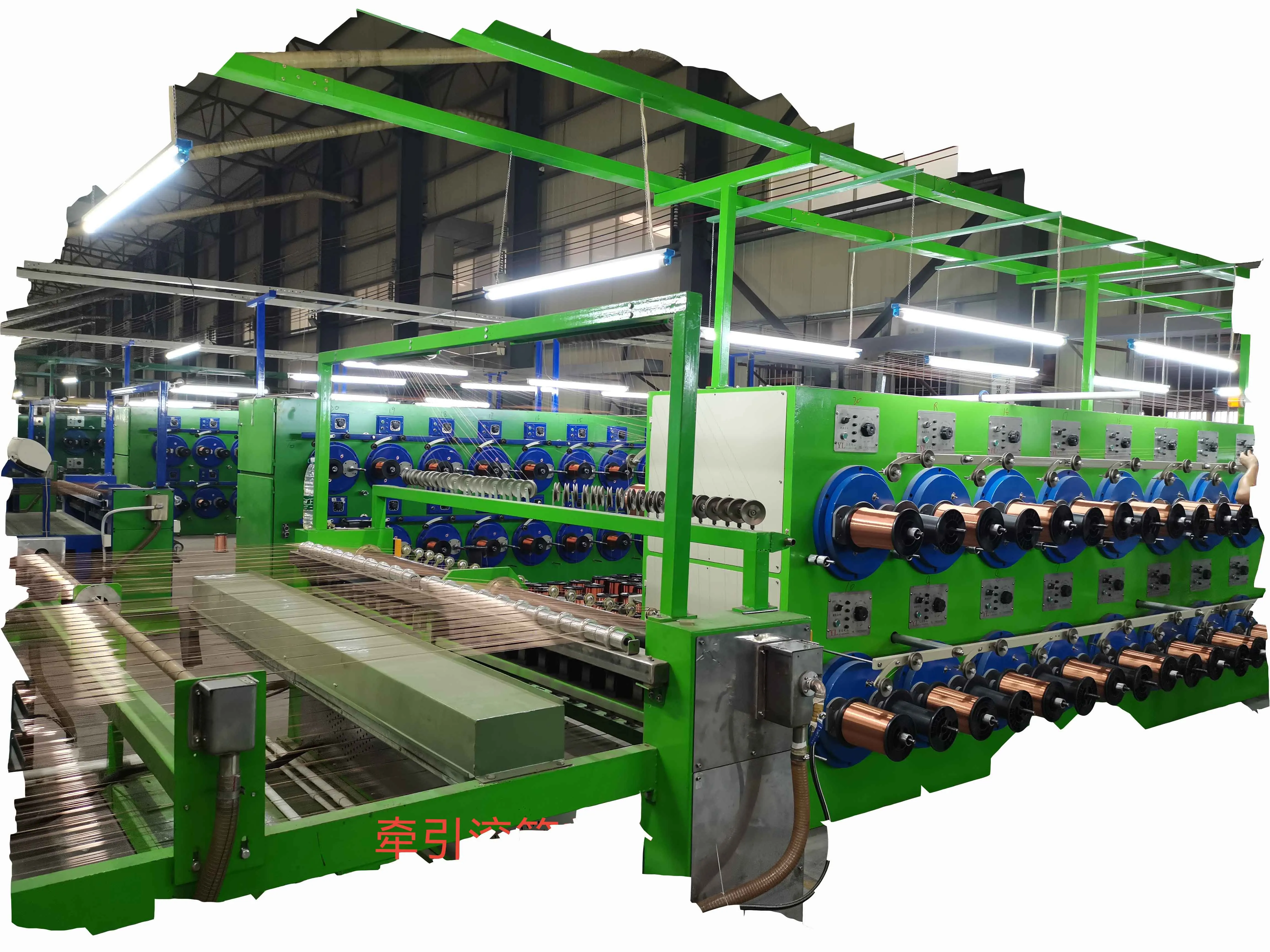

Daily 600~700 KW.H Vertical Type Copper /Aluminum Wire Enameling / Cable Coating Machine Electric Cable Making Machine
- Category: >>>
- Supplier: Shanghai Zeno Industry Co. Ltd.
Share on (1600318620170):
Product Overview
Description
Daily 600~700 KW.H Vertical Type Copper /Aluminum Wire Enameling / Cable Coating Machine Electric Cable Making Machine
Product Description
technical specification of equipment:
1-Wire range
Φ0.04-0.12,Φ0.04-0.12,Φ0.08-0.20,Φ0.10-0.30,Φ0.15-0.50,
Φ0.20-0.60Φ0.30-0.80,Φ0.50-1.30,Φ0.80-2.50,Φ1.00-3.00,Φ2.50-8.00,
2-Mechanical speed310m/min (max)
3-Wire pitch6-12mm
4-Enamel application method Felt,Die
5-No. of passes per line 6-20
6-No. of line 16-60
7-Take up methodSemi-automatic spool changeover
8-Load spool PT2-PT200
9-Installed electric power110KW-550KW
10-Energy consumption 24Hrs 400-800KW/24Hrs
Advantage:
1- High output, at least 60% more;
2- Low electricity cost, 50%-70% of normal machine
3- Stable temperature distribution for stable quality wire
Main Applications :
Enameled wire production
1-Wire range
Φ0.04-0.12,Φ0.04-0.12,Φ0.08-0.20,Φ0.10-0.30,Φ0.15-0.50,
Φ0.20-0.60Φ0.30-0.80,Φ0.50-1.30,Φ0.80-2.50,Φ1.00-3.00,Φ2.50-8.00,
2-Mechanical speed310m/min (max)
3-Wire pitch6-12mm

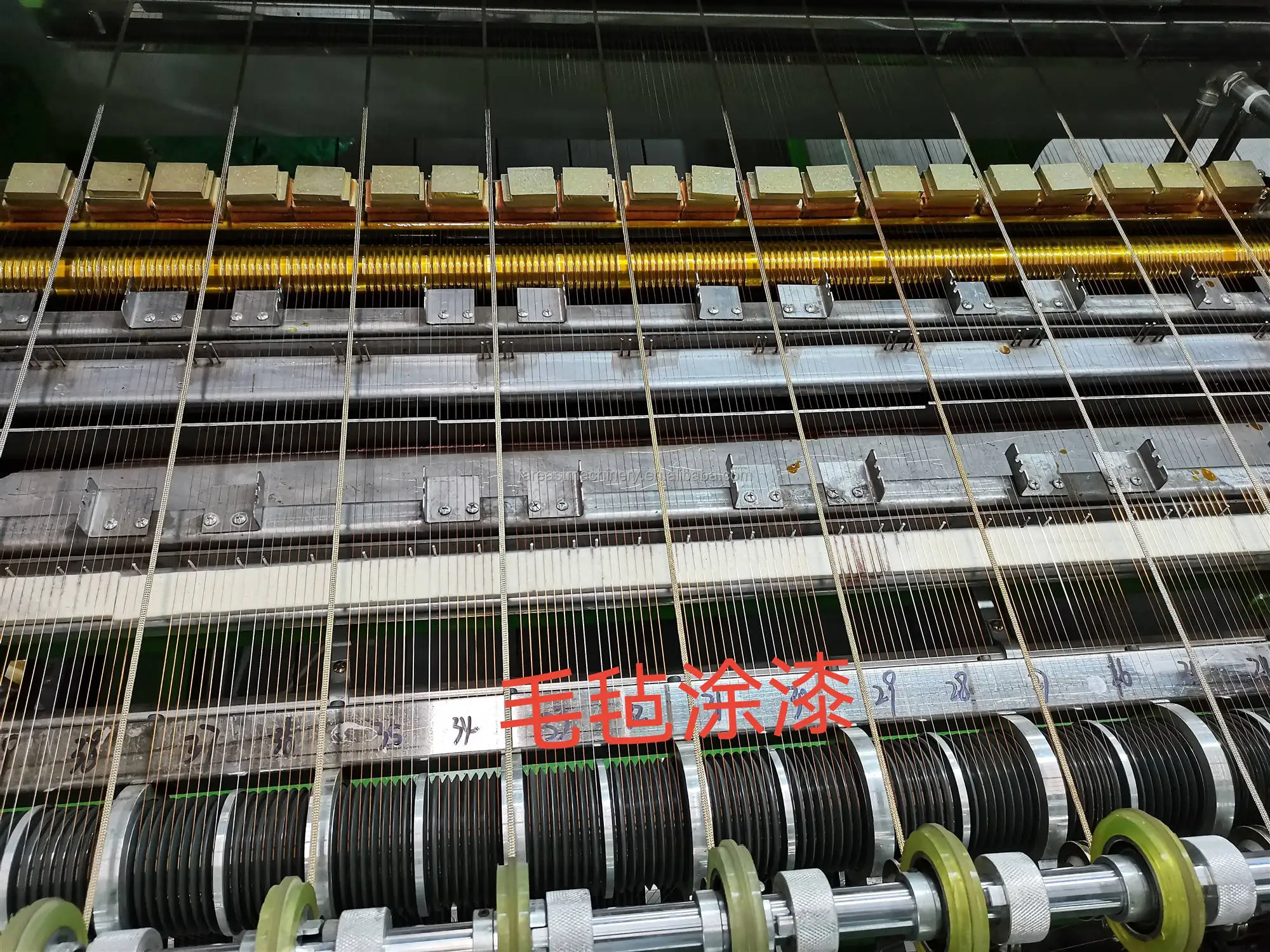

4-Enamel application method Felt,Die
5-No. of passes per line 6-20
6-No. of line 16-60

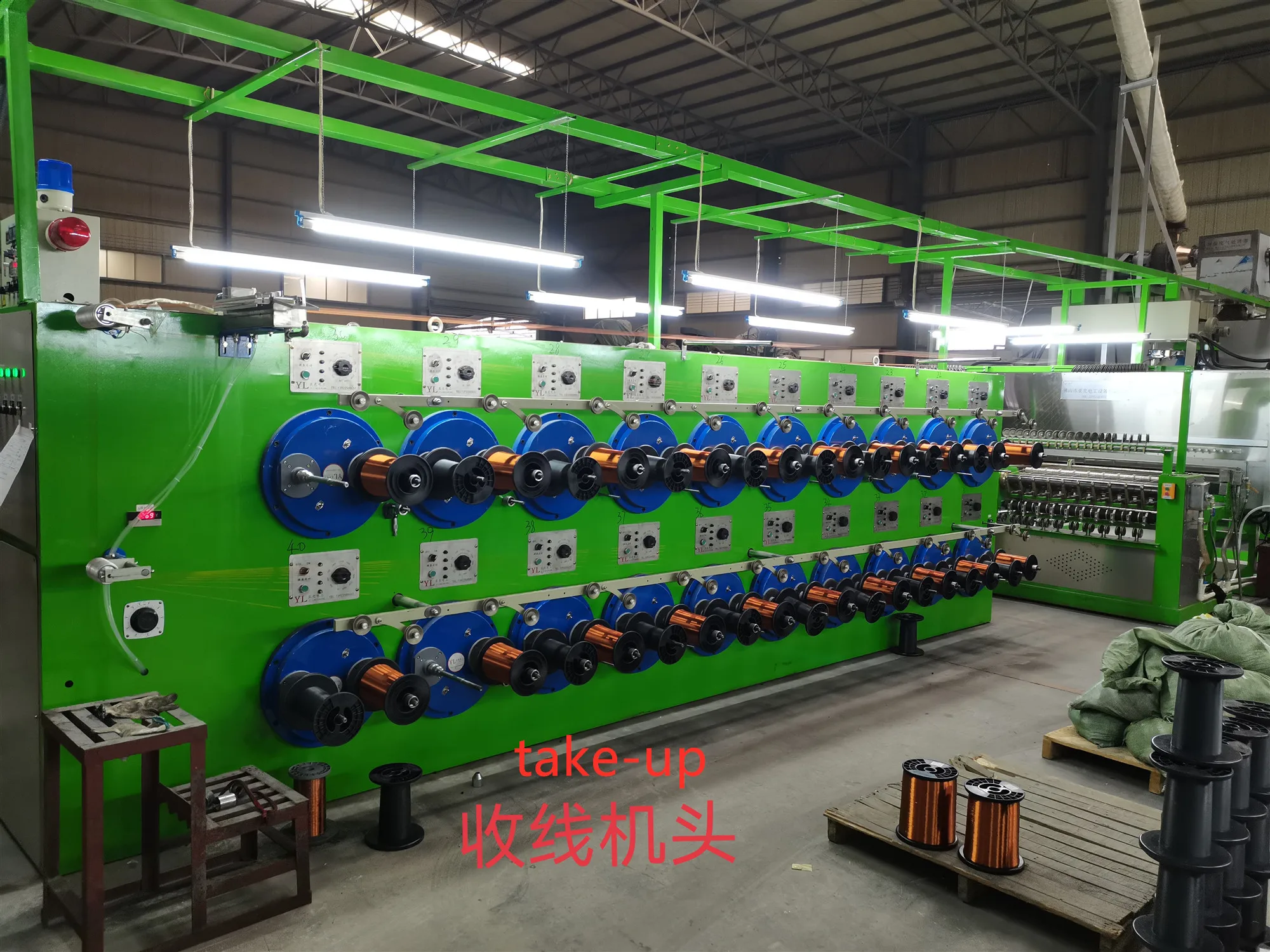

7-Take up methodSemi-automatic spool changeover
8-Load spool PT2-PT200
9-Installed electric power110KW-550KW
10-Energy consumption 24Hrs 400-800KW/24Hrs
Advantage:
1- High output, at least 60% more;
2- Low electricity cost, 50%-70% of normal machine
3- Stable temperature distribution for stable quality wire
Main Applications :
Enameled wire production
Main Discription of Machine Characteristics
Overall Description :
Soka enameled machines have the characteristics of attractive appearance,high-quality materials,high-precision machining,good
stability and fine consistency. The electrical control system of enameling machine is highly integrated.Each parts which connects
this production line can link host including temperature control,synchronous control,constant tension control,winding-up tracking
control.All the associated parameters of control and monitoring can realize visualization. Remote monitoring can be come true
through network and high adaptability can be brought out through man-machine conversation.
Overall Description :
Soka enameled machines have the characteristics of attractive appearance,high-quality materials,high-precision machining,good
stability and fine consistency. The electrical control system of enameling machine is highly integrated.Each parts which connects
this production line can link host including temperature control,synchronous control,constant tension control,winding-up tracking
control.All the associated parameters of control and monitoring can realize visualization. Remote monitoring can be come true
through network and high adaptability can be brought out through man-machine conversation.
Capstan and Pulley :
(1) Material :High strength aluminum alloy (light weight,heat dissipation)
(2) Process : Spray ceramics onto the groove surface and polish finely to mirror to keep dynamic balance and prevent wire
stretching or jumping.
(3) Pulley :has built-in NSK bearing ,maintains the constant temperature under high-speed conditions and works well and wears
well.
(1) Material :High strength aluminum alloy (light weight,heat dissipation)
(2) Process : Spray ceramics onto the groove surface and polish finely to mirror to keep dynamic balance and prevent wire
stretching or jumping.
(3) Pulley :has built-in NSK bearing ,maintains the constant temperature under high-speed conditions and works well and wears
well.
Specification
Capacity for aluminum wire

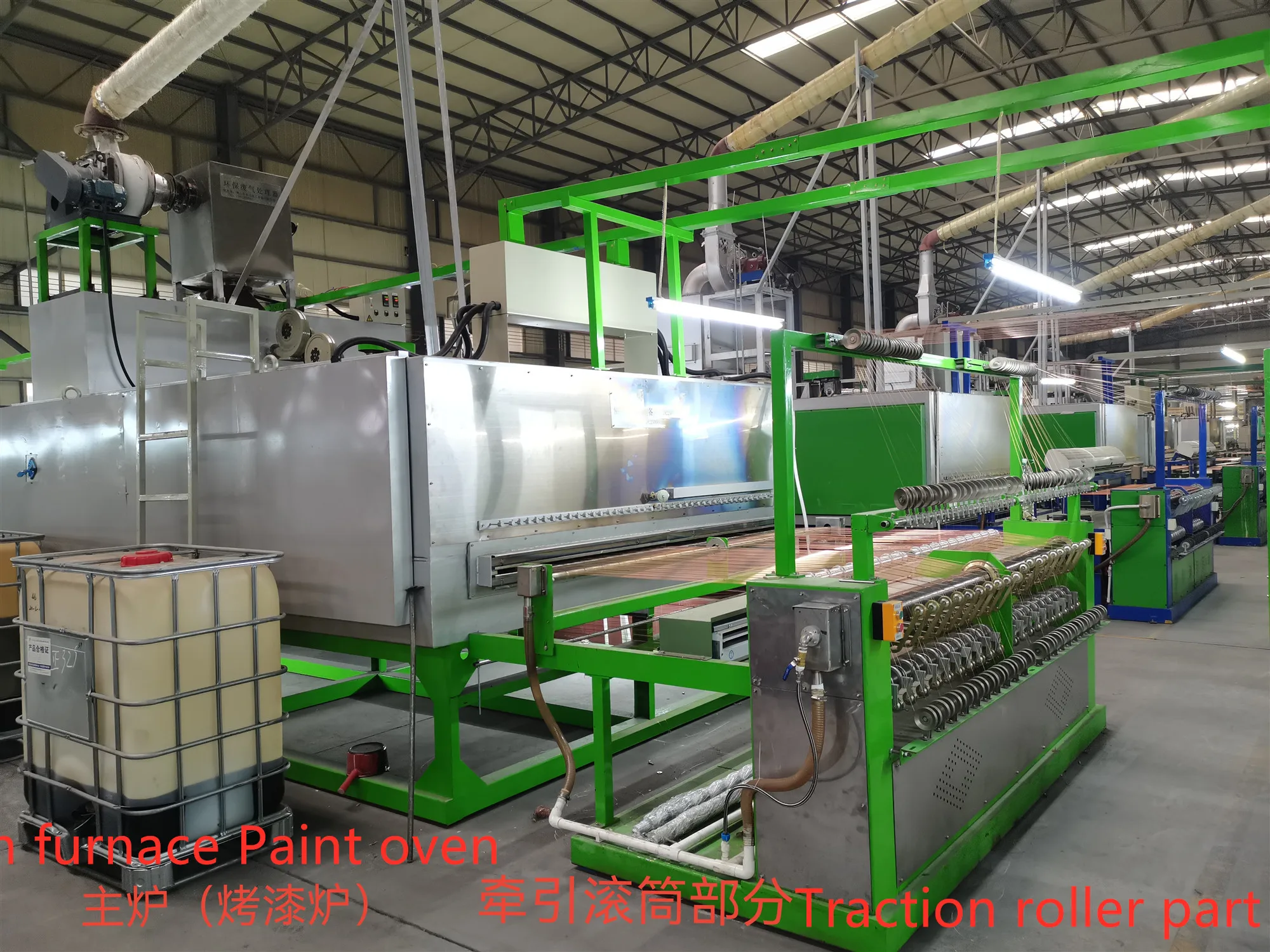

烘炉长度 Oven length | 4500mm | 类 别 Category | QA-1 2UEW | QZ-1 2PEW | |||||||||||
软化炉长 Softening furnace length | 7500mm | 规格 specifications | 0.20 | 0.45 | 0.60 | 0.20 | 0.45 | 0.60 | |||||||
收线方式 Rewinding mode | 单轴收线Uniaxial line receiving | 车速m/min | 175 | 73 | 47 | 150 | 62 | 42 | |||||||
使用线盘 Using wire disk | PT-(10—25) | DV值 | 28-35 | 25-30 | |||||||||||
涂油方法 Oil coating method | 毛毡 felt | 产量kg/日 Yield kg/ day | 1680 | 3560 | 4070 | 1440 | 3020 | 3640 | |||||||
装机功率 installed power | 约120KW | 能耗约 度/吨 Energy consumption ratio / ton | 270 | 130 | 110 | 315 | 150 | 125 | |||||||
24H日能耗24H daily energy consumption | 400-500kw·h | ||||||||||||||
Details Images

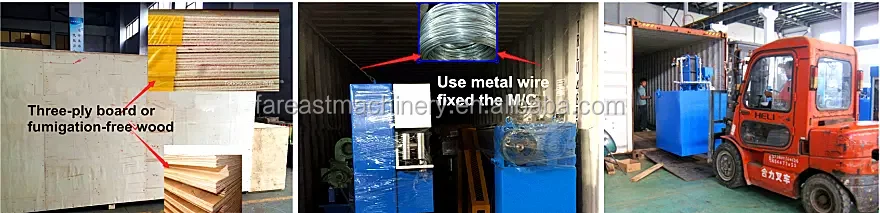

Packing & Delivery
Standard export packing or as customers' requirement
Company Profile
Why you should choose us
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of credit,equality and mutual benefit.
Our company has two main products: wire drawing machine, wire insualtion production line, wire stranding machine and coppe rod related products. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sale. We are headquartered in Yangpu Area, Shanghai.
Now, our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, to develop the international markets more successfully.
Nowadays, our company keeps good cooperative relationship with many domestic and overseas industry associations. Our market covers American and European countries, the Middle East, Africa, Russia, Ukraine, Southeast Asia and so on. We have built some large projects abroad, even Turnkey projects.
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of credit,equality and mutual benefit.
Our company has two main products: wire drawing machine, wire insualtion production line, wire stranding machine and coppe rod related products. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sale. We are headquartered in Yangpu Area, Shanghai.
Now, our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, to develop the international markets more successfully.
Nowadays, our company keeps good cooperative relationship with many domestic and overseas industry associations. Our market covers American and European countries, the Middle East, Africa, Russia, Ukraine, Southeast Asia and so on. We have built some large projects abroad, even Turnkey projects.
