500L 2 Vessel Brewhouse Turnkey Brewery System 5BBL
US $3000-$135000
Commercial 1500L beer brewery Industrial turnkey Beer Making Machine Stainless Steel 304 500l Beer Brewing Equipment for Sale
- Category: Other Beverage & Wine Machines >>>
- Supplier: Jinan,Rainbow,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Commercial 1500L beer brewery Industrial turnkey Beer Making Machine Stainless Steel 304 1500l Beer Brewing Equipment for Sale
Beer Brewery System | 1500L | ||||
Items | Equipments | Specifications | Quantity | ||
Milling System | Malt miller | 300kg/h | 1 | ||
Brewhouse System | Mash tun & Lautering tun | 1500L | 1 | ||
Brew kettle & whirlpool | 1500L | 1 | |||
Hot liquid tank | 3000L | 1 | |||
Plate heat exchanger | 10m2 | 1 | |||
Pump | 5m³/h | 2 | |||
Fermentation System | Fermentation tank | 1500L | 6-18 | ||
Yeast adding tank | 30L | 1 | |||
Wort oxygenator | 1 | ||||
Cooling System | Glycol water tank | 3000L | 1 | ||
Refrigerator/Cooling Compressor | 5hp | 2 | |||
Pump | 5 m³/h | 1 | |||
CIP washing System | Alkali tank | 100L | 1 | ||
Sterilization tank | 100L | 1 | |||
Pump | 5m³/h | 1 | |||
Controlling System | Control box Siemens PLC System | 1 | |||
Spare parts | Including pipes, valves, connections, gauges…. | ||||

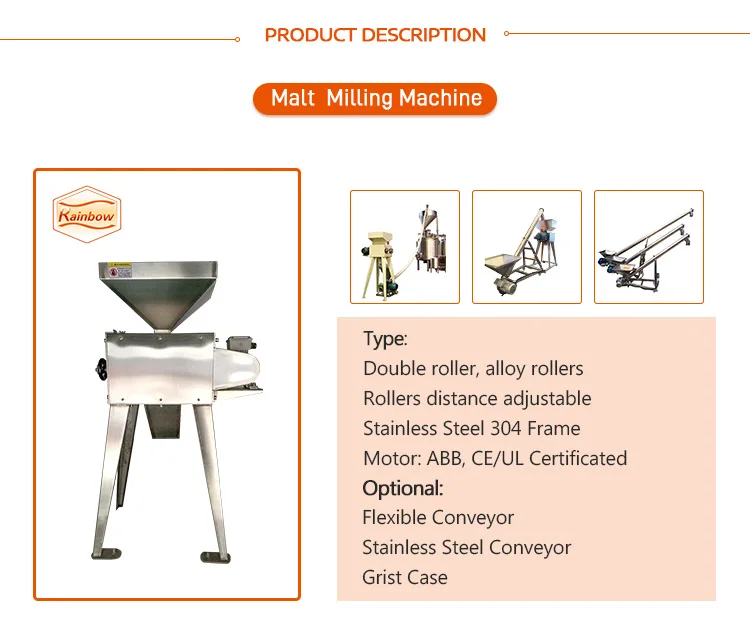

Malt Miller-
Type: double roller, alloy rollers
Rollers distance adjustable
Stainless Steel Frame
Motor: CE/UL Listed
Optional:
Conveyor
Type: double roller, alloy rollers
Rollers distance adjustable
Stainless Steel Frame
Motor: CE/UL Listed
Optional:
Conveyor

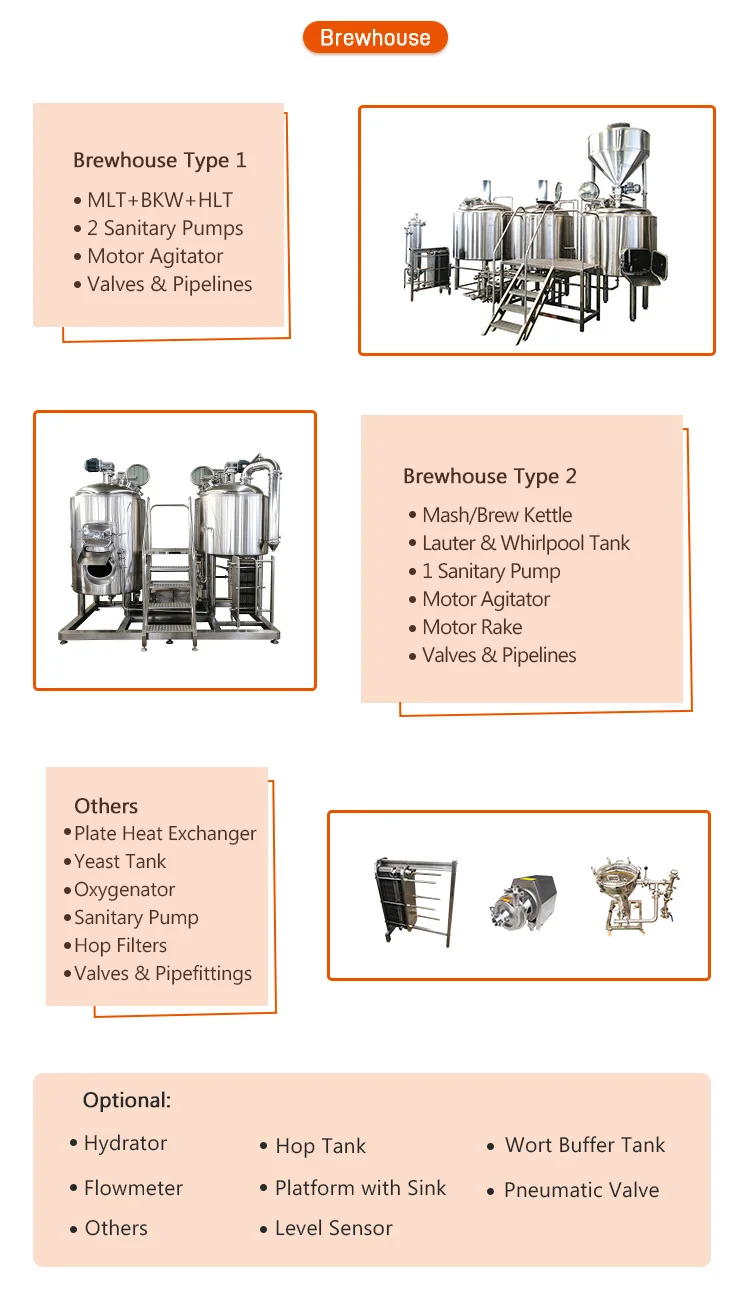

Brewhouse
Vessels:
Regular: MLT+BKW+HLT.
Mash/Brew Kettle +Lauter & Whirlpool Tank.
Others: Mash, Lauter, Brew, Whirlpool, HLT, CLT.
Heating Method:
Steam Heating/Electric Heating/ Direct fire/Baine Marie/RIMS/HERMS
Specifications:
With 30% Total Volume
Dome top and cone bottom; bottom cone 160 degree
Interior Shell: SUS304, T 3.0mm
Exterior Shell: SUS304, T 2.0mm
Insulation: PU/Rockwool T 100mm
100% TIG welding with pure argon gas shield
Interior Finish: 0.4~0.6μm/ Mirror Polishing
Top mounted manhole
360° CIP spraying ball
Thermowell with high accuracy temperature sensor: PT100
MLT with agitator with motor reducer, CE/UL Listed
MLT with side manhole for spent grains
MLT with easy-clean and detachable sparging arm
MLT with easy-clean and detachable false bottom
BKW with tangential inlet for whirlpool function
Plate Heat Exchanger (China Top Brand)
2 stages for Glycol water and City water
SUS 304 Plates and frame
Wort and HLT Pumps:-CE/UL Listed
Oxygenator
Brewhouse pipelines and Valves
SUS 304 Working Platform
Optional:
-Grist Case
-Wort Buffer Tank
-Platform with Sink
-Flow meter
-Pneumatic Valves
-Others
Vessels:
Regular: MLT+BKW+HLT.
Mash/Brew Kettle +Lauter & Whirlpool Tank.
Others: Mash, Lauter, Brew, Whirlpool, HLT, CLT.
Heating Method:
Steam Heating/Electric Heating/ Direct fire/Baine Marie/RIMS/HERMS
Specifications:
With 30% Total Volume
Dome top and cone bottom; bottom cone 160 degree
Interior Shell: SUS304, T 3.0mm
Exterior Shell: SUS304, T 2.0mm
Insulation: PU/Rockwool T 100mm
100% TIG welding with pure argon gas shield
Interior Finish: 0.4~0.6μm/ Mirror Polishing
Top mounted manhole
360° CIP spraying ball
Thermowell with high accuracy temperature sensor: PT100
MLT with agitator with motor reducer, CE/UL Listed
MLT with side manhole for spent grains
MLT with easy-clean and detachable sparging arm
MLT with easy-clean and detachable false bottom
BKW with tangential inlet for whirlpool function
Plate Heat Exchanger (China Top Brand)
2 stages for Glycol water and City water
SUS 304 Plates and frame
Wort and HLT Pumps:-CE/UL Listed
Oxygenator
Brewhouse pipelines and Valves
SUS 304 Working Platform
Optional:
-Grist Case
-Wort Buffer Tank
-Platform with Sink
-Flow meter
-Pneumatic Valves
-Others

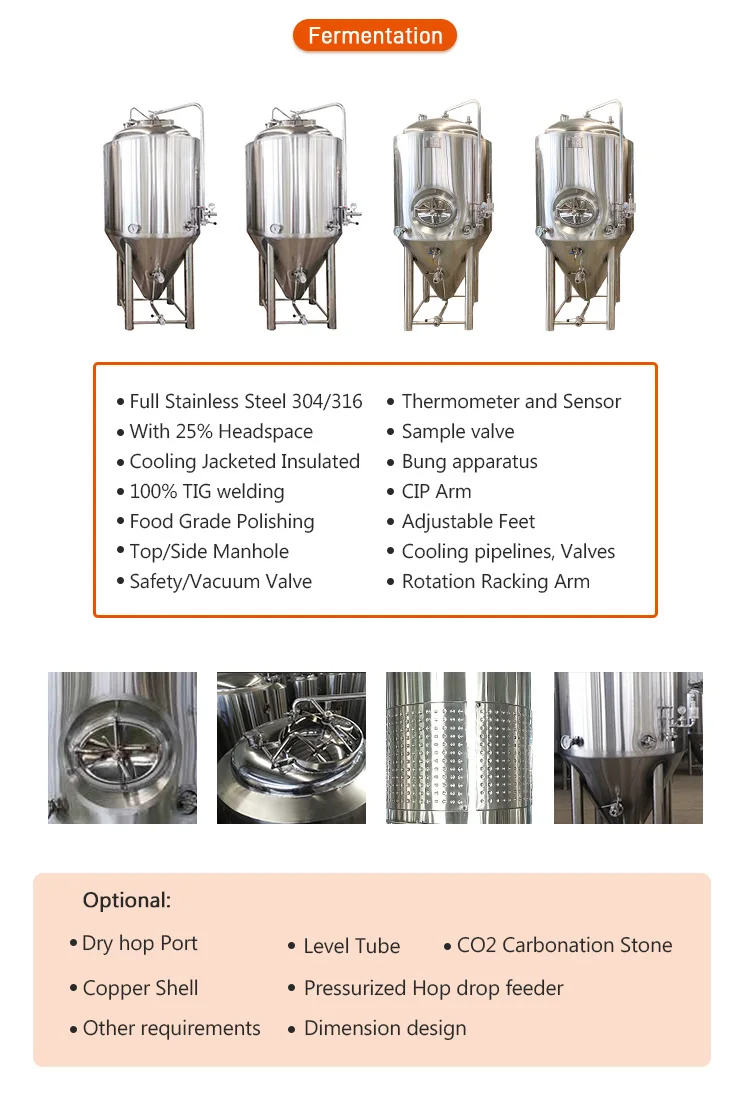

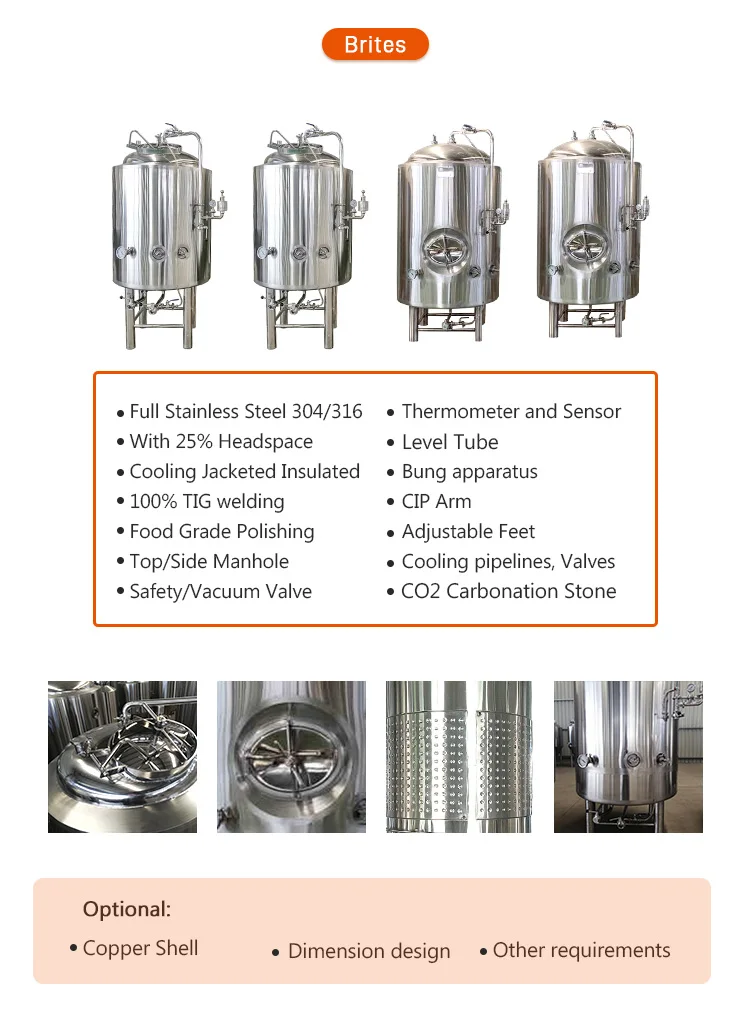

Beer Fermenting Vessel/Brites
Total capacity: with 25% headspace
Dome top and cone bottom, bottom cone, (60 degree for BFV)
Interior Shell: SUS304, T 3.0mm;
Exterior Shell: SUS304, T 2.0mm;
Insulation: PU, T100mm
100% TIG welding with pure argon gas shield
Interior Finish: to 0.4~0.6μm/ Mirror polishing
Cooling Jacket: both on cone and cylinder parts, T 1.5mm
Top mounted manhole/Side manhole
Relief/vacuum valve
Dry hop port
Thermometer
Sample valve
Bung apparatus with pressure gauge
Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.
Rotating racking arm on cone with butterfly valve
Drainage with butterfly valve
CIP arm with 360° spraying ball
Thermowell with high accuracy temperature sensor: PT100
Optional:
Level Tube
CO2 Carbonation Stone
Copper Shell
Pressurized Hop drop feeder
Other requirements
Dimension design
Total capacity: with 25% headspace
Dome top and cone bottom, bottom cone, (60 degree for BFV)
Interior Shell: SUS304, T 3.0mm;
Exterior Shell: SUS304, T 2.0mm;
Insulation: PU, T100mm
100% TIG welding with pure argon gas shield
Interior Finish: to 0.4~0.6μm/ Mirror polishing
Cooling Jacket: both on cone and cylinder parts, T 1.5mm
Top mounted manhole/Side manhole
Relief/vacuum valve
Dry hop port
Thermometer
Sample valve
Bung apparatus with pressure gauge
Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.
Rotating racking arm on cone with butterfly valve
Drainage with butterfly valve
CIP arm with 360° spraying ball
Thermowell with high accuracy temperature sensor: PT100
Optional:
Level Tube
CO2 Carbonation Stone
Copper Shell
Pressurized Hop drop feeder
Other requirements
Dimension design

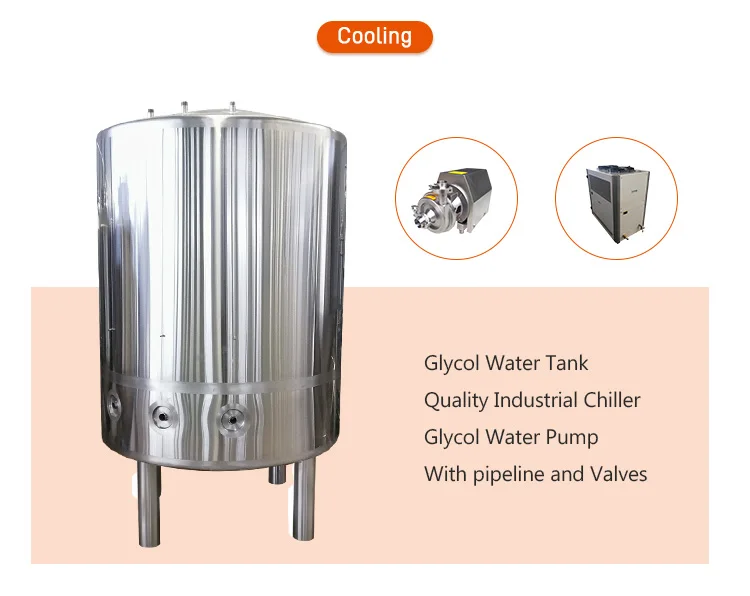

Cooling System
Glycol water tank
Dome top and cone bottom, bottom cone, 160 degree
Interior Shell: SUS304, T3.0mm;
Exterior Shell: SUS304, T 2.0mm;
Insulation: PU, T 100mm
100% TIG welding with pure argon gas shield
Thermowell with high accuracy temperature sensor: PT100
Glycol Chiller (China Top Brand)
Condenser type: Efficient inner fin coil type
Noise level:＜61db
Glycol Water Pump: CE/UL Listed
Glycol water tank
Dome top and cone bottom, bottom cone, 160 degree
Interior Shell: SUS304, T3.0mm;
Exterior Shell: SUS304, T 2.0mm;
Insulation: PU, T 100mm
100% TIG welding with pure argon gas shield
Thermowell with high accuracy temperature sensor: PT100
Glycol Chiller (China Top Brand)
Condenser type: Efficient inner fin coil type
Noise level:＜61db
Glycol Water Pump: CE/UL Listed

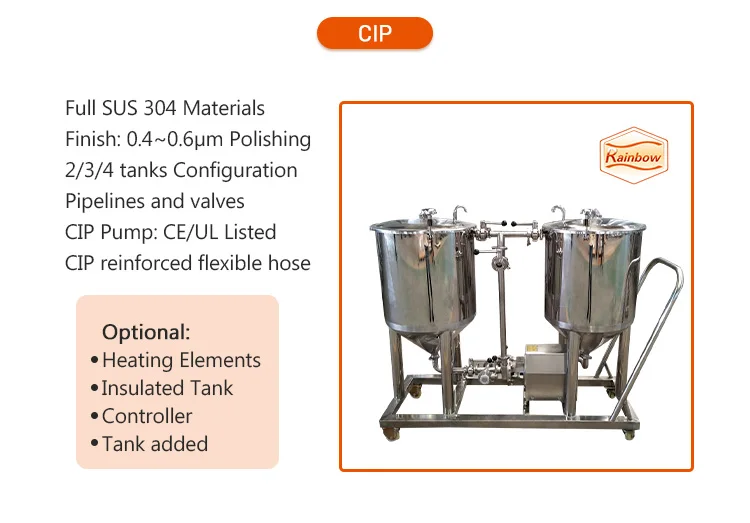

CIP Cart
Alkali tank
Sterilization tank
Shell: SUS304; T 2mm
Interior Finish: 0.4~0.6μm/Mirror Polishing
Pipelines and valves
CIP Pump: CE/UL Listed
CIP reinforced hose
Optional
Heating Elements
Controller
Tank added
Alkali tank
Sterilization tank
Shell: SUS304; T 2mm
Interior Finish: 0.4~0.6μm/Mirror Polishing
Pipelines and valves
CIP Pump: CE/UL Listed
CIP reinforced hose
Optional
Heating Elements
Controller
Tank added

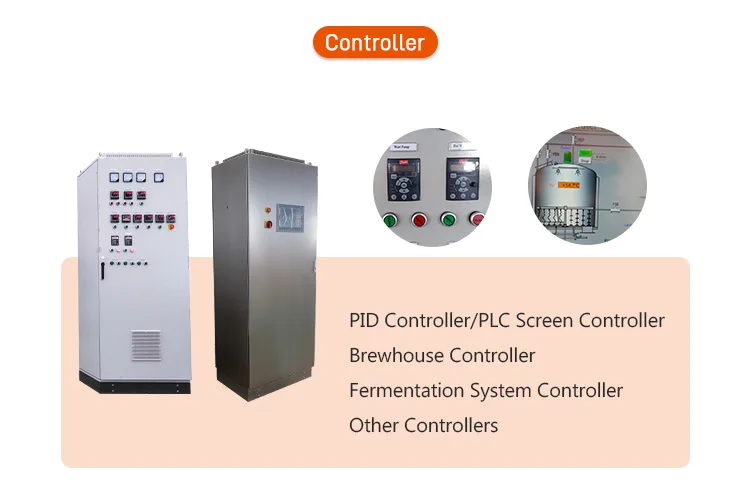

Control System
PID Control / PLC Control
Mashing temperature setting
Boiling temperature setting
Lautering temperature
pumps speed controlling by VFD, DANFOSS
Mash agitator speed controlling by VFD, DANFOSS
HLT pump controlling
Fermentation temperature setting
Cooling system Controlling
PID Control / PLC Control
Mashing temperature setting
Boiling temperature setting
Lautering temperature
pumps speed controlling by VFD, DANFOSS
Mash agitator speed controlling by VFD, DANFOSS
HLT pump controlling
Fermentation temperature setting
Cooling system Controlling
Other Auxiliary Equipment
Water treatment RO System
Steam boiler: Electric/ Gas/oil
Hop filter tank/Hop tank
Kegs
Beer keg washing machine
Beer keg filling machine
Beer bottle filling and capping machine
Beer bottling system
Beer filter machine
Water treatment RO System
Steam boiler: Electric/ Gas/oil
Hop filter tank/Hop tank
Kegs
Beer keg washing machine
Beer keg filling machine
Beer bottle filling and capping machine
Beer bottling system
Beer filter machine
