Algae Tubular Separator Centrifuge
US $6800
Laboratory Plant Mesh Filter Bag Balance Wringing Centrifuges Solid Liquid Separation Centrifuge
- Category: Separation Equipment >>>
- Supplier: Suzhou,Hemho,Centrifuge,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

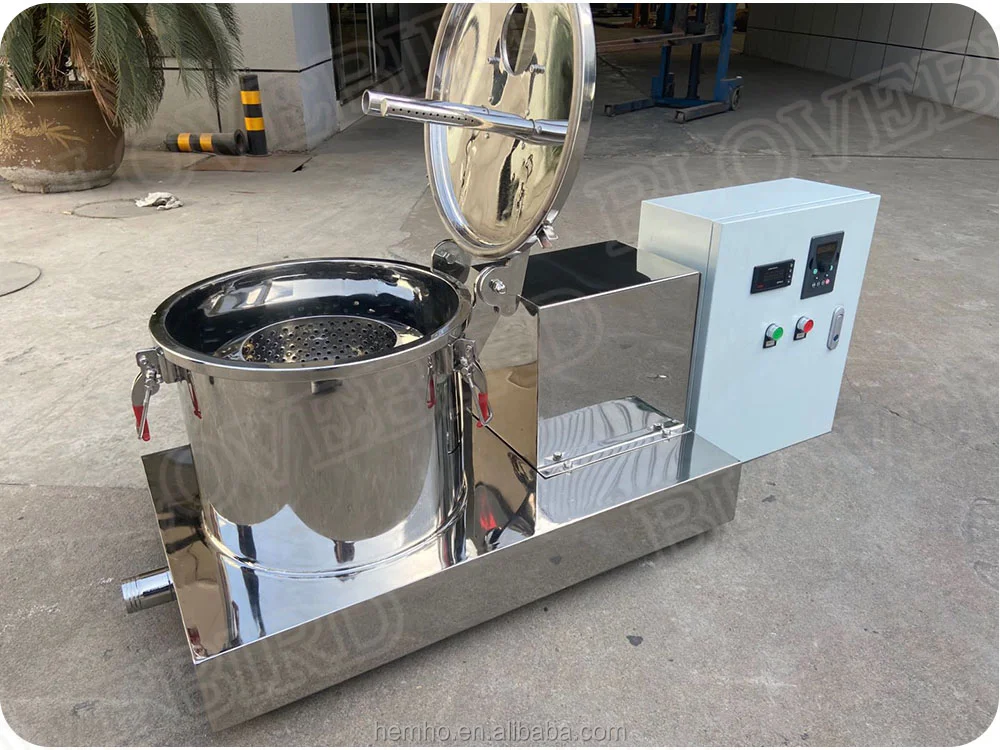

Hemho mini Laboratory centrifuge designs YGD series centrifuge following the experimental requirements of GMP and various enterprises and institutions. It has the characteristics of compact structure, exquisite appearance, high speed, low noise, stable operation, and no basic installation.
The YGD series is a closed structure. The machine adopts a flat large open cover structure. There are feeding pipes, washing pipes, sight glasses, etc., on the flip cover, which can realize online feeding (if there is a reactor, it can be directly connected to the centrifuge), and the machine runs more Stable and more beautiful. It is suitable for the environment where the material smell is strong, and the operation needs to be closed. The whole machine is stainless steel.
The YGD series is a closed structure. The machine adopts a flat large open cover structure. There are feeding pipes, washing pipes, sight glasses, etc., on the flip cover, which can realize online feeding (if there is a reactor, it can be directly connected to the centrifuge), and the machine runs more Stable and more beautiful. It is suitable for the environment where the material smell is strong, and the operation needs to be closed. The whole machine is stainless steel.
Product Details
Application
YGD series belongs to centrifugal filtration separation, suitable for the separation of most granular materials.
It is widely used in small and medium-sized material tests in colleges, universities, scientific research units, pharmaceutical, chemical, food, fine chemical and other enterprises and institutions.
Working Principle
YGD consists of the casing, drum, base, transmission and other components. The drum operation is driven by the motor wheel through the triangular belt to drive the passive wheel for operation. For medium with high solid content, feeding is first followed by starting, while medium with high liquid content is first started followed by feeding (on-line feeding and washing functions can be realized). The material is uniformly fitted to the drum wall through the centrifugal field. The liquid phase is discharged through the filter screen through the drum filter hole, and the solid phase is kept in the drum for a long time. When the separation requirements are met, the power supply is cut off (energy consumption braking or braking device makes the drum stop), and the material is automatically stopped and discharged from the upper part manually.

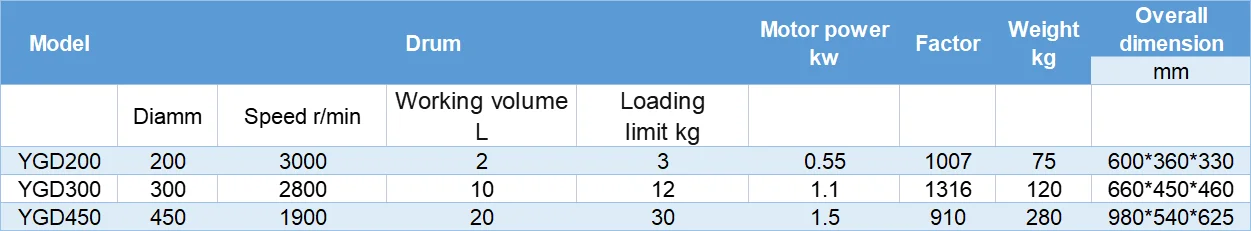

Technical Parameters
YGD Series Centrifuge

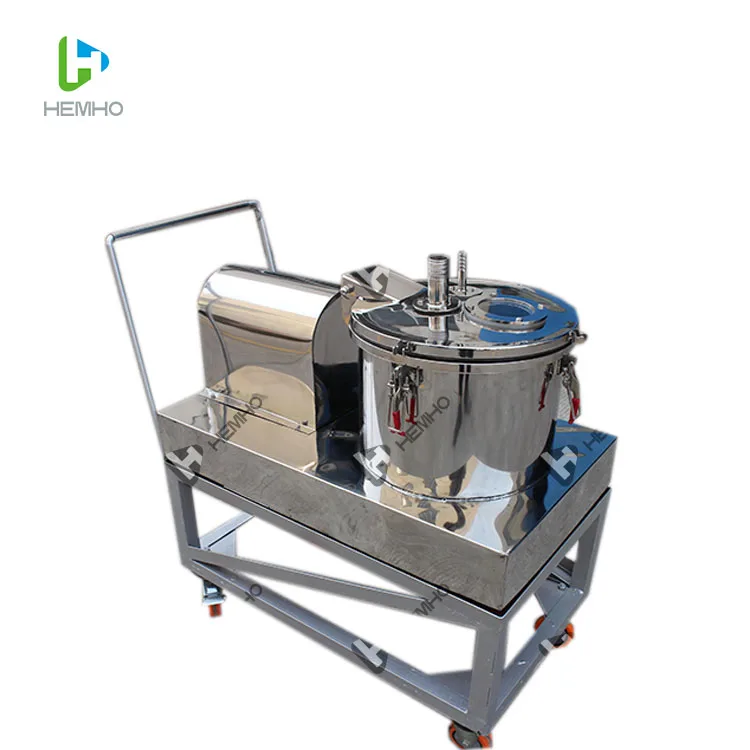

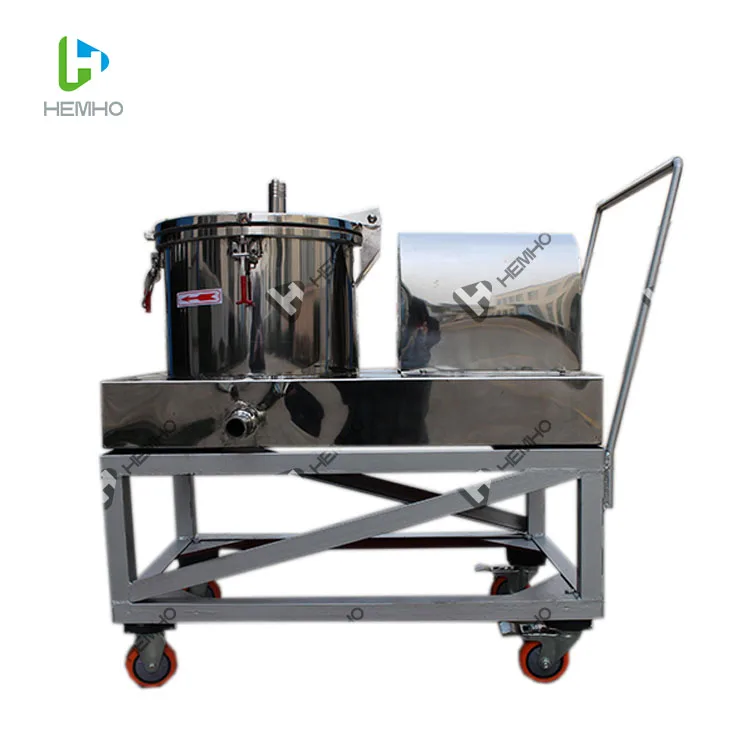

YGT series is designed by BLOVEBIRD for mobile trolley type small centrifuges, centrifuge mobile platform, with control cabinet can realize timing shutdown, speed, energy consumption braking functions (can be equipped with explosion-proof control cabinet, the realization of overall explosion-proof machine), in order to strengthen at the bottom of the cushioning and heavy belt brake wheel, the whole machine is more wide, base thicker, machine steady as a rock. Apply to have mobile requirements of pharmaceutical research and development center.
Standard: 304 stainless steel, general motors.
Optional: material (304 stainless steel, 316 stainless steel, titanium, plastic lining, etc.), clean (conform to the requirements of the pharmaceutical GMP), riot motor, explosion-proof control cabinet, thermal insulation spacer (through hot water or liquid carbon oxide, etc.)
Standard: 304 stainless steel, general motors.
Optional: material (304 stainless steel, 316 stainless steel, titanium, plastic lining, etc.), clean (conform to the requirements of the pharmaceutical GMP), riot motor, explosion-proof control cabinet, thermal insulation spacer (through hot water or liquid carbon oxide, etc.)
Hemho Products Recommendation
Why Choose Hemho
About Hemho
Factory Glimpse
Patents&Certifications
1, 30 Years' Experience
2, Holding 40 Patents
3, Innovative R&D Team
4, Awarded as a High-tech Enterprise
5, Precise Production Line Metting the GMP Requirements
6, CE&ISO Certificated
7, 8500M2 Facilities in Strategic Location in Yangze River Delta
Manufacturing&Packing
Manufacturing Flow
Packing for Delivery
FAQ
Q: What kind of products do you have?
After all the equipment is completed, we will conduct a trial run before shipment to ensure the customers' workshop's stable running.
A: Industrial centrifuges like screen scroll centrifuges(LWL), decanter centrifuges(LW), pusher centrifuges(HR), peeler centrifuges, top discharge centrifuges, etc.
Q: How do you control the quality?
A: To ensure the accuracy of each part, we are equipped with a variety of professional equipment, and we have accumulated professional processing methods over the past years.
Each component before assembly needs strict control by inspecting personnel.After all the equipment is completed, we will conduct a trial run before shipment to ensure the customers' workshop's stable running.
Q: What terms of payment does your company accept
A: Most payment methods are accepted, however, we mainly accept T/T, L/C at sight
A: Most payment methods are accepted, however, we mainly accept T/T, L/C at sight
Q: How long is your warranty period?
A: Our officially promised warranty time is 12 months after machine's commissioning.
A: Our officially promised warranty time is 12 months after machine's commissioning.
Q: The after-sale service of Hemho
A: After finishing the production, we will test the machine, take photos, videos and send them to customers via email or other instant messenger.
A: After finishing the production, we will test the machine, take photos, videos and send them to customers via email or other instant messenger.
After the commissioning in our factory, we will package the equipment by standard export package for shipment.
Engineers, sales managers and after-sales service manager will form a aflter-sale team, to follow the customers' projects.
