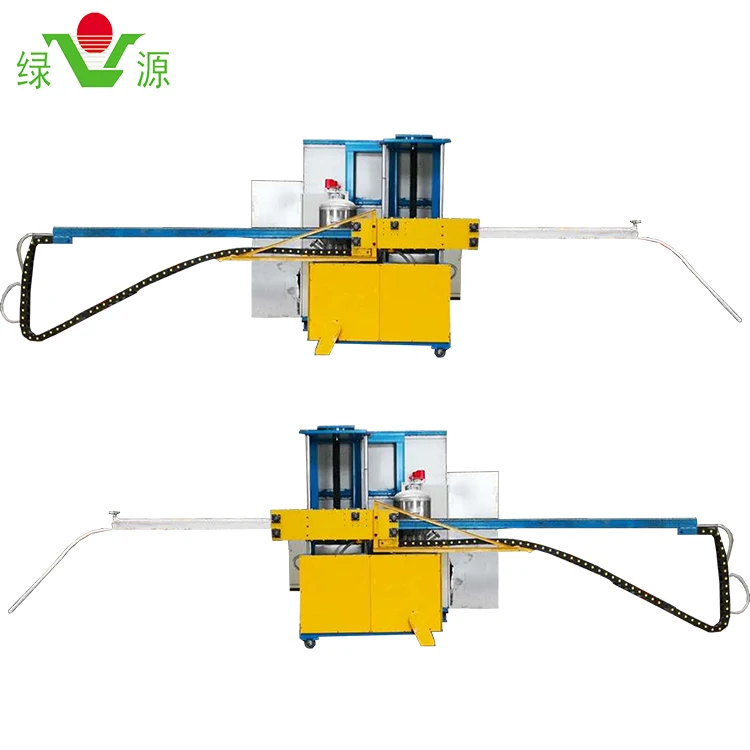

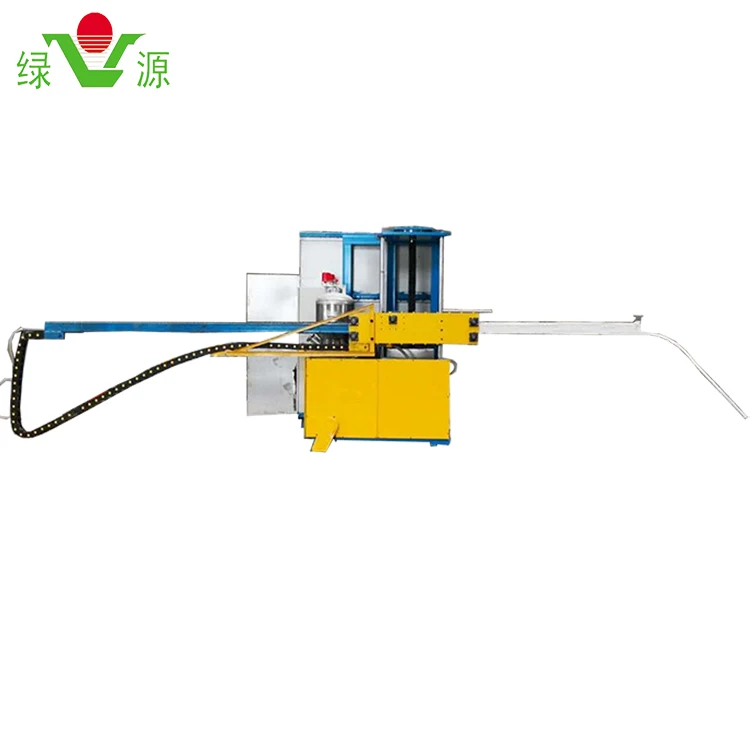

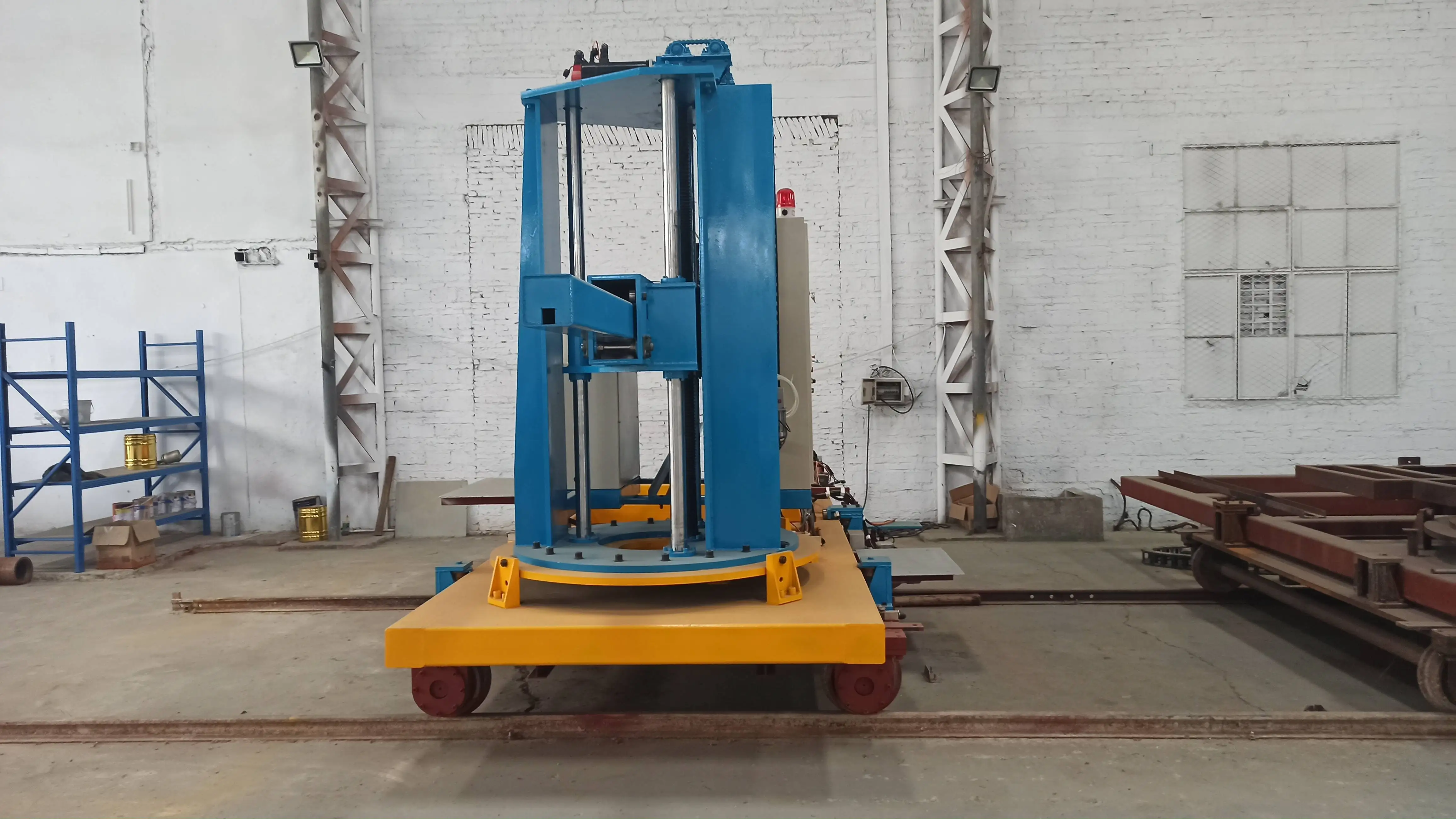

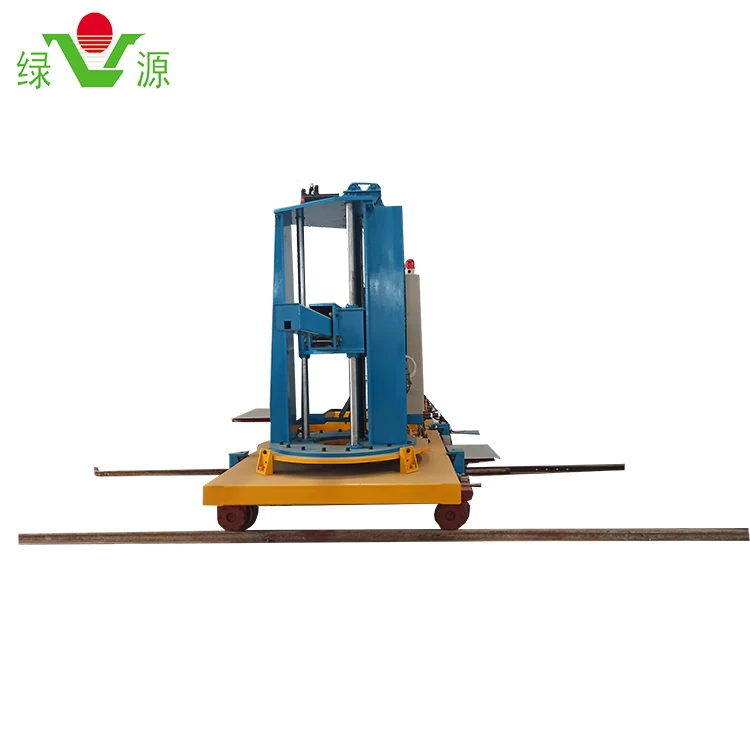

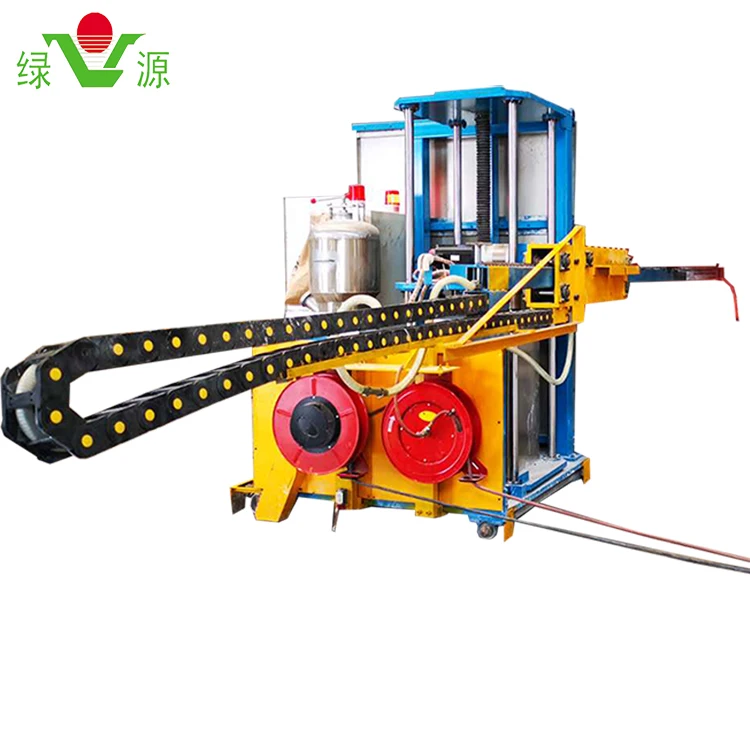

Teaching mode positioning Linear robot Fully automatic refining car Aluminum water refining car
- Category: >>>
- Supplier: Foshan Lvyuan Innovation Trade Co. Ltd.
Share on (1600318654580):
Product Overview
Description
Specification
Name | Fully automatic refining car |
Type | custom |
Brand | lvyuan |
Material | Cast iron, steel, stainless steel |
Color | red , bule ,yellow custom |
Function | Aluminum water refining |
Feature | Fully automatic |
Usage | Aluminum water refining |
Product Description
Height lift 850mm;
Move back and forth 4700mm (extend toward the furnace)
Move left and right 6000mm (horizontal movement in the furnace)
Manual displacement 0~72000mm

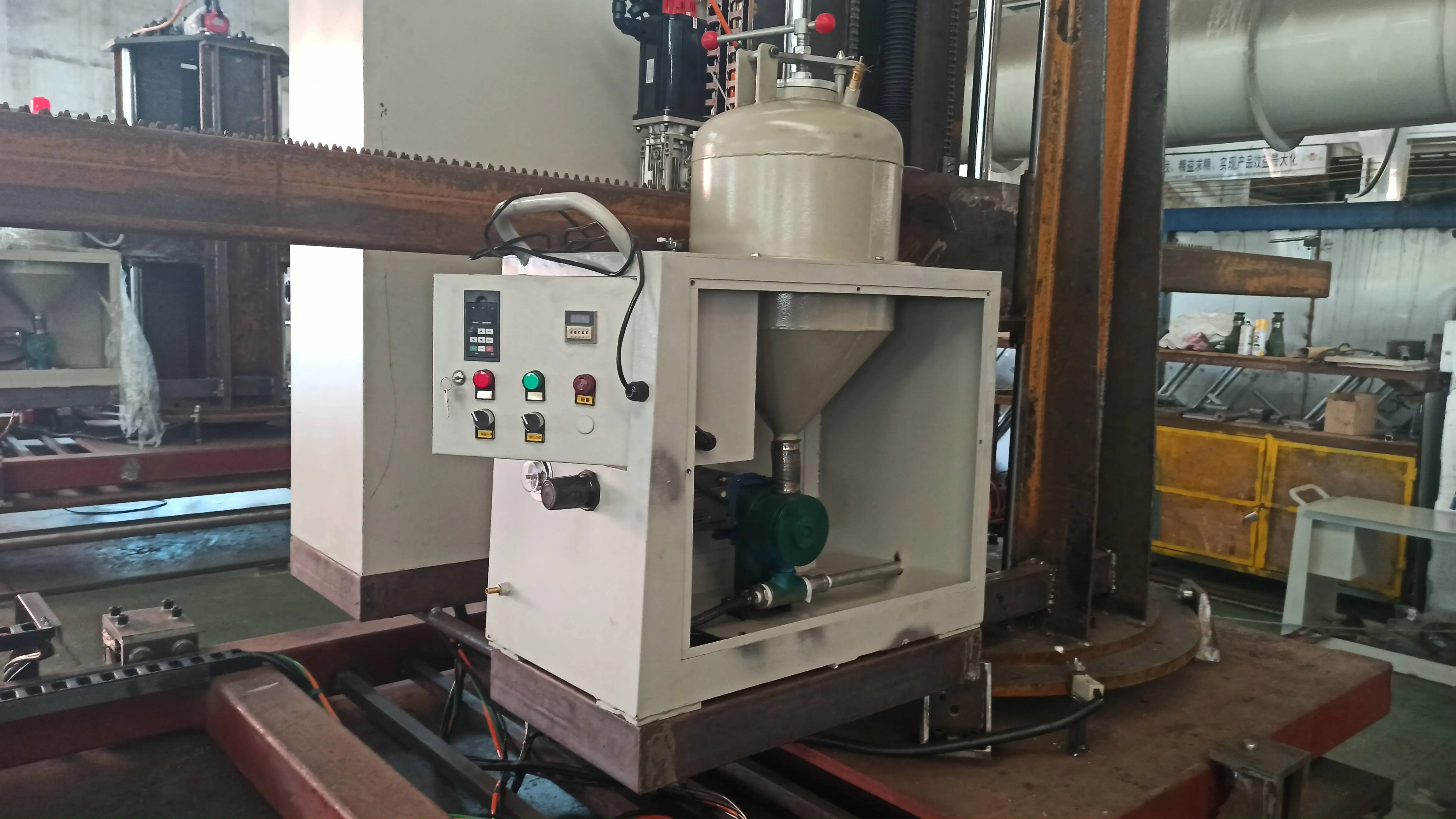

Refining powder feeding speed 0~5000 gram
Move back and forth 4700mm (extend toward the furnace)
Move left and right 6000mm (horizontal movement in the furnace)
Manual displacement 0~72000mm
Refining powder feeding speed 0~5000 gram

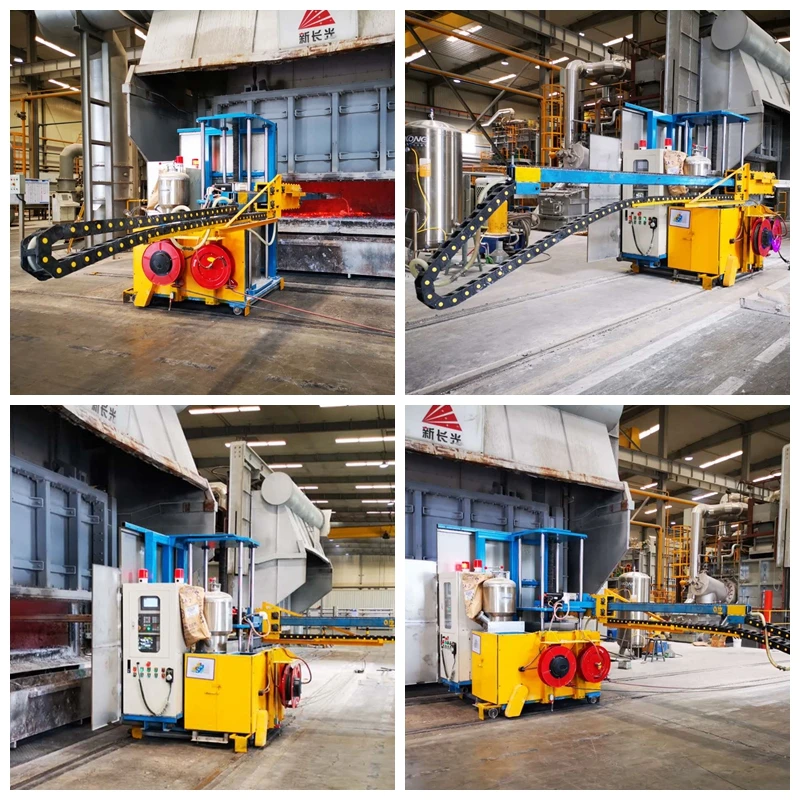

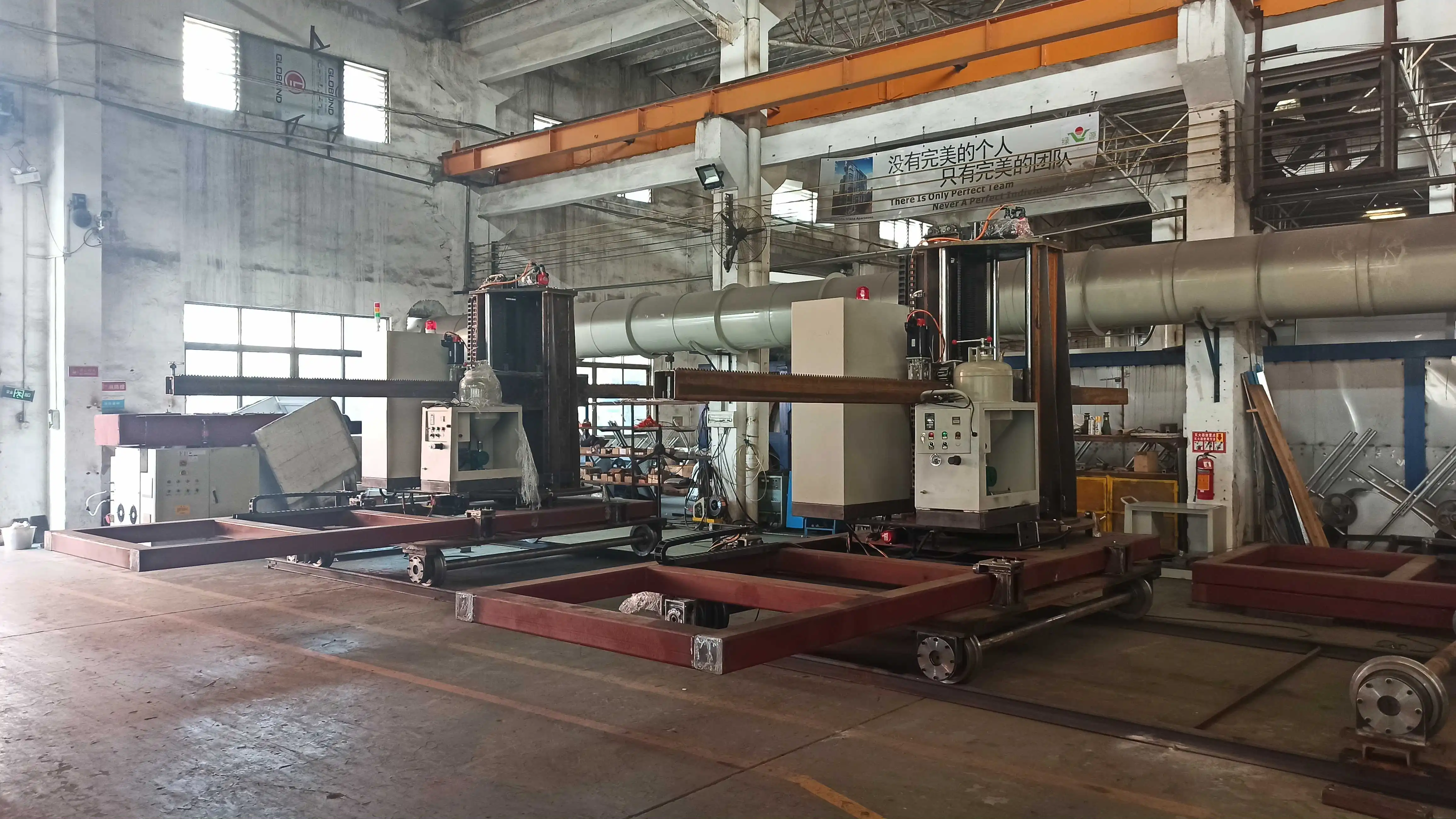

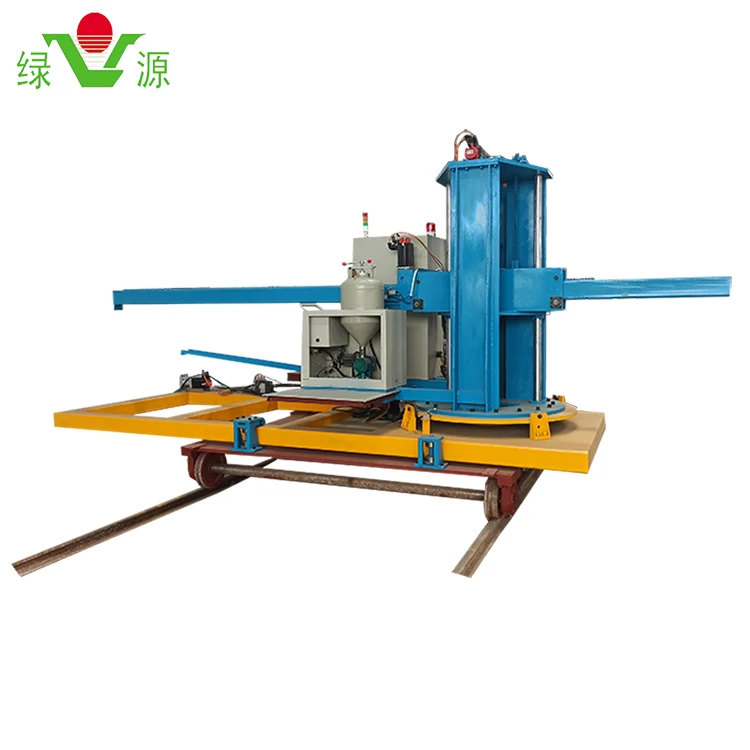

This kind of refining vehicle is a self-propelled device independently developed by our factory that can replace the artificial refining of molten aluminum. Compared with manual refining, the machine travels in the molten aluminum more evenly, and the speed is more stable. It can enter the aluminum pool. The depth of refinement is better controlled.
Compared with manual refining, the aluminum ash produced by the automatic refining vehicle is more delicate, there is no large agglomeration, and the aluminum ash is relatively less. The refining car adopts fully automatic work, no manual staying in front of the furnace for a long time, just press the button in the key control place.
Compared with manual refining, the aluminum ash produced by the automatic refining vehicle is more delicate, there is no large agglomeration, and the aluminum ash is relatively less. The refining car adopts fully automatic work, no manual staying in front of the furnace for a long time, just press the button in the key control place.
Advantages of this machine:
1. Adopt one-button control. In normal work, you only need to press an in-position key to use the preset program.
2. The debugging is simple. After installation, it only takes about one hour for each furnace to be empty. Manually adjust the operating point, add the speed in the system, and it will work automatically. ,
3. Easy to learn. If the customer has employees who know CNC lathes, they can debug it by themselves in one day. Ordinary employees can learn and master the control technology in about three days. Normal use only needs to adjust the program in advance, and it can be used at any time.
4. According to the size and shape of each furnace, a separate running track can be laid, and satisfactory results can be achieved after debugging.
2. The debugging is simple. After installation, it only takes about one hour for each furnace to be empty. Manually adjust the operating point, add the speed in the system, and it will work automatically. ,
3. Easy to learn. If the customer has employees who know CNC lathes, they can debug it by themselves in one day. Ordinary employees can learn and master the control technology in about three days. Normal use only needs to adjust the program in advance, and it can be used at any time.
4. According to the size and shape of each furnace, a separate running track can be laid, and satisfactory results can be achieved after debugging.
The automatic refining vehicles of our factory adopt the self-developed numerical control system and adopt the teaching mode for positioning. Even if the size of each furnace is different, as long as it is within the walking range of the machine, the program can be edited separately, and each furnace does not interfere with each other. .

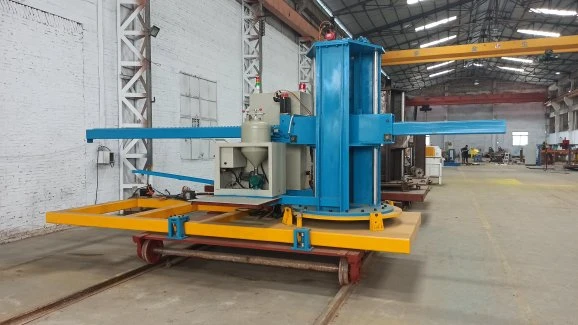

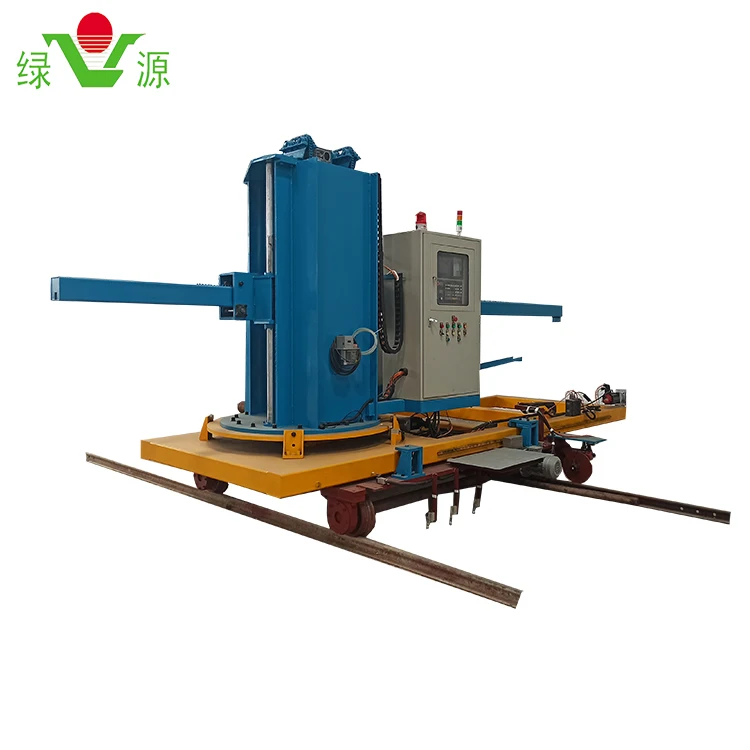

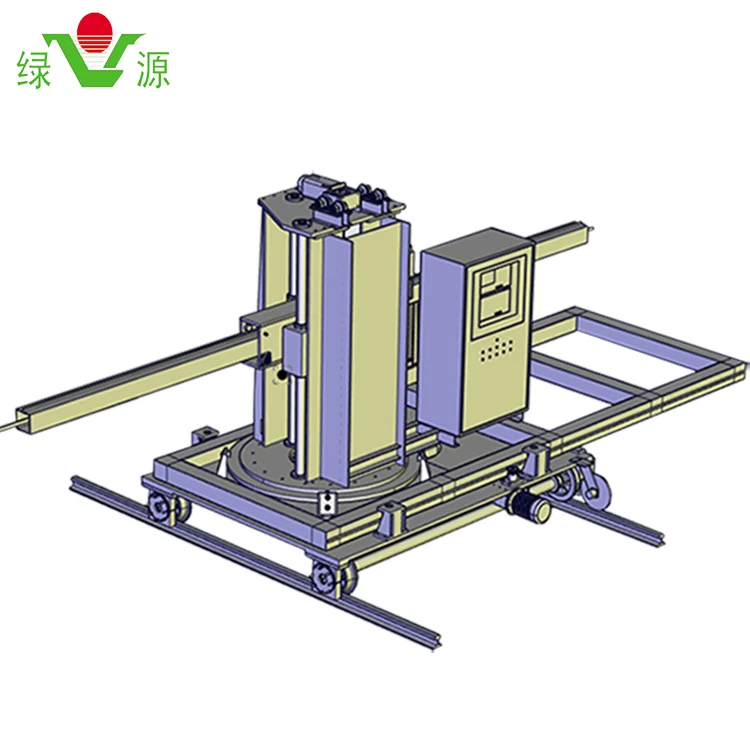

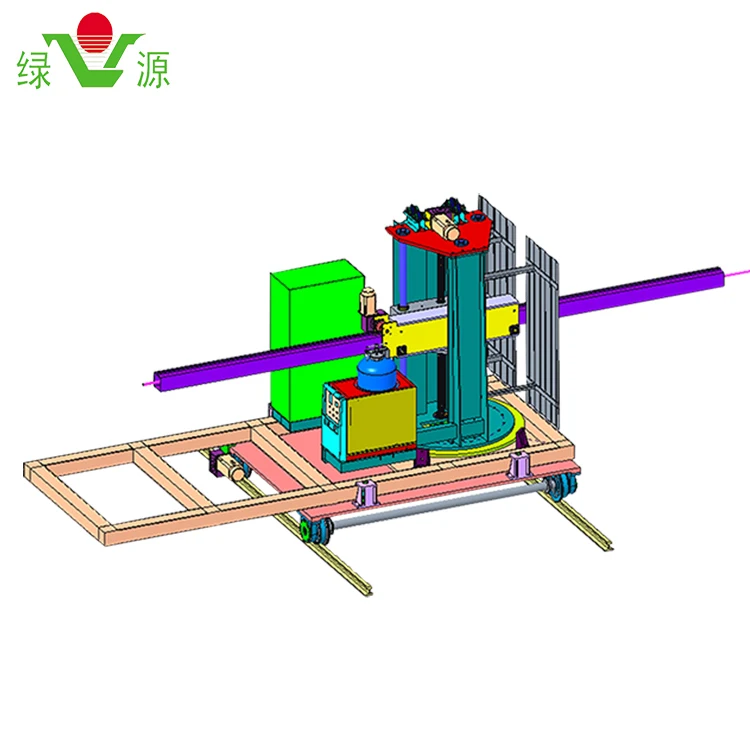

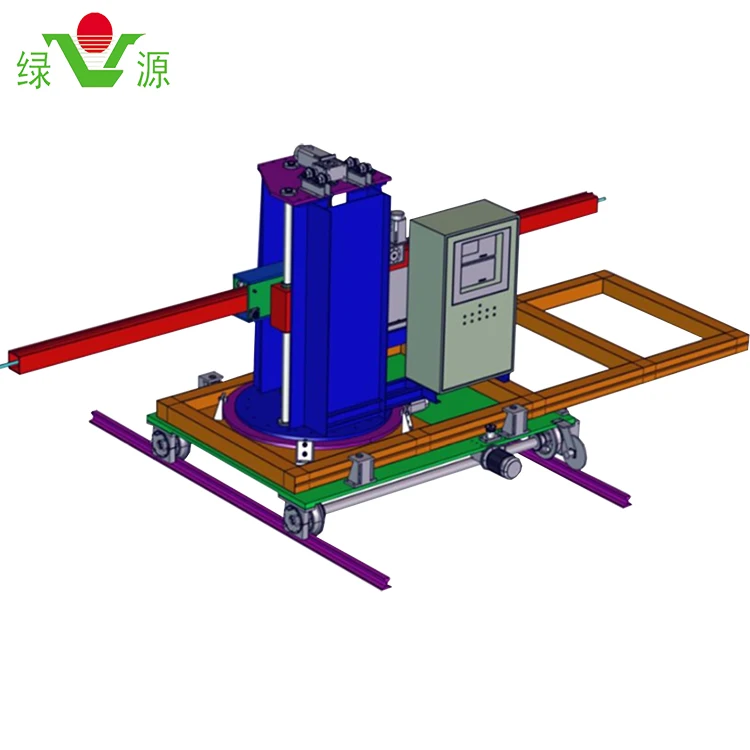

The positioning of this machine adopts three axes and a rotating axis for spatial positioning, so as long as it is in the furnace that can be reached by manual mode, the blowpipe can be reached during automatic operation.
Company Profile
Foshan Lvyuan Innovation Trading Company, Established in 2019, located at No. 3, Kebao North Road, Shishan Town, Nanhai District, Foshan City. It is a subsidiary of Lvyuan Group. Lvyuan Group is formed by a technical team with many years of experience in aluminum melting and casting. It is a developer, manufacturer and implementer of aluminum melting and casting equipment and auxiliary materials. The group is committed to providing one-stop procurement services for aluminum melting and casting machinery and supporting materials. Its main products are : Fully automatic aluminum ash recycling production line, aluminum ash separator,
Lvyuan Group has rapidly developed into an advanced equipment manufacturing enterprise with first-class technology. It has a complete corporate organizational structure, a large design and R&D department, an advanced manufacturing workshop and an experienced and pragmatic after-sales service team. Luyuan's goal: to keep improving in technology, to provide our customers with high-quality, energy-saving automation products and satisfactory after-sales service.
cold ash ball mill screening machine, rotary furnace, automatic aluminum rod saw, pulse bag filter, tractor, refining agent, slagging agent, refractory ceramic filter plate and its Refractory materials, etc.
Lvyuan Group has a plant of about 30,000 square meters, a total of 6 production workshops, There are more than 300 employees, 20 technical professionals, and 30 professional management personnel. The group has passed the ISO9001 quality system certification and is a national high-tech enterprise.
Lvyuan Group has rapidly developed into an advanced equipment manufacturing enterprise with first-class technology. It has a complete corporate organizational structure, a large design and R&D department, an advanced manufacturing workshop and an experienced and pragmatic after-sales service team. Luyuan's goal: to keep improving in technology, to provide our customers with high-quality, energy-saving automation products and satisfactory after-sales service.
Lvyuan Group is based on honesty, and Golden quality is well-known.
Packing & Delivery
The edging cotton is surrounded by the surrounding area, and the carton is individually packaged, and the large carton is re-packaged, and the wooden pallet is fixed and re-packaged.
FAQ
1. Is your company a trader or a physical factory?
We are a modern enterprise with more than 80,000 square meters of physical delivery room and more than 500 employees. The products are self-produced and sold.
2. How long is the product production cycle? How long is the warranty period?
The production cycle of mechanical equipment products is generally 15-30 days, depending on the order quantity of the workshop, the production cycle of the busy season is appropriately extended. The supply of metal supporting materials and ceramic filter plates is stable and in stock. The warranty period of mechanical equipment is one year.
3. What payment terms can your company accept?
Generally, it is TT wire transfer, 30% deposit starts production, and 70% balance must be paid before loading. LC payment method is not accepted.
4. How long is the product installation cycle?
The installation period depends on the size of the project. Generally speaking, we will send professional engineers to the site to guide the installation and commissioning. The customer arranges several local workers to assist in the installation. A set of aluminum ash recycling production line, three workers generally 3-7 Days can complete the installation test and staff training. You can also guide the installation online, depending on customer needs.
We are a modern enterprise with more than 80,000 square meters of physical delivery room and more than 500 employees. The products are self-produced and sold.
2. How long is the product production cycle? How long is the warranty period?
The production cycle of mechanical equipment products is generally 15-30 days, depending on the order quantity of the workshop, the production cycle of the busy season is appropriately extended. The supply of metal supporting materials and ceramic filter plates is stable and in stock. The warranty period of mechanical equipment is one year.
3. What payment terms can your company accept?
Generally, it is TT wire transfer, 30% deposit starts production, and 70% balance must be paid before loading. LC payment method is not accepted.
4. How long is the product installation cycle?
The installation period depends on the size of the project. Generally speaking, we will send professional engineers to the site to guide the installation and commissioning. The customer arranges several local workers to assist in the installation. A set of aluminum ash recycling production line, three workers generally 3-7 Days can complete the installation test and staff training. You can also guide the installation online, depending on customer needs.
