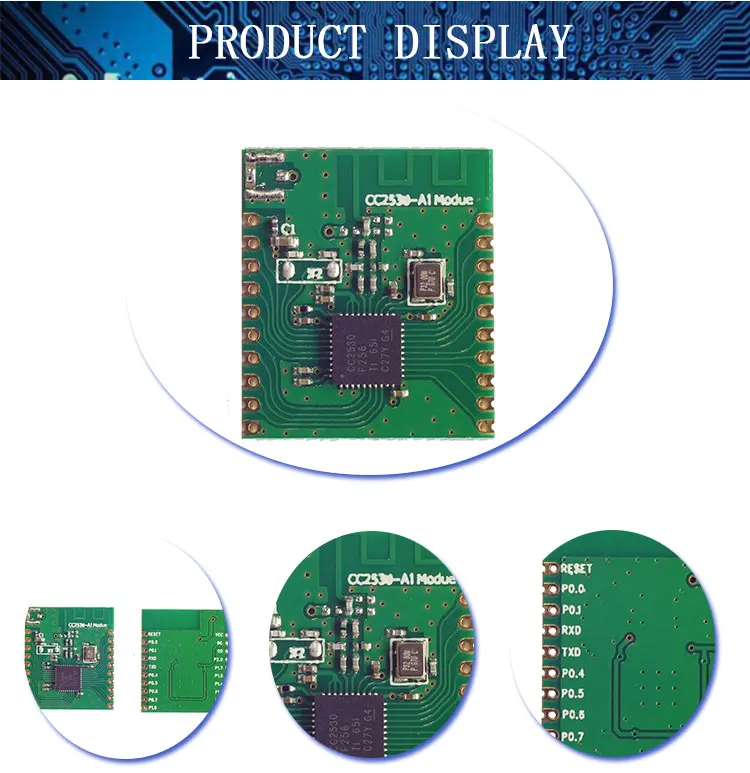

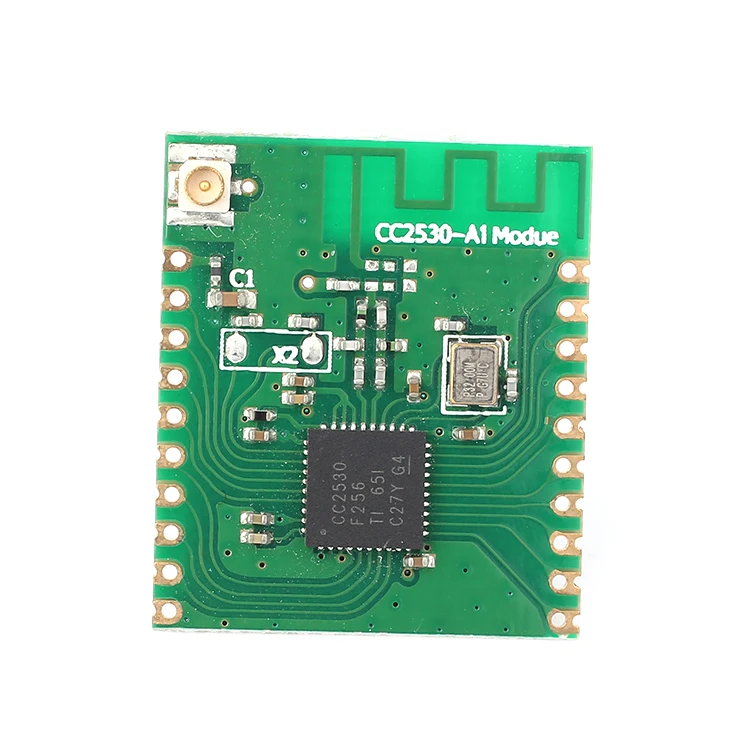

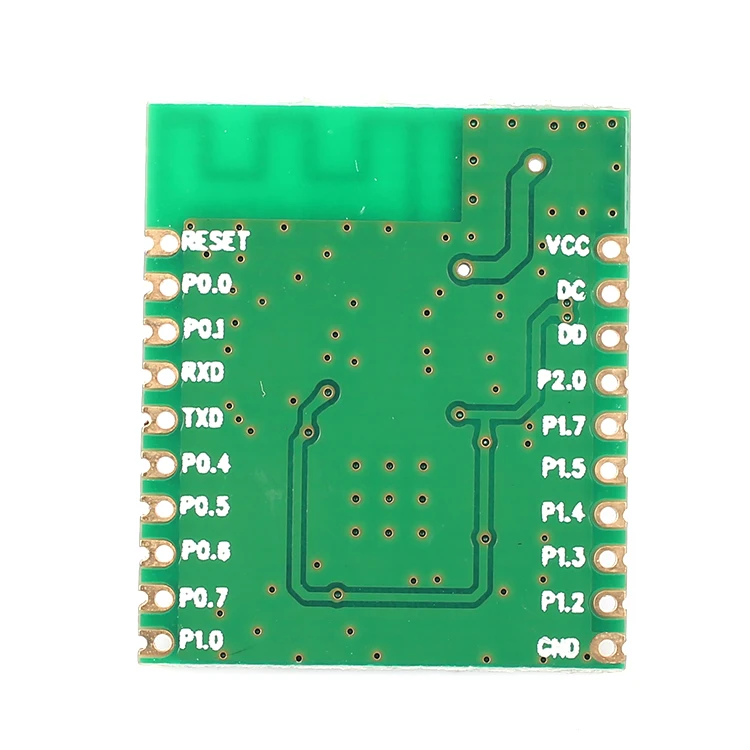

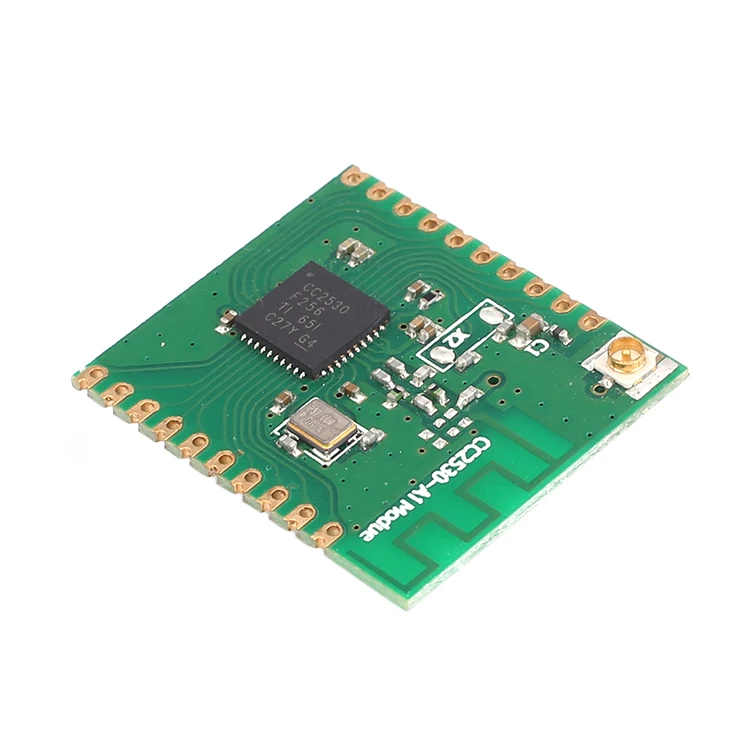

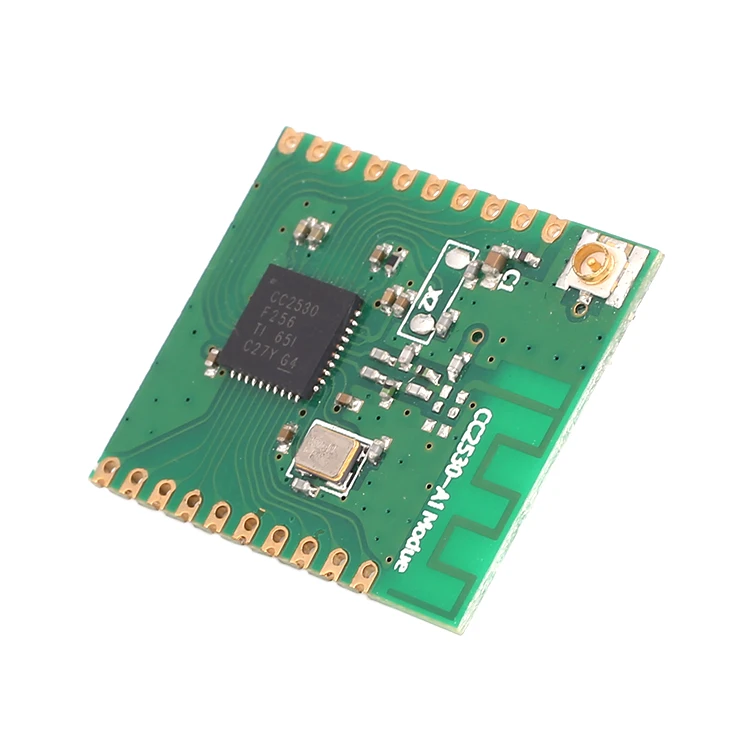

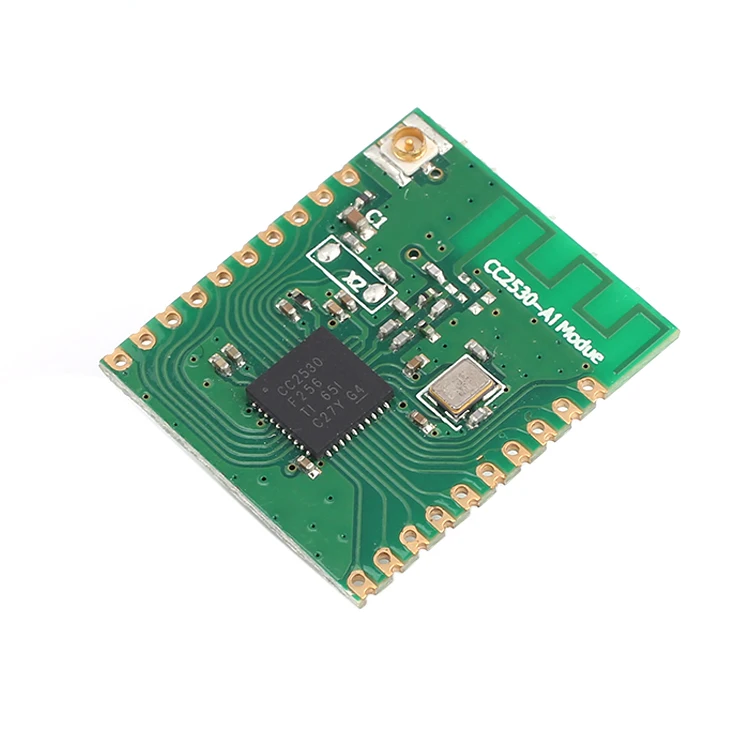

CC2530 Zigbee coordinator smart home CC2530A1 module
- Category: >>>
- Supplier: Shenzhen Radioland Technology Co. Ltd.
Share on (1600318686579):
Product Overview
Description
2530 zigbee coordinator smart home 2530A1 module
| Mold | CC2530A1 | CC2530A2 | CC2530A3 | CC2530PA1 | CC2530PA2 | |||||
| Part Number | CC2530A1 | CC2530A2 | CC2530A3 | CC2530PA1 | CC2530PA2 | |||||
| Frequency(MHz) | 2400~2483.5 | 2400~2483.5 | 2400~2483.5 | 2400~2483.5 | 2400~2483.5 | |||||
| Power Supply | 2.0~3.6V | 2.0~3.6V | 2.0~3.6V | 2.0~3.6V | 2.0~3.6V | |||||
| Date Rate | 250kbps | 250kbps | 250kbps | 250kbps | 250kbps | |||||
| Output Power | ≤4.5dBm | ≤4.5dBm | ≤4.5dBm | 22dBm | 22dBm | |||||
| Sensitivity | -97dBm | -97dBm | -97dBm | -116dBm | -116dBm | |||||
| /TX Current | 29mA | 29mA | 29mA | 160mA | 160mA | |||||
| RX Current | 24mA | 24mA | 24mA | <32mA | <32mA | |||||
| Standby Current | 0.5uA | 0.5uA | 1uA | 4uA | 4uA | |||||
| Distance | >100m | >100m | >100m | 1000m | 1200m | |||||
| Interface | SPI / UART | SPI / UART | SPI / UART | SPI / UART | SPI / UART | |||||
| Size | 22*25.5mm | 15*24mm | 15*23.7mm | 22*34mm | 15*25mm | |||||

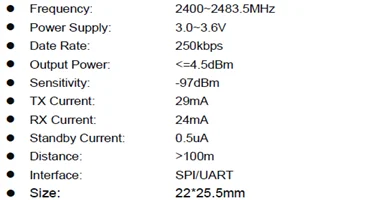

| MOLD | CC2530A1 |
| Frequency | 2400~2483.5MHz |
| Power Supply | 2.0~3.6V |
| Date Rate | 250kbps |
| Output Power | ≤4.5dBm |
| Sensitivity | -97dBm |
| Tx Current | 29mA |
| Rx Current | 24mA |
| Standby Current | 0.5uA |
| Distance | >100m |
| Interface | SPI / UART |
| Size | 22*25.5mm |
1.2.4-GHz IEEE802.15.4 compliant RF transceiver
2.Programmable output power up to 22dBm
3. Accurate digital RSSI/LQI support
4. Suitable for systems targeting compliance with worldwide radio-frequency
5. Data rate: 250kbps
6. 256KB in-system programmable flash,customization 32-,64-,128KB
7. Two 64 bytes FIFO for TX & RX buffer
8. CSMA/CA hardware support
9. Battery monitor and temperature sensor
10. AES security coprocessor
11. 8KB RAM with retention in all power mode
