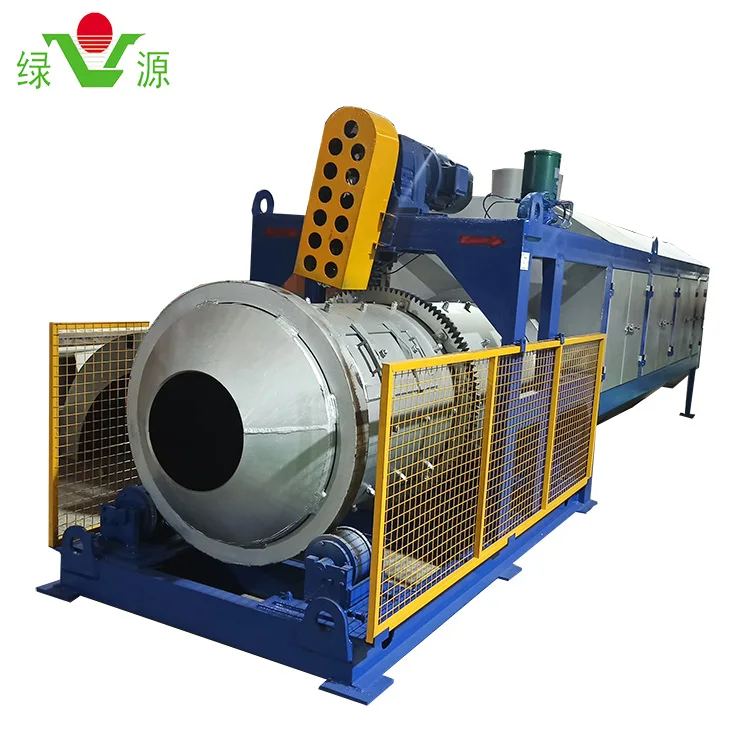

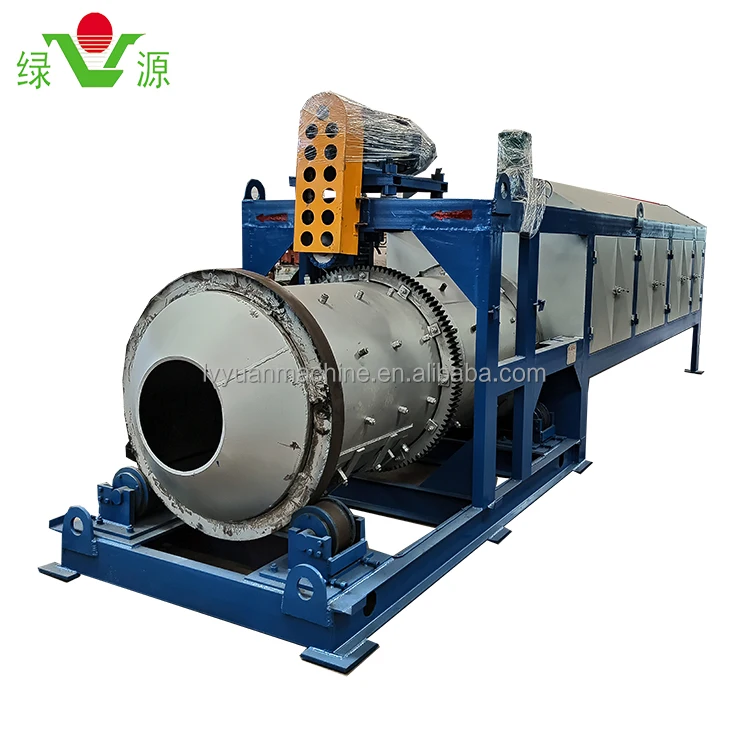

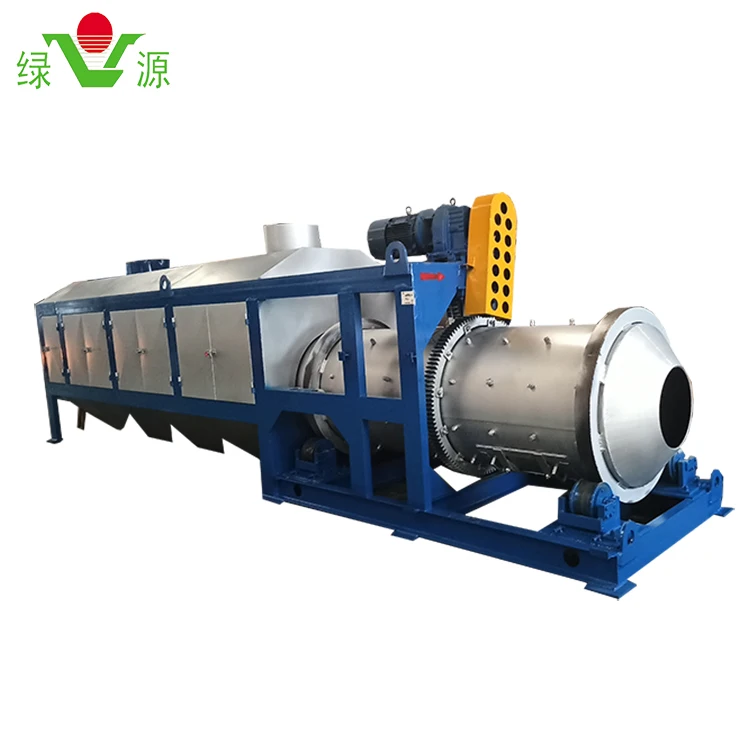

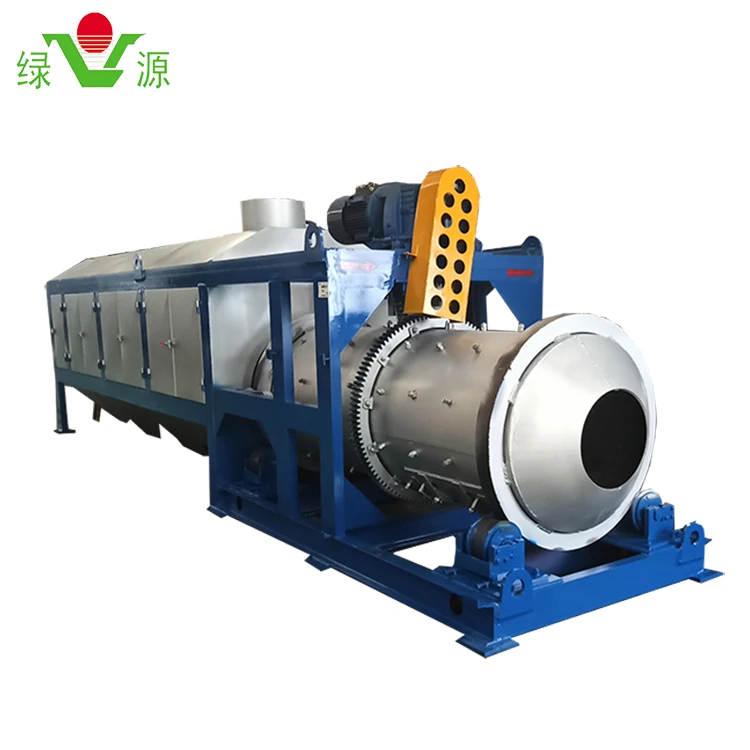

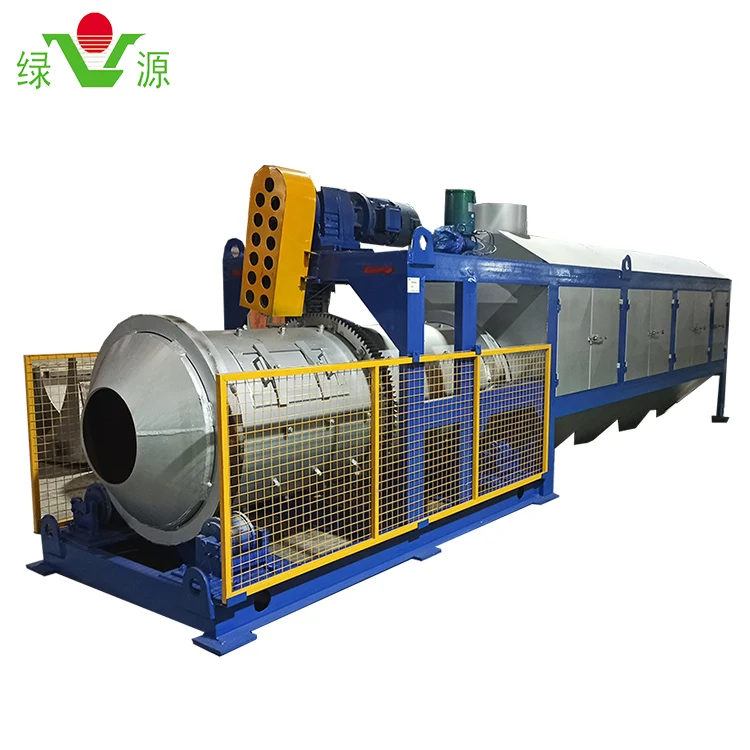

China supplier customization Ball mill Cold ash ball mill and sieving machine Ball mill screening machine
- Category: >>>
- Supplier: Foshan Lvyuan Innovation Trade Co. Ltd.
Share on (1600318703446):
Product Overview
Description
Products Description
Main uses and features:
1. The purpose of the ball mill ash screening machine is to combine the two production functions of ball milling and screening ash
to operate together. The purpose of the ball mill is to put an appropriate amount of steel balls into a circular drum equipped
with a wear-resistant liner and rotate to remove the cooled ash. The aluminum ash block is broken up by impact, not used to grind
it into powder. 2. The purpose of the ash screening machine is to screen out the three kinds of aluminum ash from the scattered
and broken aluminum ash through the fine mesh, medium mesh and coarse mesh. The coarse ash (the last ash outlet) is more than 3
mm, which can be recycled and smelted, the middle ash (the second ash outlet) is 1.5-3 mm and is used as an alternative raw
material for cooling the ash frying machine, and the remaining fine ash is 40-80 mesh. The treatment not only saves manpower, but
also greatly improves the production efficiency, and the economic benefits are also very considerable.
to operate together. The purpose of the ball mill is to put an appropriate amount of steel balls into a circular drum equipped
with a wear-resistant liner and rotate to remove the cooled ash. The aluminum ash block is broken up by impact, not used to grind
it into powder. 2. The purpose of the ash screening machine is to screen out the three kinds of aluminum ash from the scattered
and broken aluminum ash through the fine mesh, medium mesh and coarse mesh. The coarse ash (the last ash outlet) is more than 3
mm, which can be recycled and smelted, the middle ash (the second ash outlet) is 1.5-3 mm and is used as an alternative raw
material for cooling the ash frying machine, and the remaining fine ash is 40-80 mesh. The treatment not only saves manpower, but
also greatly improves the production efficiency, and the economic benefits are also very considerable.
Specification
型号 Model | 球磨规格 Ball mill specifications | 减速机型号 Reducer model | 电机功率 Motor power | 筛网规格 Screen specifications |
LY-QMJ-1400 | ∅1400*3000mm | RCW97-180B 5-17.08-M1 | YEZ-180M-4-B 5-18.5KW | ∅1400*5000 |
LY-QMJ-1200 | ∅1200*3000mm | RCW97-1-M80B 5-17.08-M1 | YEZ-180M-4-B 5-11KW | ∅1200*5000 |
LY-QMJ-1000 | ∅1000*3000mm | RCW97-180B 5-17.08-M1 | YEZ-180M-4-B 5-11KW | ∅1000*5000 |
Work flow chart of aluminum ash recycling production line

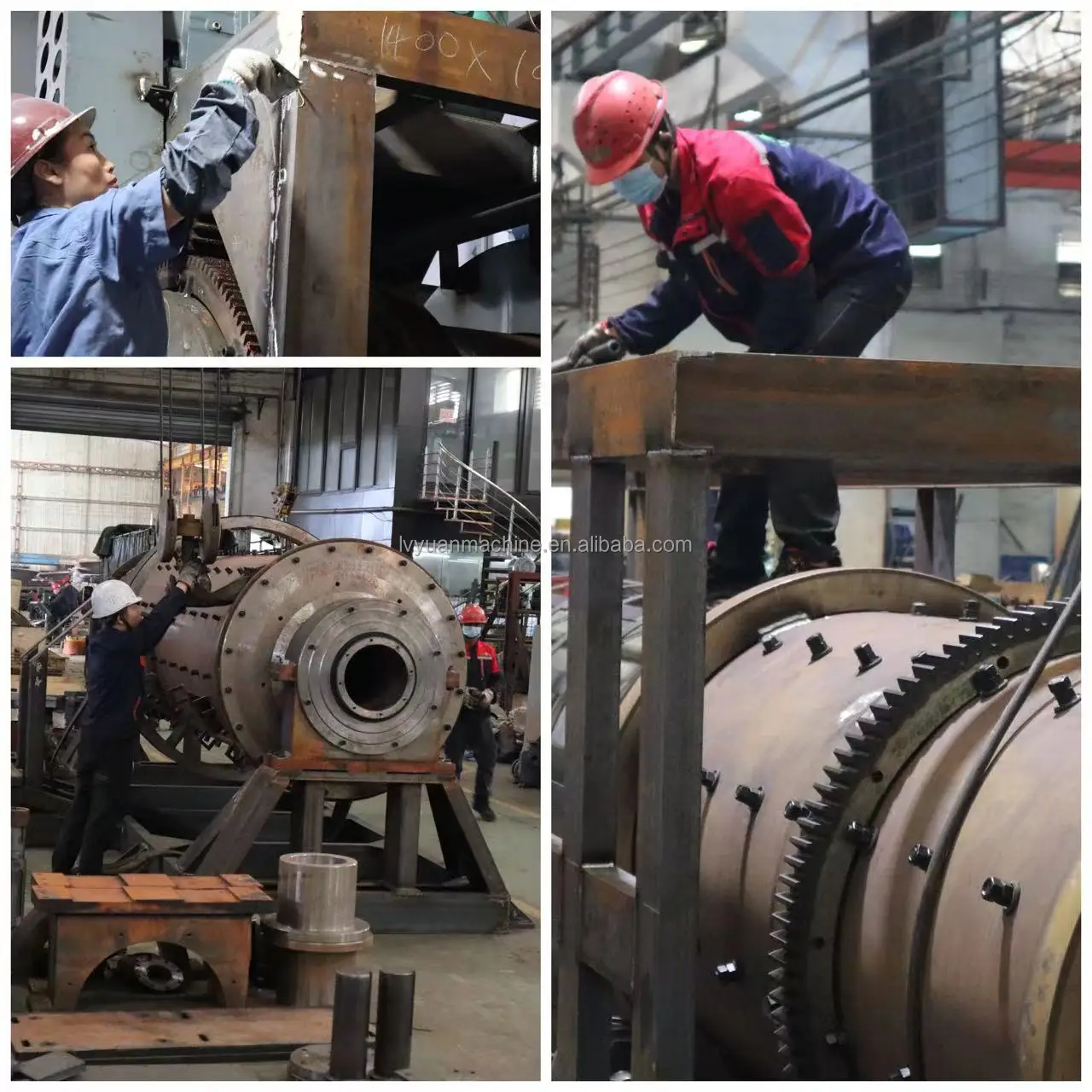

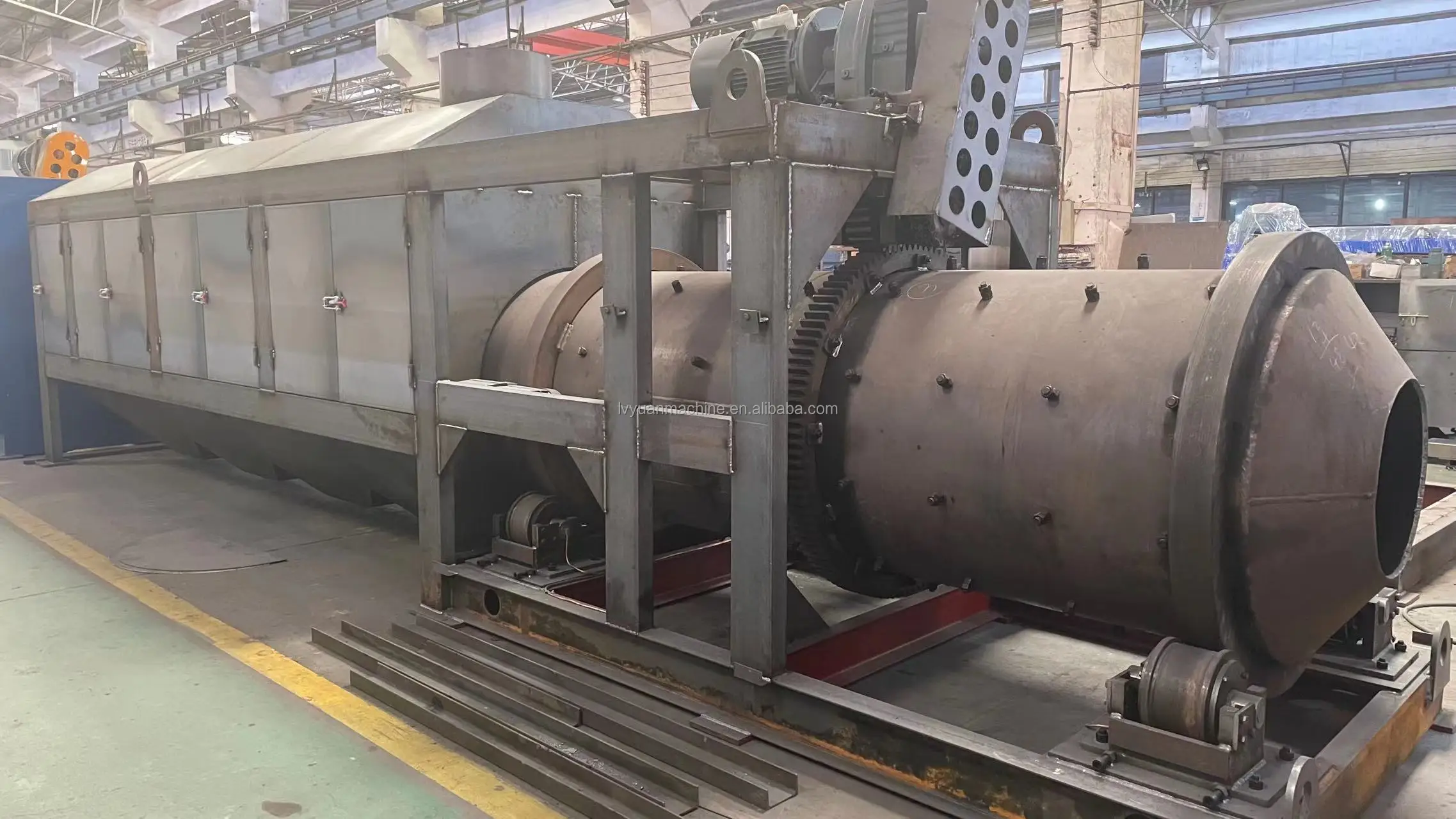

Production Workshop
Company Profile
Foshan Lvyuan Innovation Trading Company, Established in 2019, located at No. 3, Kebao North Road, Shishan Town, Nanhai District, Foshan City. It is a subsidiary of Lvyuan Group. Lvyuan Group is formed by a technical team with many years of experience in aluminum melting and casting. It is a developer, manufacturer and implementer of aluminum melting and casting equipment and auxiliary materials. The group is committed to providing one-stop procurement services for aluminum melting and casting machinery and supporting materials. Its main products are : Fully automatic aluminum ash recycling production line, aluminum ash separator, cold ash ball mill screening machine, rotary furnace, automatic aluminum rod saw, pulse bag filter, tractor, refining agent, slagging agent, refractory ceramic filter plate and its Refractory materials, etc.
Lvyuan Group has a plant of about 30,000 square meters, a total of 6 production workshops, There are more than 300 employees, 20 technical professionals, and 30 professional management personnel. The group has passed the ISO9001 quality system certification and is a national high-tech enterprise.
Lvyuan Group has rapidly developed into an advanced equipment manufacturing enterprise with first-class technology. It has a complete corporate organizational structure, a large design and R&D department, an advanced manufacturing workshop and an experienced and pragmatic after-sales service team. Luyuan's goal: to keep improving in technology, to provide our customers with high-quality, energy-saving automation products and satisfactory after-sales service. Lvyuan Group is based on honesty, and Golden quality is well-known..
Lvyuan Group has a plant of about 30,000 square meters, a total of 6 production workshops, There are more than 300 employees, 20 technical professionals, and 30 professional management personnel. The group has passed the ISO9001 quality system certification and is a national high-tech enterprise.
Lvyuan Group has rapidly developed into an advanced equipment manufacturing enterprise with first-class technology. It has a complete corporate organizational structure, a large design and R&D department, an advanced manufacturing workshop and an experienced and pragmatic after-sales service team. Luyuan's goal: to keep improving in technology, to provide our customers with high-quality, energy-saving automation products and satisfactory after-sales service. Lvyuan Group is based on honesty, and Golden quality is well-known..
FAQ
1. Is your company a trader or a physical factory?
We are a modern enterprise with more than 30,000 square meters of physical delivery room and more than 500 employees. The products are self-produced and sold.
2. How long is the product production cycle? How long is the warranty period?
The production cycle of mechanical equipment products is generally 15-30 days, depending on the order quantity of the workshop, the production cycle of the busy season is appropriately extended. The supply of metal supporting materials and ceramic filter plates is stable and in stock. The warranty period of mechanical equipment is one year.
3. What payment terms can your company accept?
Generally, it is TT wire transfer, 30% deposit starts production, and 70% balance must be paid before loading. LC payment method is not accepted.
4. How long is the product installation cycle?
The installation period depends on the size of the project. Generally speaking, we will send professional engineers to the site to guide the installation and commissioning. The customer arranges several local workers to assist in the installation. A set of aluminum ash recycling production line, three workers generally 3-7 Days can complete the installation test and staff training. You can also guide the installation online, depending on customer needs.
We are a modern enterprise with more than 30,000 square meters of physical delivery room and more than 500 employees. The products are self-produced and sold.
2. How long is the product production cycle? How long is the warranty period?
The production cycle of mechanical equipment products is generally 15-30 days, depending on the order quantity of the workshop, the production cycle of the busy season is appropriately extended. The supply of metal supporting materials and ceramic filter plates is stable and in stock. The warranty period of mechanical equipment is one year.
3. What payment terms can your company accept?
Generally, it is TT wire transfer, 30% deposit starts production, and 70% balance must be paid before loading. LC payment method is not accepted.
4. How long is the product installation cycle?
The installation period depends on the size of the project. Generally speaking, we will send professional engineers to the site to guide the installation and commissioning. The customer arranges several local workers to assist in the installation. A set of aluminum ash recycling production line, three workers generally 3-7 Days can complete the installation test and staff training. You can also guide the installation online, depending on customer needs.
