Rotary punching machine
US $55900
JB23 80 ton power press for sale hole punching machine for stainless steel processing
- Category: Punching Machines >>>
- Supplier: Anhui Harting Machinery Technology Co. Ltd.
Share on (1600318758328):
Product Overview
Description
Product Description

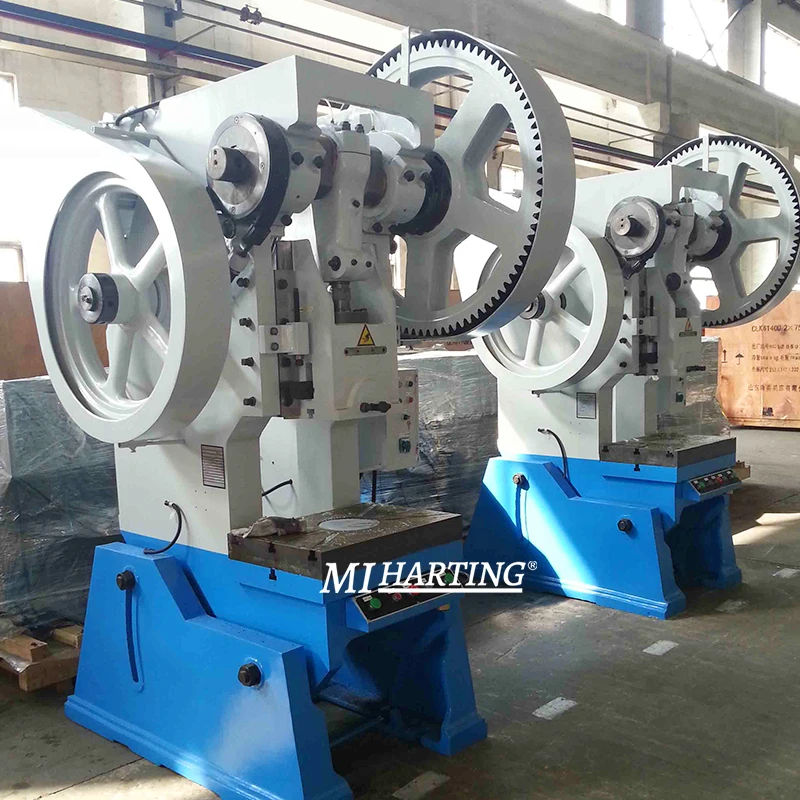

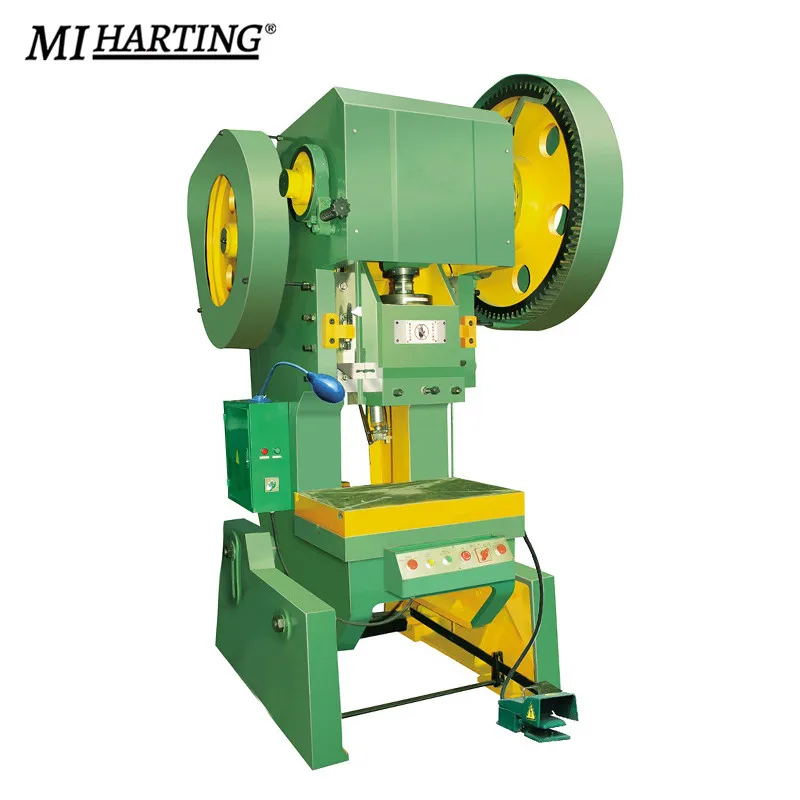

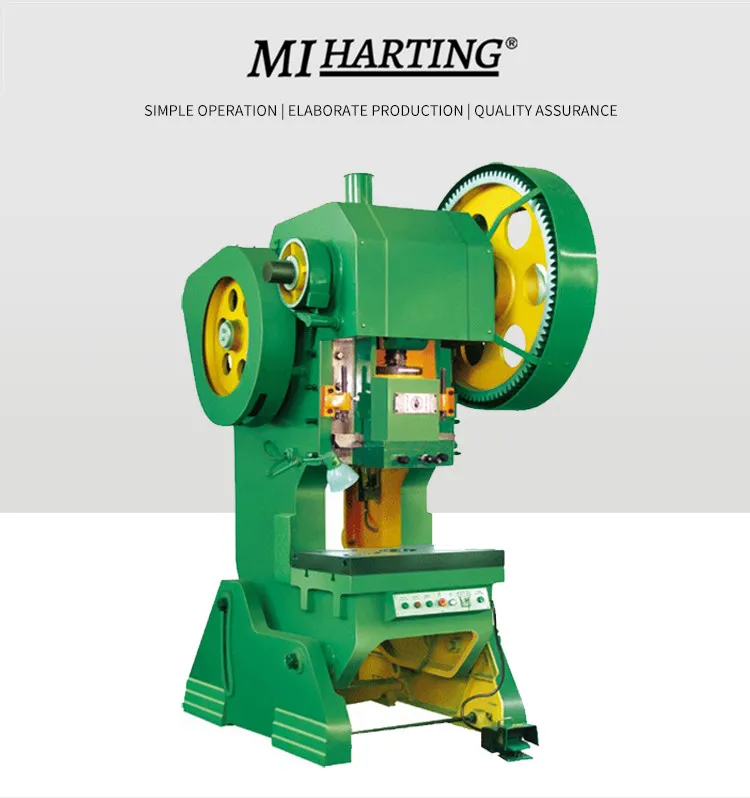

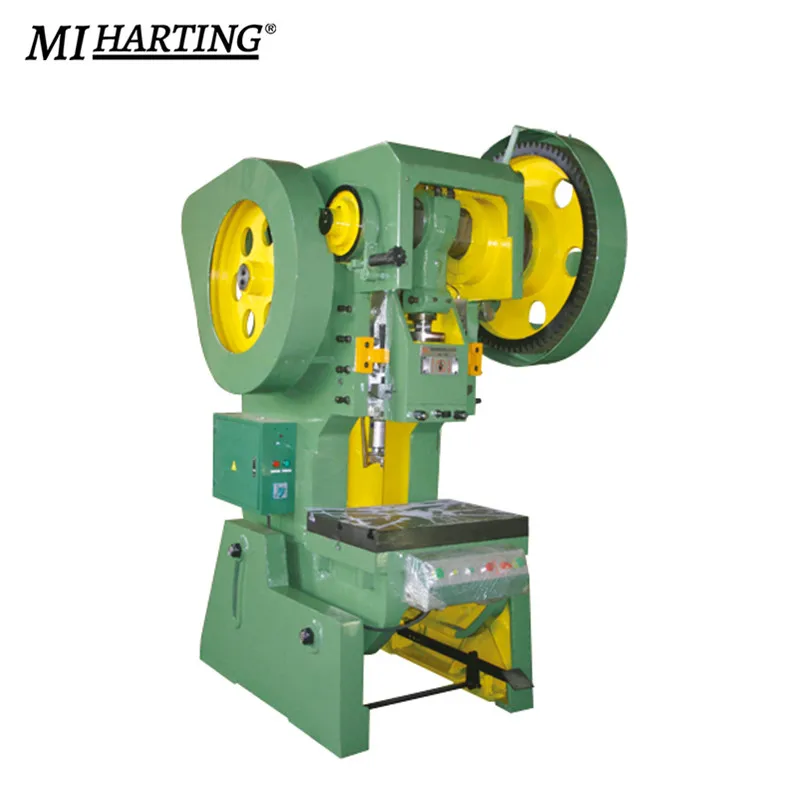

JB23-80 ton power press for sale hole punching machine for stainless steel processing
JB23 series punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body).
Its steel plate welded body has high shock-absorbing performance.Its novel overall design gives the machine elegant appearance.Its throat has certain depth.The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device.
Its working table is open on three sides, so the mold loading and unloading and operation are convenient.
Its steel plate welded body has high shock-absorbing performance.Its novel overall design gives the machine elegant appearance.Its throat has certain depth.The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device.
Its working table is open on three sides, so the mold loading and unloading and operation are convenient.
Specification
Item | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T | J23-125T |
Nominal Pressure | 100KN | 160KN | 250KN | 400KN | 630KN | 800KN | 1000KN | 1250KN |
Slide stroke (Times/min) | 145 | 140 | 70 | 55 | 50 | 45 | 45 | 38 |
Slide strokes | 50mm | 60mm | 70mm | 100mm | 110mm | 115mm | 130mm | 150mm |
Max closing height | 150mm | 170mm | 200mm | 300mm | 330mm | 380mm | 380mm | 500mm |
Die height adjustment | 40mm | 40mm | 40mm | 70mm | 80mm | 80mm | 100mm | 100mm |
Distance between slider center and machine | 130mm | 160mm | 180mm | 215mm | 230mm | 250mm | 280mm | 390mm |
Workbench diameter(mm) | 240x360 | 300x480 | 320x525 | 400x650 | 440x700 | 480x750 | 540x840 | 720x1100 |
Pole distance | 180mm | 220mm | 240mm | 300mm | 300mm | 300mm | 380mm | 550mm |
Shank hole diameter | 30mm | 35mm | 40mm | 50mm | 60mm | 60mm | 60mm | 60mm |
Shank hole depth | 50mm | 60mm | 60mm | 70mm | 70mm | 80mm | 80mm | 75mm |
Pad thickness | 50mm | 50mm | 50mm | 75mm | 80mm | 95mm | 100mm | 130mm |
Body tilting angle | 30° | 20° | 20° | 20° | 20° | 20° | 20° | 13° |
Motor power | 1.5Kw | 1.5KW | 2.2KW | 3KW | 4KW | 7.5KW | 7.5KW | 11Kw |
Weight | 450Kg | 750KG | 1500KG | 2500KG | 4000KG | 5000KG | 6000KG | 7000Kg |
Standard Execution
•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
Company Profile
Our company
Anhui Harting Machinery Technology Co.,Ltd is a modern management enterprise which mainly produce ordinary and numerical control
bending machine, shearing machine, punch machine, three or four rolling machine, combined punching and shearing machine, cutting
edge mold accessories. We have all kinds of mechanical engineer and serves the production and after-sales lines of the company. We
are a professional manufacturer and exporter of air duct equipment, shear plasma laser cutting, punching and shearing machines and
other machine tools in China, with more than 10 years of experience.
We serve customers from all countries in the world, Europe, America, Central and South Asia, the Middle East and other
continents.Our products are widely used in professional production fields such as decoration, metallurgy, shipbuilding,
automobiles, machinery, aviation, etc.
bending machine, shearing machine, punch machine, three or four rolling machine, combined punching and shearing machine, cutting
edge mold accessories. We have all kinds of mechanical engineer and serves the production and after-sales lines of the company. We
are a professional manufacturer and exporter of air duct equipment, shear plasma laser cutting, punching and shearing machines and
other machine tools in China, with more than 10 years of experience.
We serve customers from all countries in the world, Europe, America, Central and South Asia, the Middle East and other
continents.Our products are widely used in professional production fields such as decoration, metallurgy, shipbuilding,
automobiles, machinery, aviation, etc.
Customer Photos
Certifications
Packing & Delivery

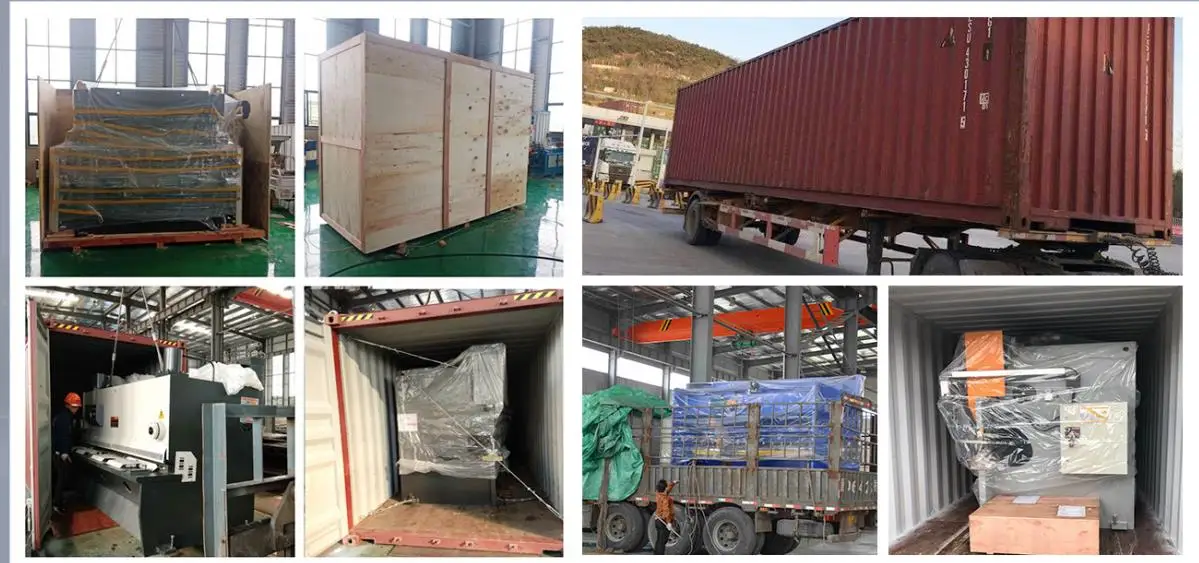

Wooden box for punching machine
