Product Overview
Description

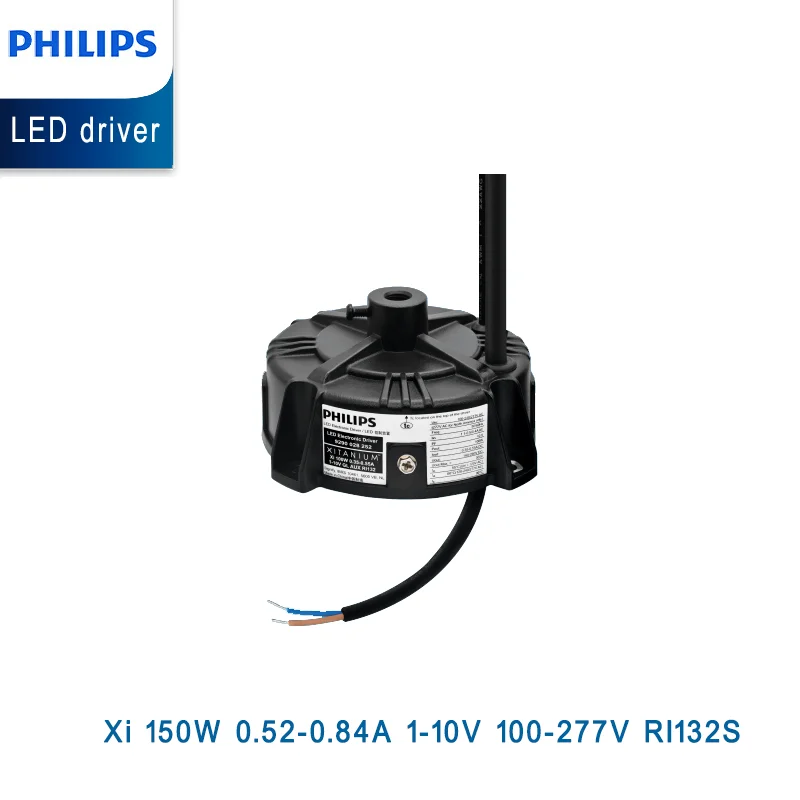

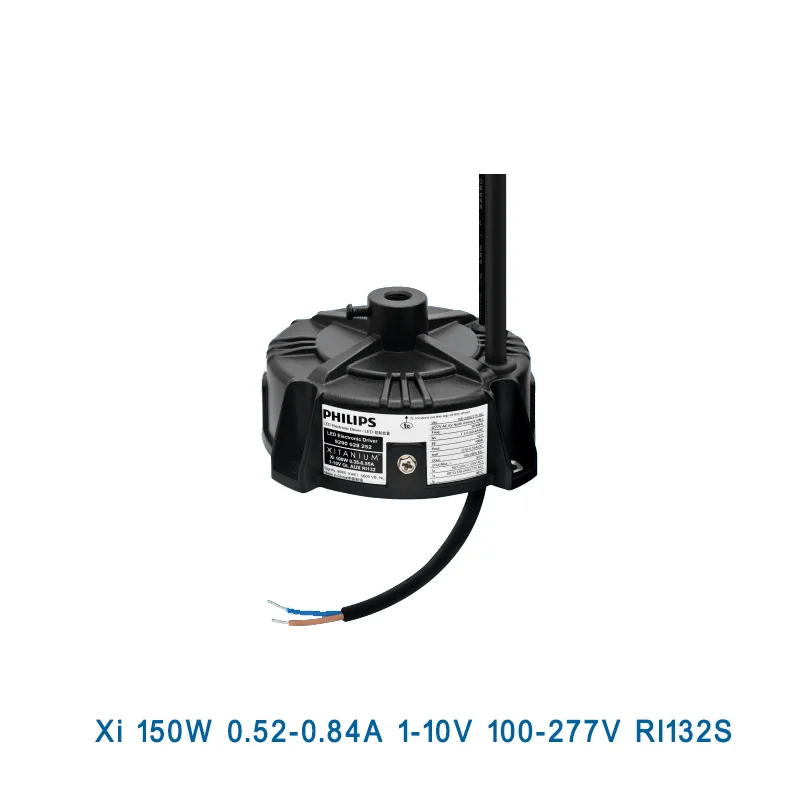

Xitanium High Bay LED Drivers GL Independent
LED-based light sources are an excellent solution for highbay industrial applications.
They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly
reliable and efficient LED Drivers. Philips Xitanium Dimmable (1-10V) LED Outdoor Drivers are specifically designed to deliver
reliable performance and protection while meeting the strict approbation and application requirements.
They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly
reliable and efficient LED Drivers. Philips Xitanium Dimmable (1-10V) LED Outdoor Drivers are specifically designed to deliver
reliable performance and protection while meeting the strict approbation and application requirements.
Benefits
• Able to reliably operate anywhere around the world
• Reliable and robust design, capable of withstanding the harsh industrial operating conditions
• Wide flexibility by adjusting light output and output current
• Extremely long lifetime, fitting
with high bay industrial applications
• Peace of mind. Backed by a 5-year warranty from a company you can trust
Features
• 100-277V (Global) versions
• Independent/IP65 rated
• Adjustable output current
• Dimmable through 1-10V interface
•High ambient temperature rating
• Approbations: CE, ENEC, CB, CCC, UL • 50,000 hours lifetime
Application
• Highbay industrial lighting
• Warehouse lighting
• Big-box retail store lighting

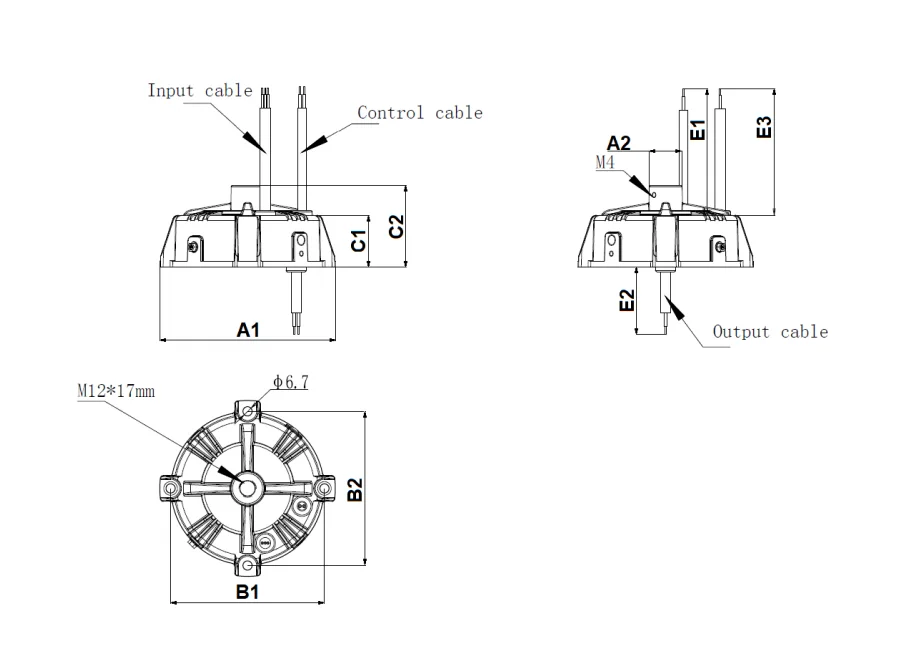

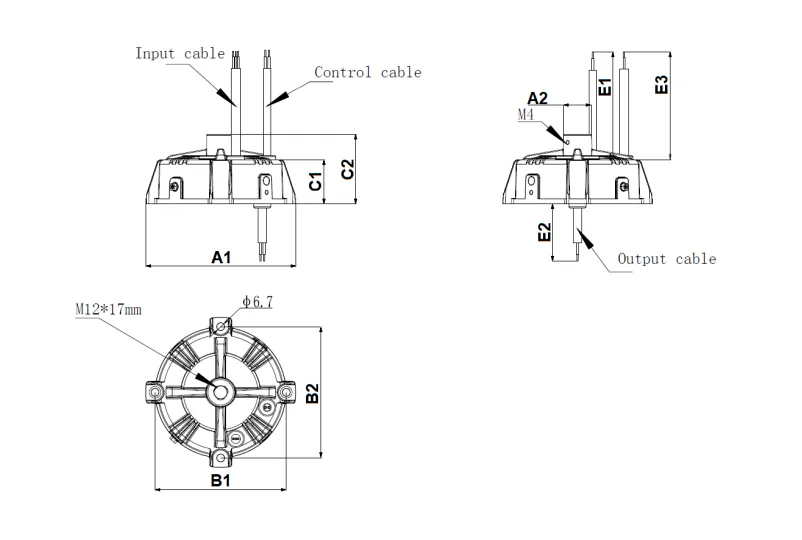

order code | full product name | A1 | B1 | C2 |

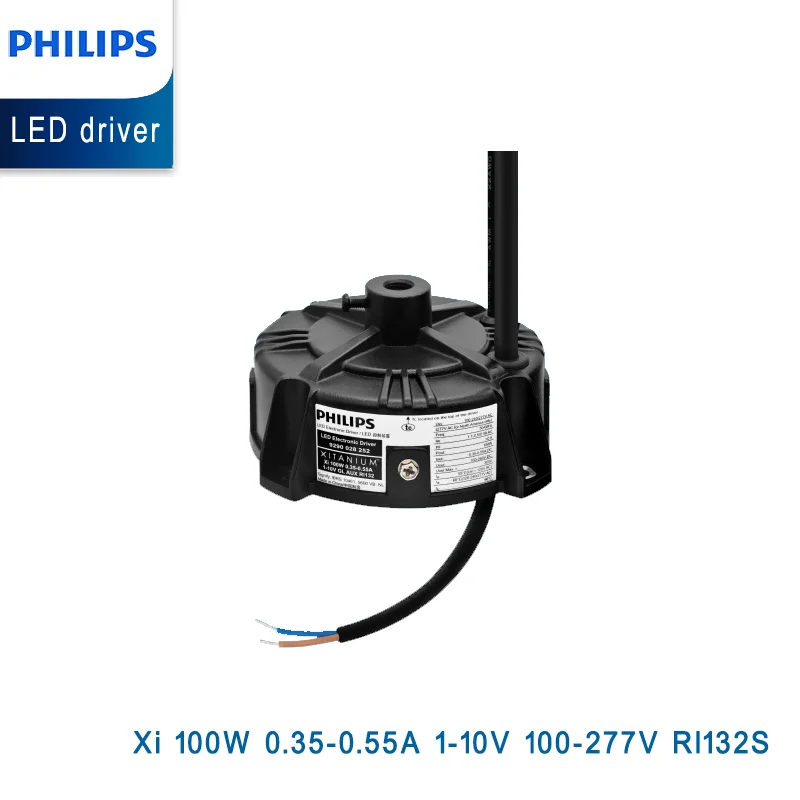

929002815380 | Xi 100W 0.35-0.55A 1-10V 100-277V RI132S | 129mm | 113mm | 60mm |
929002815480 | Xi 150W 0.52-0.84A 1-10V 100-277V RI132S | 129mm | 113mm | 60mm |
929002815580 | Xi 200W 0.66-1.10A 1-10V 100-277V RI132S | 132mm | 113mm | 66mm |
929002825580 | Xi 100W 0.35-0.55A 1-10V GL AUX RI132S | 129mm | 113mm | 60mm |
929002825680 | Xi 150W 0.52-0.84A 1-10V GL AUX RI132S | 129mm | 113mm | 60mm |
929002825780 | Xi 200W 0.66-1.10A 1-10V GL AUX RI132S | 132mm | 113mm | 66mm |
Specification item | Value | Unit | Condition |
Rated input voltage range | 100...277 | Vac | Performance range |
Rated input voltage | 230 | Vac | |
Rated input frequency range | 50...60 | Hz | Performance range |
Power factor | 0.95 | @ rated output power @ rated input voltage | |
Total harmonic distortion | 10 | % | @ rated output power @ rated input voltage |
Input voltage AC range | 85...305 | Vac | Operational range |
Input frequency AC rang | 47.5-63 | Hz | Operational range |
Regulation method Constant | Current | ||
Output voltage | 160...260 | Vdc | |
Output voltage max. | 300 | V | Maximum output voltage (rms) |
Output current tolerance | ± 5 | % | |
Output current ripple LF | ≤ 5 | % | Ripple = peak / average, < 3kHz |
Output current ripple HF | ≤ 5 | % | |
Control method | 1-10V | ||
Dimming range | 10...100 | % | 1-9V |
Isolation controls input to output | Reinforced acc. | IEC61347-1 | |
Ambient temperature | -40...+60 | ºC | Higher ambient temperature allowed as long as Tcase-max is not exceeded |
Tcase-max | 80 | ºC | Maximum temperature measured at Tcase-point |
Tcase-life | 70 | ºC | Measured at Tcase-point |
Maximum housing temperature | 110 | ºC | In case of a failure, inherent by design |
Relative humidity | 10...90 | % | Non-condensing |
Driver lifetime | 50,000 | hours | Measured temperature at Tcase-point is Tcase-max. Maximum failures = 10% |
Ambient temperature | -40...+85 | ºC | |
Relative humidity | 5...95 | % | Non-condensing |
Approval marks | CB / CCC / CE / ENEC / RCM / RU | ||
Ingress Protection classification (IP) | 65 | ||
Mains surge immunity (diff. mode) | 6 | kV | Acc. IEC61000-4-5. 2 Ohm, 1.2/50us, 8/20us |
Mains surge immunity (comm. mode) | 6 | kV | Acc. IEC61000-4-5. 12 Ohm, 1.2/50us, 8/20us |
