Product Overview
Description
All-in-One Controllerr
Product Features

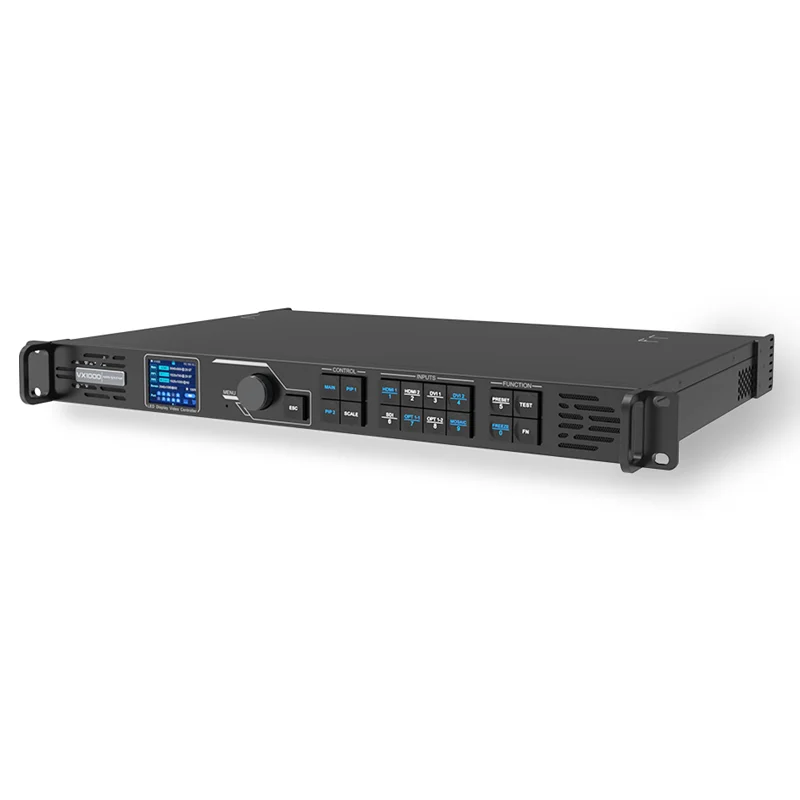

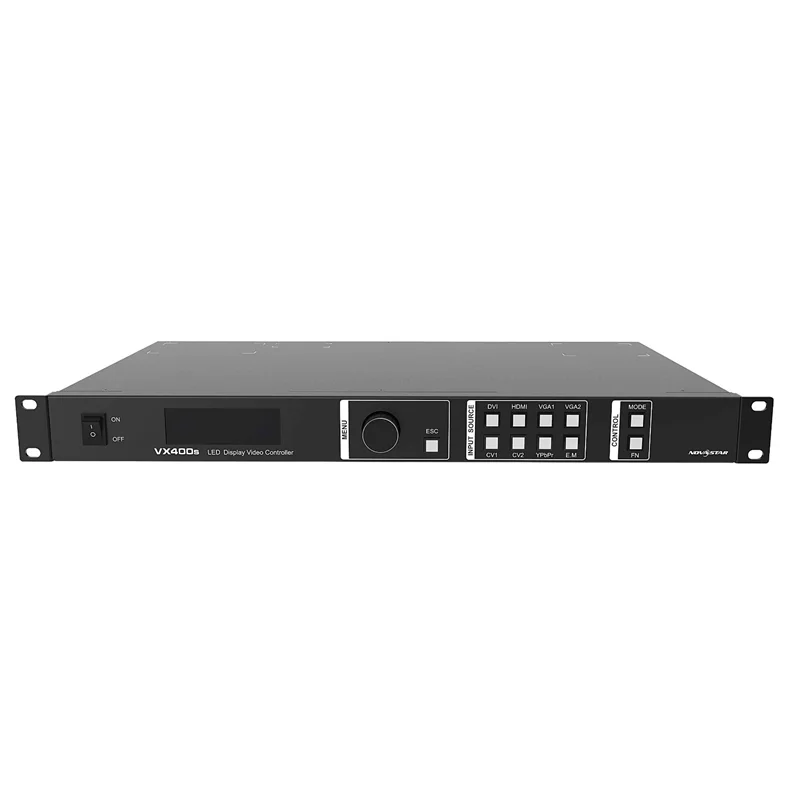

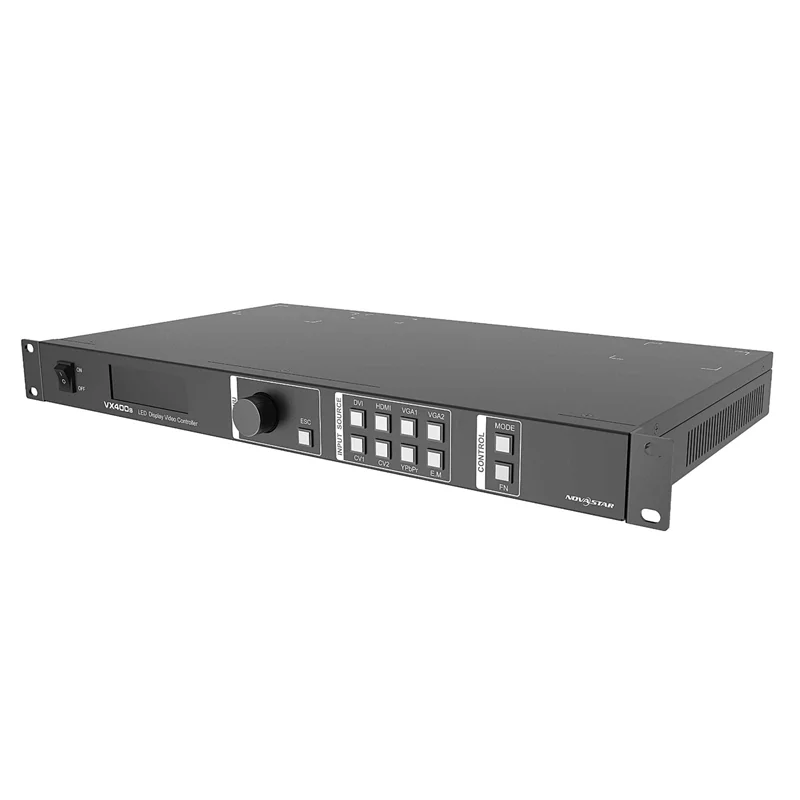

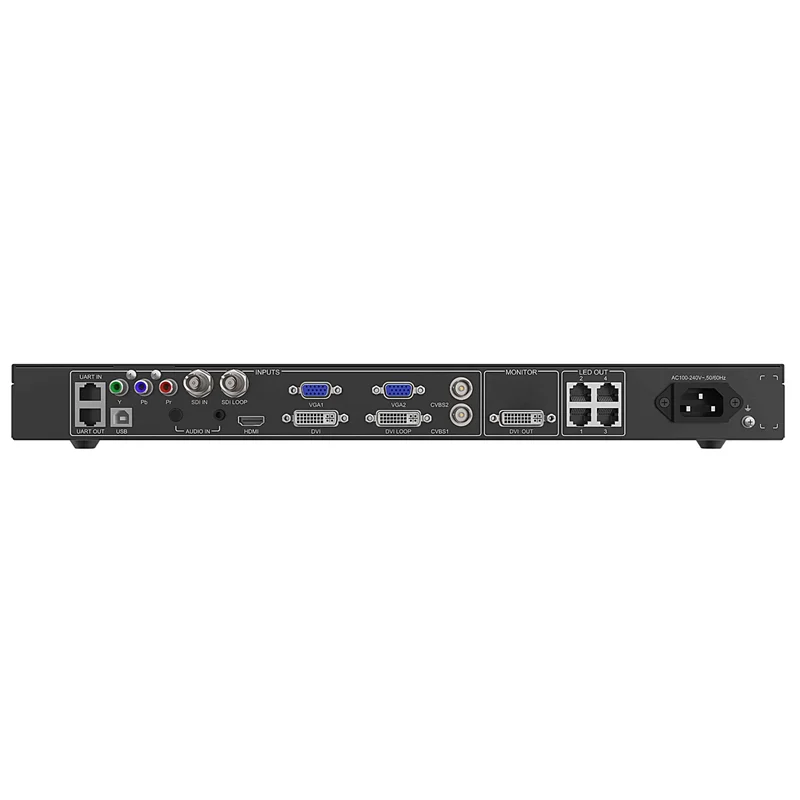

The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4
Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX400 unit can drive up to 2.6 million
pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide
and ultra-high LED screens. The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In
addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to
present you with an excellent image display experience. What's more, the VX400 can work with NovaStar's supreme software NovaLCT
and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings,
layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and
other outstanding features, the VX400 can be widely used in applications such as medium and high-end rental, stage control systems
and fine-pitch LED screens
Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX400 unit can drive up to 2.6 million
pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide
and ultra-high LED screens. The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In
addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to
present you with an excellent image display experience. What's more, the VX400 can work with NovaStar's supreme software NovaLCT
and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings,
layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and
other outstanding features, the VX400 can be widely used in applications such as medium and high-end rental, stage control systems
and fine-pitch LED screens
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6
Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million
pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide
and ultra-high LED screens. The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In
addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to
present you with an excellent image display experience. What's more, the VX600 can work with NovaStar's supreme software NovaLCT
and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings,
layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and
other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems
and fine-pitch LED screens.
Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million
pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide
and ultra-high LED screens. The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In
addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to
present you with an excellent image display experience. What's more, the VX600 can work with NovaStar's supreme software NovaLCT
and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings,
layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and
other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems
and fine-pitch LED screens.

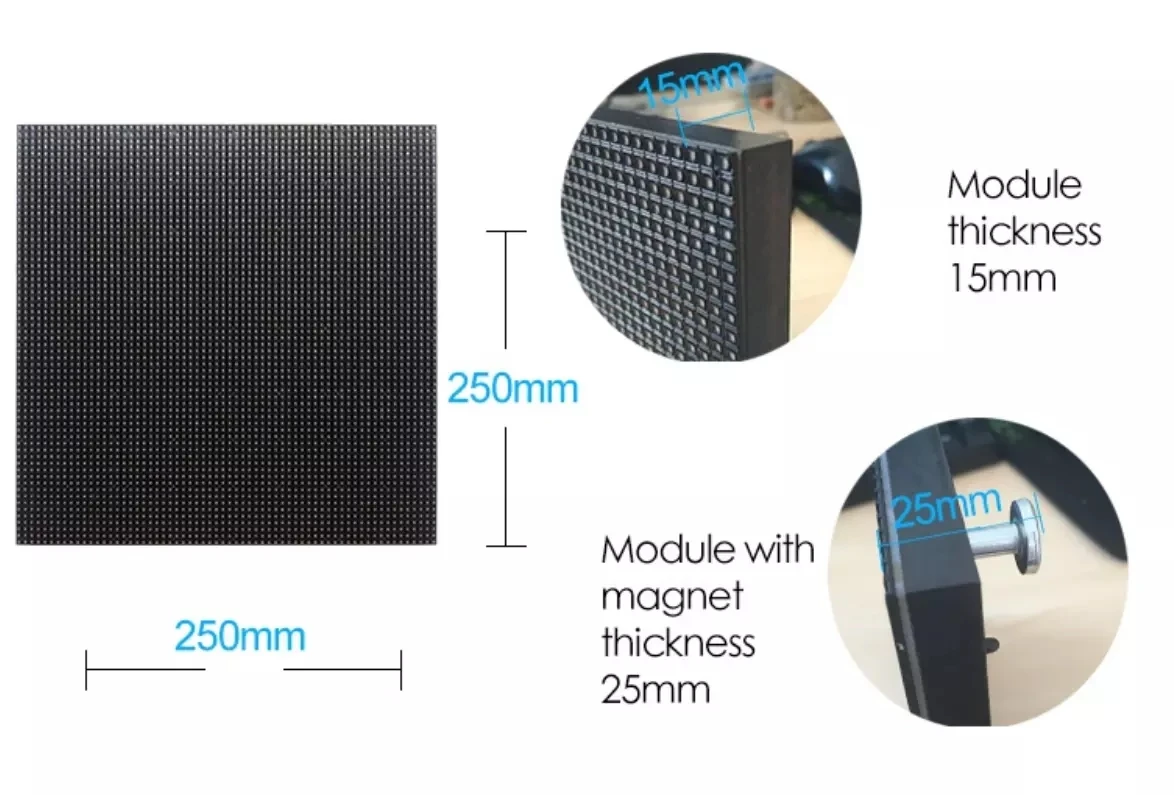

Item | P2.5 | P3 | P3.91 | P5 | P6 | P8 | P10 | ||||||
Pixel pitch | 2.5mm | 3mm | 3.91mm | 5mm | 6mm | 8mm | 10mm | ||||||

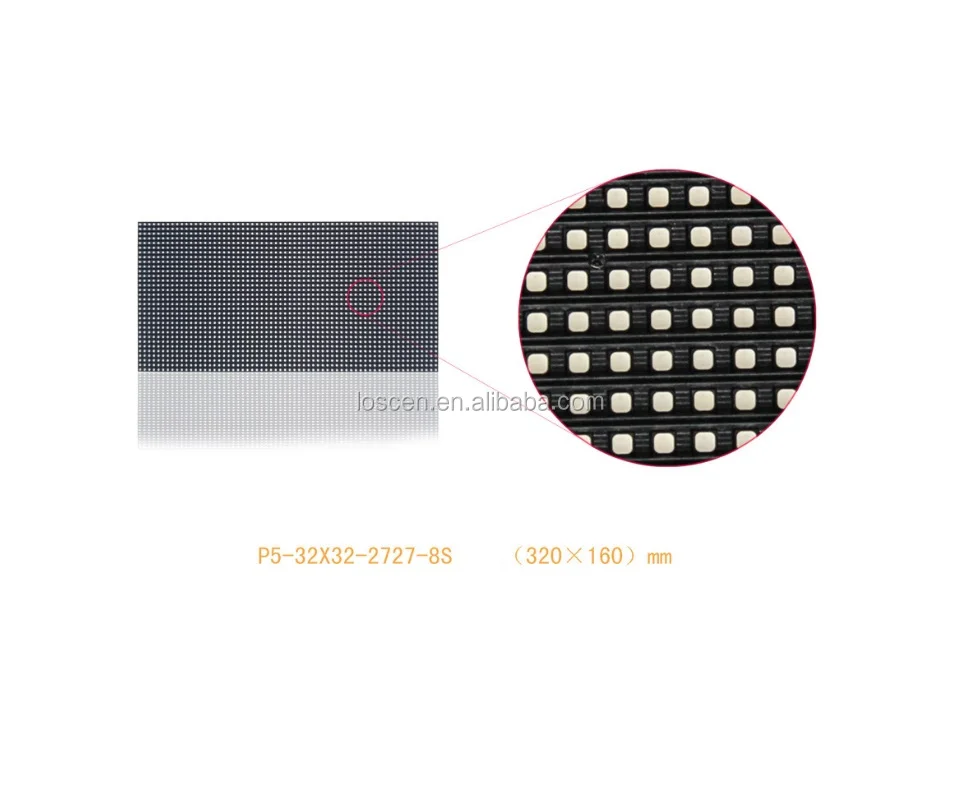

Module size (mm) | 320*160 | 192*192 | 250*250 | 320*160 | 192*192 | 320*160 | 320*160 | ||||||
Module resolution (dots) | 128*64 | 64*64 | 64*64 | 64*32 | 32*32 | 32*16 | 32*16 | ||||||
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | ||||||
Pixel density (dots/m²) | 160000 | 111111 | 65536 | 40000 | 27777 | 15625 | 10000 | ||||||
LED type | SMD1415 | SMD1919 | SMD2121 | SMD2525 | SMD3535 | SMD3535 | SMD3535 | ||||||
Scan mode | 1/16 | 1/16 | 1/16 | 1/8 | 1/8 | 1/5 | 1/2 | ||||||
Refresh rate | 1920Hz | 1920Hz | 1920Hz-3840Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz | ||||||
Cabinet size (mm) | 640*640 | 576*576 | 500*500 | 960*960 | 576*576 | 960*960 | 960*960 | ||||||
Cabinet resolution(dots) | 256*256 | 192*192 | 128*128 | 192*192 | 96*96 | 96*96 | 96*96 | ||||||
Best viewing distance | ≥2.5m | ≥3m | ≥3.91m | ≥5m | ≥6m | ≥8m | ≥10m | ||||||
Power consumption (Avg./Max.) | 400W/1000W | 300W/800W | 300W/800W | 320W/780 | 320/780 | 320/780 | 320/780 | ||||||
Viewing angle (H/V) | 140°/140° | ||||||||||||
Storage temperature | -35℃~+85℃ | ||||||||||||
Working temperature | -20℃-+50℃ | ||||||||||||
Working voltage | AC110/220V±10% | ||||||||||||
MTBF | >5000 Hours | ||||||||||||

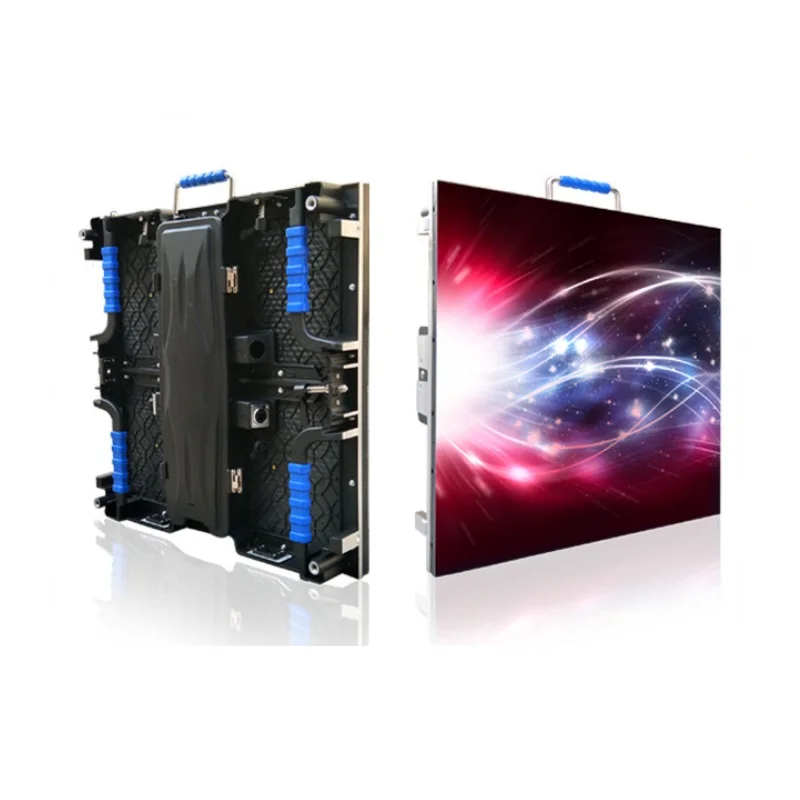

1. Indoor or Outdoor rear service waterproof iron cabinet
2. Cabinet size: 500*500mm and 500*1000mm.
3. Material: die cast aluminum
4. Thickness: 65-85mm
3. Material: die cast aluminum
4. Thickness: 65-85mm
Product details:

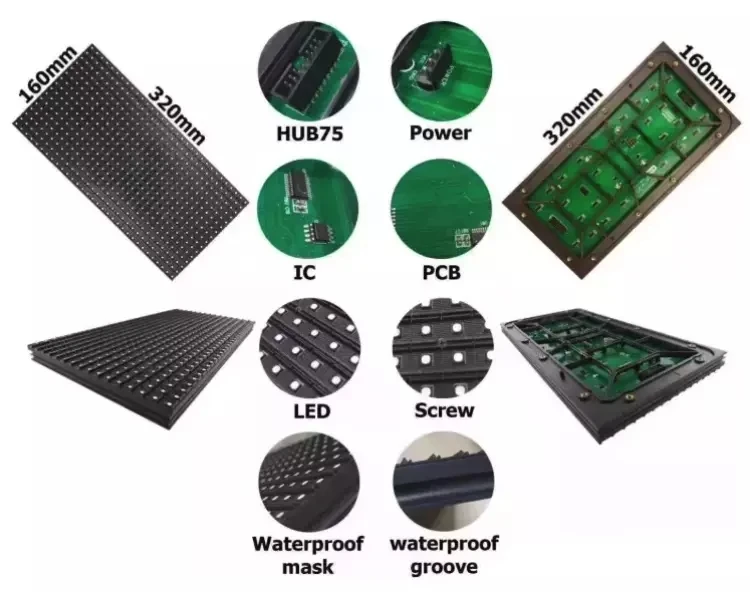

Physical Picture
