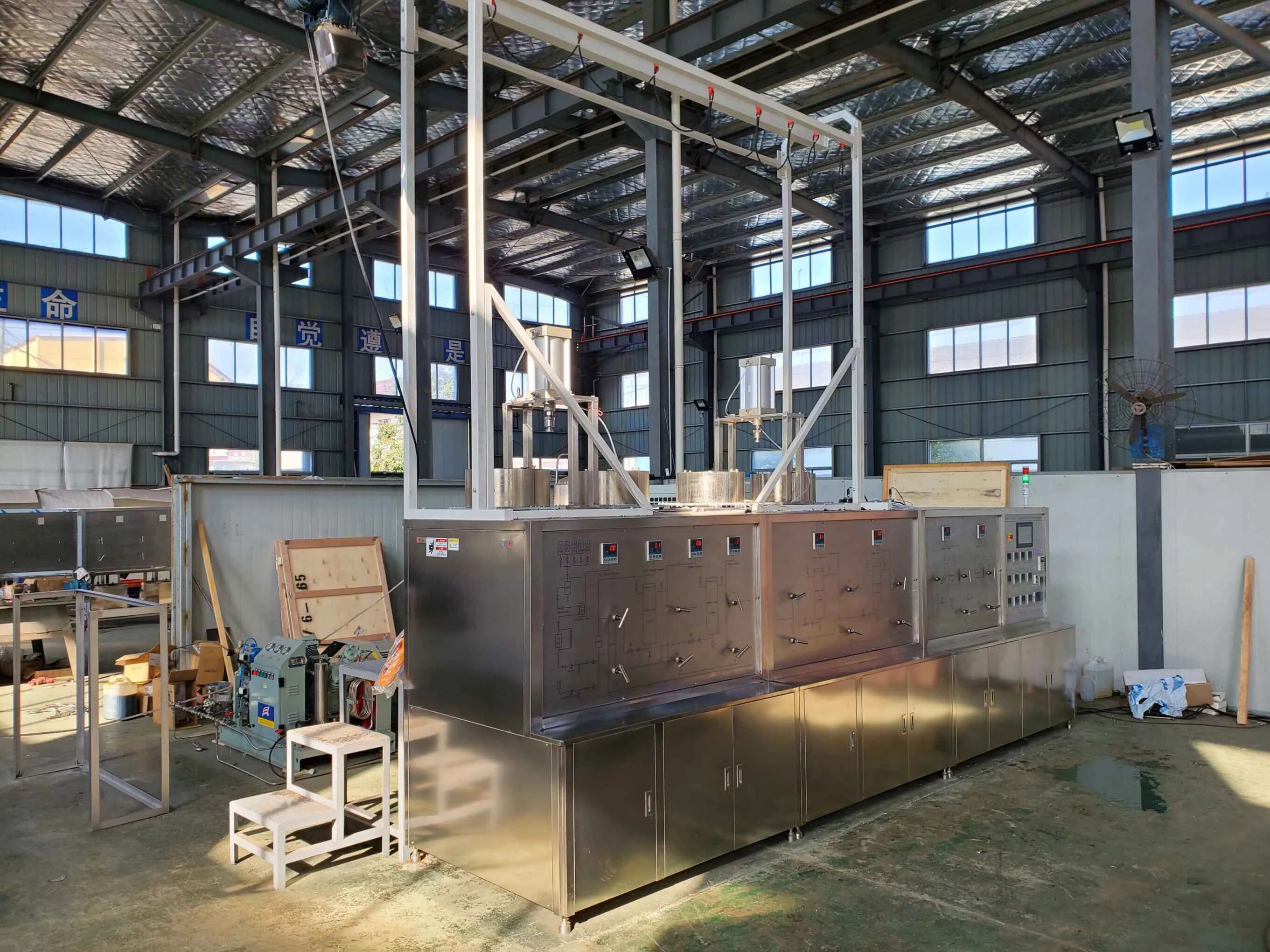

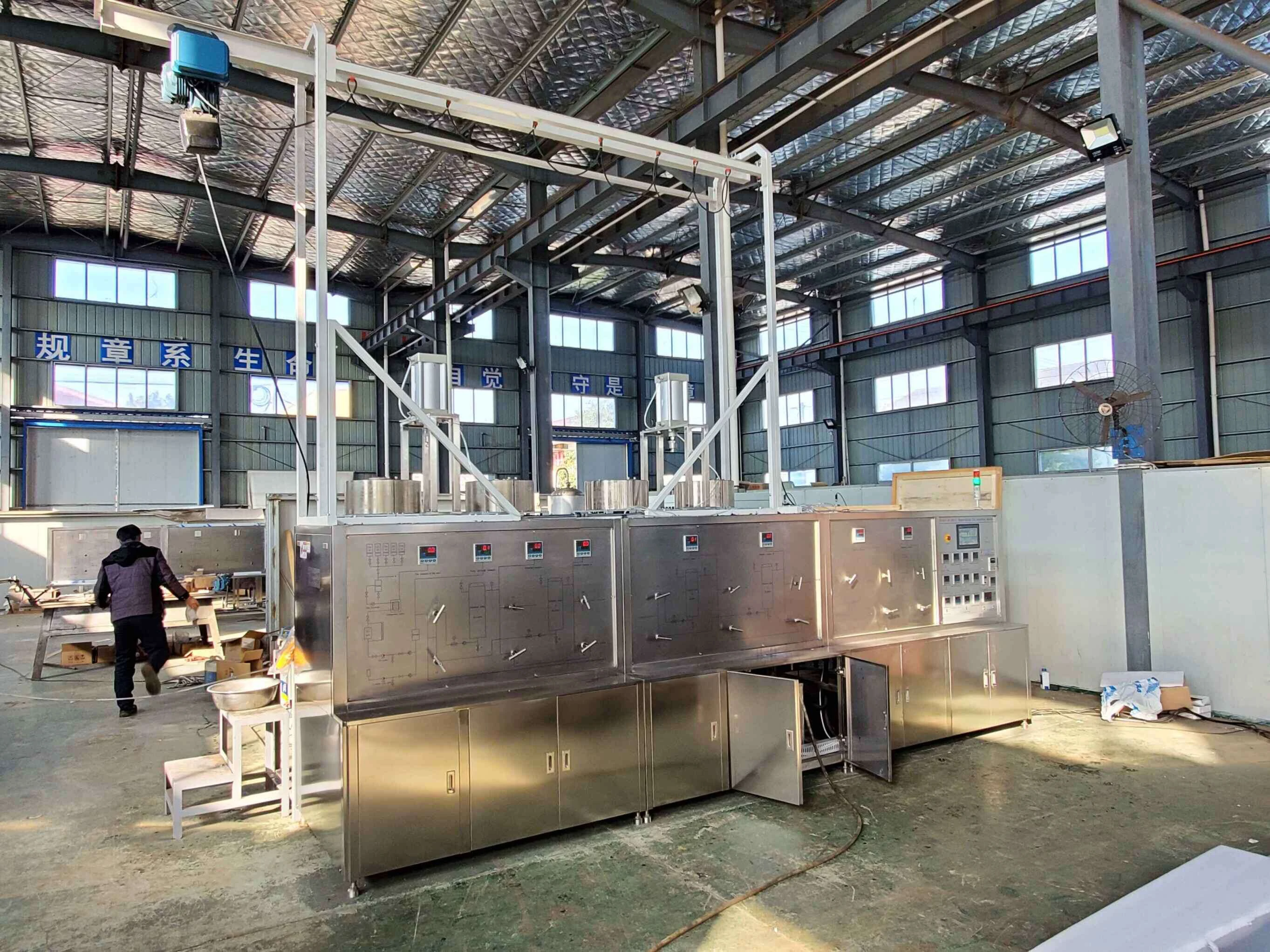

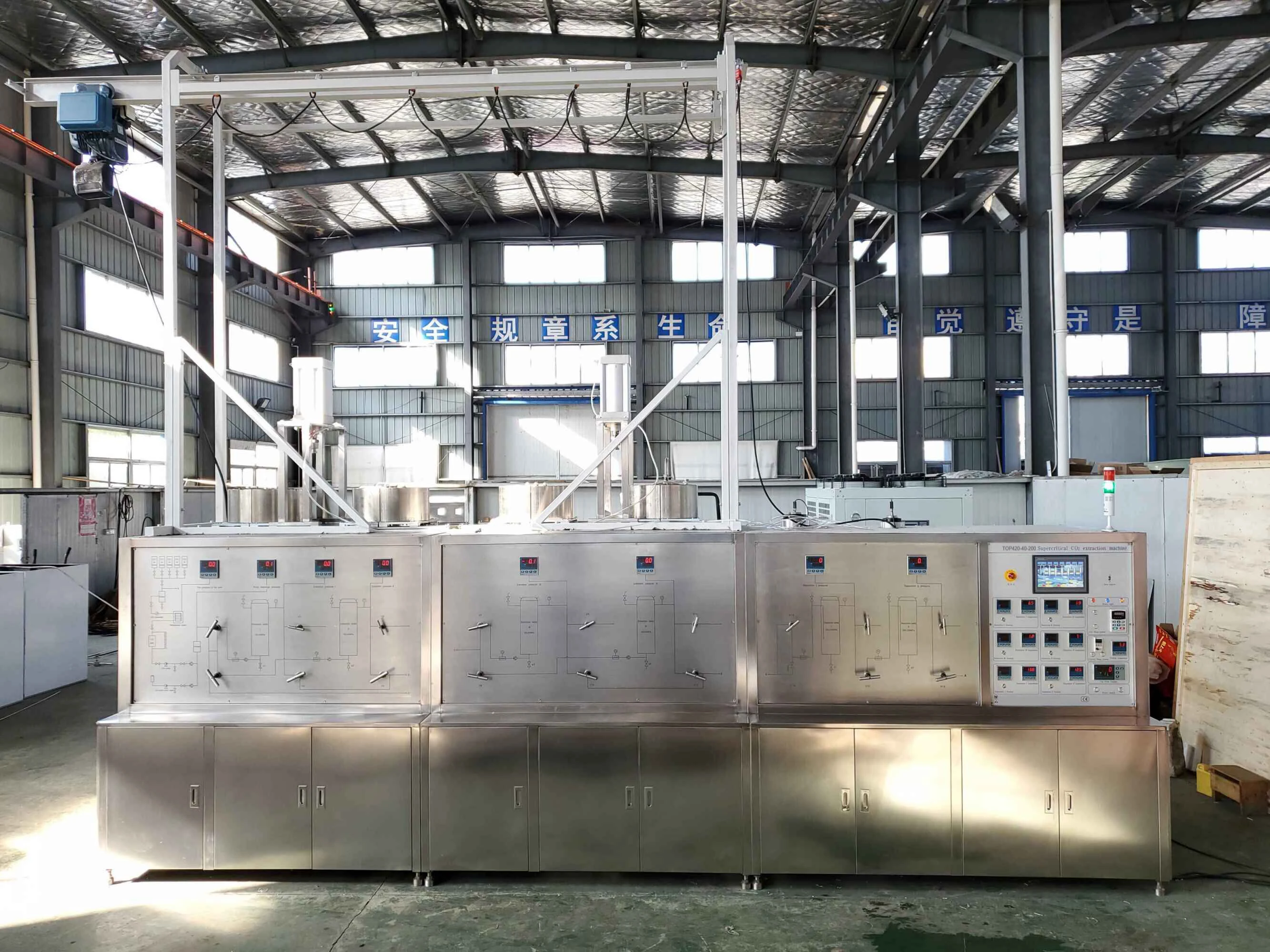

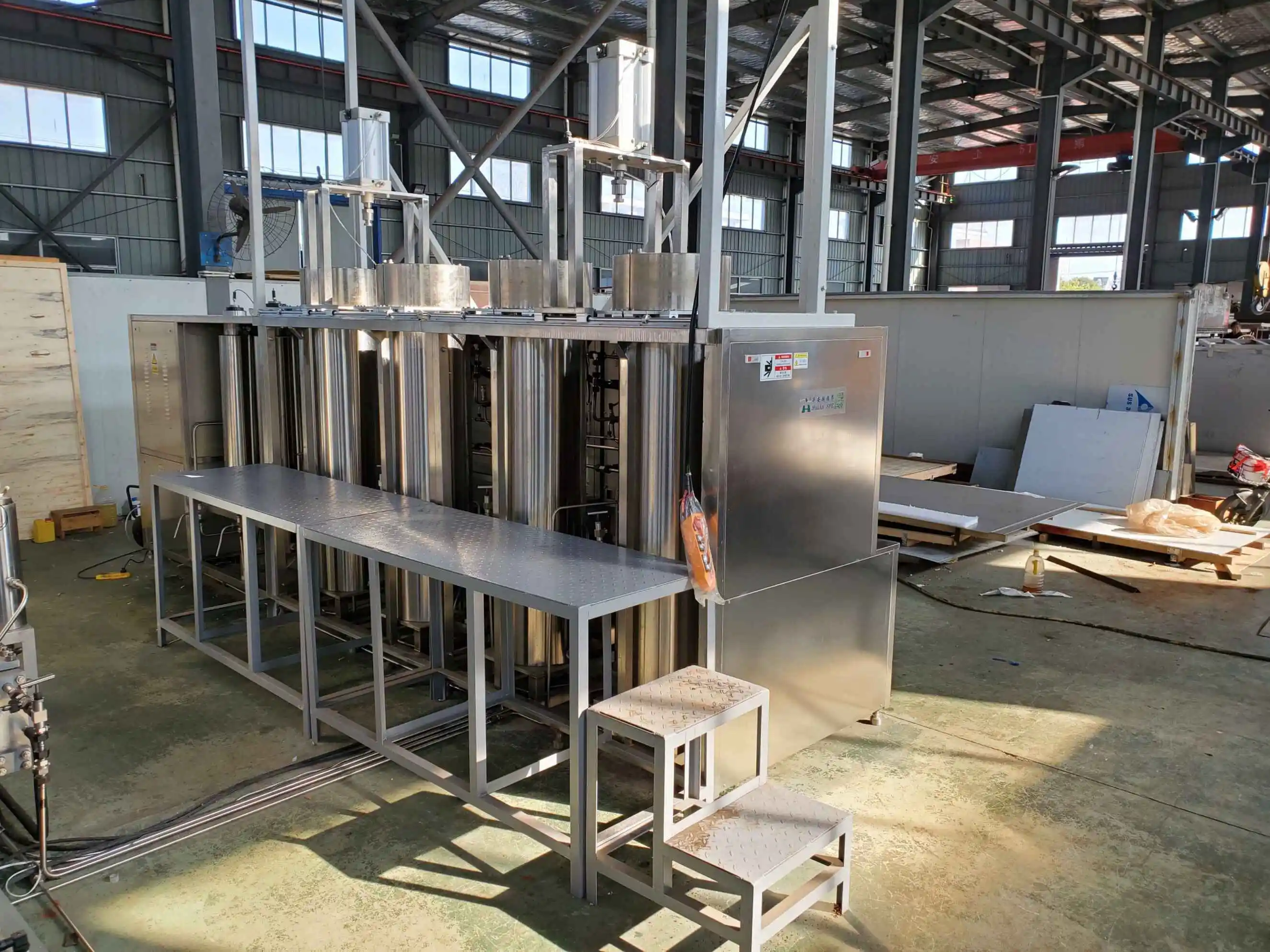

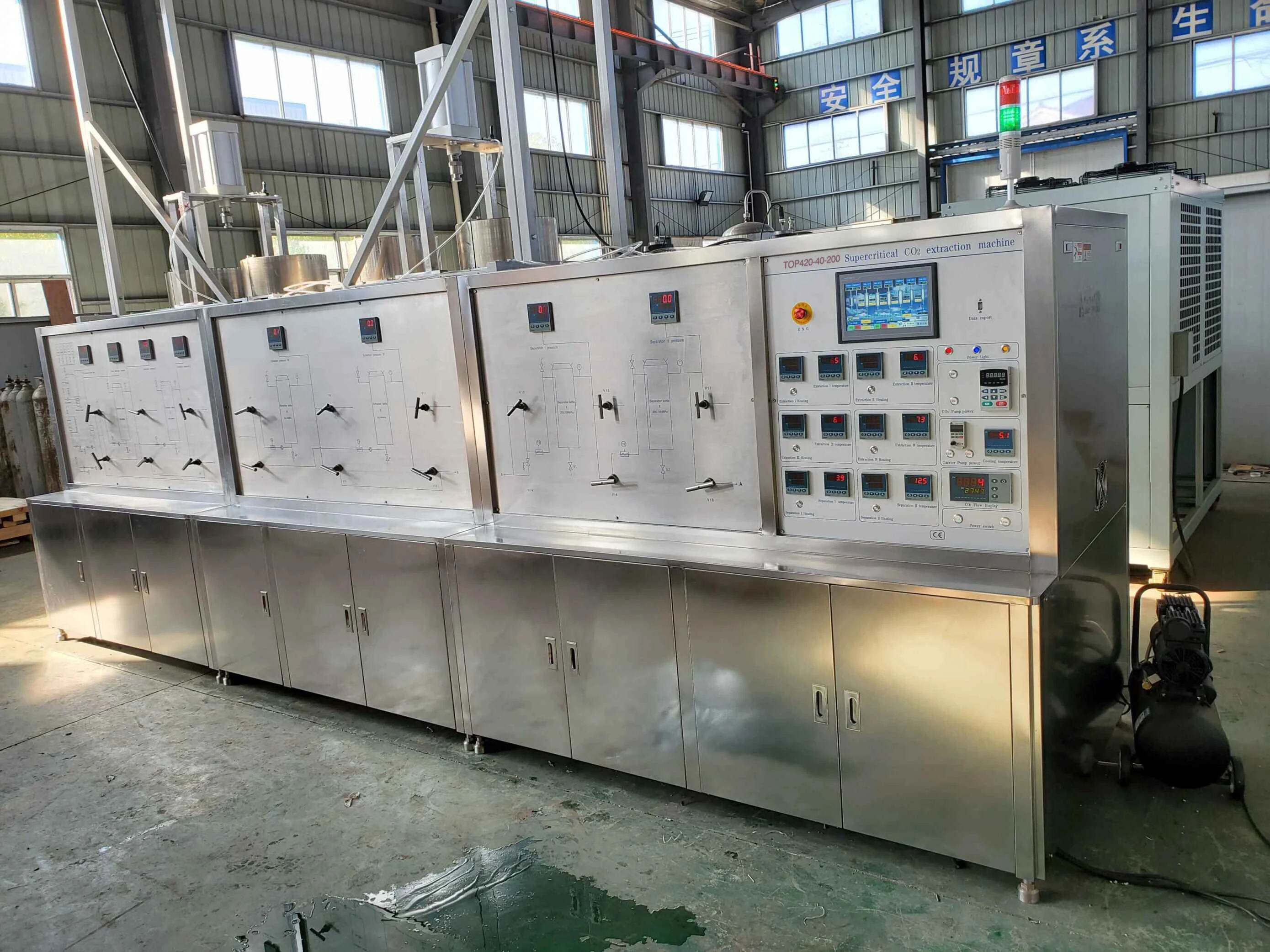

cbd oil co2 extract plant super critical mass extractor

Introduction of Supercritical Co2 extraction machine:

TOPTION this type supercritical extraction device is workable for high pressure and suitable temperature extraction material (solid & liquid), in separator change conditions to make the solvable material resolve the target product during extraction and separation.

The whole system including extractor, separator, CO₂ high pressure pump, Co-solvent pump, Cooling system, heat exchange system, CO₂ storage tank, liquid level meter, purifying filter system, flow meter, temperature control system, security protection system, etc. All the main machinery and auxiliary equipment could satisfy supercritical extraction system and technical process requirement.

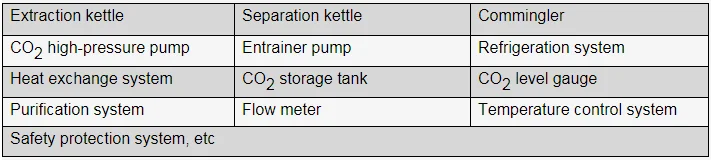

Supercritical CO₂ extraction equipment includes several parts:

The supercritical CO₂ extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with high boiling point. Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products, foodstuff and medicines.

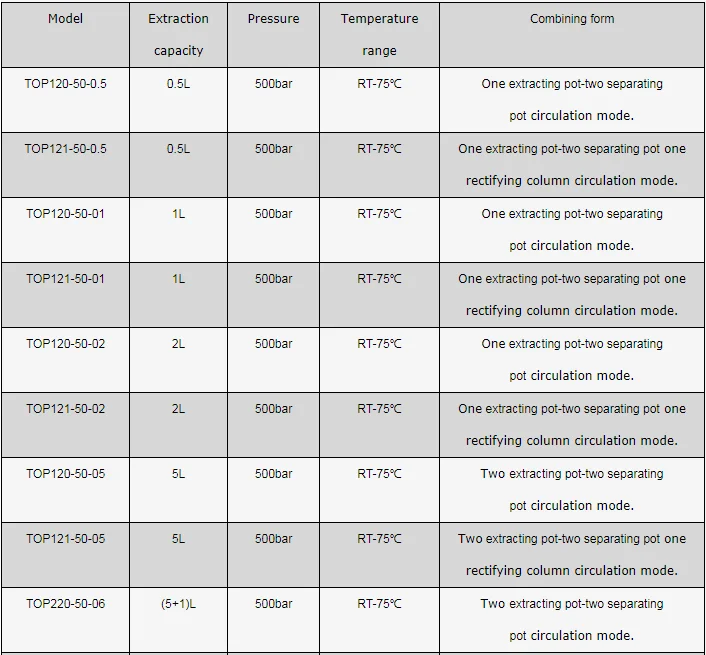

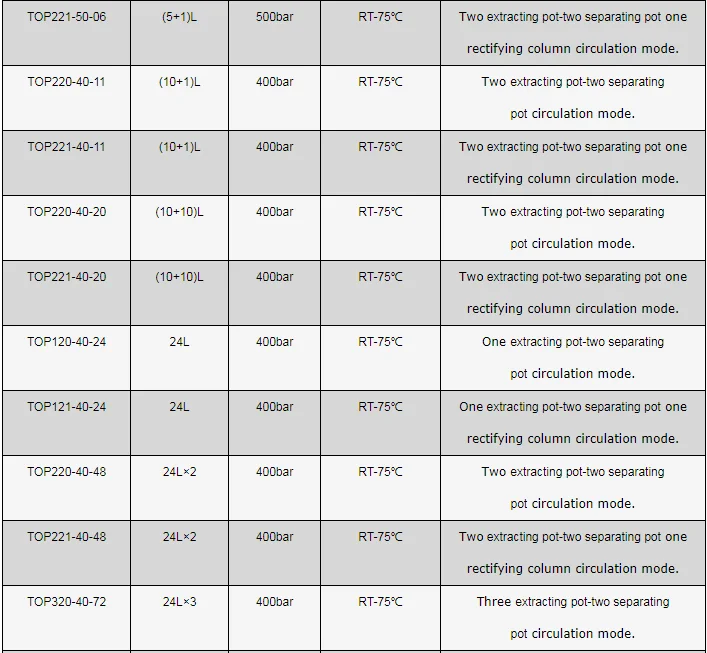

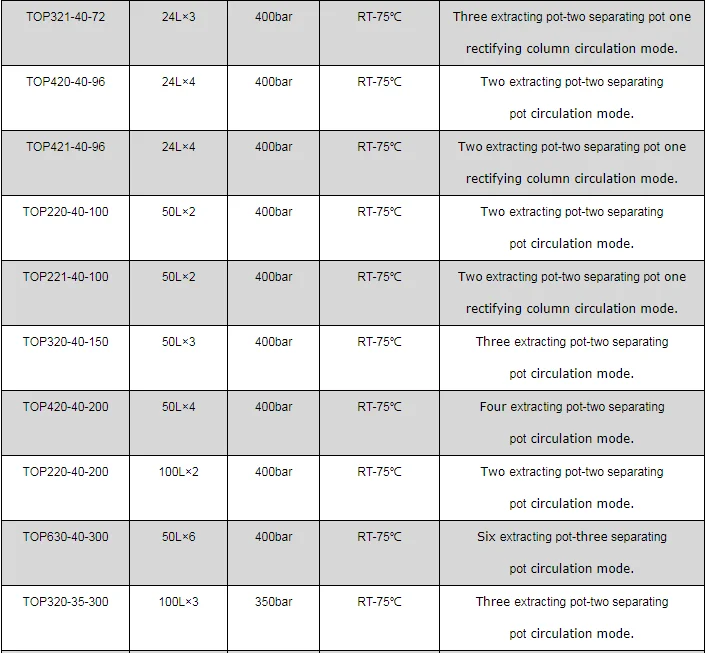

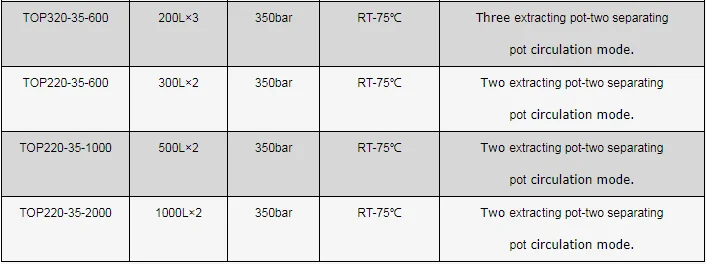

Specification of of Supercritical Co2 extraction machine:

Main feafures of Supercritical Co2 extraction machine:

1) Intermittent or continuous work,co-solvent can be added if request.

2) CO₂ can be recovered and reused.

3) Pressure and temperature can be designed according to demand.

4) Can custom made into PLC or computer control.

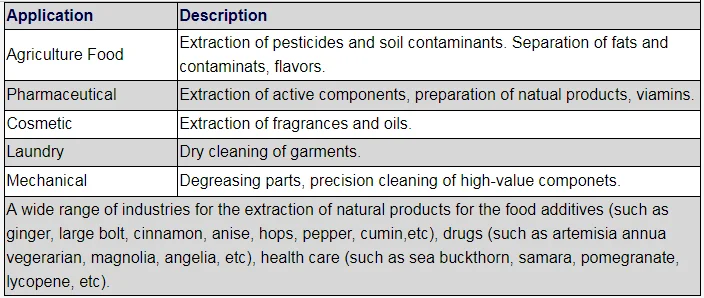

Application of Supercritical Co2 extraction machine:

Please note:
1) Standard configuration: PID digital display and the PID control module, pressure regulation: manual back pressure valve adjustment.

2) Can be combined and customized according to user's special process requirement.

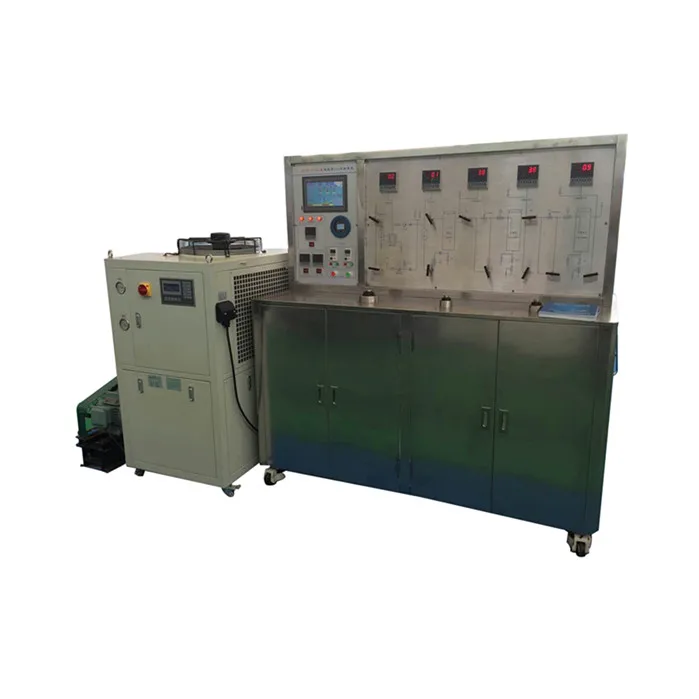

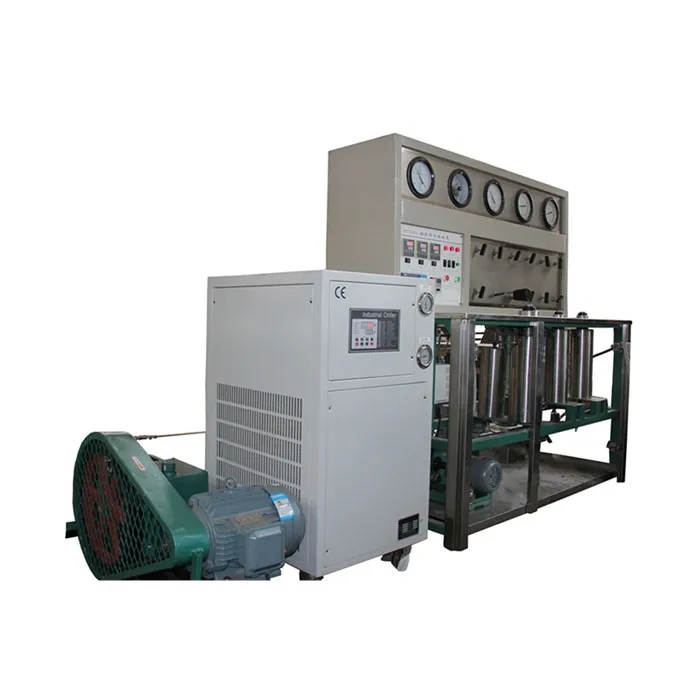

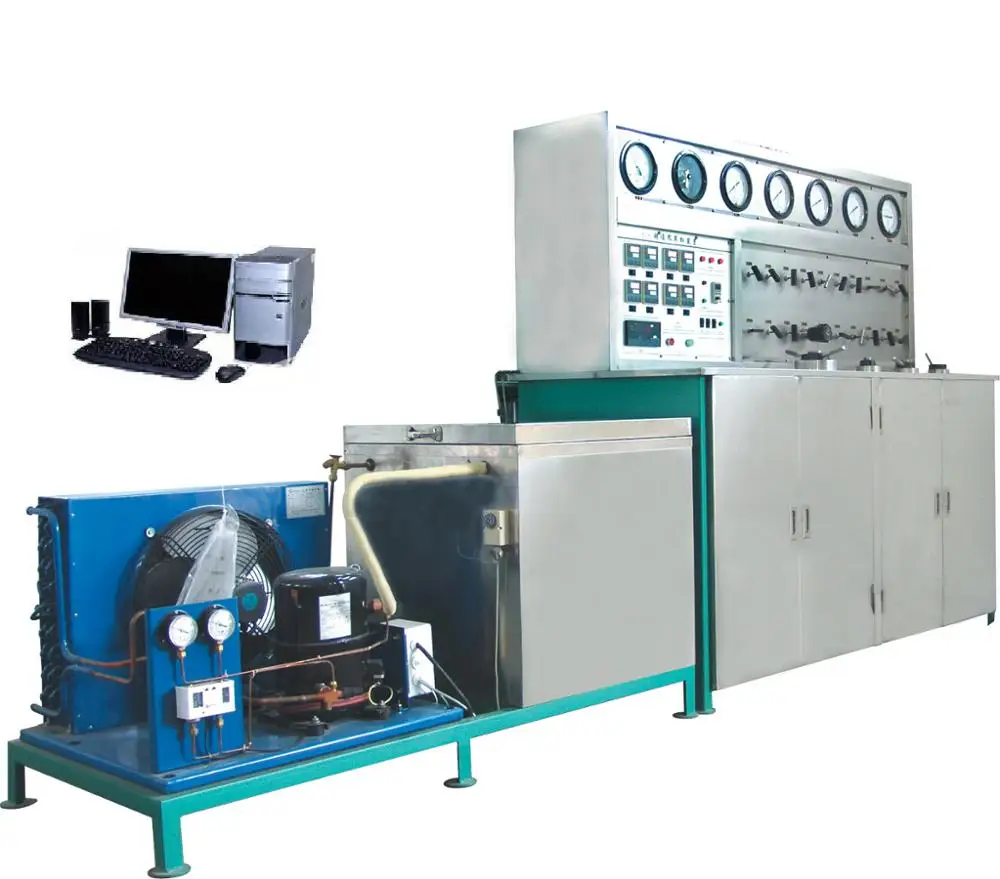

Other Supercritical Co2 extraction machine:

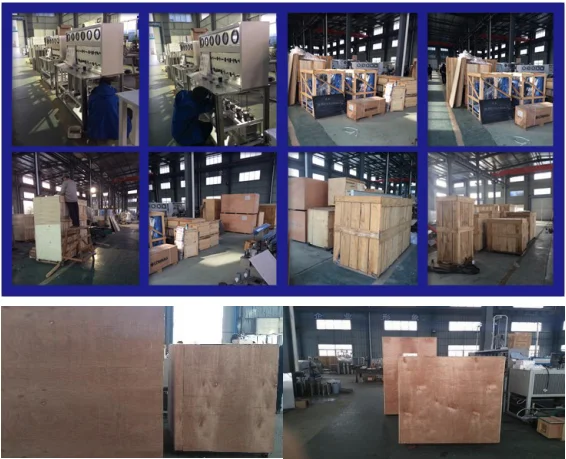

 Packaging

-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

1) Q: What specifications do we offer?

A: We supply 0.5L~1500L machine for you, big capacity of machine also can be customized according to your requests.

2) Q: Does the CO2 can be reused?

A: YES. CO2 can be used in circulation.

3) Q: How long does it takes to produce the machine once place my order ?

A: Generally it takes about 60 workdays. We are responsible for the quality of machine our customers. Every procedure and detail has to be inspected strictly.

4) Q: How will my order be packed, can you provide the installation service?

A: Plywood case and wooden case. And we will assemble and test the machine before packing. If customer need, we will send one engineer for assembling and training for workers.
