2000BPH alcohol filling machine with 50ml 100ml mini liquor glass bottles bottling machine vodka whiskey

Product Overview

Description





2000BPH alcohol filling machine with 50ml 100ml mini liquor glass bottles bottling machine vodka whiskey



Application

This is liquid filling machines is widely used in liquid filling such as liquor,whisky,gin ,vodka,and other liquid industries. It is filled with high-precision metering pump and is suitable for different materials and different bottles.The structure of the machine is simple and reasonable, easy to operate, dust cover can optional .



Features:

1 All electrical control is in accordance with international standards, the main components are imported components, frequency control, and the running speed is continuously adjustable.

2.  filling volume used intellent control , screen touch can writing filling capacity then our filling machine can filling it , difference bottle capacity ,you can set different filling volume ,

it's very easy to operation not change parts .

3. Special anti-drip filling head, better anti-drip effect and accurate loading.

4. no bottle no filling, no spray nozzles , no bottle no capping and no bottle shutdown.

5. The filling head is deep into the bottle at 2/3, while rising and filling, to prevent liquid impact bubble.

6.overload protection and alarm prompt function, more safe and reliable.

7. The whole system is controlled by PLC. The color touch screen make the operation simpler.

8. The most part of the machine is made from SS304. For special material which is able to reach the GMP standard.

9. whole equipment we use explosion-proof device.these must have a lock system for protection of operator. If the operator opens the safeguards, the machine must stop immediately.

Main Technical Parameters:

Filling Heads	2
Capping head	2
Filling Volume	20 ml
Filling Speed	60 bottles per minute
Bottle Size	D36.2mm H98mm
Air Pressure	0.6-0.8mpa
Power Supply	AC220V; 50HZ 1 phase
Power	1.5KW
Weight	about 500KG
Machine Size	About 2000*1200*1800mm (L*W*H)

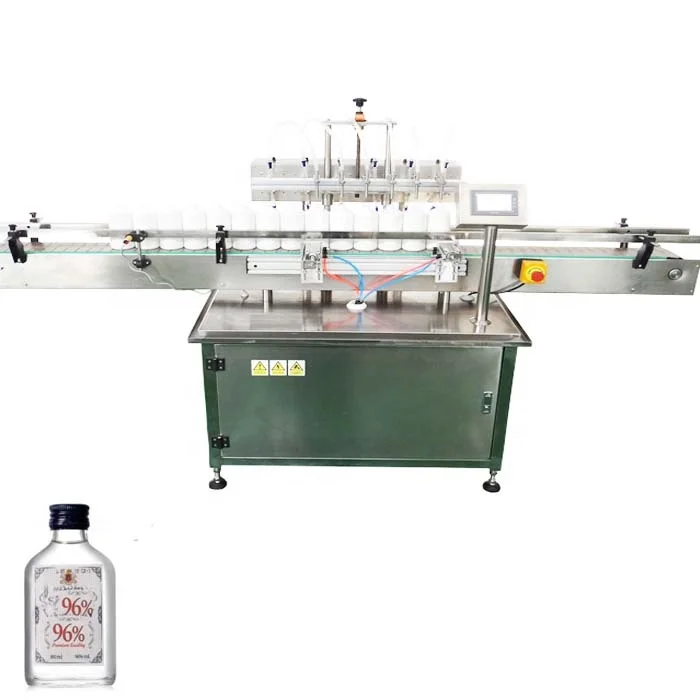

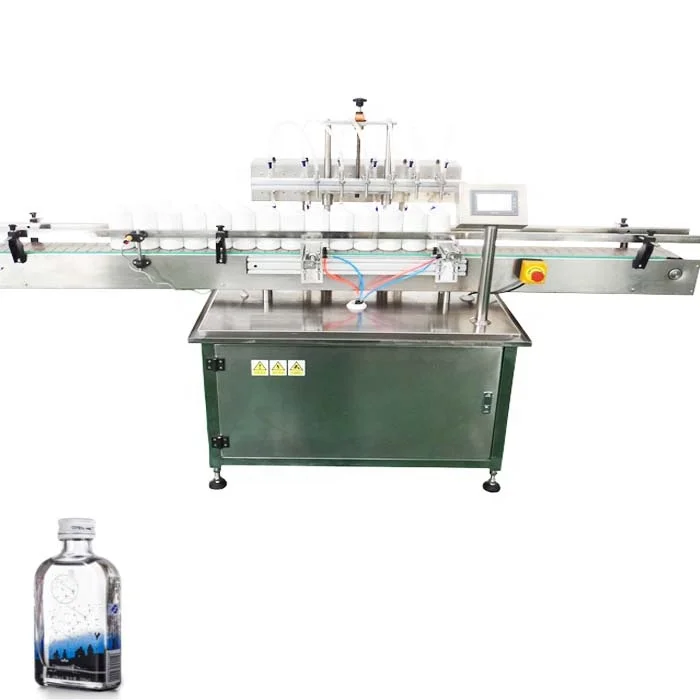

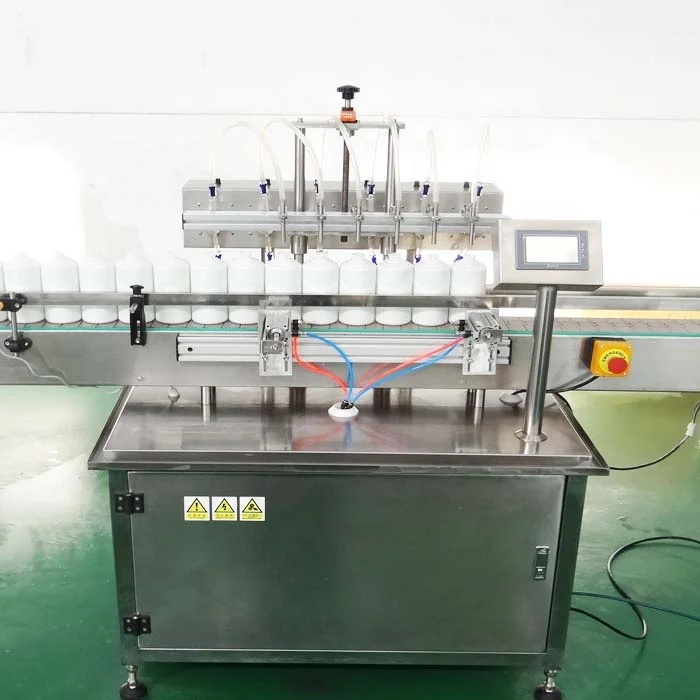

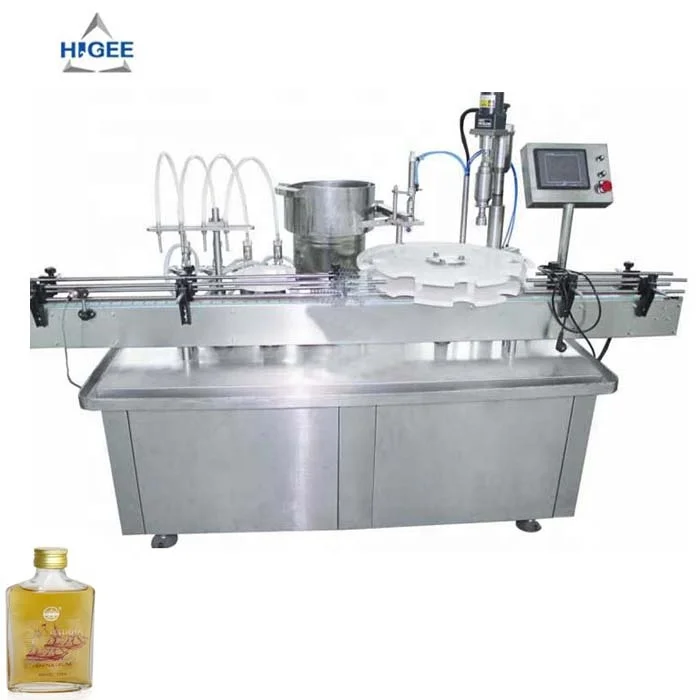

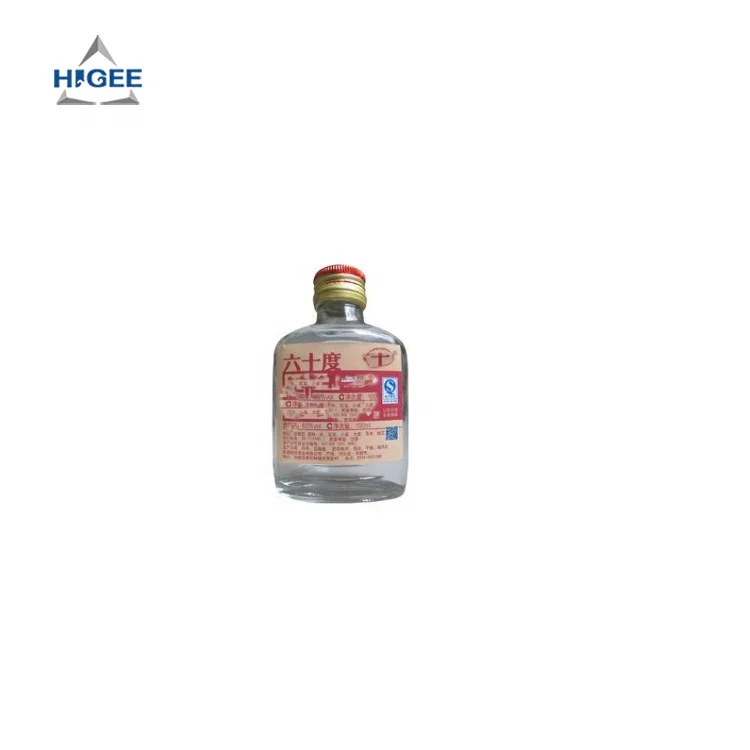

 Machine pictures:
