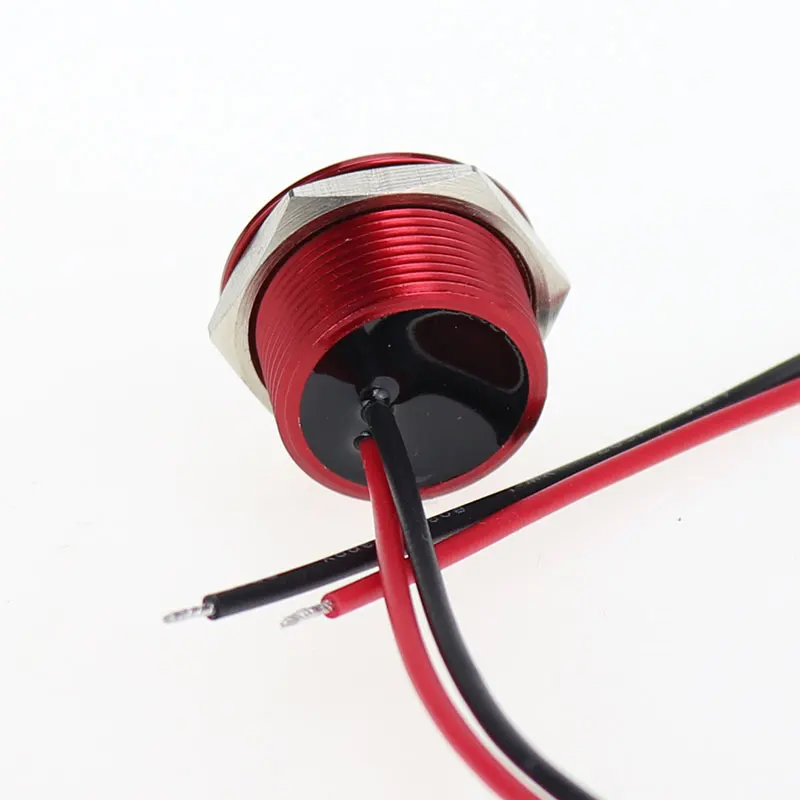

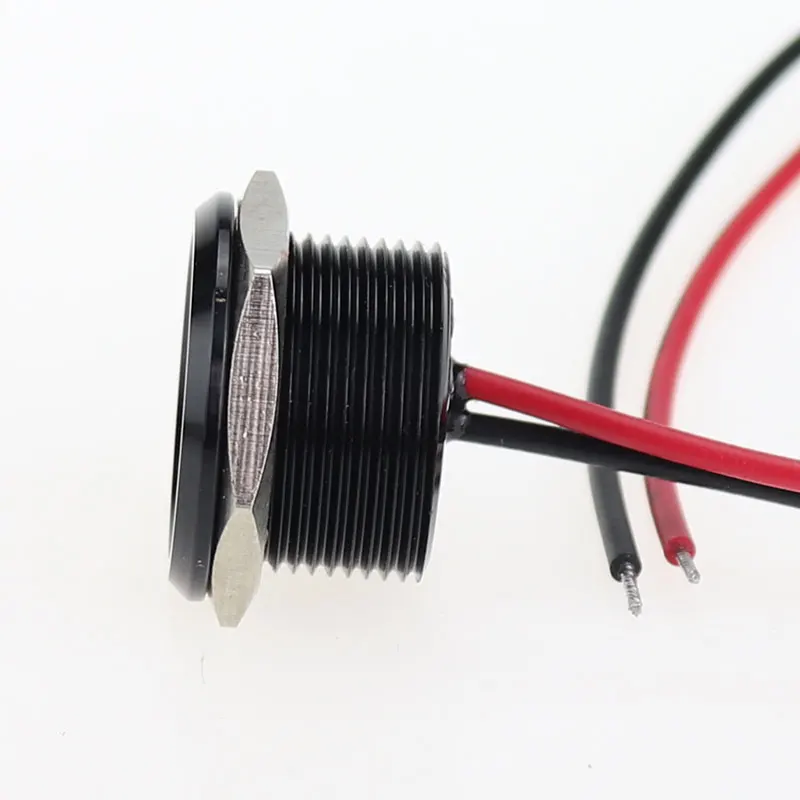

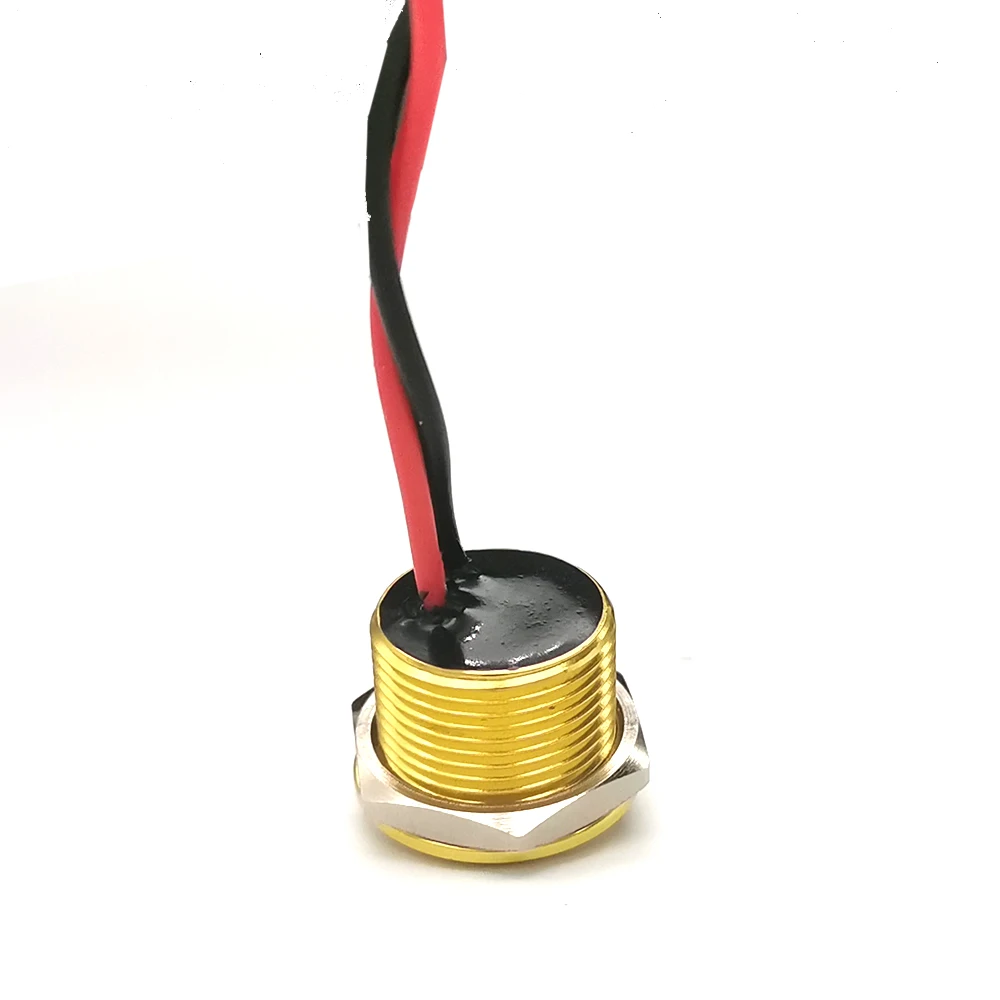

16mm 19mm 22 mm 25mm Aluminum high pressure anti vandal piezo touch switch,yellow red touch sensor switch
- Category: >>>
- Supplier: Yueqing Yueshun Electric Co. Ltd.
Share on (1600318901220):
Product Overview
Description
16mm 19mm 22 mm 25mm Aluminum high pressure anti vandal piezo touch switch,yellow red touch sensor switch
Quick Description

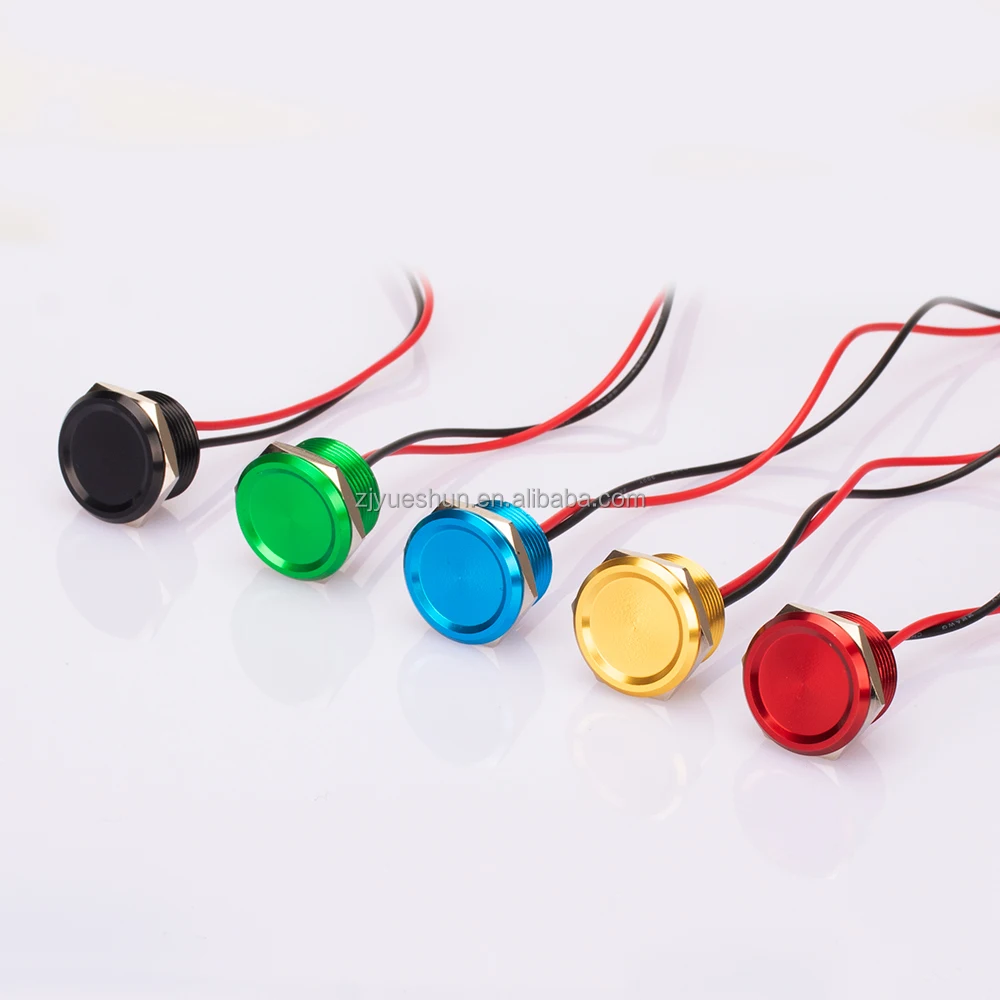

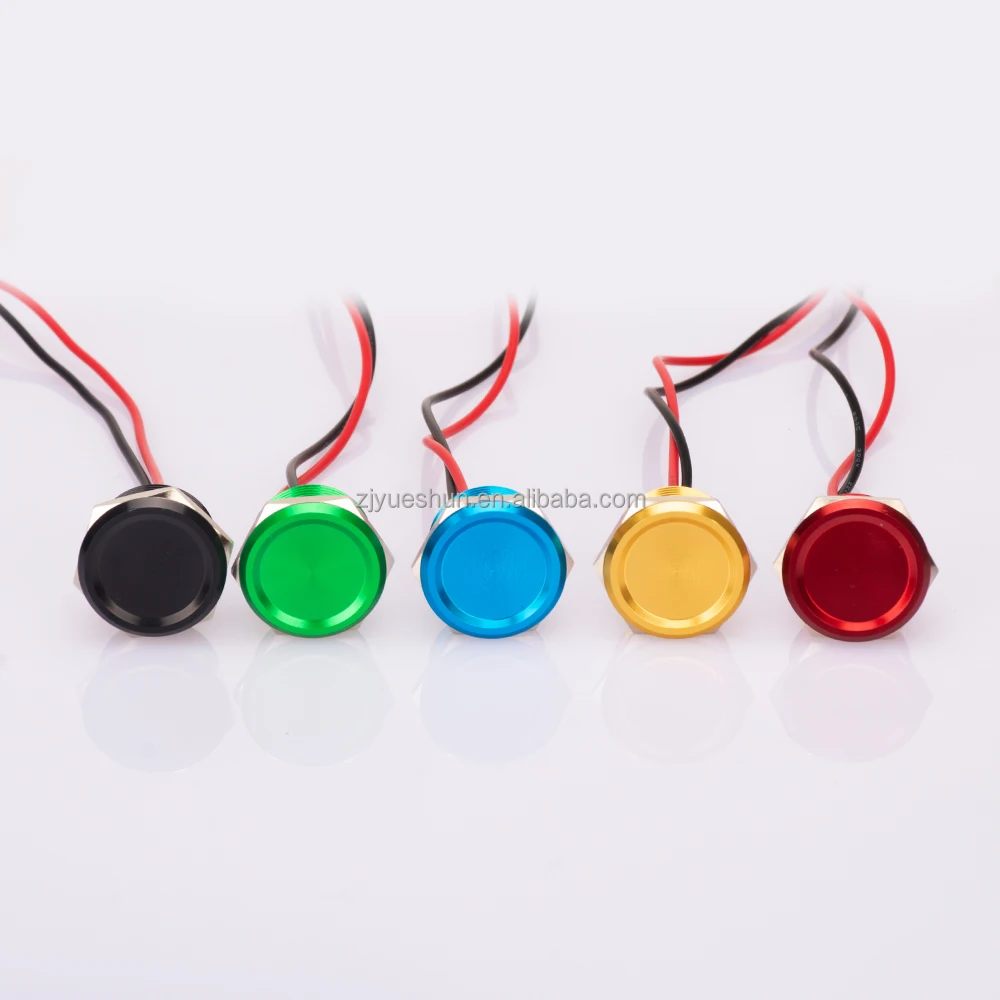

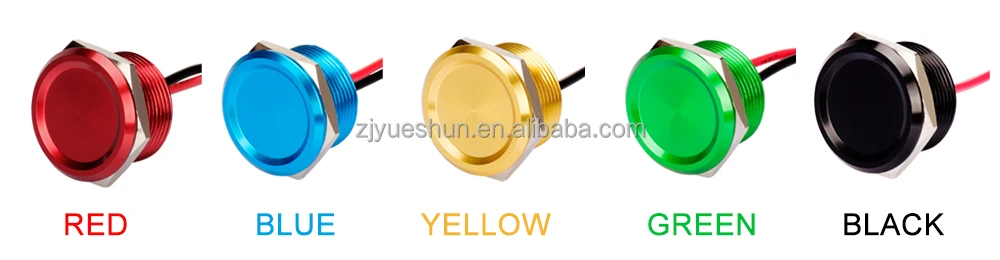

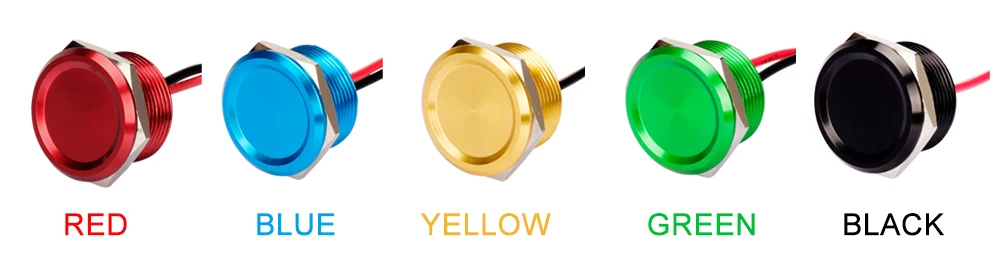

Colored Piezo switch
Mounting Size : 16~30 mm;
Switch Rating : 200mA , 24VDC
IP Class : IP68
Function :When you push it, it has short pulse contact about 50mS and will off soon no matter how long you push it!
Material ：Aluminium
Operating Type : Momentary / Latching
Switch Rating : 200mA , 24VDC
IP Class : IP68
Function :When you push it, it has short pulse contact about 50mS and will off soon no matter how long you push it!
Material ：Aluminium
Operating Type : Momentary / Latching
PRODUCT FEATURES | ||

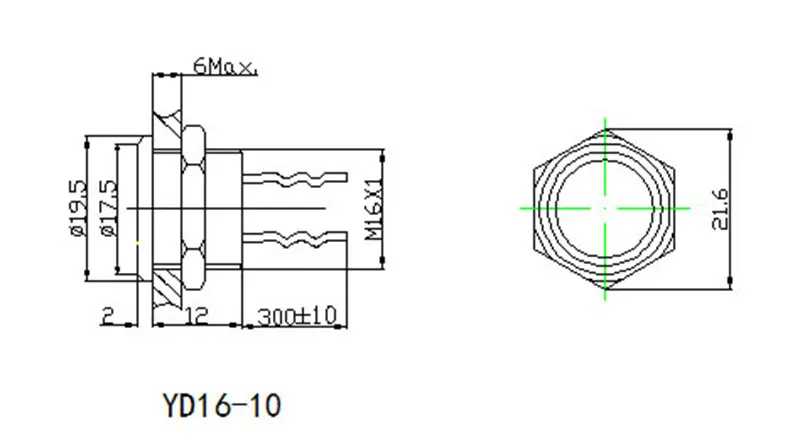

Install Diameter | 16-30mm | |
Operation Type | Momentary | |
Head Shape | Flat Round Head | |
Terminal Type | 2 wires of 0.22 square,30mm ( Wire length can be customized.) | |
Panel Thickness | 1-8mm | |
Pulse Time | Less than or equal to 50ms | |
PRODUCT MATERIALS | ||
Body Material | Aluminum | |
Button Material | Aluminum | |
ELECTRICAL SPECIFICATIONS | ||
Max Switch Rating | 200mA / 24V DC | |
Contact Resistance | ≤ 50mΩ | |
Insulation Resistance | ≥ 10000mΩ | |
Dielectric Strength | 2000VAC | |
Operating Life | More than 200000 cycles | |
ENVIRONMENTAL SPECIFICATIONS | ||
IP Degree | IP68 IEC529 | |
Operation Temperature | -40℃～+70℃ | |
Operating Pressure | About 3-5N | |
Operation Humidity | 10%-90% | |
Why Choose Us
Waterproof ,Dustproof ,Vandal Resistant
It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.Mechanical Life more than 100,0000 times,with long service life.
All our products have passed the CE, CCC, ROHS etc. certifications
Exquisite Workmanship
Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push buttons use 95% silver contacts,with good contactperformance.
High Quality Shell Material
High quality metal shell, durable and strong corrosion resistance, not easy to fade, excellent performance, IP67 protection level are great for all kinds of first level equipments.
Easy To Install
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use
Company Profile
Yueqing YueShun Electric Co., Ltd
Established in 2005, we focus on manufacturing high quality metal push button switches for more than 15years. We are one of thefamous domestic manufacturer in this area, and we have many stable customers overseas too, with cooperation for more than 10years.
We have professional engineers, workers, sales and service team to supply you with variety push button switches which are either
industry and market focused, as well as excellent quality and professional service.
industry and market focused, as well as excellent quality and professional service.
We enjoy a complete line of 8mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm 35mm 40mm push button switches and indicator.
In this 15 years, we helped many customers produce according to their requirements. So we are experienced in ODM and OEM . We will make more efforts to develop and innovate, to produce products more in line with market demand, and to provide dedicated services.
