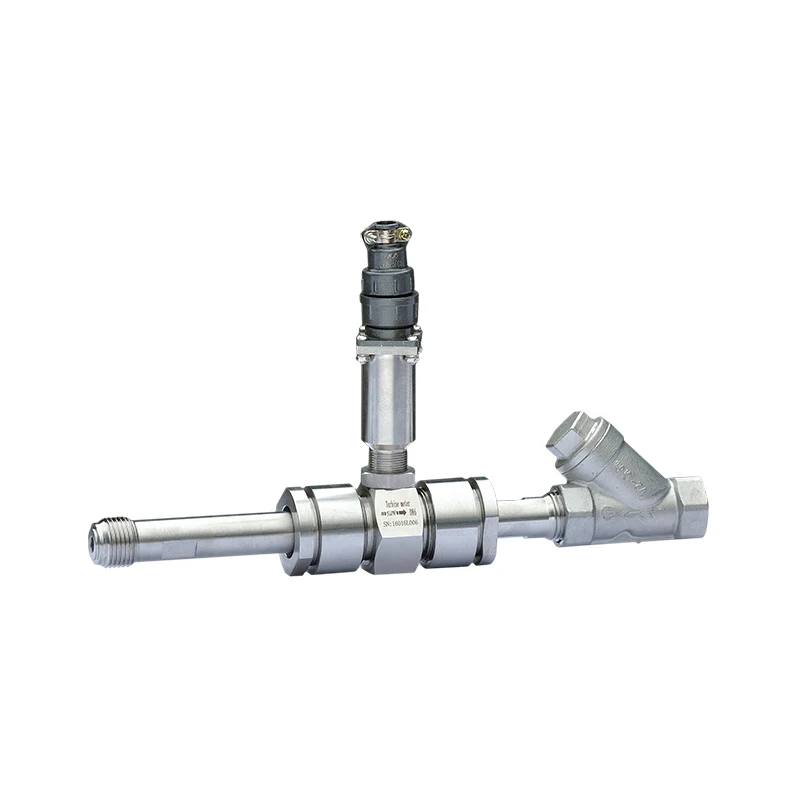

Stainless Steel Flow Meter Turbine Lpg Flowmeter With LCD Display
- Category: >>>
- Supplier: Chengdu Yuanda Mingyang Electronic Technology Co. Ltd.
Share on (1600318935664):
Product Overview
Description
Stainless Steel Flow Meter Turbine Lpg Flowmeter With LCD Display
Product Description
Turbine flow meter liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. This signal is converted into engineering units (liters, cubic meters, gallons etc.) on the local display where is applicable. Optional accessory modules can be used to export the signal to other equipment. It has the features, such as high accuracy, good repeatability, convenient installation/maintenance, simple structure etc.
Product features
1.The impeller of the sensor is made of special alloy bearing, which has good wear resistance and long precision.
2.Simple and firm structure, easy to assemble and disassemble and clean.
3.Multi point nonlinear correction, high precision, data power down for 10 years.
4.A variety of signal output, suitable for different occasions.
2.Simple and firm structure, easy to assemble and disassemble and clean.
3.Multi point nonlinear correction, high precision, data power down for 10 years.
4.A variety of signal output, suitable for different occasions.
Product Parameters | ||
(1)Measuring medium | Liquid,gas,steam | |
(2)Medium velocity | Liquid:0.5~7,gas:4~40,steam:7~70m/s | |
(3)Accuracy | Liquid:1.0,gas:1.5,insertion type:2.5 | |
(4)Nominal size | DN15~DN300(Pipe type,Gripping type) DN150~DN2000(insertion type) | |
(5)Medium temperature | -40℃~80℃,Middle temperature:-40℃~250℃,High temperature:-40℃~350℃ | |
(6)Nominal pressure | 1.0~6.3Mpa(>6.3 Customizable) | |

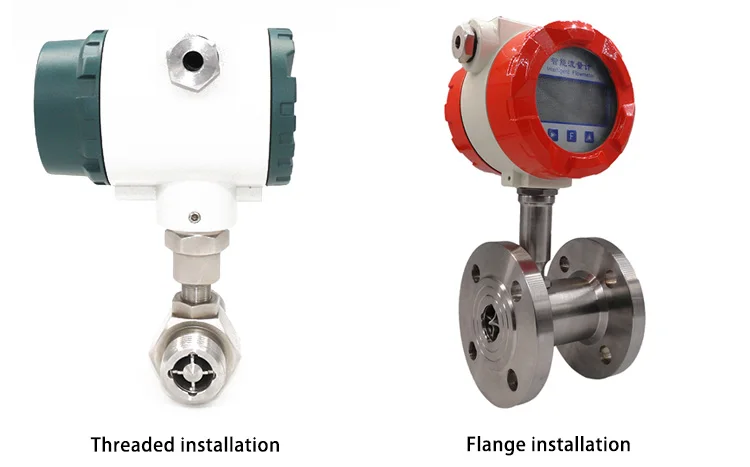

(7)Installation method | Flange,clamping,insertion | |
(8)signal output | Pulse+4-20mADC, RS485, HART | |
(9)Power Supply | 12V,24VDC(Three line pulse output) 24VDC(Two wire power supply) 3.6V lithium 7.5AH battery,2years lifetime(on the spot display) | |
(10)Electrical interface | M20x1.5,1.2''NPT | |
(11)Body material | 304.316L(Customizable) | |
(12)Head material | Cast aluminum shell,Stainless steel shell(Customizable) | |
(13)Protection grade | IP65 | |
(14) Explosion-proof grade | EX II BT4Gb, EXI II aBT4Ga | |

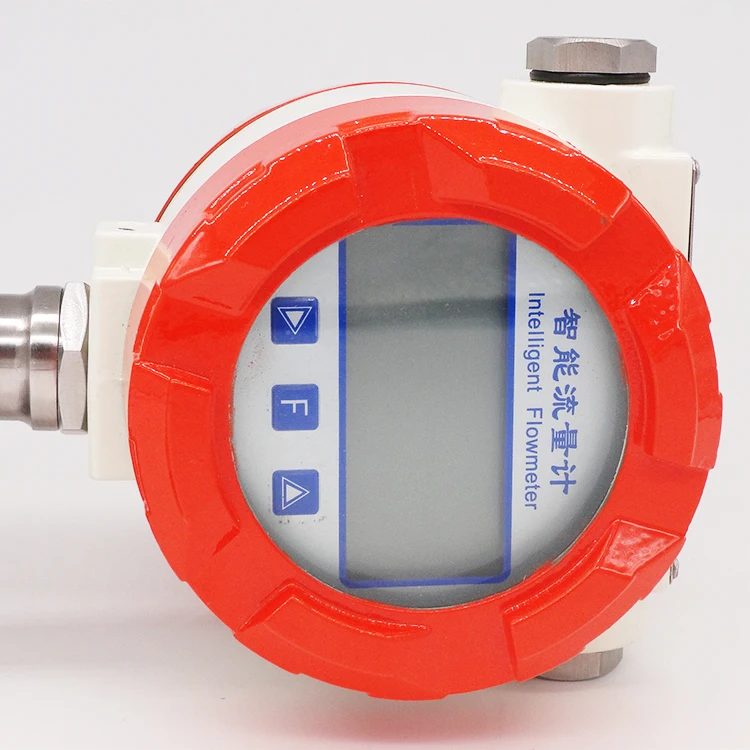

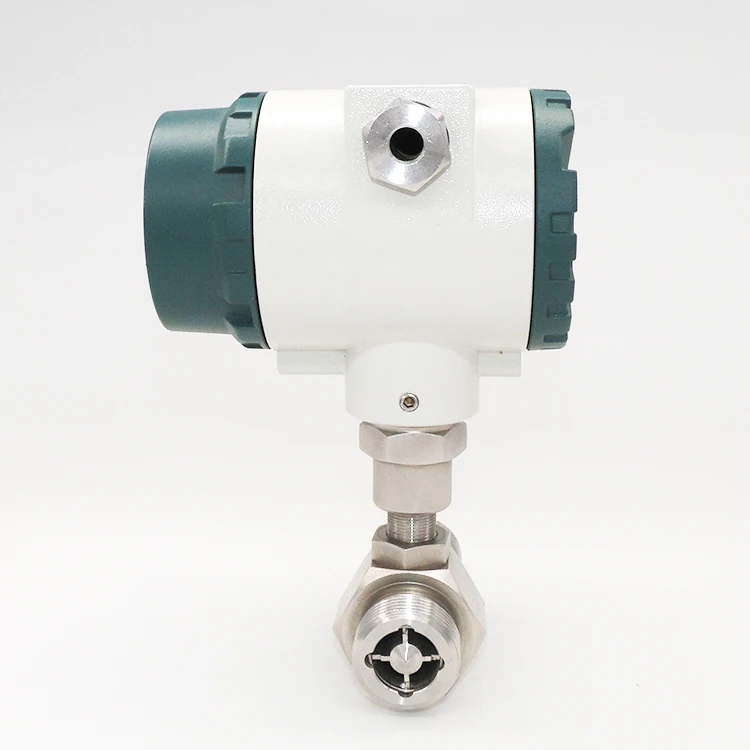

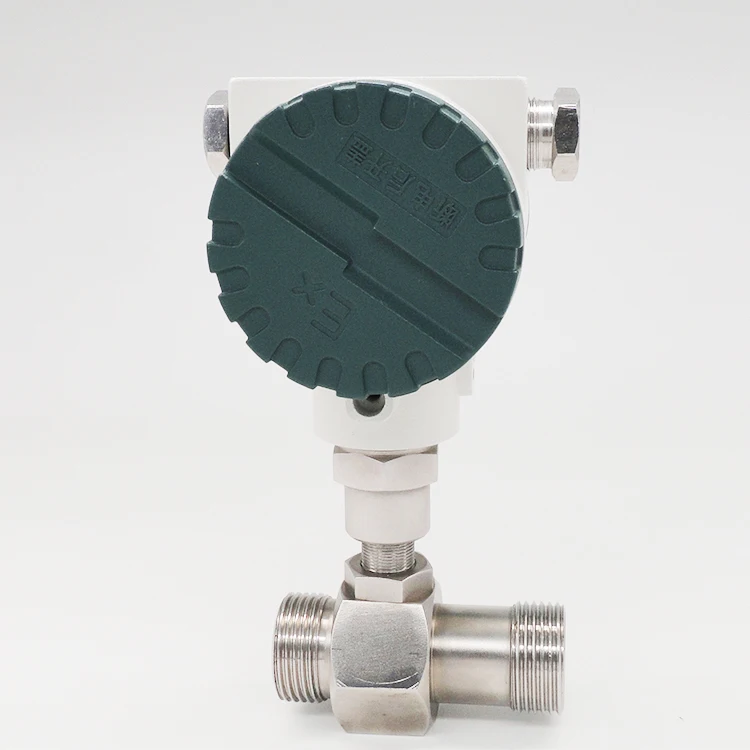

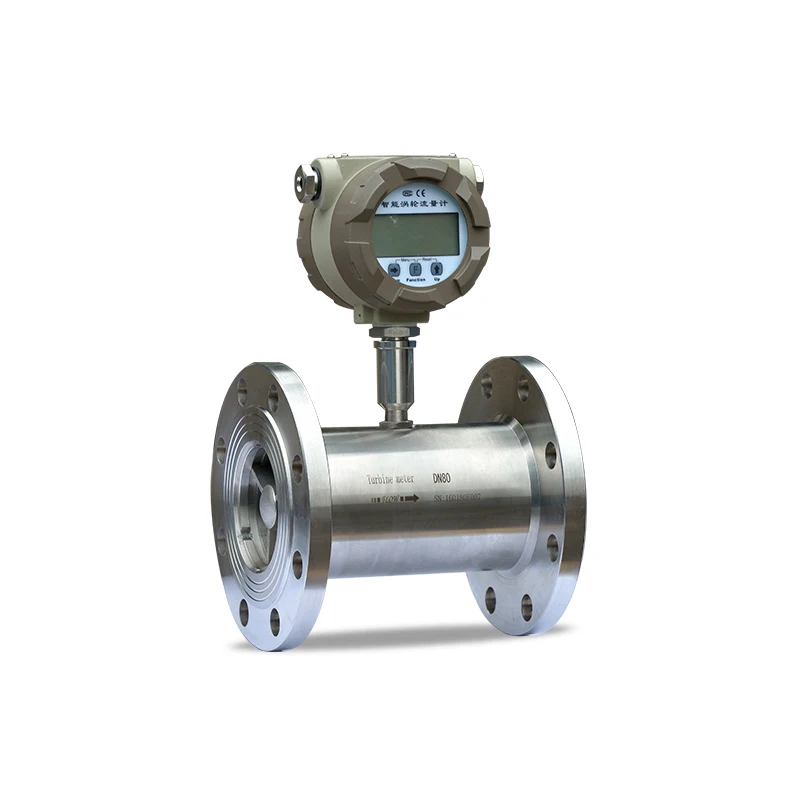

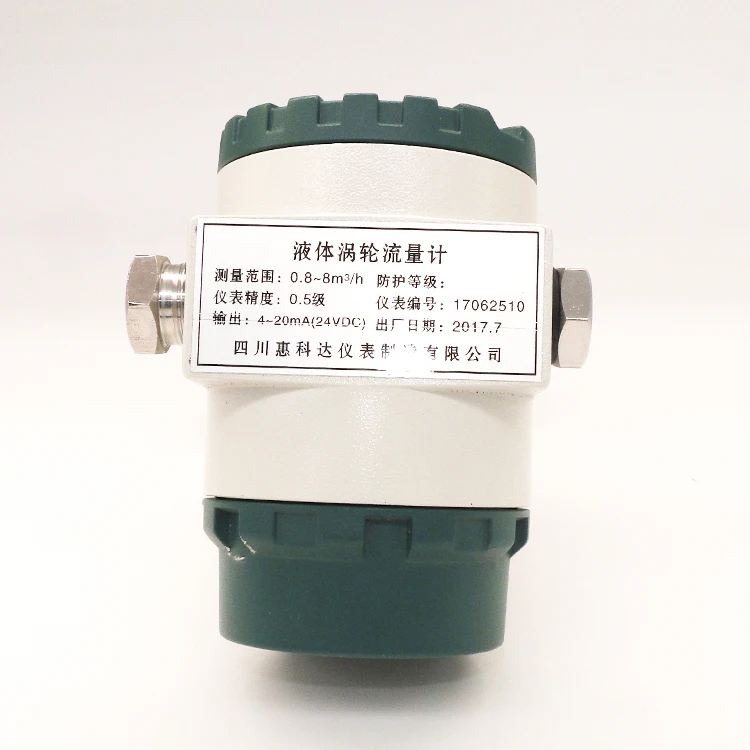

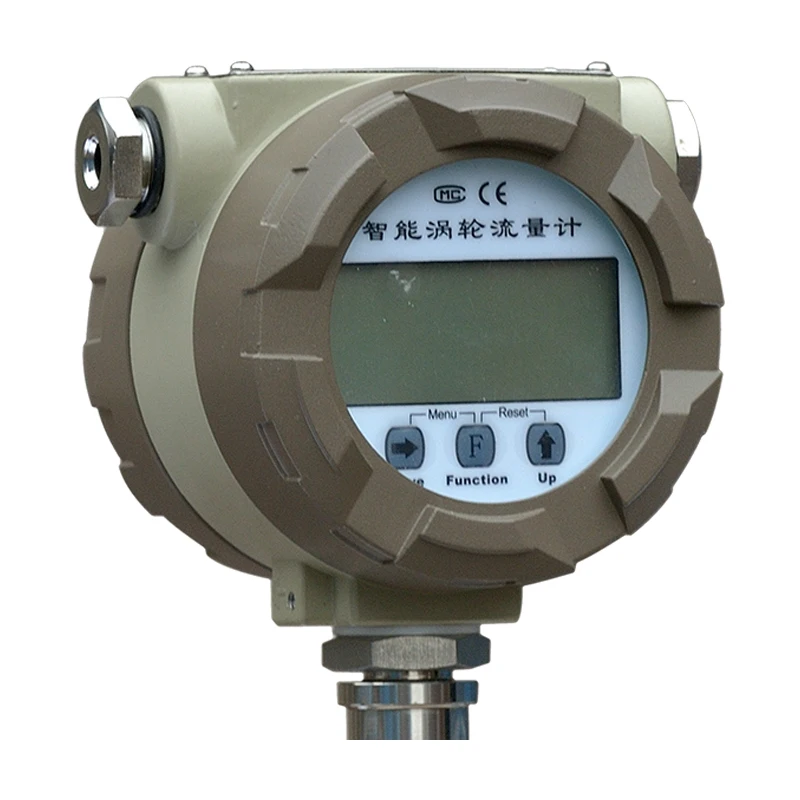

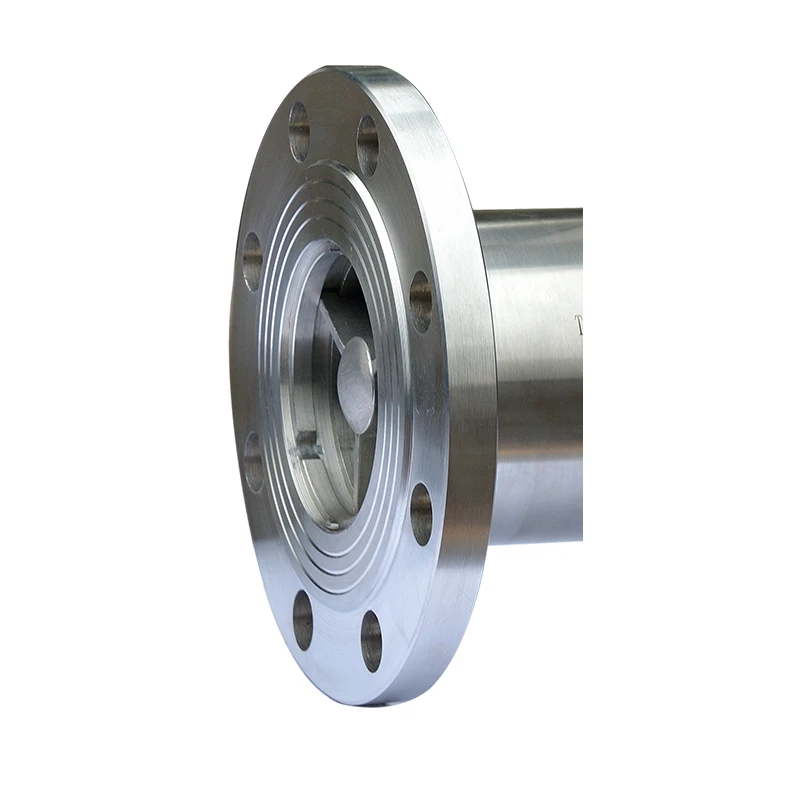

Detailed Images
About us
Yuanda electronics focuses on the research and innovation of sensor technology, focusing on the accurate measurement and perfect control of high temperature melt pressure and temperature. The products have been widely used in chemical fiber textile, rubber and plastic, new materials, nonwovens, water treatment, aerospace, military, petroleum, chemical, power station, automation equipment manufacturing, pharmaceutical, food and other industries. Quality assurance Products are manufactured in strict compliance with ISO and CE directives and in full compliance with RoHS requirements. Based on large production plants and excellent international equipment, Yuanda Electronics is recognized for its inspection, testing and calibration throughout the world and provides experienced OEM services. The sales and after-sales technical service team has won the good reputation and great trust of thousands of customers around the world.
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
Packaging & Shipping
FAQ
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: What's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: What's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
