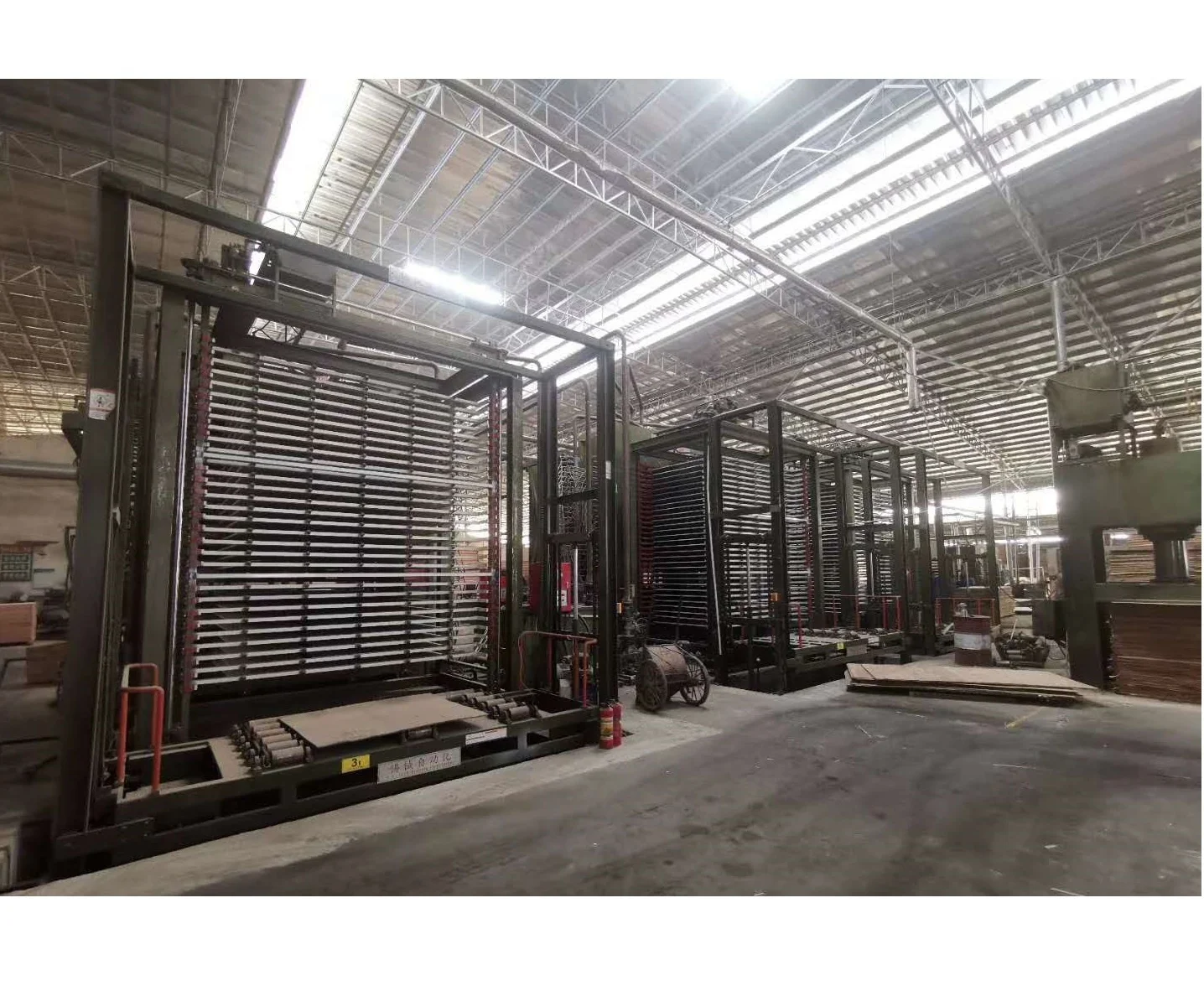

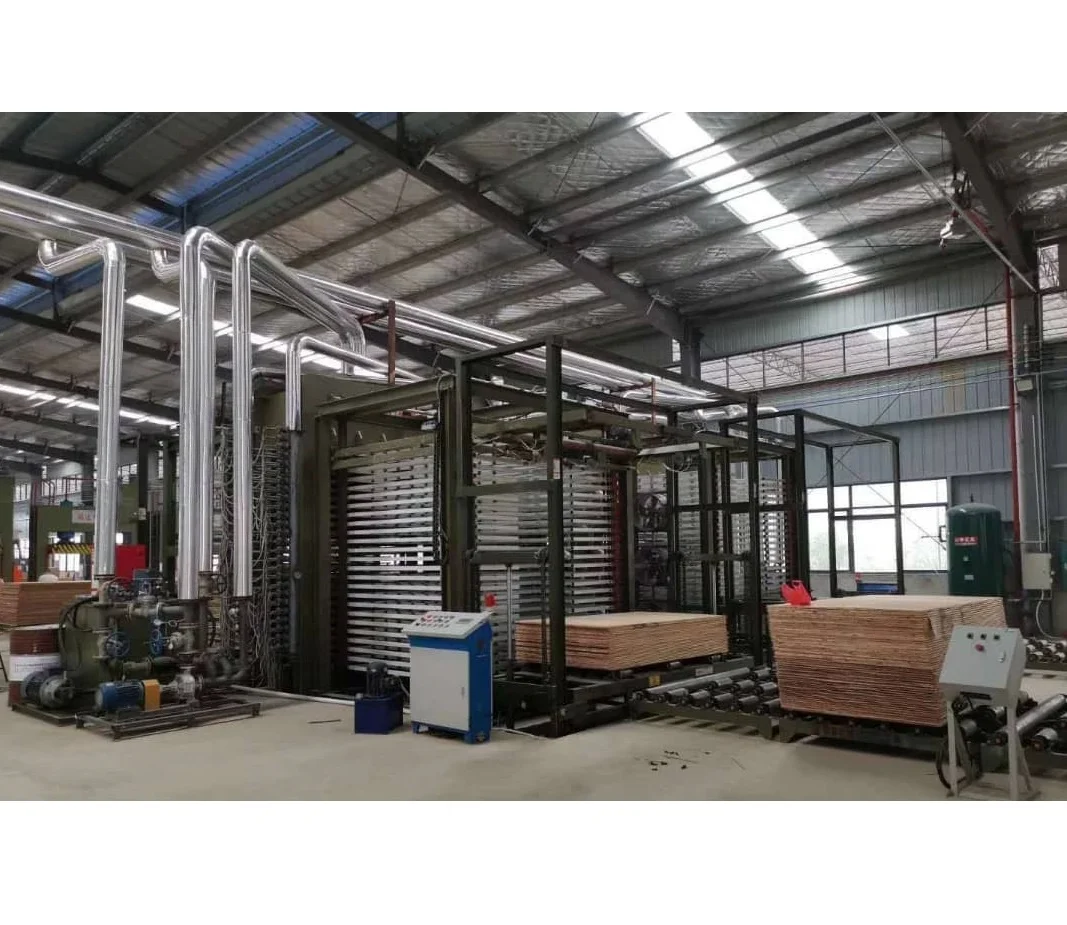

Good quality wood roller hot press laminator machine

Share on (1600319035773):


Price:$11,000.00

Quantity:


Product Overview

Description



Product Description




 4..5





1

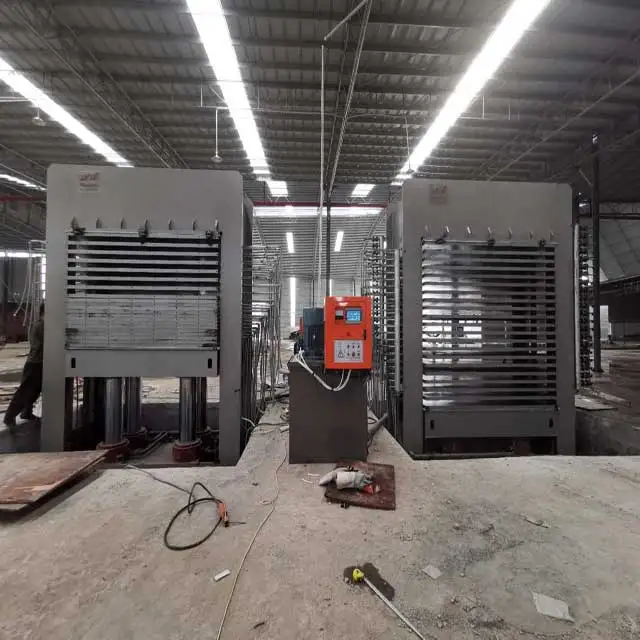

Plywood hot press machine is used for the final formulation of plywood, it is the most important machine in plywood production. Hot press machine is one of the most important machines in plywood production. It determines production efficiency and the quality of final products.
Hot pressing system, heating system, heat conduction system, low heat consumption, meticulous design, uniform heat conduction, high-precision mechanically processed parts, wide range of process parameters adjustment control process, reasonable design to meet various plywood production process requirements.






































































Total pressure


640tons


Board feeding direction


From the long side


Pressure


0-25mpa


Hot Press Plate Size


2700*1370*42mm double inlet and outlet


Cylinder diameter and stroke


Φ360x2, 1050mm


Frame


Bolt connected


Layer number


15 layers


Layer space


70mm


hot press plate number


16


total power


20.5kw


oil cylinder


origin in Wuxi


power


380v 20.5kw 50hz


upper/lower/middle beam


900mm/900mm/400mm


Frame thickness


main body: 35mm, Q235


Hydraulic system


automatic hydraulic


Weight


33 tons

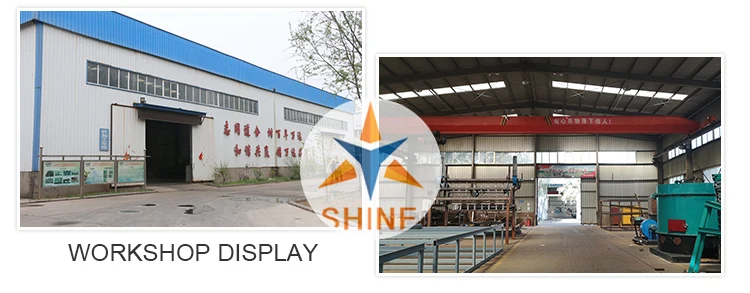

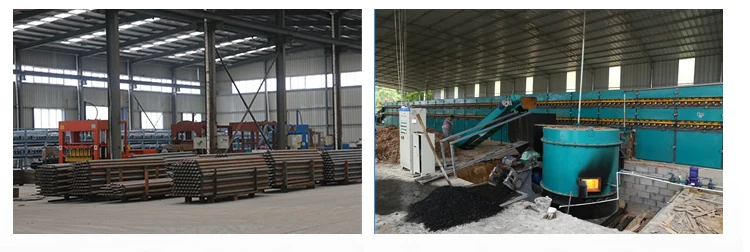

Company Information







Shandong  Shine Machinery Co., Ltd.  is a large-scale enterprise specializing in R&D and production of veneer rotary cutting and veneer dryer equipment. Since its inception, the company has been adhering to the vision of “making first-class corporate contributions, building first-rate enterprise talent, creating first-class corporate brand,implementing modern enterprise management system, using new sales concepts and service systems, and investing 10 million yuan in scientific research each year. It also combine industrial universities to study high-end technology, so that Shine's veneer dryer products are always at the forefront of the industry's technology.  Shine roller veneer dryer products are sold to various provinces and cities in the country, and exported to Russia, South Africa, Southeast Asia and many other countries and regions.




We have a professional R&D team that can design different models according to customers special requirement. Perfect after-sale service system can supply 24h online service, remote operation is available on request, regular customer visits, sufficient spare parts supply in time.
