Заводская поставка, горная поддержка, цельнорезьбовой стальной Якорный болт с пластиной и гайкой Anto
- Category: >>>
- Supplier: Anto Mining Equipment Co. ltd.
Share on (1600319089940):
Product Overview
Description
Product Description

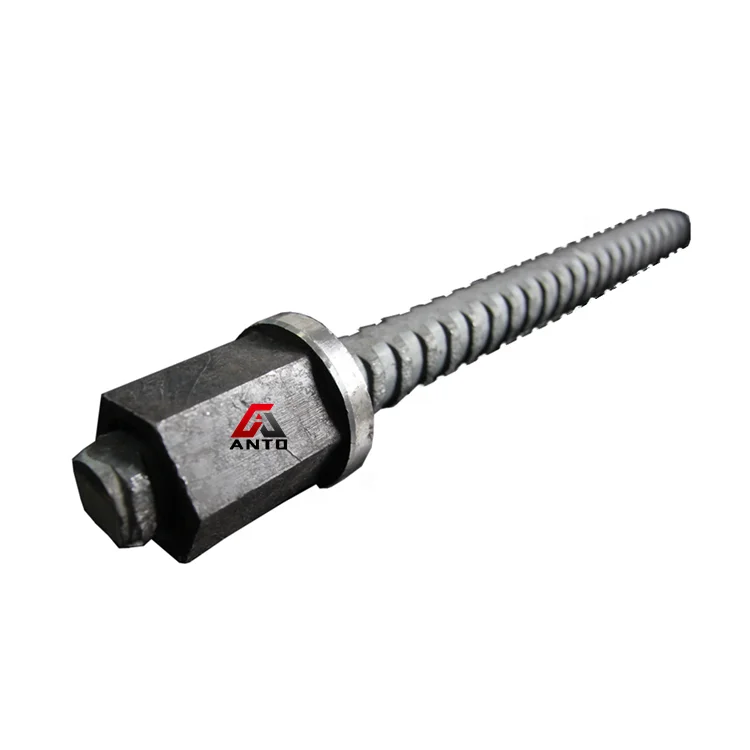

Threaded Rebar Bolts(mining threaded steel rock bolt) are mainly used in mines where rock formations such as coal mines are not hard enough. bolts are generally used together with anchoring agents to achieve end anchoring or full anchoring in mines.
ANTO rebar rock bolt is made of high-strength HRB500 or HRB600, which can provide high load-bearing capacity to protect mine safety.Compared with other bolts, it can be installed using ordinary foreign drilling rigs, which saves installation costs.
ANTO threaded steel rock bolt, the threads are distributed throughout the rod body, increasing the moving length of the nut, if the anchor rod support is loose in the later stage, tighten the nut, and the anchor rod restores the support force.
ANTO rebar rock bolt is made of high-strength HRB500 or HRB600, which can provide high load-bearing capacity to protect mine safety.Compared with other bolts, it can be installed using ordinary foreign drilling rigs, which saves installation costs.
ANTO threaded steel rock bolt, the threads are distributed throughout the rod body, increasing the moving length of the nut, if the anchor rod support is loose in the later stage, tighten the nut, and the anchor rod restores the support force.
■Detail Images
Product Paramenters
Item No. | Diameter | Material 500Mpa | Material 600Mpa | Length | ||||||||
Min Yield | Max Breaking | Elongation | Min Yield | Max Breaking | Elongation | |||||||
ATLF16 | 16mm | 98 | 140 | ≥15% | 120 | 170 | ≥15% | 1-6meters | ||||
ATLF18 | 18mm | 125 | 178 | ≥15% | 150 | 210 | ≥15% | 1-6meters | ||||
ATLF20 | 20mm | 157 | 220 | ≥15% | 188 | 260 | ≥15% | 1-6meters | ||||
ATLF22 | 22mm | 190 | 265 | ≥15% | 227 | 310 | ≥15% | 1-6meters | ||||
ATLF25 | 25mm | 245 | 340 | ≥15% | 290 | 410 | ≥15% | 1-6meters | ||||
Product Advantages
Advantages of Threaded Rebar Bolts:
1. Made of high-strength material, high supporting force.
2. The threads are distributed throughout the rod, increasing the movable length of the nut.
3. Used together with anchoring agent to achieve end anchoring or full anchoring.
4. Black or hot-dip galvanized.
Product Application
