Hot selling GGSCX 1000 high efficiency automatic nursery seeding machine with PLC control and man machine touch screen

Product Overview

Description



^{GGSCX-1000 seeds sowing machine 1000 trays per hour hihg efficiency seeder machine for foam trays with factory price}

^{Hot selling GGSCX-1000 hihg efficiency automatic nursery seeding machine with PLC control and man-machine touch screen}

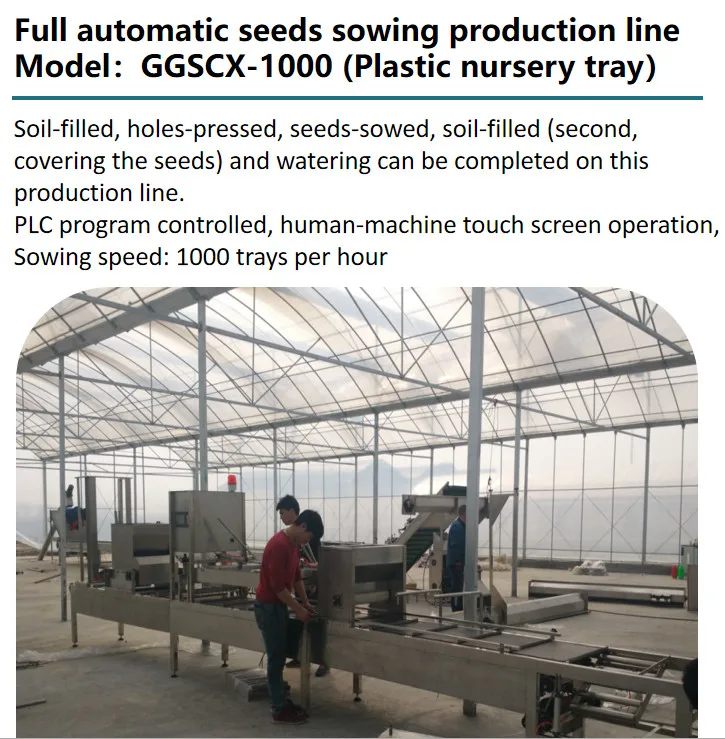

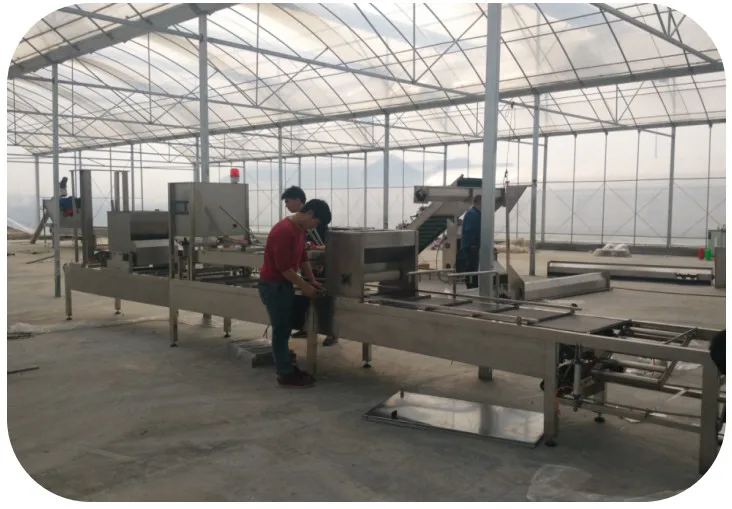

^{Soil-filled, holes-pressed, seeds-sowed, soil-filled (second, covering the seeds) and watering can be completed on this production line. PLC program controlled, human-machine touch screen operation, Sowing speed: 1000 trays per hour}

Production line technical parameters
Model	GGSCX-1000 (PLASTIC TRAY)
Size	6810*1089*1757
Seedling tray specifications	International standard size54*28cm(32—288Interchangeable seedling trays)
Sowing range	Spherical,Non-spherical0.1-5.0mm size(No fluff on the seed surface, no need to pelletize)
Sowing method	Needle seeding
Seeding accuracy	Spherical seeds≥95%,Non-spherical seeds≥90%
Sowing efficiency	1000tray/hour
Seedling tray specifications	Sample
Sprinkle	Suction type, with blowing Double-station fully enclosed structure, adjustable water volume, equipped with drain pan
	Main material specifications of automatic seeding system
Fan	Taiwan KIMPO high vacuum fan
Power supply	Standard two-phase power supply 220VAC 50HZ
Matrix loading bin	1.5 stainless steel plate
	Sawtooth conveyor belt, stainless steel conveyor belt shaft diameter 101mm
Frame	45x75x2.0 stainless steel square tube, side plate 1.5mm stainless steel plate
Conveyor chain	Stainless steel 08B chain, plus side plate, 1.5mm stainless steel baffle
Bottom plate	20mm thick pvc foam board
Seeding system	1.5mm stainless steel plate, 2.5mm stainless steel plate for track plate
Power system	Xinjie 0.75KW servo + Shengbang 0.75KW reducer



^DETAILS:

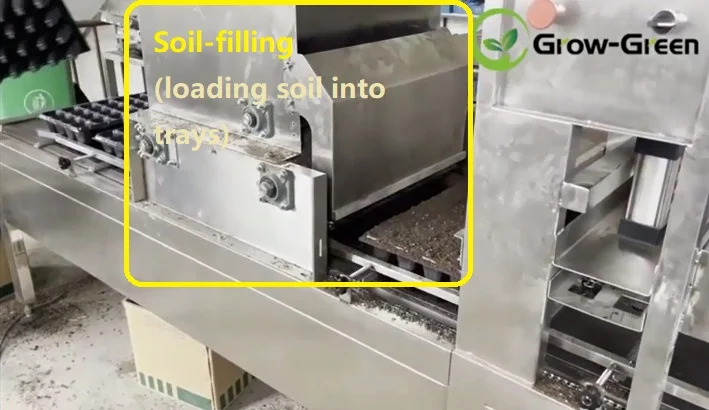

^{First step: soil-filling automatically}

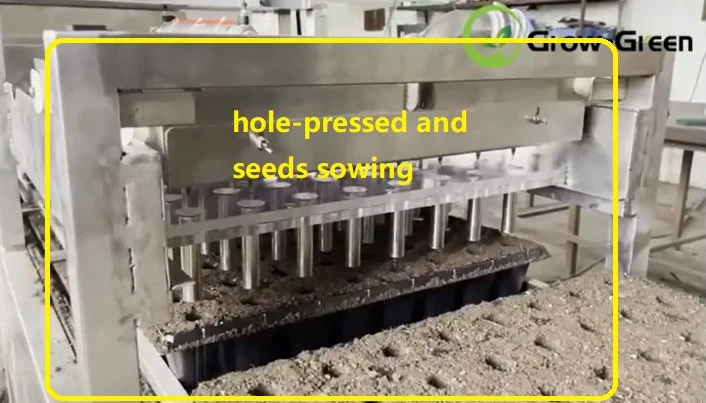

^{Second step: hole-pressing and seeds sowing automatically}

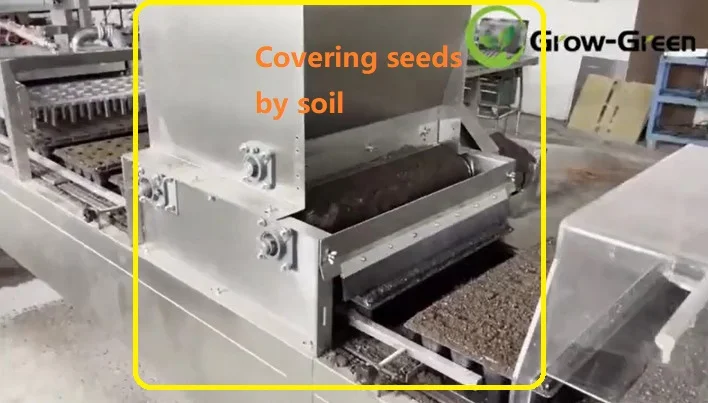

^{Third step: covering the seeds by by soil automatically}

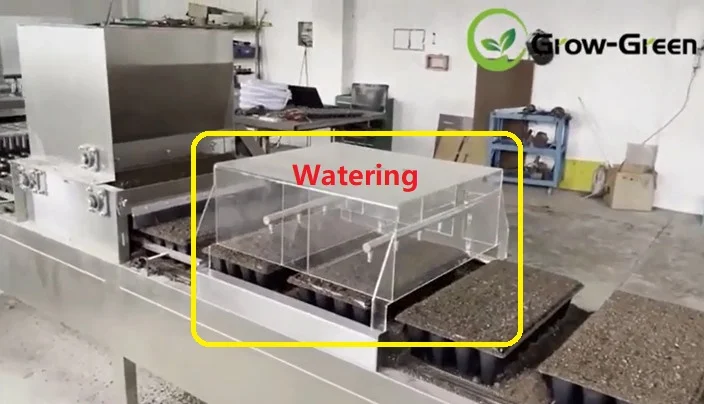

^{Fourth step: watering automatically}







 Overview
This Vacuum Plug Tray Precision Seeder is designed and produced according to the
actual request of domestic vegetable flower seedling production, research and development. It fully meets the technical request of seed planting from large and medium-sized seedling
production enterprises, agricultural production cooperatives, private farms and flower production
base. It greatly increases the efficiency for plug tray seedling planting and seedling productivity. It also greatly reduces the labor costs in planting seedling production.
This Plug Tray Seeder is easy to operate. Users only need provide 220v universal power and it can work immediately, no need professional maintenance staff. The machine is small size, light weight,      flexible      operation       and     simple      structure.       Completing       hole     pressing      /seed

sucking/seed sowing continuously.

1.750w high quality turbo fans with strong suction power.
2.Main structure is made of high-quality stainless steel.
3.According to different seeds and sowing requirement, it will be equipped with corresponding
sowing plate and the suction needles. The machine is applied to the biggest seeds like pumpkin,
peas, corn, peas, melons, etc., the smallest seeds like petunias (tens of thousands of grain per
gram), celery, cabbage, etc. and conventional seeds like hot pepper, tomato, grass, etc.
4.The optional sowing plates can match international standard 54*28cm plug tray with 288, 200,
128, 105, 98, 72, 50, 32 holes. (This machine is specially equipped with full set of plates for 288
holes, 200 holes and 105 holes. For big seeds like pumpkin seed, please use 105-hole and
below plug tray)
5.One tray at a time while sowing. Sowing speed 400-500 trays per hour. Sowing rate: 95% - 98%.









Full Tray Seed Sucking and Sowing

Faster and accurater
