Product Overview
Description
Laser Cutter Introduction

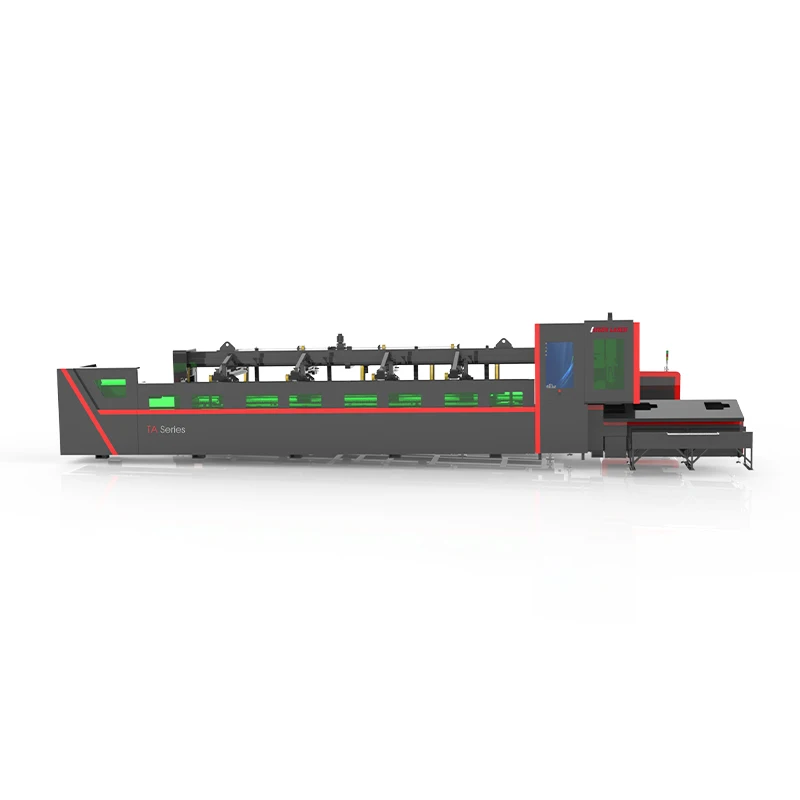

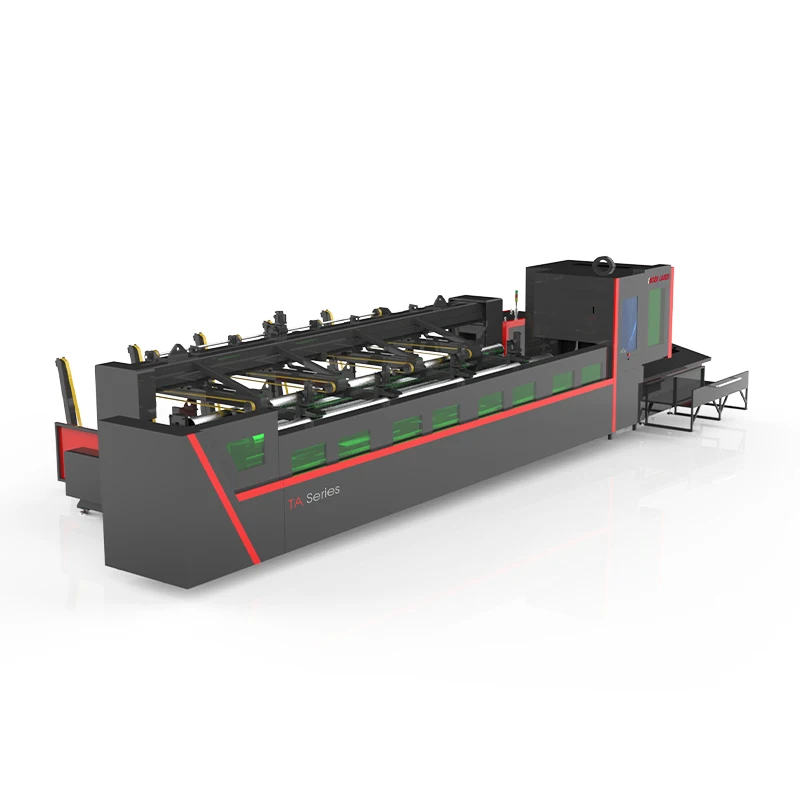

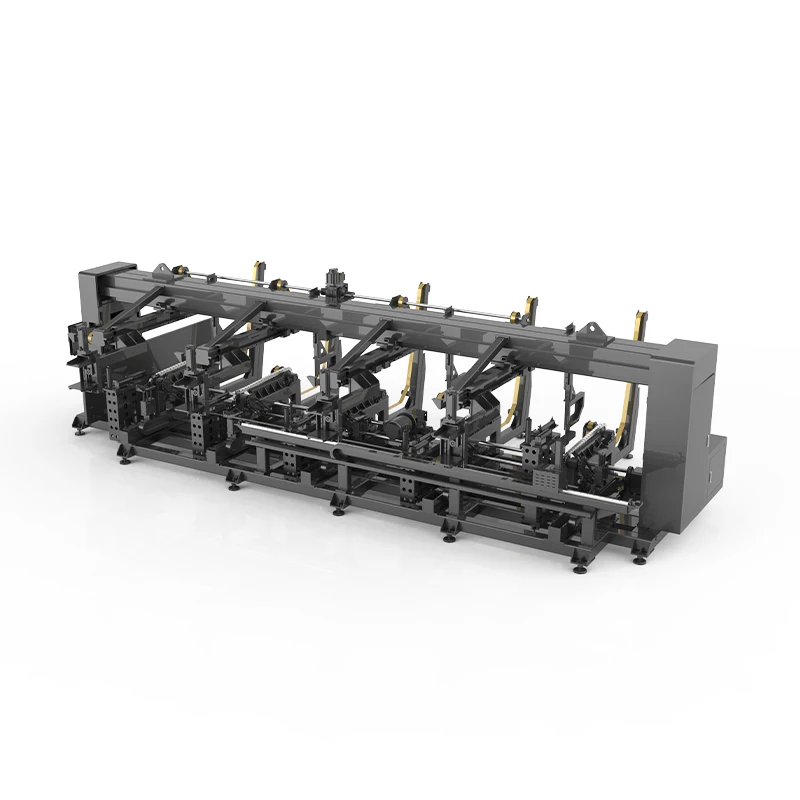

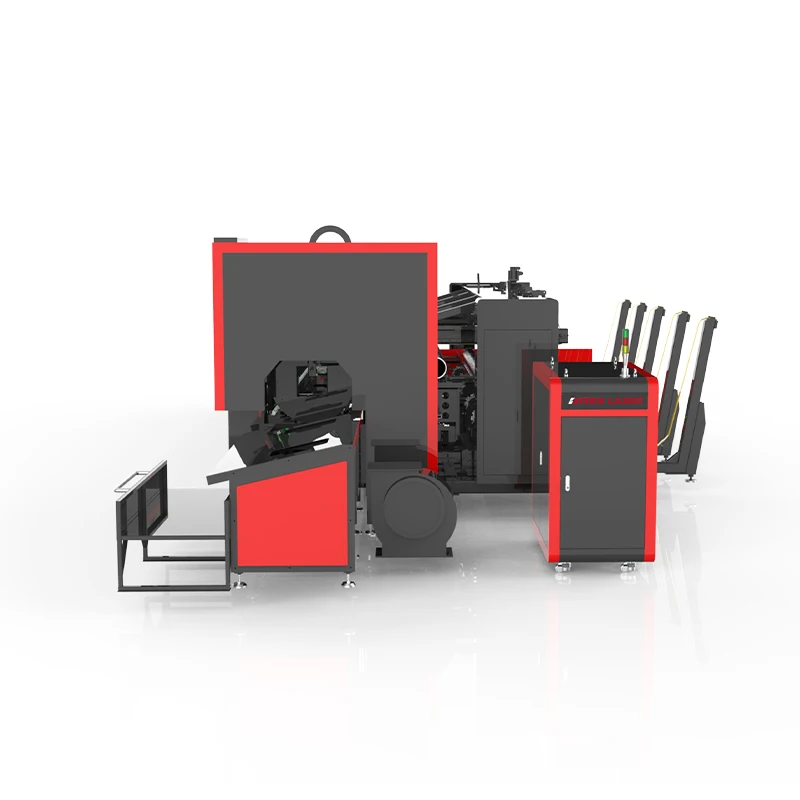

Auto feeding tube fiber laser cutting machine

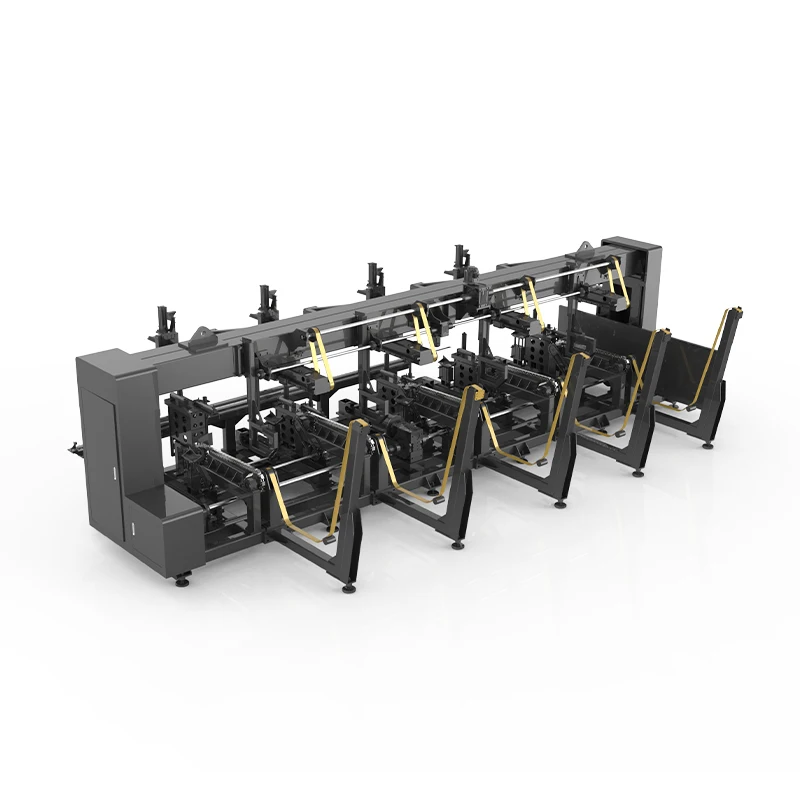

Disen Automatic fiber laser pipe cutting machine adopts pipe section identification system, automatic bundling feeding system, automatic sorting system of finished pipe fittings, floating trusteing institution of pipe, intelligent remote monitoring system, automatic measuring system of tube sheet length, etc.
Laser Cutter Features
Laser Cutter Advantages
1.Innovative Design, Tailing-free Cutting:
Machine body: welded with 10mm-thick pipe. The machine weights 6000kg, and equipped with compression block and dust cloth to ensure accuracy and realize pollution prevention
Head: Integral cast aluminum head assembly in light weight and strong rigidity. Equipped with precision lead screw to ensure the stable operation of Z-axis.
Innovative three-chuck design, higher cutting speed and precision to achieve zero-tail cutting (≤20mm). With automatic lifting cutting protective door and real-time monitoring screen, it can achieve high quality, efficient and safe operation of the machine.
2.Double-sided support pneumatic follow - up bracket:Unique structure design to prevent tube sagging deformation. Real-time feeding to improve cutting accuracy and stability, and also prolong the service life of chuck and transmission structure.
Laser Cutter Paramenters
Model | TS series | ||
Working Area | 7500mm | 7000mm | |
Laser Power | 1000w/1500w/2000w/3000w/4000w | ||
Max. Acceleration | 1.0G | ||
Max. Linkage Speed | 120r/min | 100r/min | |
Pipe wall thickness | 0.8mm-16mm | ||
Positioning Accuracy | 0.05mm | ||
Repositioning Accuracy | 0.05mm | 11000*2000*2000mm | |
Machine Weigth | 8000kg | 2500kg | |

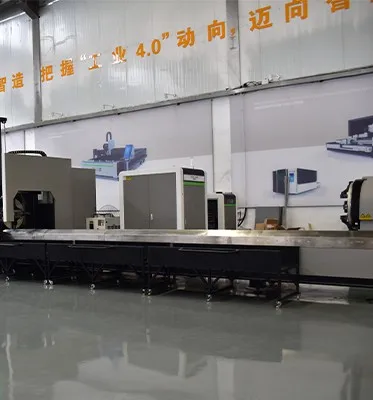

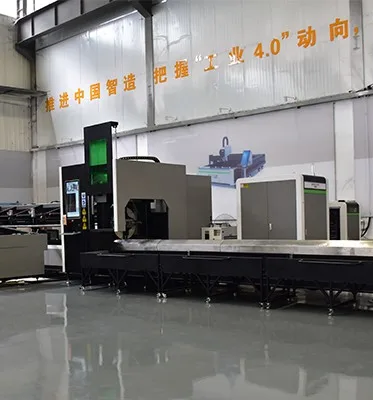

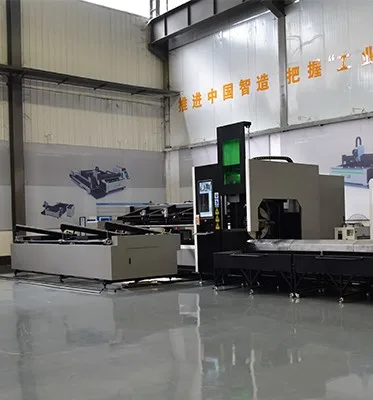

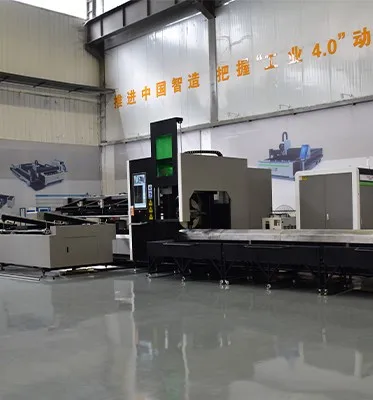

Company Profile
DISEN LASER, as a professional laser application solution supplier, engaged in the research, development, production, sales and service of laser machines, production mainly covers fiber laser cutting machine, CO2 laser engraving machine, laser marking machine, fiber laser welding machine and fiber laser cleaning machine. When you choose Disen Laser, you choose the most expedient entry into the world of laser processing.
Disen Laser machines are renowned for their reliability and superb quality. That's because our quality assurance standards are deeply embedded in our corporate culture and are rigorously applied on a worldwide basis. We are continuously optimizing our processes, products and services. Disen Laser produces all of its machines on synchronized, standardized flow lines, because optimum quality can only be achieved through reliable processes.
The laser equipment has exported to several countries and regions around the world. We accept and organize the feedback and suggestions from customers from different countries and regions every day. We believe that it’s the best way to improve and optimize our products, and help us to provide products and services that meet customers’ expectations.
Disen Laser machines are renowned for their reliability and superb quality. That's because our quality assurance standards are deeply embedded in our corporate culture and are rigorously applied on a worldwide basis. We are continuously optimizing our processes, products and services. Disen Laser produces all of its machines on synchronized, standardized flow lines, because optimum quality can only be achieved through reliable processes.
The laser equipment has exported to several countries and regions around the world. We accept and organize the feedback and suggestions from customers from different countries and regions every day. We believe that it’s the best way to improve and optimize our products, and help us to provide products and services that meet customers’ expectations.
Product packaging
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole filmpackaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template.
